The geomagnetic field was quiet on October 10. Solar wind speed at SOHO ranged between 307 and 378 km/sec. The high latitude magnetometer at Andenes recorded very quiet levels.
Solar flux density measured at 20h UT on 2.8 GHz was 164.4 - increasing 19.8 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 155.07. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.8). Three hour interval K indices: 12110000 (planetary), 12122320 (Boulder), 11010100 (Andenes).
The background x-ray flux is at the class C1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 300) and in 14 active regions using 1K resolution (SN: 198) SDO/HMI images.
Region 13451 [N16W74] lost spots and appeared
to be less complex after the M flares than during the previous day. An M class flare is
possible while the region transits the northwest limb. C1 flares: C1.4 @
03:38, C1.8 @ 23:11 UT
Region 13452 [N08W82] lost all trailing spots and had only tiny
leader spots by the end of the day.
Region 13454 [S10W56] was quiet and stable.
Region 13457 [S13W14] decayed slowly and quietly.
Region 13460 [S11W02] displayed slow decay. There is still a chance
of an M class flare. C1 flares: C1.5 @ 04:14. C1.3 @ 04:35, C1.4 @ 08:50 UT
Region 13461 [N11E12] decayed slowly and quietly.
Region 13462 [N18E39] developed and could produce C flares.
Region 13463 [S18E47] gained spots and was quiet.
New region 13464 [N04E63] emerged near the northeast limb on October
9 and was numbered the next day by SWPC. A magnetic delta structure could be
forming in a southern penumbra. C flares are likely and there is a chance of
a minor M class flare.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9036 [N26W10] was quiet and stable.
S9037 [S13W65] decayed slowly and quietly.
S9040 [N08E20] was quiet and stable.
S9041 [S28W61] decayed slowly and quietly.
New region S9047 [S22W48] emerged with a few spots before noon,
then decayed slowly.
New region S9048 [N10E82] rotated into view
with a large, mature penumbra.
New region S9049 [S05E11] emerged with tiny spots.
New region S9050 [S13E11] was observed with tiny spots in an old
plage area.
New region S9051 [S23E24] was observed with
tiny spots in an old plage area.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.1 | 01:15 | 13451 | GOES16 | ||
| C4.1 | 01:42 | 13460 | GOES16 | ||
| C4.6 | 01:51 | 13451 | GOES16 | ||
| M1.6 | 02:09 | 13451 | GOES16 | flare spanned both ARs 13451 and 13452 | |
| C2.0 | 06:39 | N16W64 | 13451 | GOES16 | |
| C2.7 | 10:45 | 13451 | GOES16 | ||
| C6.0 | 12:00 | N13W66 | 13451 | GOES16 | |
| M2.3 | 12:17 | N13W68 | 13451 | GOES16 | flare spanned both ARs 13451 and 13452 SWPC states N09W69 as the flare origin, however that is only valid for the smallest flare center in AR 13452 |
| C3.4 | 13:54 | 13464 | GOES16 | ||
| C2.9/1N | 15:54 | N05E71 | 13464 | GOES16 | |
| C2.4 | 16:53 | N04E71 | 13464 | GOES16 | |
| C2.2 | 18:48 | S9048 | GOES16 | ||
| C2.1 | 20:28 | 13452 | GOES16 | ||
| C2.2 | 20:36 | 13460 | GOES16 | ||
| C4.3 | 21:21 | 13460 | GOES16 |
October 8-10: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A trans equatorial coronal hole (CH1178) was Earth facing on October 8-9.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is very good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to active on October 11-12 due to effects from CH1178. Quiet conditions are likely on October 13-14.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

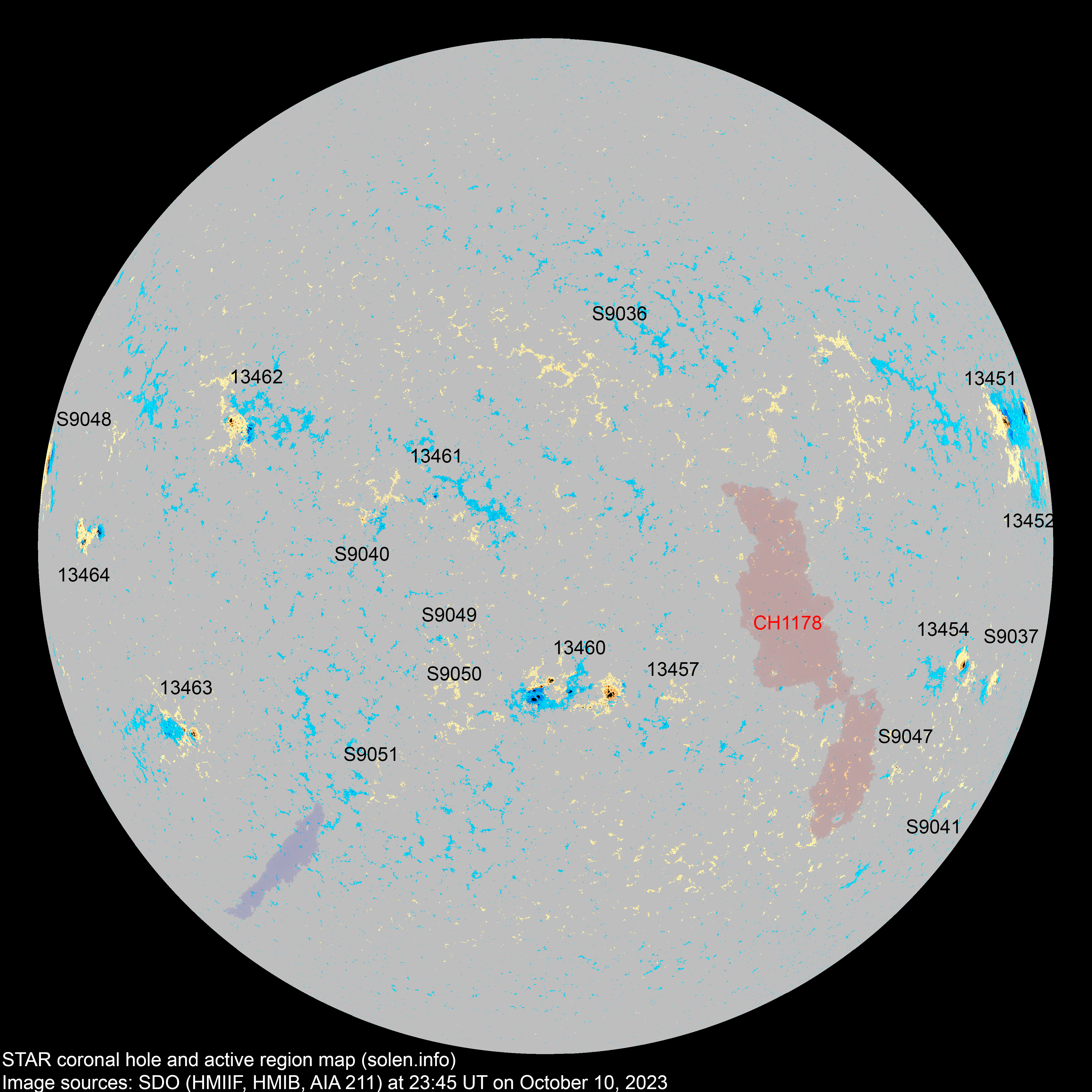

(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13451 | 2023.09.29 2023.09.30 |
5 | 12 | 8 | N17W75 | 0270 | EKI | EKO |
 |
 |
area: 0490 location: N16W74 |
| 13452 | 2023.09.29 2023.10.01 |
1 | 2 | 1 | N09W80 | 0005 | AXX | AXX |
 |
 |
location: N08W82 |
| 13454 | 2023.09.30 2023.10.01 |
2 | 3 | 1 | S11W57 | 0030 | CSO | CSO |
 |
 |
area: 0070 |
| 13455 | 2023.10.01 2023.10.02 |
N27W49 |
 |
location: N26W44 | |||||||
| 13457 | 2023.10.03 2023.10.04 |
3 | 1 | S11W17 | 0008 | BXO |
 |
 |
location: S13W14 | ||
| S9020 | 2023.10.03 | S34W52 | |||||||||
| S9021 | 2023.10.03 | S29W45 | |||||||||
| 13459 | 2023.10.05 | N07E02 |
 |
||||||||
| S9025 | 2023.10.05 | S18W41 | |||||||||
| 13461 | 2023.10.05 2023.10.08 |
1 | 2 | 1 | N12E11 | 0005 | AXX | HRX |
 |
 |
location: N11E12 area: 0010 |
| S9027 | 2023.10.05 | N20W27 | |||||||||
| S9028 | 2023.10.05 | N10W32 | |||||||||
| 13460 | 2023.10.05 2023.10.07 |
18 | 32 | 19 | S10W06 | 0140 | DAI | EAI |
 |
 |
beta-gamma-delta area: 0370 location: S11W02 |
| S9031 | 2023.10.06 | N02E23 | |||||||||
| 13462 | 2023.10.06 2023.10.08 |
6 | 15 | 8 | N18E35 | 0040 | CAO | DRI |
 |
 |
location: N18W39 area: 0080 |
| S9036 | 2023.10.07 | 5 | 1 | N26W10 | 0006 | BXO |
 |
 |
|||
| S9037 | 2023.10.07 | 5 | 2 | S13W65 | 0010 | BXO |
 |
 |
|||
| 13463 | 2023.10.08 2023.10.09 |
3 | 12 | 5 | S17E47 | 0040 | CAO | CAO |
 |
 |
location: S18E47 area: 0060 |
| S9039 | 2023.10.08 | N12W33 | |||||||||
| S9040 | 2023.10.08 | 5 | 2 | N08E20 | 0010 | BXO |
 |
 |
|||
| S9041 | 2023.10.08 | 2 | S28W61 | 0002 | BXO |
 |
 |
||||
| S9043 | 2023.10.09 | N14W40 |
 |
||||||||
| 13464 | 2023.10.09 2023.10.10 |
4 | 10 | 6 | N04E63 | 0030 | CRO | DAO |
 |
 |
beta-gamma area: 0100 |
| S9047 | 2023.10.10 | 2 | S22W48 | 0004 | BXO |
 |
|||||
| S9048 | 2023.10.10 | 3 | 2 | N10E82 | 0300 | HKX |
 |
||||
| S9049 | 2023.10.10 | 3 | S05E11 | 0007 | BXO |
 |
|||||
| S9050 | 2023.10.10 | 2 | S13E11 | 0005 | AXX |
 |
|||||
| S9051 | 2023.10.10 | 2 | 1 | S23E24 | 0005 | AXX |
 |
||||
| Total spot count: | 40 | 120 | 58 | ||||||||
| Sunspot number: | 120 | 300 | 198 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 73 | 166 | 91 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 132 | 165 | 158 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.03 | 117.0 | 115.8 | 78.6 | 68.7 (+4.0) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.6 (+5.9) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.5 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.1 (+2.2) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.6) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.4 (+6.7) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.9 (+3.5) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.2 (+3.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 96.4 | (126.6 projected, +5.4) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.9 | (132.2 projected, +5.6) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 163.4 | (135.4 projected, +3.2) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 159.1 | (135.8 projected, +0.4) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.9 | (137.6 projected, +1.8) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 133.6 | (141.0 projected, +3.4) | 14.26 |
| 2023.10 | 158.3(1) | 46.5 (2A) / 144.3 (2B) / 150.3 (2C) | (142.8 projected, +1.8) | (7.4) | |
| 2023.11 | (145.4 projected max SC25, +2.6) | ||||
| 2023.12 | (144.5 projected, -0.9) | ||||
| 2024.01 | (141.7 projected, -2.8) | ||||
| 2024.02 | (141.5 projected, -0.2) | ||||
| 2024.03 | (141.0 projected, -0.5) | ||||
| 2024.04 | (138.2 projected, -2.8) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Looking back 6 months, the 365d smoothed values for solar flux and all sunspot numbers with the exception of NOAA's, are all above their solar cycle 24 peak. The first peak of solar cycle 25 is forecast to be between July 7 and 10, 2023 (solar flux on July 7, ISN and STAR 1K and 2K all have that peak on July 9, while NOAA peaks on July 10). This is unlikely to be the final peak of SC25, however, there is a small probability that it is the actual sunspot and solar flux maximum.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
