The geomagnetic field was quiet to major storm on May 21, early in the day under the influence of effects from CH1148. Another disturbance, possibly associated with the May 17 CME began to influence the field after 13h UT and eventually caused major storm conditions. Solar wind speed at SOHO ranged between 474 and 619 km/sec. The high latitude magnetometer at Andenes recorded quiet to major storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 163.4 - increasing 29.5 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 140.73. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 24 (STAR Ap - based on the mean of three hour interval ap indices: 24.3). Three hour interval K indices: 32123456 (planetary), 23223444 (Boulder), 34235566 (Andenes).
The background x-ray flux is at the class C2 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 262) and in 9 active regions using 1K resolution (SN: 176) SDO/HMI images.
Region 13302 [N18W83] was quiet and stable.
Region 13305 [N13W80] decayed and produced several C flares as the
region rotated to the northwest limb.
Region 13308 [N13W67] decayed slowly and quietly.
Region 13310 [S20E21] was quiet and stable.
Region 13311 [N19E35] decayed slowly in all sections and simplified
slightly as some of the magnetic deltas disappeared. A major
flare is possible.
Region 13312 [S24E43] was mostly quiet and stable.
Region 13313 [N22E50] was quiet and stable.
Region 13314 [N14E25] decayed slowly and quietly as the trailing
penumbra moved closer to the leader spot of AR 13311.
Spotted regions not observed (or interpreted
differently) by SWPC:
New region S8578 [N17W19] emerged with tiny spots.
New region S8579 [S02E27] emerged with a tiny spot.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.5 | 00:30 | 13311 | GOES16 | ||
| C2.5 | 01:06 | 13305 | GOES16 | simultaneous flare in AR 13311 | |
| C2.6 | 02:03 | 13312 | GOES16 | ||
| M1.4 | 02:23 | N20E47 | 13311 | GOES16 | |
| C4.9 | 03:57 | N20E47 | 13311 | GOES16 | |
| C3.0 | 05:03 | 13311 | GOES16 | ||
| C2.2 | 05:21 | 13311 | GOES16 | ||
| C3.0 | 05:40 | 13311 | GOES16 | ||
| C2.8 | 05:55 | 13311 | GOES16 | ||
| C4.1 | 06:49 | N07W80 | 13305 | GOES16 | |
| C4.5 | 07:59 | 13305 | GOES16 | ||
| C4.9 | 08:34 | N20E47 | 13311 | GOES16 | |
| C2.2 | 08:58 | 13311 | GOES16 | ||
| C4.1 | 10:02 | 13305 | GOES16 | ||
| C3.7 | 11:12 | 13305 | GOES16 | ||
| C5.4 | 11:30 | 13305 | GOES16 | ||
| C3.7 | 12:09 | 13311 | GOES16 | ||
| C3.3 | 14:40 | 13311 | GOES16 | ||
| C4.6 | 15:17 | 13305 | GOES16 | ||
| M2.6/1N | 16:04 | N17E40 | 13311 | GOES16 | |
| C3.0 | 16:47 | 13311 | GOES16 | ||
| C2.2 | 18:07 | 13305 | GOES16 | ||
| C2.2 | 19:08 | 13311 | GOES16 | ||
| C4.3 | 21:01 | 13305 | GOES16 | ||
| C6.0 | 21:08 | 13311 | GOES16 | ||
| C9.8 | 21:57 | 13305 | GOES16 |
May 19-21: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A southern hemisphere coronal hole (CH1149) will rotate across the central meridian on May 20-22.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
Quiet to minor storm conditions are likely on May 22. A high speed stream from CH1149 could cause unsettled to major storm conditions May 23-25.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

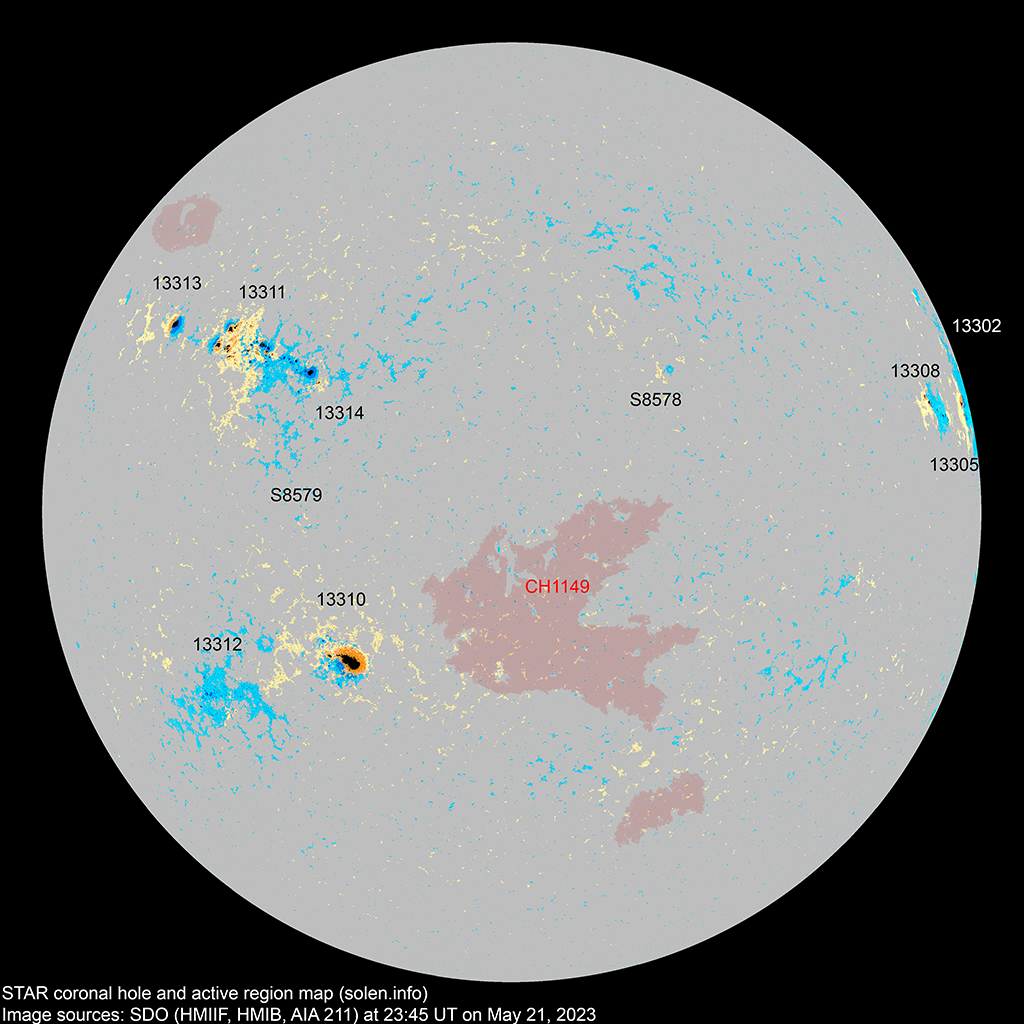

(Click on image for 2K resolution).

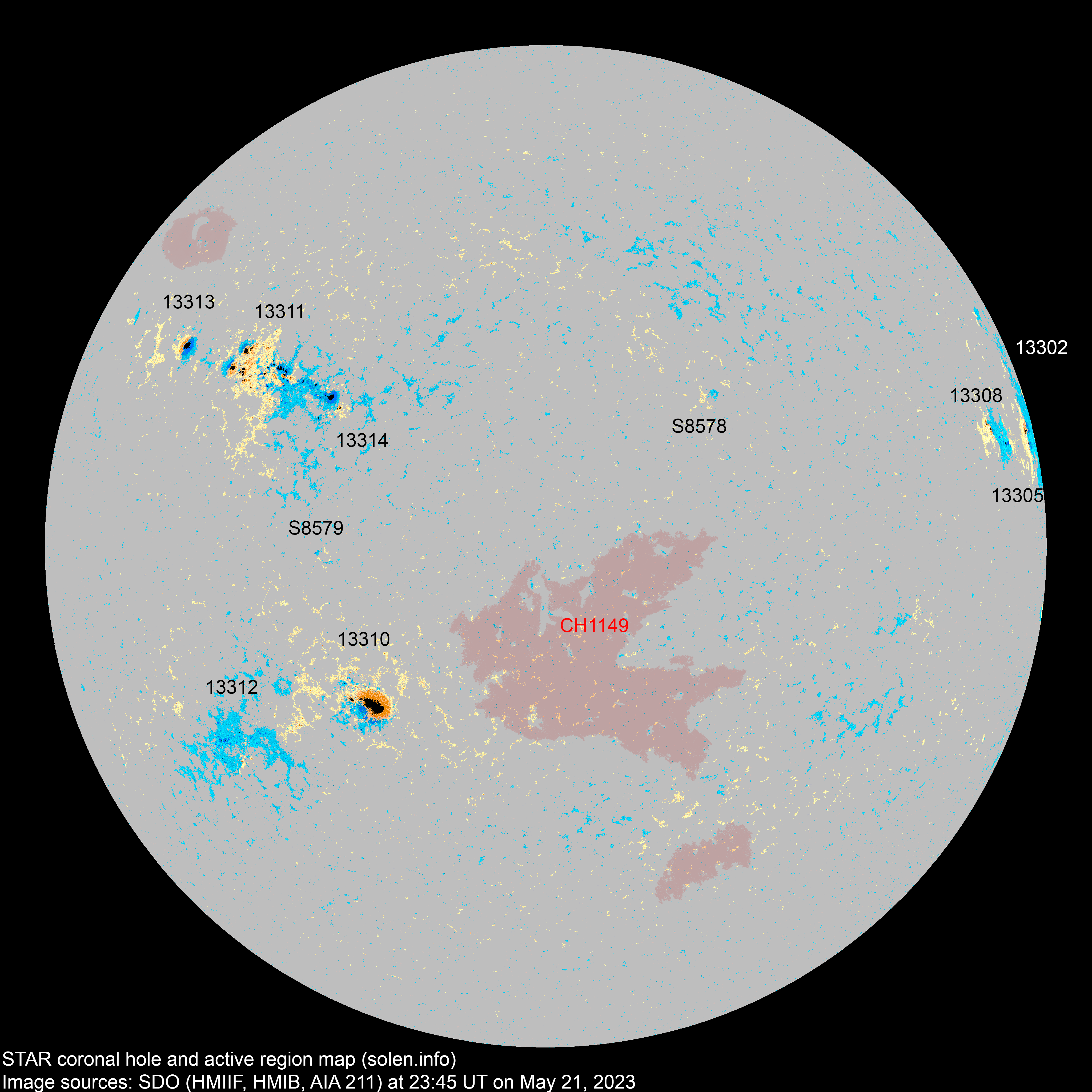

4K resolution.
Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13302 | 2023.05.08 2023.05.09 |
1 | 1 | 1 | N18W85 | 0030 | HSX | HSX |
 |
 |
area: 0060 location: N18W83 |
| 13305 | 2023.05.12 | 7 | 5 | 3 | N12W84 | 0210 | DAI | CAO |
 |
 |
location: N13W80 area: 0140 |
| 13308 | 2023.05.14 2023.05.16 |
6 | 12 | 6 | N12W68 | 0040 | CAO | CRI |
 |
 |
location: N13W67 area: 0070 |
| 13307 | 2023.05.14 2023.05.15 |
S09W48 |
 |
location: S10W47 |
|||||||
| S8566 | 2023.05.15 | N21W37 | |||||||||

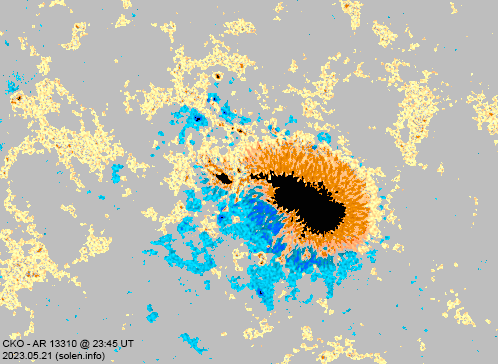

| 13310 | 2023.05.16 2023.05.17 |
4 | 23 | 12 | S20E20 | 0300 | CKO | CKO |
 |
 |
location: S20E21 area: 0710 |
| S8569 | 2023.05.16 | S30W23 | |||||||||

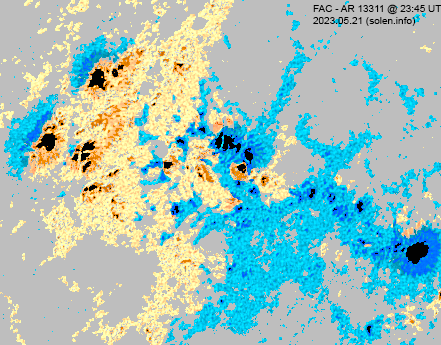

| 13311 | 2023.05.17 2023.05.18 |
31 | 83 | 47 | N18E35 | 0420 | EKC | FAC |
 |
 |
beta-gamma-delta location: N19E35 area: 0610 |
| 13312 | 2023.05.18 2023.05.19 |
9 | 28 | 13 | S25E44 | 0030 | CRO | DRI |
 |
 |
area: 0070 location: S24E43 |
| 13313 | 2023.05.18 2023.05.19 |
1 | 1 | 1 | N22E50 | 0060 | HSX | HSX |
 |
 |
area: 0230 |
| 13314 | 2023.05.19 2023.05.20 |
1 | 5 | 2 | N15E25 | 0020 | HRX | CRO |
 |
 |
|
| S8574 | 2023.05.19 | N25W18 |
 |
||||||||
| S8575 | 2023.05.19 | N31E08 |
 |
||||||||
| S8576 | 2023.05.19 | S22W56 | |||||||||
| S8578 | 2023.05.21 | 3 | 1 | N17W19 | 0006 | BXO |
 |
||||
| S8579 | 2023.05.21 | 1 | S02E27 | 0001 | AXX |
 |
|||||
| Total spot count: | 60 | 162 | 86 | ||||||||
| Sunspot number: | 140 | 262 | 176 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 106 | 201 | 125 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 154 | 144 | 141 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2021.09 | 87.0 | 88.2 | 51.3 | 40.2 (+4.8) | 6.33 |
| 2021.10 | 88.9 | 88.3 | 37.4 | 45.2 (+5.0) | 7.38 |
| 2021.11 | 86.2 | 84.4 | 34.8 | 50.8 (+5.6) | 9.83 |
| 2021.12 | 103.0 | 99.8 | 67.5 | 55.9 (+5.1) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 55.3 | 60.1 (+4.2) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 60.9 | 64.7 (+4.6) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.6 | 68.7 (+4.0) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.5 (+5.8) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.4 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.7 (+2.3) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | (100.4 projected, +1.7) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | (104.1 projected, +3.7) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 143.6 | (110.1 projected, +6.0) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 110.9 | (115.2 projected, +5.1) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 122.6 | (118.3 projected, +3.1) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 96.4 | (123.7 projected, +5.4) | 13.40 |
| 2023.05 | 155.2 (1) | 83.3 (2A) / 122.9 (2B) / 147.9 (2C) | (129.3 projected, +5.6) | (11.9) | |
| 2023.06 | (132.5 projected, +3.2) | ||||
| 2023.07 | (132.0 projected, -0.5) | ||||
| 2023.08 | (133.0 projected, +1.0) | ||||
| 2023.09 | (136.4 projected, +3.4) | ||||
| 2023.10 | (138.3 projected, +1.9) | ||||
| 2023.11 | (141.4 projected, +3.1) | ||||
| 2023.12 | (142.5 projected max SC25) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
