The geomagnetic field was at quiet to unsettled levels on June 23 under the decreasing influence of effects associated with CH1301. Solar wind speed at SOHO ranged between 385 and 559 km/sec, averaging 433 km/sec (-64 km/sec compared to the previous day). The high latitude magnetometer at Andenes recorded quiet to minor storm levels. The above 10 MeV proton flux was at background levels all day.
Solar flux density measured at 20h UT on 2.8 GHz was 121.8 - decreasing 15.3 over the previous solar rotation. The 365 day average solar flux at 1 AU was 186.65 (183 days ago). The 81 day average solar flux at 1 AU was 146.2 (41 days ago, this is 48.8% of the solar flux range from the max 81 day average peak on September 4, 2024 at 227.3 and an average 81 day flux of 69 at solar minimum). SC25 365d peak: 195.86 on October 13, 2024. The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.3). Three hour interval K indices: 31122211 (planetary), 31132321 (Boulder), 51112232 (Andenes).
The background x-ray flux is at the class B6 level (GOES 19).
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 223) and in 10 active regions using 1K resolution (SN: 147) SDO/HMI images.
AR 14114 [N20W84] decayed further and produced
several C flares as the two remaining opposite polarity spots are in a
compact configuration. C1 flares: C1.0 @ 00:59, C1.0 @ 04:08, C1.0 @ 04:47,
C1.3 @ 09:52, C1.4 @ 14:05, C1.5 @ 16:13 UT
AR 14117 [S15W03] was mostly quiet and stable.

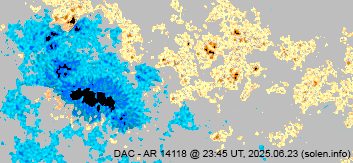

AR 14118 [S11E09] decayed quickly with the magnetic delta
configuration weakening. Several low level C flares were recorded. C1
flares: C1.4 @ 03:32, C1.5 @ 03:38, C1.1 @ 06:30, C1.0 @ 07:06, C1.1 @
09:40, C1.7 @ 13:30, C1.2 @ 14:43 UT
New AR 14119 [S25W02] emerged on June 21 and developed slowly on June
23 when the spot group was numbered by SWPC.
New AR 14120 [N06E05] emerged on June 22 and was numbered by SWPC the
next day.
New AR 14121 [S12E27] emerged on June 22 and received its NOAA number
the following day. C1 flares: C1.1 @ 05:26 UT
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S11165 [N14W66] was quiet and stable.
S11173 [N14W29] was quiet and stable.
S11182 [S12W05] decayed slowly and quietly.
New region S11186 [S19E03] emerged with tiny spots.
New region S11187 [N20E48] emerged with tiny spots.
New region S11188 [N15E83] rotated into view with tiny spots.
C1 flares: C1.3 @ 02:17, C1.2 @ 10:42, C1.1 @ 11:17, C1.1 @ 11:33 UT
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.0 | 05:06 | S11E22 | 14118 | GOES18 | |
| C3.4 | 05:47 | N17W84 | 14114 | GOES18 | |
| C5.0 | 12:23 | 14114 | GOES18 |
June 21-23: No obviously Earth directed CMEs.
[Coronal
hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A small recurrent negative polarity trans equatorial coronal hole (CH1303) was Earth facing on June 20 and early on June 21. A large recurrent negative polarity trans equatorial coronal hole (CH1302) will rotate across the central meridian on June 22-25.
The geomagnetic field is expected to be at quiet to active levels on June 24 due to effects from CH1303. Effects from CH1302 could cause unsettled to minor storm conditions from late on June 24 until June 27.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could
reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96
hours.
3) There is a possibility of either M or X class flares within the
next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).

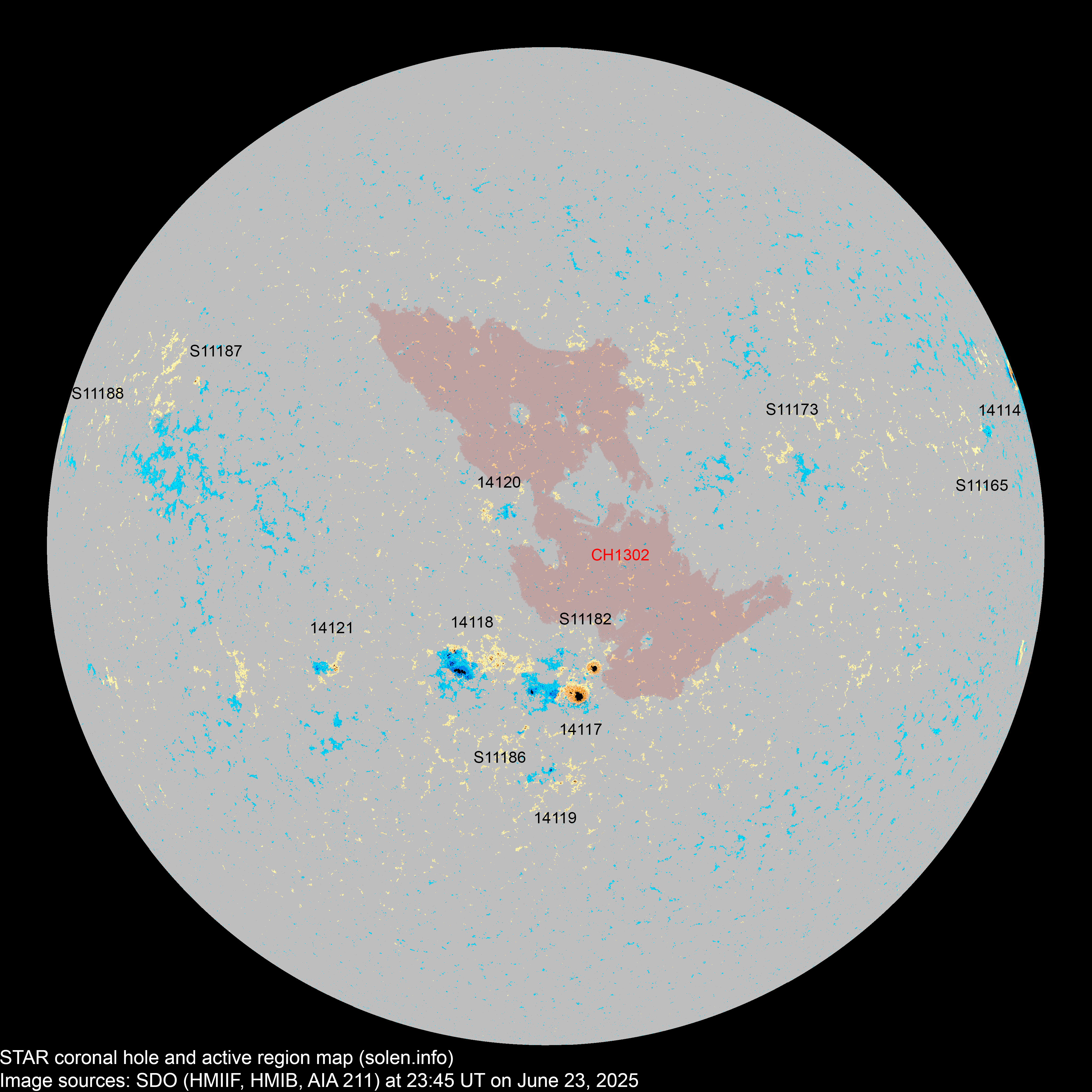

4K resolution.
Compare to the previous
day's image. 0.5K image

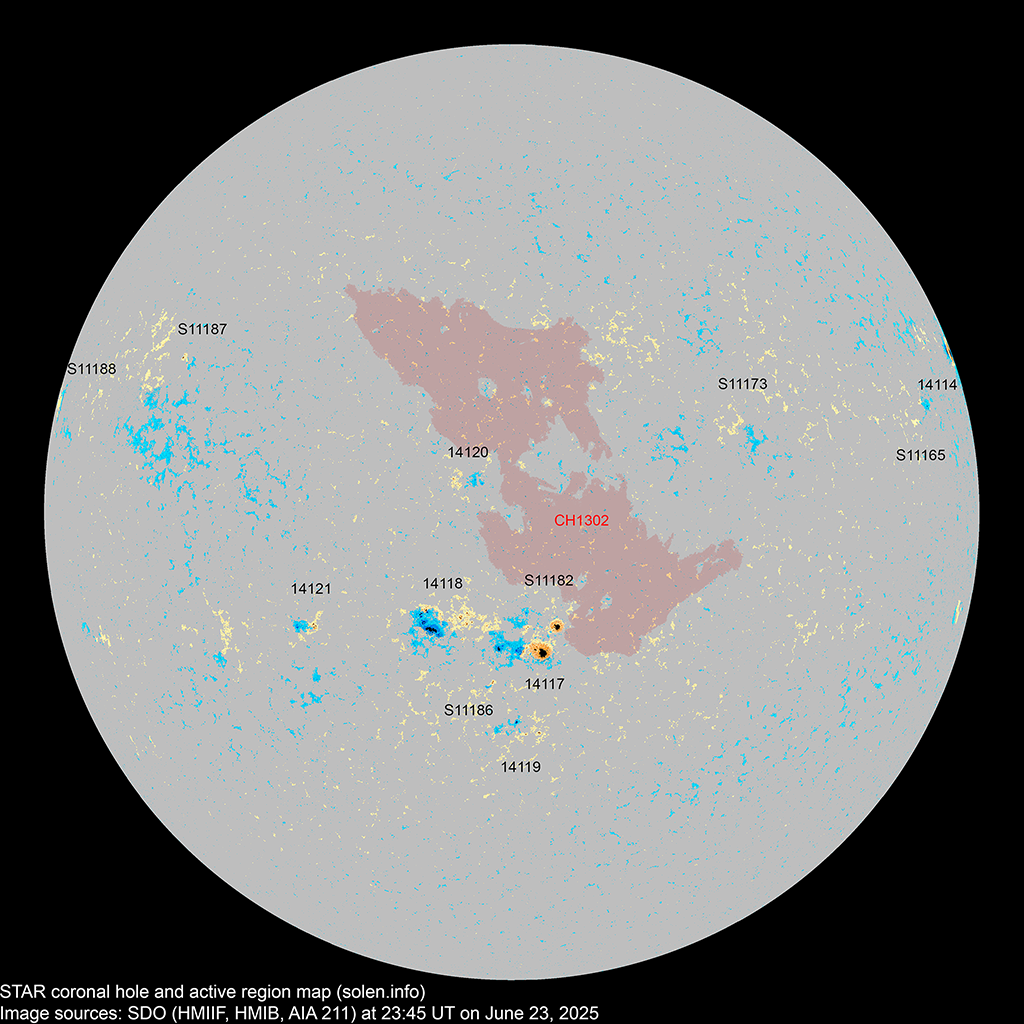

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
STAR | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 14114 | 2025.06.10 2025.06.11 |
1 | 2 | 2 | N20W91 | 0090 | HSX | DHC |
 |
 |
was AR S11150 area: 0360 location: N20W84 merged leader spot of AR 14115 into this region on 2025.06.21 |
| 14115 | 2025.06.11 2025.06.12 |
1 | N21W80 | 0030 | HSX |
 |
was AR S11151 spotless location: N22W71 |
||||
| S11162 | 2025.06.14 | N26W39 |
 |
||||||||
| S11165 | 2025.06.16 | 4 | 1 | N14W66 | 0007 | BXO |
 |
 |
|||
| S11166 | 2025.06.16 | S12W44 |
 |
||||||||
| 14117 | 2025.06.17 2025.06.18 |
11 | 23 | 11 | S13W03 | 0200 | DSI | DAO |
 |
 |
was AR S11167 location: S15W03 area: 0300 |
| S11169 | 2025.06.17 | S09W43 | |||||||||
| 14118 | 2025.06.17 2025.06.19 |
11 | 35 | 17 | S12E08 | 0120 | DAI | DAC |
 |
 |
beta-delta was AR S11170 location: S11E09 area: 0210 leader spots split off into AR S11182 on 2025.06.22 |
| S11173 | 2025.06.18 | 2 | N14W29 | 0003 | BXO |
 |
 |
||||
| S11175 | 2025.06.19 | N08W40 | |||||||||
| S11177 | 2025.06.19 | N13W17 | |||||||||
| 14119 | 2025.06.21 2025.06.23 |
3 | 5 | 3 | S26W03 | 0010 | BXO | DRO |
 |
 |
was AR S11179 location: S25W02 area: 0020 |
| S11181 | 2025.06.21 | S13W18 | |||||||||
| S11182 | 2025.06.22 | 6 | 2 | S12W05 | 0100 | CSO |
 |
 |
split off from AR 14118 | ||
| 14120 | 2025.06.22 2025.06.23 |
3 | 5 | 3 | N06E04 | 0010 | BXO | BXO |
 |
 |
was AR S11183 location: N06E05 |
| 14121 | 2025.06.22 2025.06.23 |
3 | 11 | 5 | S12E25 | 0010 | BXO | DRO |
 |
 |
was AR S11184 area: 0040 location: S12E27 |
| S11186 | 2025.06.23 | 3 | 2 | S19E03 | 0012 | BXO |
 |
||||
| S11187 | 2025.06.23 | 5 | 1 | N20E48 | 0010 | BXO |
 |
||||
| S11188 | 2025.06.23 | 2 | N15E83 | 0003 | BXO |
 |
|||||
| Total spot count: | 33 | 103 | 47 | ||||||||
| Sunspot number: | 103 | 223 | 147 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 53 | 134 | 78 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 113 | 123 | 118 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2024.01 | 164.6 | 159.3 | 126.0 | 131.2 (+1.7) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 123.0 | 136.9 (+5.7) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 103.7 | 141.4 (+4.5) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 137.0 | 144.5 (+3.1) | 9.69 |
| 2024.05 | 187.7 | 191.9 | 172.1 | 149.1 (+4.6) | 23.56 (SC25 peak) |
| 2024.06 | 184.3 | 190.2 | 164.1 | 152.8 (+3.7) | 10.24 |
| 2024.07 | 196.6 | 203.0 | 196.8 | 155.0 (+2.3) | 7.13 |
| 2024.08 | 246.1 (cycle peak) |
252.2 | 216.0 (SC25 peak) | 156.8 (+1.8) | 15.96 |
| 2024.09 | 195.7 | 197.8 | 141.1 | 159.4 (+1.6) | 15.36 |
| 2024.10 | 221.0 | 219.6 | 165.8 | 160.8 (+1.4) (SC25 solar max) | 18.99 |
| 2024.11 | 199.6 | 195.3 | 154.1 | 157.0 (-3.8) | 9.33 |
| 2024.12 | 197.3 | 191.2 | 154.6 | (150.7 projected, -6.3) | 8.42 |
| 2025.01 | 190.3 | 184.2 | 137.0 | (144.2 projected, -6.5) | 13.17 |
| 2025.02 | 184.2 | 179.7 | 154.6 | (135.6 projected, -8.6) | 14.42 |
| 2025.03 | 163.7 | 162.1 | 134.2 | (129.2 projected, -6.4) | 15.96 |
| 2025.04 | 162.5 | 163.6 | 140.6 | (124.6 projected, -4.6) | 17.62 |
| 2025.05 | 135.3 | 138.3 | 79.2 | (119.3 projected, -5.3) | 17.26 |
| 2025.06 | 134.3 (1) | 80.5 (2A) / 105.0 (2B) / 125.5 (2C) ISN average to date: 112. At this level the SSN for December 2024 will become 151.0 |
(114.4 projected, -4.9) | (23.5) | |
| 2025.07 | (110.2 projected, -4.2) | ||||
| 2025.08 | (105.5 projected, -4.7) | ||||
| 2025.09 | (101.2 projected, -4.3) | ||||
| 2025.10 | (97.3 projected, -3.9) | ||||
| 2025.11 | (95.0 projected, -2.3) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value
at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 27 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap
indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Sunspot activity has been on a decreasing trend since September
2024 (using the average solar flux over 3 solar rotations as a proxy).
Compared to the peak of SC25 solar flux has been at a low level in both May
and June 2025. Taking a closer look at the 81 day (3 solar rotations)
average solar flux proxy, its peak was in early September 2024 and had on
May 12 decreased to less than half of the solar cycle flux range.
Subtracting the 81 day average of approximately 69 at solar cycle minimum
from all measurements, the SC25 range is 0 - 158.3.
All 365 days smoothed sunspot numbers peaked on October 11-12, 2024,
very likely making this the peak of SC25 (STAR 1K 365d peak: 236.1, STAR 2K
365d peak: 364.3, NOAA SN 365d peak: 156.0, ISN 365d peak: 163.6). The 365d
smoothed solar flux peaked on October 13, 2024, just 1.7% below the SC23
peak, and 62.6% above the SC24 peak.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whichever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
