The geomagnetic field was at quiet to active levels on May 28 under the influence of a high speed stream associated with CH1296. A sudden increase in solar wind density as well as a decrease in solar wind speed was observed at 20:54 UT at SOHO. This may be a reverse shock related to the trailing CIR of CH1296. Solar wind speed began to increase again just before midnight, and the CIR associated with CH1297 caused a strong increase in geomagnetic activity with minor to major storm levels recorded early on May 29. Solar wind speed at SOHO ranged between 397 and 667 km/sec, averaging 553 km/sec (+91 km/sec compared to the previous day). The high latitude magnetometer at Andenes recorded unsettled to major storm levels. The above 10 MeV proton flux was at background levels.
Solar flux density measured at 20h UT on 2.8 GHz was 144.3 - decreasing 8.0 over the previous solar rotation. The 365 day average solar flux at 1 AU was 190.04 (183 days ago). SC25 peak: 195.86 on October 13, 2024 (subtracting a baseline solar flux level of 65, this is +62.6% compared to the SC24 peak and -1.7% compared to the SC23 peak). The Potsdam WDC planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 16.1). Three hour interval K indices: 44231333 (planetary), 36332433 (Boulder), 46333454 (Andenes).
The background x-ray flux is at the class B7 level (GOES 19).
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 223) and in 10 active regions using 1K resolution (SN: 150) SDO/HMI images.
AR 14092 [S13W53] was quiet and stable.
AR 14094 [N19W46] was quiet and stable.
AR 14096 [N07W21] was quiet and stable.
AR 14097 [S14W22] decayed slowly and quietly.
AR 14099 [S13E29] has a magnetic delta
configuration and could produce a major flare.
Many low level C flares were recorded. C1 flares: C1.4 @ 00:13, C1.8 @
05:48, C1.9 @ 05:58, C1.2 @ 07:21, C1.1 @ 08:14, C1.3 @ 12:25, C1.1 @ 13:31,
C1.3 @ 15:25, C1.5 @ 15:38, C1.1 @ 18:52 UT

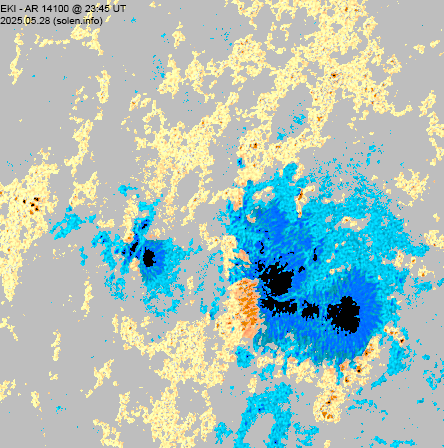

AR 14100 [N08E40] decayed losing area with the largest penumbra
beginning to split into smaller penumbrae. C1 flares: C1.2 @ 00:36, C1.2 @
00:46, C1.4 @ 07:04, C1.5 @ 17:14, C1.0 @ 18:42, C1.0 @ 19:03, C1.5 @ 23:00,
C1.7 @ 23:05 UT
AR 14101 [N03E27] decayed slowly and quietly.
AR 14102 [S21W11] decayed slowly and quietly.
New AR 14103 [S17W02] emerged on May 27 and decayed on May 28 when it
was numbered by SWPC.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S11096 [S22W29] reemerged with a tiny spot.
New region S11104 [N14W27] emerged with tiny
spots.
New region S11105 [N30W48] emerged with a tiny spot.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.1 | 01:21 | 14100 | GOES18 | ||
| C2.8 | 10:45 | spotless plage at the northeast limb | GOES18 | ||
| C2.0 | 11:47 | 14099 | GOES18 | ||
| C3.0 | 16:31 | S14E34 | 14099 | GOES18 |
May 26-28: No obviously Earth directed CMEs.
[Coronal
hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A southern hemisphere negative polarity coronal hole (CH1297) rotated across the central meridian on May 26-27. A recurrent negative polarity trans equatorial coronal hole (CH1298) will be Earth facing on May 27-30.
The geomagnetic field is expected to be at unsettled to major storm levels on May 29-30 first due to effects from CH1297 and then from CH1298. Quiet to active levels are likely on May 31-June 2 due to effects from CH1298.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could
reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96
hours.
3) There is a possibility of either M or X class flares within the
next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

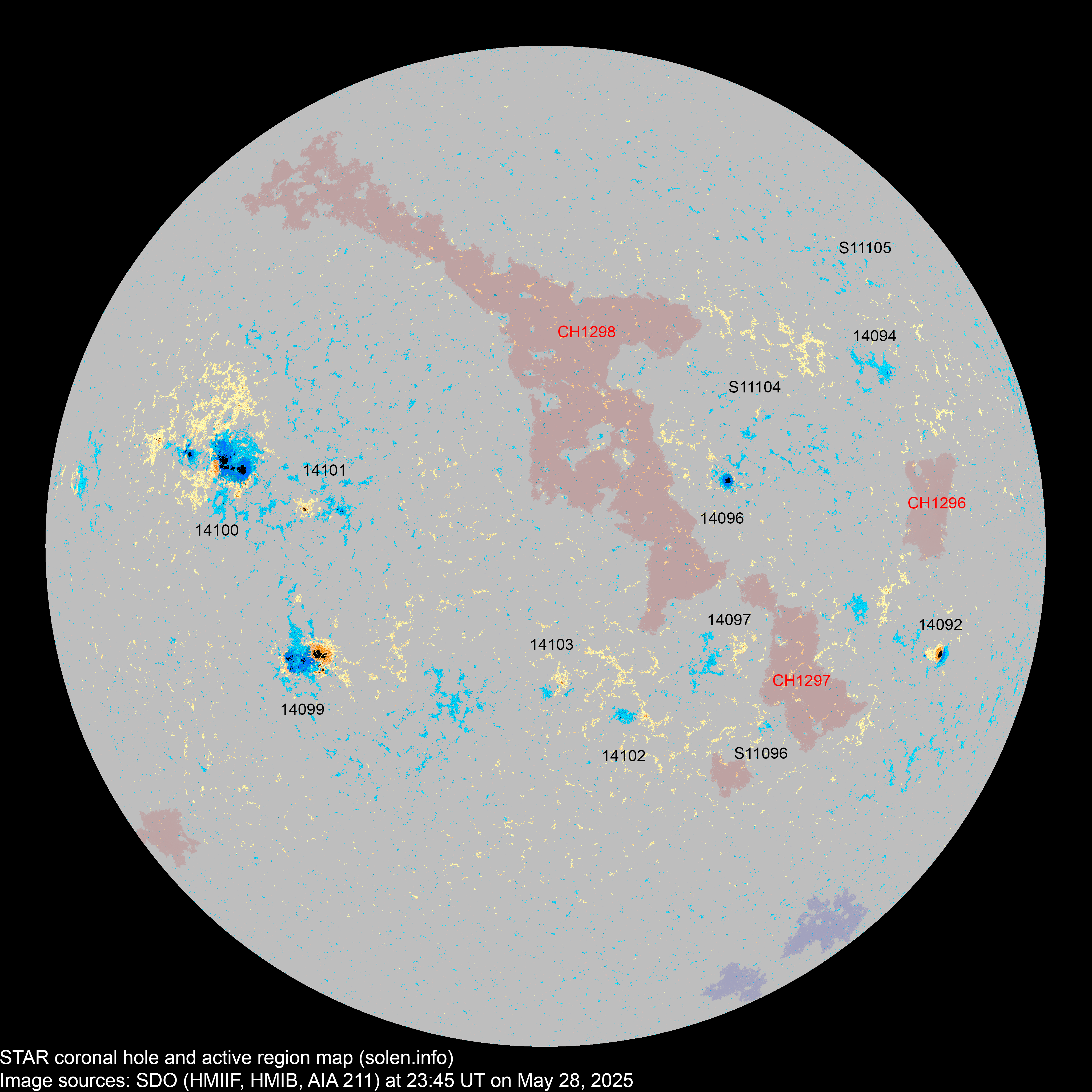

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
STAR | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 14092 | 2025.05.18 2025.05.19 |
1 | 2 | 2 | S13W55 | 0110 | HSX | CSO |
 |
 |
was AR S11080 area: 0140 location: S13W53 |
| 14093 | 2025.05.19 2025.05.20 |
S06W48 |
 |
was AR S11082 location: S08W39 |
|||||||
| 14094 | 2025.05.19 2025.05.21 |
2 | 2 | 2 | N20W47 | 0010 | AXX |
 |
 |
was AR S11083 location: N19W46 |
|
| S11087 | 2025.05.20 | N26W56 |
 |
||||||||
| 14097 | 2025.05.20 2025.05.22 |
3 | S14W22 | 0005 | BXO |
 |
 |
was AR S11088 |
|||
| 14096 | 2025.05.20 2025.05.21 |
1 | 3 | 2 | N06W23 | 0060 | HSX | CSO |
 |
 |
was AR S11089 area: 0100 location: N07W21 |
| S11092 | 2025.05.22 | S22W41 | |||||||||
| 14099 | 2025.05.24 | 16 | 33 | 17 | S13E29 | 0250 | DKC | DKC |
 |
 |
beta-delta was AR S11093 area: 0620 |
| 14102 | 2025.05.24 2025.05.27 |
2 | 8 | 2 | S22W12 | 0010 | BXO | BXO |
 |
 |
was AR S11094 location: S21W11 |
| 14100 | 2025.05.25 2025.05.26 |
14 | 36 | 16 | N08E43 | 0410 | EKI | EKI |
 |
 |
beta-gamma was AR S11095 location: N08E40 area: 0840 |
| S11096 | 2025.05.25 | 1 | 1 | S22W29 | 0003 | AXX |
 |
||||
| S11097 | 2025.05.25 | S13W03 | |||||||||
| 14101 | 2025.05.26 2025.05.27 |
6 | 9 | 5 | N03E26 | 0020 | CRO | DRO |
 |
 |
was AR S11098 area: 0040 location: N03E27 |
| S11099 | 2025.05.26 | N13E24 | |||||||||
| 14103 | 2025.05.27 2025.05.28 |
4 | 3 | 2 | S17W01 | 0010 | BXO | BXO |
 |
 |
was AR S11101 location: S17W02 |
| S11104 | 2025.05.28 | 2 | 1 | N14W27 | 0004 | BXO |
 |
||||
| S11105 | 2025.05.28 | 1 | N30W48 | 0001 | AXX |
 |
|||||
| Total spot count: | 46 | 103 | 50 | ||||||||
| Sunspot number: | 126 | 223 | 150 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 79 | 136 | 83 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 139 | 123 | 120 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2023.11 | 153.5 | 150.2 | 107.1 | 127.9 (+3.1) | 12.20 |
| 2023.12 | 151.1 | 146.4 | 113.5 | 129.5 (+1.6) | 9.60 |
| 2024.01 | 164.6 | 159.3 | 126.0 | 131.2 (+1.7) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 123.0 | 136.9 (+5.7) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 103.7 | 141.4 (+4.5) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 137.0 | 144.5 (+3.1) | 9.69 |
| 2024.05 | 187.7 | 191.9 | 172.1 | 149.1 (+4.6) | 23.56 (SC25 peak) |
| 2024.06 | 184.3 | 190.2 | 164.1 | 152.8 (+3.7) | 10.24 |
| 2024.07 | 196.6 | 203.0 | 196.8 | 155.0 (+2.3) | 7.13 |
| 2024.08 | 246.1 (cycle peak) |
252.2 | 216.0 (SC25 peak) | 156.8 (+1.8) | 15.96 |
| 2024.09 | 195.7 | 197.8 | 141.1 | 159.4 (+1.6) | 15.36 |
| 2024.10 | 221.0 | 219.6 | 165.8 | 160.8 (+1.4) (SC25 solar max) | 18.99 |
| 2024.11 | 199.6 | 195.3 | 154.1 | (159.0 projected, -1.8) | 9.33 |
| 2024.12 | 197.3 | 191.2 | 154.6 | (155.2 projected, -3.8) | 8.42 |
| 2025.01 | 190.3 | 184.2 | 137.0 | (149.7 projected, -5.5) | 13.17 |
| 2025.02 | 184.2 | 179.7 | 154.7 | (141.6 projected, -7.1) | 14.42 |
| 2025.03 | 163.7 | 162.1 | 134.2 | (135.1 projected, -6.5) | 15.96 |
| 2025.04 | 162.5 | 163.6 | 140.6 | (130.5 projected, -4.6) | 17.62 |
| 2025.05 | 133.1 (1) | 72.2 (2A) / 79.9 (2B) / 104.2 (2C) ISN average: 83 - at this level the smoothed sunspot number for November 2024 will become 157.3 |
(125.2 projected, -5.3) | (15.1) | |
| 2025.06 | (120.3 projected, -4.9) | ||||
| 2025.07 | (116.1 projected, -4.2) | ||||
| 2025.08 | (111.4 projected, -4.7) | ||||
| 2025.09 | (107.1 projected, -4.3) | ||||
| 2025.10 | (103.2 projected, -3.9) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value
at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 27 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap
indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Sunspot activity has been on a slowly decreasing trend since September
2024 (using the average solar flux over 3 solar rotations as a proxy). The
decline has become more obvious during the first half of May 2025 with solar
flux on May 12 at its lowest level since April 4, 2024. The solar max phase
of solar cycle 25 was considerably shorter than that of the most recent
solar cycles.
All 365 days smoothed sunspot numbers peaked on October 11-12, 2024,
very likely making this the peak of SC25 (STAR 1K 365d peak: 236.1, STAR 2K
365d peak: 364.3, NOAA SN 365d peak: 156.0, ISN 365d peak: 163.6). The 365d
smoothed solar flux peaked on October 13, 2024, just 1.7% below the SC23
peak, and 62.6% above the SC24 peak.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whichever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
