The geomagnetic field was at unsettled to minor storm levels on June 12. Early on June 13 the geomagnetic field appears to be under the influence of CIR effects related to CH1301. Solar wind speed at SOHO ranged between 382 and 476 km/sec, averaging 432 km/sec (-4 km/sec compared to the previous day). The high latitude magnetometer at Andenes recorded active to minor storm levels. The above 10 MeV proton flux was at background levels all day.
Solar flux density measured at 20h UT on 2.8 GHz was 141.5 - increasing 24.2 over the previous solar rotation. The 365 day average solar flux at 1 AU was 188.14 (183 days ago). SC25 365d peak: 195.86 on October 13, 2024. The Potsdam WDC planetary A index was 31 (STAR Ap - based on the mean of three hour interval ap indices: 30.6). Three hour interval K indices: 54433355 (planetary), 45543343 (Boulder), 55544454 (Andenes).
The background x-ray flux is at the class C1 level (GOES 19).
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 257) and in 11 active regions using 1K resolution (SN: 176) SDO/HMI images.
AR 14105 [S15W46] lost area and spots. A small
magnetic delta configuration developed in the trailing part of the leading
spot section. A minor M flare is possible. C1 flares: C1.9 @ 00:30, C1.4 @
13:32, C1.4 @ 19:11 UT
AR 14109 [S17W26] decayed losing the leader spots.
AR 14110 [N06W30] developed as new flux emerged. The region has minor
polarity intermixing.
AR 14111 [N14E28] was quiet and stable.
AR 14112 [S08E09] was quiet and stable.
AR 14113 [N10E47] was quiet and stable.
AR 14114 [N18E51] developed slowly and was mostly quiet.
New AR 14115 [N20E65] rotated into view on June 11 and was numbered
by SWPC the next day. C1 flares: C1.0 @ 14:58, C1.0 @ 17:02 UT
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S11145 [S15W66] decayed losing the
magnetic delta configuration. The region was mostly quiet, however, there is
still a chance of a minor M class flare. C1 flares: C1.2 @ 05:33, C1.7 @
12:11, C1.7 @ 12:47, C1.1 @ 14:47 UT
S11148 [N20W10] was quiet and stable.
New region S11157 [S11E54] emerged with tiny spots.
New region S11158 [S07E30] emerged with a tiny spot.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.9 | 02:01 | 14105 | GOES18 | ||
| C2.0 | 02:31 | S11145 | GOES18 | ||
| C2.4 | 02:41 | 14105 | GOES18 | ||
| C2.4 | 02:49 | 14105 | GOES18 | ||
| C2.0 | 03:04 | S11145 | GOES18 | ||
| C2.8 | 10:58 | 14105 | GOES18 | ||
| C2.8 | 11:13 | S11145 | GOES18 | ||
| C2.6 | 11:32 | 14105 | GOES18 | ||
| C5.8/1F | 17:48 | N21E74 | 14115 | GOES18 | |
| C2.6 | 20:20 | 14115 | GOES18 | LDE | |
| C2.1 | 21:37 | 14105 | GOES18 | ||
| C3.9 | 23:45 | S14W48 | 14105 | GOES18 | LDE |
June 10-12: No obviously Earth directed CMEs.
[Coronal
hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A large recurrent positive polarity southern hemisphere coronal hole (CH1301) will be Earth facing on June 11-19.
The geomagnetic field is expected to be at unsettled to severe storm levels on June 13 due to CIR effects associated with CH1301. Quiet to minor storm levels will be possible on June 14-21 due to effects from CH1301.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could
reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96
hours.
3) There is a possibility of either M or X class flares within the
next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

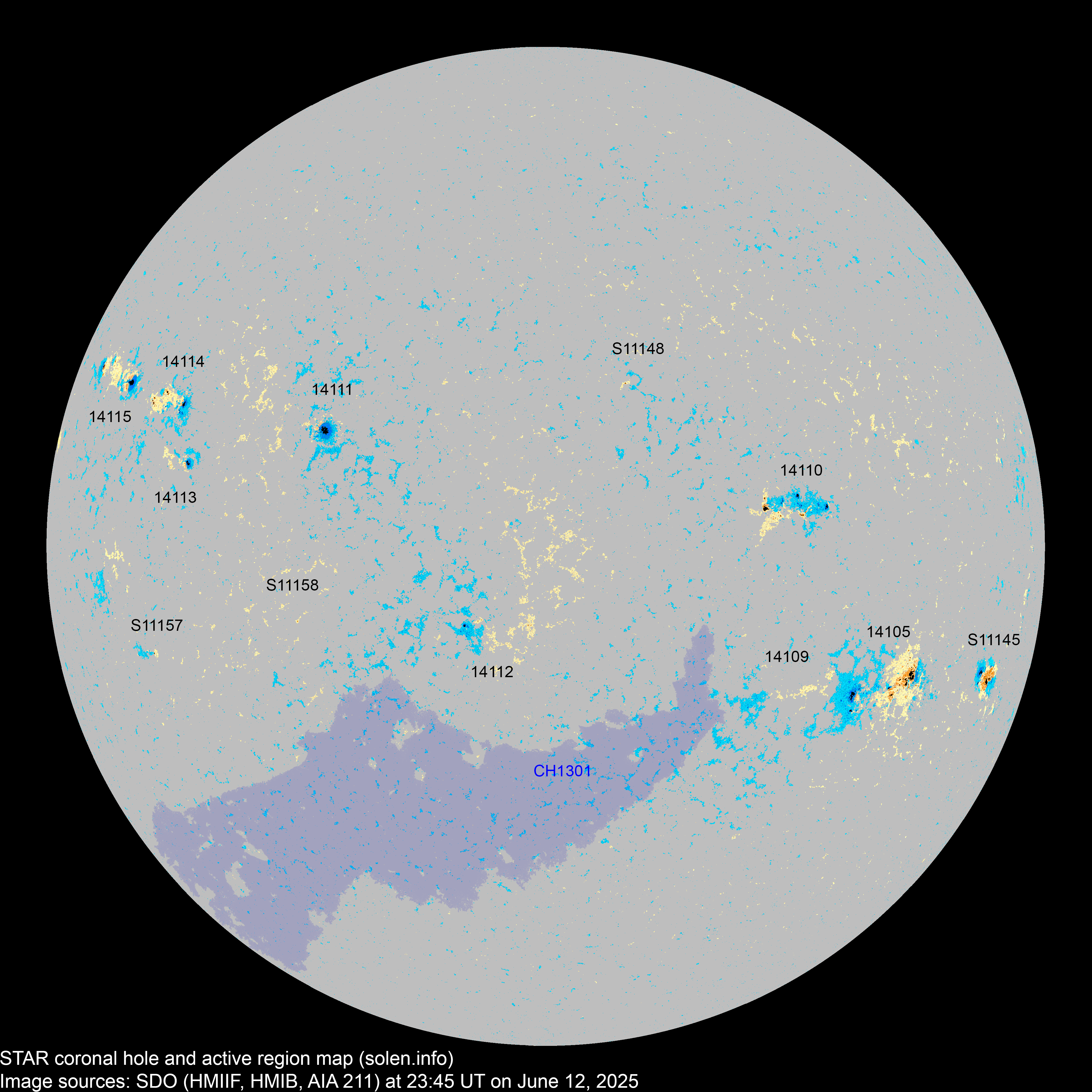

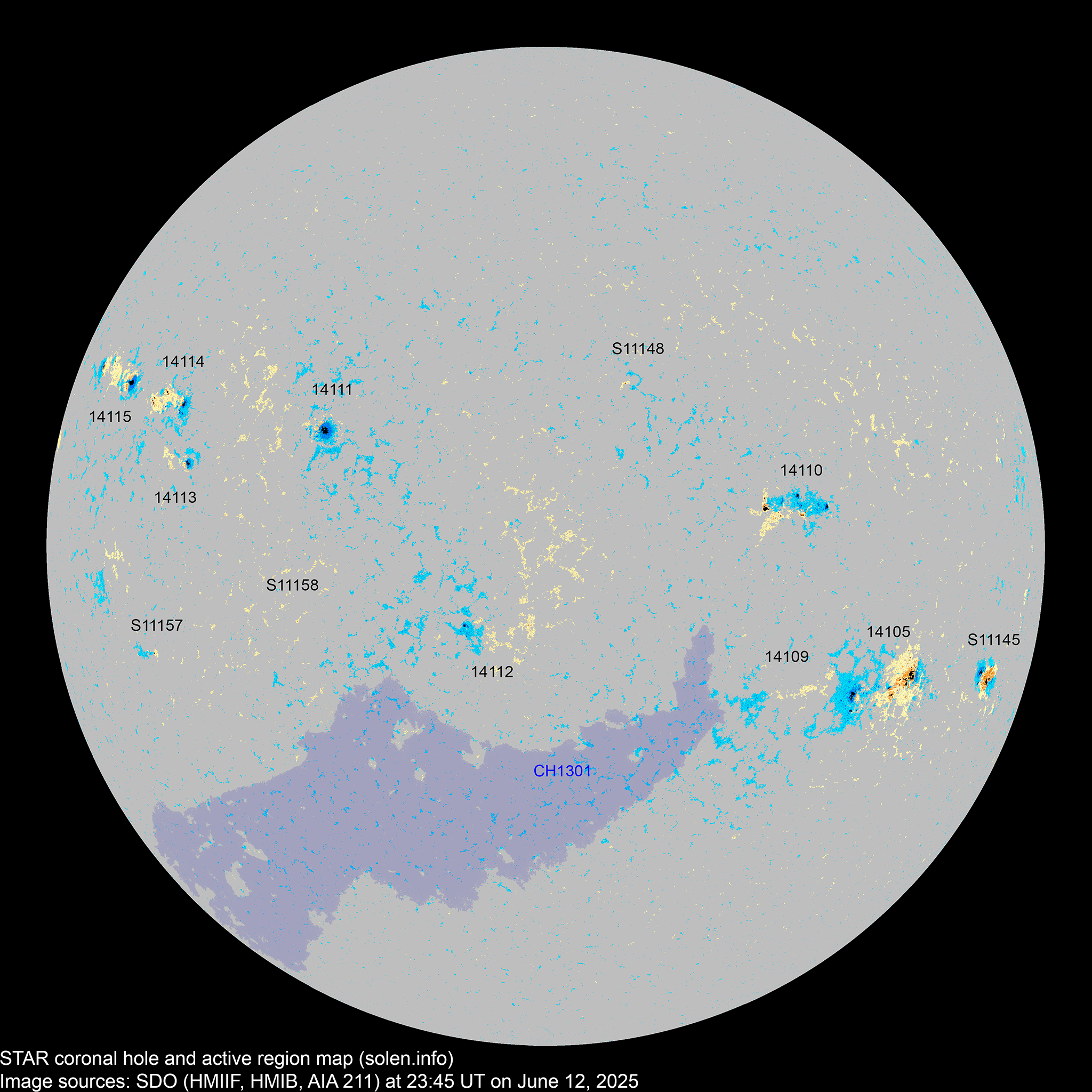

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
STAR | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 14105 | 2025.06.02 2025.06.03 |
15 | 42 | 22 | S15W46 | 0260 | EKC | EAC |
 |
 |
was AR S11119 area: 0340 |
| S11120 | 2025.06.02 | N12W47 |
 |
||||||||
| 14107 | 2025.06.05 2025.06.06 |
3 | S15W67 | 0220 | DAO |
was AR S11129 location: S19W69 spotless SWPC location on June 9: S18W31. On June 10 SWPC moved this region to the spots of AR S11145 |
|||||
| 14109 | 2025.06.05 2025.06.07 |
5 | 2 | S17W32 | 0010 | AXX |
 |
 |
was AR S11131 location: S17W26 |
||
| 14108 | 2025.06.06 2025.06.07 |
S21W85 |
 |
was AR S11133 location: S20W88 |
|||||||
| S11138 | 2025.06.07 | S03W29 | |||||||||
| 14111 | 2025.06.08 2025.06.09 |
1 | 9 | 2 | N15E27 | 0120 | HSX | HAX |
 |
 |
was AR S11139 area: 0190 loction: N14E28 |
| 14110 | 2025.06.08 2025.06.09 |
5 | 31 | 14 | N06W30 | 0030 | DAO | DAI |
 |
 |
beta-gamma was AR S11140 area: 0110 |
| 14112 | 2025.06.08 | 1 | 14 | 5 | S06E11 | 0005 | AXX | CRO |
 |
 |
was AR S11141 area: 0030 location: S08E09 |
| S11142 | 2025.06.08 | S24W44 | |||||||||
| S11143 | 2025.06.08 | S22W22 | |||||||||
| S11145 | 2025.06.09 | 9 | 6 | S15W66 | 0320 | DKC |
 |
 |
this became AR 14107 to SWPC on 2025.06.10 |
||
| S11146 | 2025.06.09 | N03W39 | |||||||||
| S11147 | 2025.06.09 | S27W52 | |||||||||
| S11148 | 2025.06.10 | 1 | 1 | N20W10 | 0003 | AXX |
 |
 |
|||
| 14113 | 2025.06.10 2025.06.11 |
2 | 3 | 1 | N10E50 | 0020 | HSX | CSO |
 |
 |
was AR S11149 location: N10E47 area: 0050 |
| 14114 | 2025.06.10 2025.06.11 |
5 | 15 | 7 | N18E57 | 0070 | CAI | DAI |
 |
 |
beta-gamma was AR S11150 area: 0100 location: N18E51 SWPC location is way off |
| 14115 | 2025.06.11 2025.06.12 |
4 | 5 | 4 | N21E67 | 0180 | DSO | ESO |
 |
 |
was AR S11151 location: N20E65 area: 0260 |
| S11152 | 2025.06.11 | N15W00 |
 |
||||||||
| S11153 | 2025.06.11 | S34W08 |
 |
||||||||
| S11154 | 2025.06.11 | S32W26 |
 |
||||||||
| S11155 | 2025.06.11 | N04E05 |
 |
||||||||
| S11156 | 2025.06.11 | S16W54 |
 |
||||||||
| S11157 | 2025.06.12 | 2 | 2 | S11E54 | 0005 | BXO |
 |
||||
| S11158 | 2025.06.12 | 1 | S07E30 | 0004 | AXX |
 |
|||||
| Total spot count: | 36 | 137 | 66 | ||||||||
| Sunspot number: | 116 | 257 | 176 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 76 | 180 | 109 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 128 | 141 | 141 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2024.01 | 164.6 | 159.3 | 126.0 | 131.2 (+1.7) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 123.0 | 136.9 (+5.7) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 103.7 | 141.4 (+4.5) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 137.0 | 144.5 (+3.1) | 9.69 |
| 2024.05 | 187.7 | 191.9 | 172.1 | 149.1 (+4.6) | 23.56 (SC25 peak) |
| 2024.06 | 184.3 | 190.2 | 164.1 | 152.8 (+3.7) | 10.24 |
| 2024.07 | 196.6 | 203.0 | 196.8 | 155.0 (+2.3) | 7.13 |
| 2024.08 | 246.1 (cycle peak) |
252.2 | 216.0 (SC25 peak) | 156.8 (+1.8) | 15.96 |
| 2024.09 | 195.7 | 197.8 | 141.1 | 159.4 (+1.6) | 15.36 |
| 2024.10 | 221.0 | 219.6 | 165.8 | 160.8 (+1.4) (SC25 solar max) | 18.99 |
| 2024.11 | 199.6 | 195.3 | 154.1 | 157.0 (-3.8) | 9.33 |
| 2024.12 | 197.3 | 191.2 | 154.6 | (150.7 projected, -6.3) | 8.42 |
| 2025.01 | 190.3 | 184.2 | 137.0 | (144.2 projected, -6.5) | 13.17 |
| 2025.02 | 184.2 | 179.7 | 154.6 | (135.6 projected, -8.6) | 14.42 |
| 2025.03 | 163.7 | 162.1 | 134.2 | (129.2 projected, -6.4) | 15.96 |
| 2025.04 | 162.5 | 163.6 | 140.6 | (124.6 projected, -4.6) | 17.62 |
| 2025.05 | 135.3 | 138.3 | 79.2 | (119.3 projected, -5.3) | 17.26 |
| 2025.06 | 131.4 (1) | 39.4 (2A) / 98.6 (2B) / 120.7 (2C) | (114.4 projected, -4.9) | (30.5) | |
| 2025.07 | (110.2 projected, -4.2) | ||||
| 2025.08 | (105.5 projected, -4.7) | ||||
| 2025.09 | (101.2 projected, -4.3) | ||||
| 2025.10 | (97.3 projected, -3.9) | ||||
| 2025.11 | (95.0 projected, -2.3) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value
at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 27 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap
indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Sunspot activity has been on a slowly decreasing trend since September
2024 (using the average solar flux over 3 solar rotations as a proxy). The
decline has become more obvious during the first half of May 2025 with solar
flux on May 12 at its lowest level since April 4, 2024. The solar max phase
of solar cycle 25 was considerably shorter than that of the most recent
solar cycles.
All 365 days smoothed sunspot numbers peaked on October 11-12, 2024,
very likely making this the peak of SC25 (STAR 1K 365d peak: 236.1, STAR 2K
365d peak: 364.3, NOAA SN 365d peak: 156.0, ISN 365d peak: 163.6). The 365d
smoothed solar flux peaked on October 13, 2024, just 1.7% below the SC23
peak, and 62.6% above the SC24 peak.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whichever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
