The geomagnetic field was at quiet levels on June 12. The high latitude magnetometer at Andenes recorded quiet to active levels. The above 10 MeV proton flux was at 8 pfu at the end of the day.
Solar flux density measured at 20h UT on 2.8 GHz was 164.9 - decreasing 42.3 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 162.02. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 162.02 on December 13, 2023). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.1). Three hour interval K indices: 11111112 (planetary), 11221322 (Boulder), 01113244 (Andenes).
The background x-ray flux is at the class C1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 14 active regions using 2K resolution (SN: 286) and in 12 active regions using 1K resolution (SN: 192) SDO/HMI images.
Region 13702 [N17W62] decayed slowly and
quietly.
Region 13707 [S14W19] decayed slowly and was mostly quiet.
Region 13708 [S21W04] was quiet and stable.
Region 13709 [S09E01] was mostly quiet and stable.
Region 13711 [S10E14] decayed slowly and produced the only M flare of
the day.
New region 13712 [S24E52] emerged quickly on June 11 and developed
further the next day when it was numbered by SWPC. C1 flares: C1.8 @ 04:31,
C1.6 @ 08:11, C1.6 @ 08:46, C1.6 @ 09:17 UT
New region 13713 [S13E70] rotated into view on June 11 and received
its NOAA number the following day. C1 flares: C1.9 @ 12:34 UT
New region 13714 [N14E26] was first observed with spots on June 8.
Slow development was observed on June 12 when SWPC numbered the spot group.
New region 13715 [N17E49] emerged on June 11 with SWPC numbering the
region the next day.
New region 13716 [N10E62] emerged with a few spots.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9778 [N18W35] decayed slowly and quietly.
S9781 [S22W18] was quiet and stable.
S9789 [N18W08] reemerged with tiny spots.
S9796 [N22E14] was quiet and stable.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.2 | 01:11 | 13710 | GOES16 | ||
| C2.1 | 05:09 | 13711 | GOES16 | ||
| C3.6 | 05:21 | 13713 | GOES16 | ||
| C2.3 | 05:52 | 13709 | GOES16 | ||
| C2.7 | 07:28 | 13712 | GOES16 | ||
| C2.0 | 10:26 | 13713 | GOES16 | ||
| C4.4 | 13:07 | 13713 | GOES16 | ||
| C2.5 | 14:55 | 13710 | GOES16 | ||
| C3.3 | 15:24 | 13709 | GOES16 | ||
| C3.4 | 16:26 | 13712 | GOES16 | ||
| C4.2 | 17:33 | 13710 | GOES16 | simultaneous flare in AR 13712 | |
| C4.5 | 20:52 | 13709 | GOES16 | ||
| M1.2 | 22:46 | 13711 | GOES16 |
June 10-12: No obviously Earth directed CME observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A southern hemisphere negative polarity coronal hole (CH1225) would have been Earth facing on June 10. CH1225 apparently closed before rotating across the central meridian. A positive polarity trans equatorial coronal hole (CH1226) will likely become Earth facing on June 13-14. A positive polarity northern hemisphere coronal hole (CH1227) rotated across the central meridian on June 12.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to unsettled on June 13-15.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

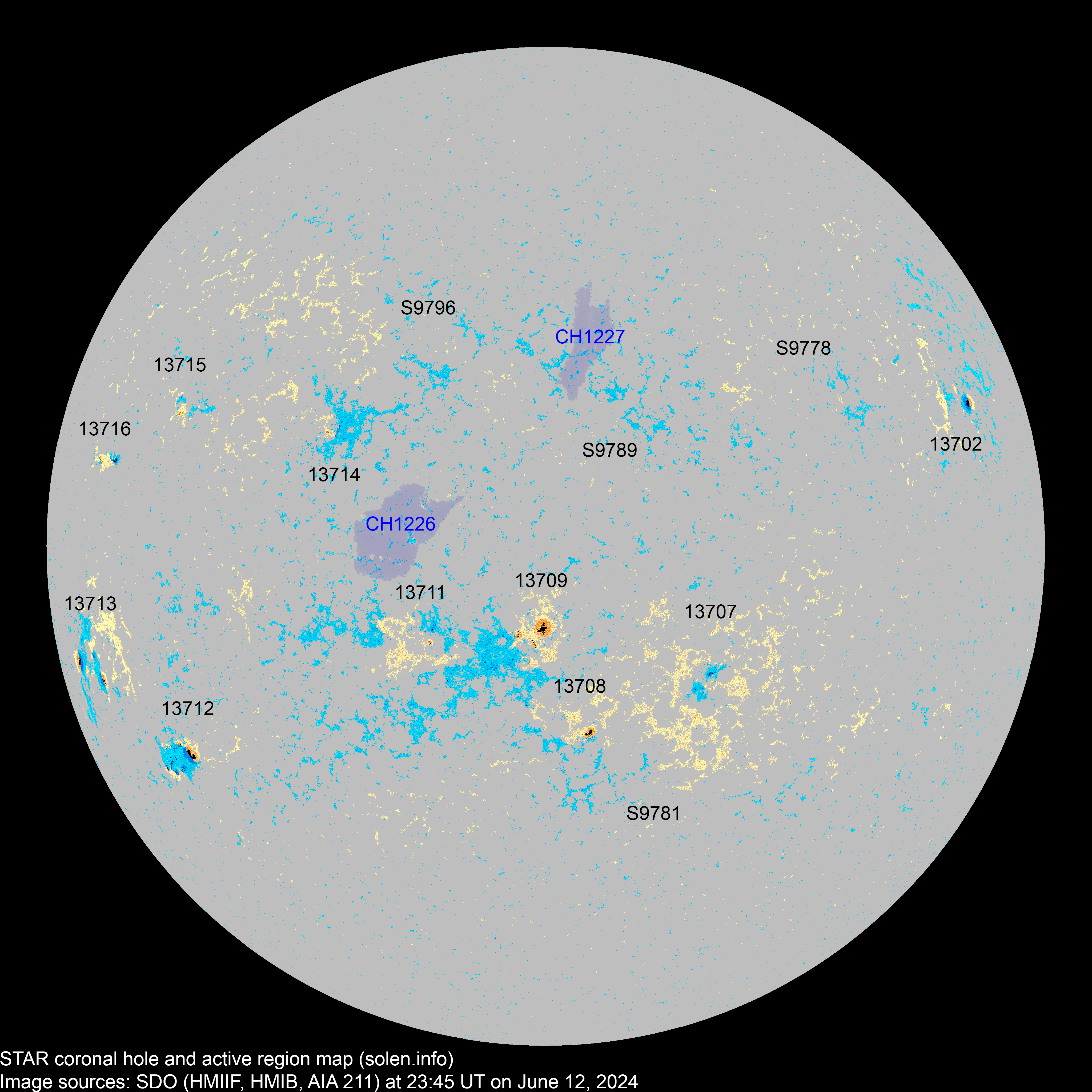

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13702 | 2024.06.01 2024.06.02 |
2 | 3 | 1 | N17W63 | 0050 | CSO | CSO |
 |
 |
area: 0130 location: N17W62 |
| 13704 | 2024.06.02 2024.06.03 |
S18W60 | |||||||||
| 13706 | 2024.06.03 2024.06.04 |
S12W83 | |||||||||
| S9769 | 2024.06.03 | N09W50 | |||||||||
| S9774 | 2024.06.05 | S27W39 | |||||||||
| 13707 | 2024.06.05 2024.06.06 |
4 | 23 | 8 | S14W19 | 0010 | CAO | CRI |
 |
 |
area: 0040 |
| 13708 | 2024.06.05 2024.06.06 |
2 | 8 | 6 | S21W05 | 0040 | HAX | DAO |
 |
 |
area: 0080 location: S21W04 |
| S9778 | 2024.06.06 | 3 | N18W35 | 0004 | BXO |
 |
 |
||||
| 13709 | 2024.06.06 2024.06.07 |
9 | 37 | 18 | S10E02 | 0140 | CAI | CAI |
 |
 |
area: 0280 location: S09E01 |
| S9781 | 2024.06.07 | 7 | 2 | S22W18 | 0015 | BXO |
 |
 |
|||
| S9782 | 2024.06.07 | S09W07 | |||||||||
| 13711 | 2024.06.07 2024.06.09 |
3 | 10 | 6 | S09E12 | 0010 | BXO | DRO |
 |
 |
beta-gamma location: S10E14 area: 0025 |
| 13714 | 2024.06.08 2024.06.12 |
5 | 10 | 5 | N14E24 | 0010 | BXO |
 |
 |
location: N14E26 | |
| S9786 | 2024.06.08 | S23W37 |
 |
||||||||
| S9789 | 2024.06.09 | 2 | 1 | N18W08 | 0007 | AXX |
 |
||||
| S9791 | 2024.06.10 | S24E07 | |||||||||
| 13715 | 2024.06.11 2024.06.12 |
3 | 7 | 3 | N17E49 | 0010 | BXO | BXO |
 |
 |
area: 0015 |
| 13712 | 2024.06.11 2024.06.12 |
11 | 22 | 15 | S24E52 | 0180 | DAO | DAI |
 |
 |
area: 0320 |
| S9794 | 2024.06.11 | S15E66 | part of AR 13713 | ||||||||
| 13713 | 2024.06.11 2024.06.12 |
3 | 5 | 4 | S13E68 | 0150 | DSO | DSO |
 |
 |
location: S13E70 area: 0300 |
| S9796 | 2024.06.11 | 3 | N27E35 | 0004 | BXO |
 |
 |
||||
| S9797 | 2024.06.11 | S04W31 |
 |
||||||||
| S9798 | 2024.06.11 | S20E20 |
 |
||||||||
| 13716 | 2024.06.12 | 3 | 6 | 3 | N10E62 | 0020 | CRO | DRO |
 |
area: 0040 | |
| Total spot count: | 45 | 146 | 72 | ||||||||
| Sunspot number: | 145 | 286 | 192 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 78 | 180 | 106 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 160 | 157 | 154 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.1 (+3.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.9 (+1.8) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | 124.2 (+1.3) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | 125.3 (+1.1) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 160.0 | 124.4 (-0.9) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | 124.1 (-0.3) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 134.2 | 123.9 (-0.2) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | 124.8 (+0.9) | 8.16 |
| 2023.11 | 153.5 | 150.2 | 105.4 | 127.8 (+3.0) | 12.20 |
| 2023.12 | 151.1 | 146.4 | 114.2 | (128.7 projected, +0.9) | 9.60 |
| 2024.01 | 164.6 | 159.3 | 123.0 | (127.0 projected, -1.7) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 124.7 | (126.2 projected, -0.8) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 104.9 | (125.6 projected, -0.6) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 136.5 | (125.6 projected, -0.0) | 9.69 |
| 2024.05 | 187.7 (cycle peak) |
191.9 | 171.7 (SC25 peak) | (126.7 projected, +1.1) | 23.56 (current SC25 peak) |
| 2024.06 | 183.0 (1) | 65.6 (2A) / 163.9 (2B) / 170.9 (2C) | (125.9 projected, -0.8) | (8.8) | |
| 2024.07 | (124.2 projected, -1.7) | ||||
| 2024.08 | (122.2 projected, -2.0) | ||||
| 2024.09 | (121.0 projected, -1.2) | ||||
| 2024.10 | (119.6 projected, -1.4) | ||||
| 2024.11 | (114.5 projected, -5.1) | ||||
| 2024.12 | (109.1 projected, -5.4) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
May 2024 easily became the month with the highest sunspot counts during solar cycle 25, and early June has seen no change in that pattern of many spot groups, some of which are large and complex. The next candidate for solar max is still uncertain, however, May 20-21, 2024 has all of the smoothed 365d sunspot numbers as well as the 365d smoothed solar flux signalling a peak on those days.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
