The geomagnetic field was quiet to unsettled on November 9 under the slowly weakening influence of a high speed stream from CH1183. Solar wind speed at DSCOVR/ACE ranged between approx. 450 and 680 km/sec. The high latitude magnetometer at Andenes recorded quiet to major storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 138.7 - decreasing 10.3 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 156.32. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 10.6). Three hour interval K indices: 33322233 (planetary), 21322332 (Boulder), 43422364 (Andenes).
The background x-ray flux is at the class B6 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 215) and in 8 active regions using 1K resolution (SN: 138) SDO/HMI images.
Region 13477 [S14W40] gained a few spots and
was mostly quiet. C1 flares: C1.8 @ 16:15 UT
Region 13479 [N23W80] decayed slowly and quietly.
Region 13480 [S08W14] decayed slowly and was mostly quiet.
Region 13481 [N21W15] decayed slowly and was mostly quiet. C1 flares:
C1.2 @ 10:50 UT
Region 13482 [N04E16] decayed slowly and quietly.
Region 13483 [N09W25] has a weak magnetic delta in the trailing spot
section and a minor M class flare is possible. C1 flares: C1.0 @ 01:19, C1.1
@ 07:20, C1.1 @ 08:30, C1.3 @ 10:55, C1.7 @ 16:02, C1.0 @ 17:59 UT
(triggered by filament eruption)
Region 13484 [S13W22] gained spots and was mostly quiet.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9128 [N25W23] developed slowly and quietly. SWPC failed to observe
that this is a separate region from AR 13481 and moved the location of that
region northwestwards to include the spots of AR S9128.
S9130 [S19W11] was quiet and stable.
S9133 [N05E51] was quiet and stable.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.6 | 11:18 | 13481 | GOES16 | impulsive flare superimposed on LDE associated with filament
eruption Flare started at 11:16 and ended at 11:21 UT, probably triggered by the filament eruption |
|
| C2.0 | 14:27 | 13483 | GOES16 |
November 7-8: No obviously Earth directed CMEs were observed.
November 9: A full halo CME was observed after a complex event before
noon involving a filament eruption and ARs 13484, 13483 and 13480. The
filament eruption was the likely trigger of small flares in ARs 13480 and
13483. The CME will likely reach Earth on November 12.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A large and well defined negative polarity trans equatorial coronal hole (CH1183) was Earth facing on November 4-6.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be at quiet to unsettled levels on November 10 due to effects from CH1183. Quiet is likely on November 11. Quiet to minor storm conditions are likely on November 12-13 due to CME effects.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

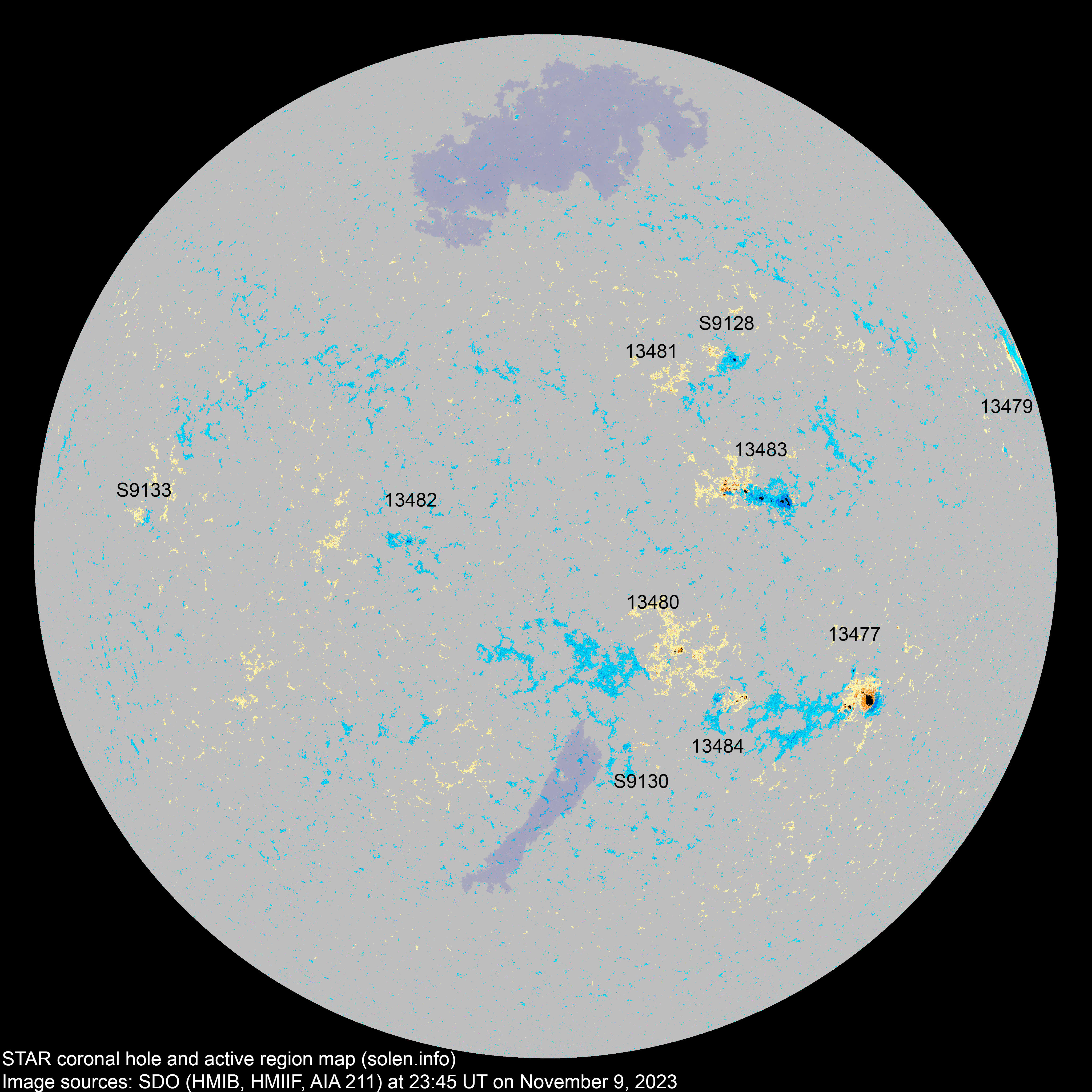

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13479 | 2023.10.31 2023.11.02 |
4 | 3 | 2 | N22W80 | 0060 | CAO | CRO |
 |
 |
location: N22W80 area: 0030 |
| 13478 | 2023.10.31 2023.11.01 |
N12W39 |
location: N13W34 |
||||||||
| 13477 | 2023.10.31 | 7 | 26 | 15 | S15W39 | 0230 | CAO | DKO |
 |
 |
area: 0330 location: S14W40 |
| 13480 | 2023.11.02 2023.11.03 |
2 | 17 | 7 | S08W14 | 0030 | CRO | CRO |
 |
 |
area: 0040 |
| 13481 | 2023.11.02 2023.11.04 |
3 | 2 | N25W19 | 0030 | BXO | BXO |
 |
 |
location: N21W15 SWPC includes the spots of AR S9128 |
|
| 13482 | 2023.11.04 2023.11.05 |
1 | 4 | 2 | N04E16 | 0010 | AXX | HRX |
 |
 |
area: 0015 |
| 13483 | 2023.11.05 2023.11.07 |
16 | 33 | 19 | N09W23 | 0120 | EAI | DAI |
 |
 |
beta-delta location: N09W25 area: 0260 |
| S9123 | 2023.11.05 | S31W21 | |||||||||
| S9125 | 2023.11.06 | N28W45 |
 |
||||||||
| S9126 | 2023.11.06 | S34W05 | |||||||||
| S9127 | 2023.11.06 | S29E10 | |||||||||
| S9128 | 2023.11.07 | 9 | 4 | N25W23 | 0020 | CRO |
 |
 |
|||
| S9129 | 2023.11.07 | S18E20 |
 |
||||||||
| S9130 | 2023.11.08 | 3 | S19W11 | 0006 | BXO |
 |
 |
||||
| 13484 | 2023.11.08 2023.11.08 |
17 | 8 | S19W19 | 0030 | CRI |
 |
 |
location: S13W22 | ||
| S9132 | 2023.11.08 | N13W51 |
 |
||||||||
| S9133 | 2023.11.08 | 1 | 1 | N05E51 | 0002 | AXX |
 |
 |
|||
| S9134 | 2023.11.08 | N25E18 |
 |
||||||||
| Total spot count: | 33 | 115 | 58 | ||||||||
| Sunspot number: | 93 | 215 | 138 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 51 | 145 | 88 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 102 | 118 | 110 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.6 (+5.9) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.5 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.0 (+3.2) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.7 (+1.7) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | (124.7 projected, +2.0) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | (127.9 projected, +3.2) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 159.1 | (128.3 projected, +0.4) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | (130.1 projected, +1.8) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 133.6 | (133.5 projected, +3.4) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | (135.2 projected, +1.7) | 8.16 |
| 2023.11 | 151.0 (1) | 27.1 (2A) / 90.4 (2B) / 105.9 (2C) | (137.8 projected max SC25, +2.6) | (19.1) | |
| 2023.12 | (137.1 projected, -0.7) | ||||
| 2024.01 | (134.4 projected, -2.7) | ||||
| 2024.02 | (134.2 projected, -0.2) | ||||
| 2024.03 | (133.7 projected, -0.5) | ||||
| 2024.04 | (134.5 projected, +0.8) | ||||
| 2024.05 | (135.8 projected, +1.3) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Looking back 6 months, the 365d smoothed values for solar flux and all sunspot numbers with the exception of NOAA's, are all above their solar cycle 24 peak. The first peak of solar cycle 25 is forecast to be between July 7 and 10, 2023 (solar flux on July 7, ISN and STAR 1K and 2K all have that peak on July 9, while NOAA peaks on July 10). This is unlikely to be the final peak of SC25, however, there is a small probability that it is the actual sunspot and solar flux maximum.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
