The geomagnetic field was quiet to unsettled on December 6 under the influence of effects from CH1190. Solar wind speed at SOHO ranged between 541 and 676 km/sec. The high latitude magnetometer at Andenes recorded unsettled to active levels.
Solar flux density measured at 20h UT on 2.8 GHz was 129.9 - decreasing 8.8 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 158.34. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 10.6). Three hour interval K indices: 33322332 (planetary), 32324322 (Boulder), 44333433 (Andenes).
The background x-ray flux is at the class B6 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 238) and in 12 active regions using 1K resolution (SN: 185) SDO/HMI images.
Region 13505 [S15W36] gained a few spots while
the main penumbra lost area.
Region 13507 [N07W26] was mostly quiet and stable. C1 flares: C1.4 @
17:14 UT
Region 13508 [S14W27] was quiet and stable. This region could merge
with AR 13510 if that region continues to expand.

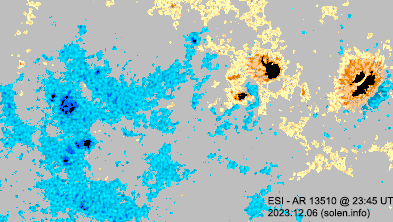

Region 13510 [S14W20] decayed losing spots and area.

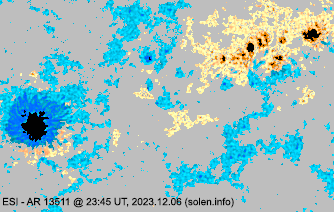

Region 13511 [S22W15] decayed losing spots and area. The region was
mostly quiet as the region became magnetically simple structured.
Region 13512 [S08E32] was quiet and stable.
Region 13513 [N18E51] was unstable and produced many C and M flares.
The region developed and has 2 small magnetic delta structures. Further M
class flaring is possible. C1 flares: C1.2 @ 00:44, C1.4 @ 07:08, C1.6 @
11:43 UT, C1.7 @ 12:48, C1.5 @ 13:28, C1.9 @ 14:32, C1.5 @ 15:35, C1.7 @
19:14, C1.0 @ 20:13 UT
New region 13514 [N10E64] rotated into view on December 5 and was
numbered by SWPC the next day.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9204 [N22W73] was quiet and stable.
S9213 [N10W40] was quiet and stable.
S9214 [S11W04] was quiet and stable.

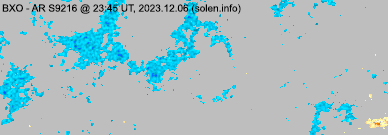

New region S9216 [N28E18] was observed with tiny spots in an
old plage area.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C3.8 | 01:09 | N20E70 | 13513 | GOES18 | |
| C3.9 | 02:59 | N20E70 | 13513 | GOES18 | |
| C2.7 | 05:01 | GOES18 | |||
| M2.1/2N | 05:41 | N18E66 | 13513 | GOES18 | |
| C2.0 | 08:13 | N18E64 | 13513 | GOES18 | |
| C9.4 | 08:17 | N18E64 | 13513 | GOES18 | |
| C3.2 | 16:06 | N20E59 | 13513 | GOES16 | |
| C4.8 | 18:58 | N20E59 | 13513 | GOES18 | |
| M2.3/1B | 21:44 | N20E55 | 13513 | GOES18 | |
| C2.7 | 22:57 | N19E50 | 13513 | GOES18 |
December 4-6: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A well defined large recurrent negative polarity trans equatorial coronal hole (CH1190) rotated across the central meridian on December 1-3. A southern hemisphere positive polarity coronal hole (CH1191) will be Earth facing on December 7.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to unsettled on December 7 due to effects from CH1190. Quiet conditions are likely on December 8-9.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

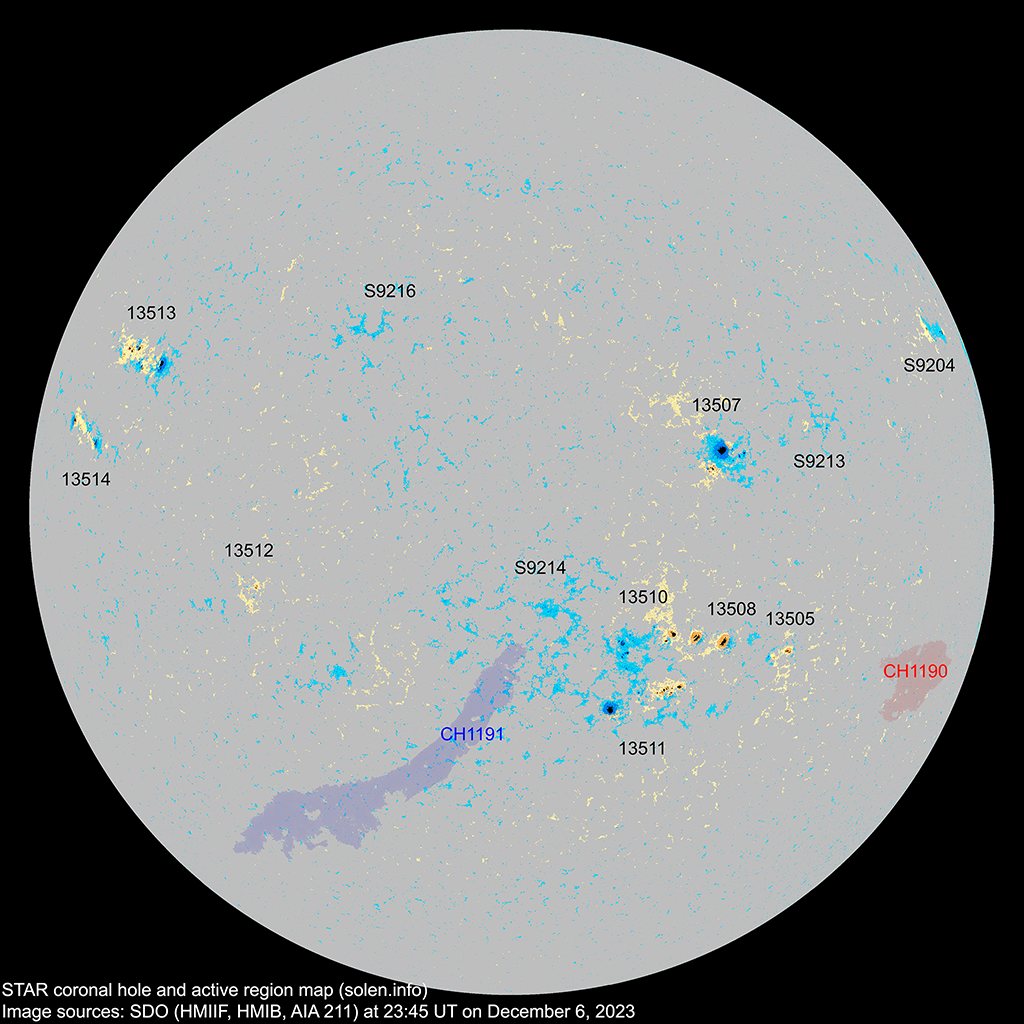

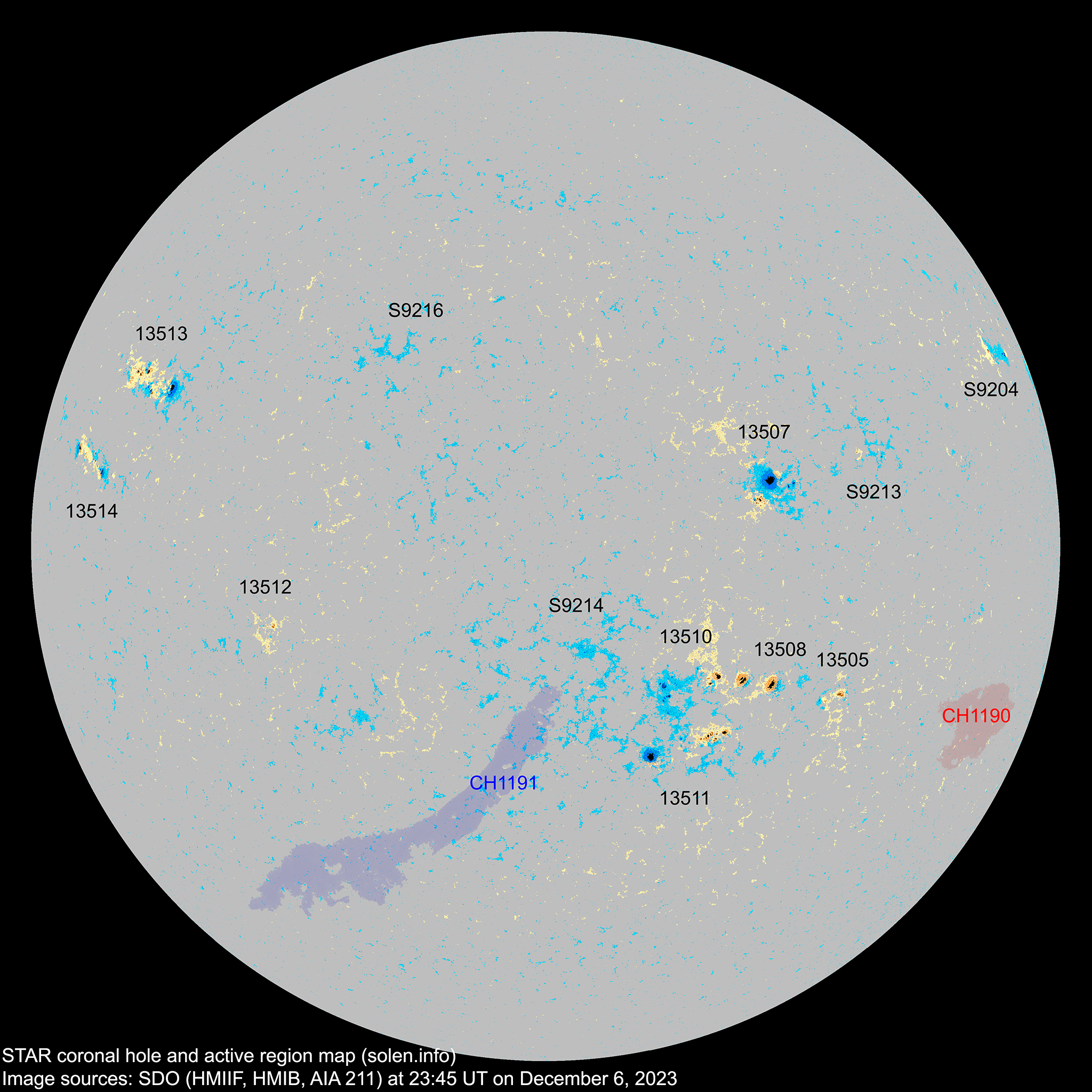

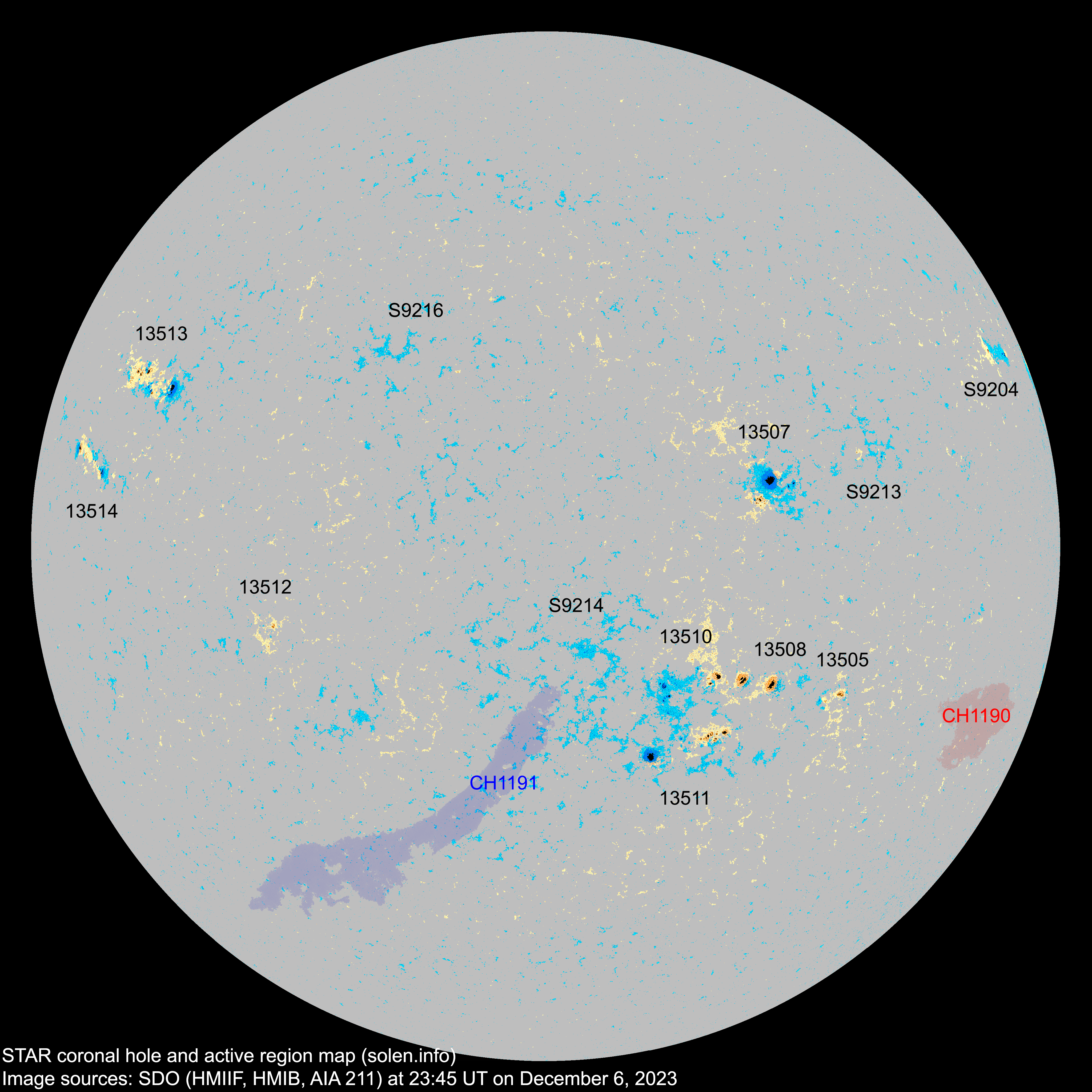

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13505 | 2023.11.27 2023.11.28 |
1 | 6 | 4 | S16W37 | 0030 | HSX | CAO |
 |
 |
location: S15W36 |
| 13508 | 2023.11.28 2023.11.29 |
1 | 1 | 1 | S14W28 | 0080 | HSX | HSX |
 |
 |
area: 0140 location: S14W27 |
| 13507 | 2023.11.28 2023.11.29 |
9 | 22 | 11 | N08W25 | 0210 | CSO | DSO |
 |
 |
beta-gamma area: 0270 location: N07W26 |
| S9194 | 2023.12.01 | S06W15 | |||||||||
| 13510 | 2023.12.02 2023.12.03 |
12 | 23 | 14 | S15W20 | 0100 | DAI | ESI |
 |
 |
area: 0210 location: S14W20 |
| 13512 | 2023.12.03 2023.12.04 |
1 | 4 | 2 | S09E29 | 0010 | AXX | HRX |
 |
 |
location: S08E32 |
| 13511 | 2023.12.03 2023.12.03 |
11 | 16 | 11 | S22W19 | 0170 | DAO | ESI |
 |
 |
location: S22W15 area: 0280 |
| S9199 | 2023.12.03 | N15W38 | |||||||||
| S9200 | 2023.12.03 | N05W17 | |||||||||
| S9201 | 2023.12.03 | S16W46 | |||||||||
| S9204 | 2023.12.04 | 4 | 3 | N22W72 | 0020 | CRO |
 |
 |
|||
| S9205 | 2023.12.04 | S06W56 | |||||||||
| S9208 | 2023.12.04 | N08W35 | |||||||||
| S9209 | 2023.12.04 | S09W18 | |||||||||
| S9210 | 2023.12.04 | S18E19 |
 |
||||||||
| 13513 | 2023.12.04 2023.12.05 |
8 | 22 | 9 | N19E53 | 0100 | DAO | DAI |
 |
 |
beta-gamma-delta location: N18E51 area: 0250 |
| 13514 | 2023.12.05 2023.12.06 |
2 | 8 | 3 | N09E65 | 0080 | DAO | DAO |
 |
 |
area: 0140 location: N10E64 |
| S9213 | 2023.12.05 | 2 | 2 | N10W25 | 0006 | BXO |
 |
 |
|||
| S9214 | 2023.12.05 | 6 | 2 | S11W04 | 0010 | AXX |
 |
 |
|||
| S9215 | 2023.12.05 | N05E14 |
 |
||||||||
| S9216 | 2023.12.06 | 4 | 3 | N28E18 | 0010 | BXO |
 |
||||
| Total spot count: | 45 | 118 | 65 | ||||||||
| Sunspot number: | 125 | 238 | 185 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 80 | 159 | 106 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 138 | 131 | 148 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.6 (+5.9) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.5 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.0 (+3.2) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.7 (+1.7) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | 123.9 (+1.2) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | (126.3 projected, +2.4) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 159.1 | (127.1 projected, +0.8) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | (128.2 projected, +1.1) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 133.6 | (130.4 projected, +2.2) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | (132.2 projected, +1.8) | 8.16 |
| 2023.11 | 153.5 | 150.2 | 105.4 | (134.1 projected max SC25, +1.9) | 12.20 |
| 2023.12 | 143.1 (1) | 22.9 (2A) / 118.3 (2B) / 128.3 (2C) | (132.7 projected, -1.4) | (17.8) | |
| 2024.01 | (130.0 projected, -2.7) | ||||
| 2024.02 | (129.9 projected, -0.1) | ||||
| 2024.03 | (129.3 projected, -0.6) | ||||
| 2024.04 | (130.1 projected, +0.8) | ||||
| 2024.05 | (132.2 projected, +2.1) | ||||
| 2024.06 | (131.5 projected, -0.7) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Due to relatively low solar activity over the last couple of months, the possibility that solar cycle 25 has already peaked has increased significantly. Whether the first peak (and maybe solar max) will be in June or July depends on solar activity in December and early January 2024. If the average solar flux is less than 150 during this period, the first peak of solar cycle 25 using 365 day smoothing will likely be sometime between June 2 and July 9. Should the average solar flux instead become 140 then the peak date will be in early June (June 4 for solar flux, June 6 for STAR 2K SN, and June 7 for all the other sunspot numbers in the graph above). We won't know for a while yet when the final peak will be, however, it is interesting that the peak of SC25 could be as early as June 2023. The next update will likely be posted here in January 2024.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
