The geomagnetic field was quiet on August 13. Solar wind speed at SOHO ranged between 313 and 440 km/sec. The high latitude magnetometer at Andenes recorded quiet to active levels.
Solar flux density measured at 20h UT on 2.8 GHz was 150.4 - decreasing 29.6 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 151.84. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.1). Three hour interval K indices: 21111111 (planetary), 22122321 (Boulder), 42122101 (Andenes).
The background x-ray flux is at the class B9 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 275) and in 13 active regions using 1K resolution (SN: 169) SDO/HMI images.
Region 13394 [S22W67] was mostly quiet and stable.
C1 flares: C1.3 @ 04:32 UT
Region 13395 [N13W56] decayed further and was mostly quiet.
Region 13397 [N19W30] developed mature penumbra on both polarities.
C1 flares: C1.3 @ 00:35 UT
Region 13399 [S16W11] was quiet and stable.
Region 13401 [N25W73] decayed slowly and
quietly.
New region 13402 [S18W48] emerged on August 12 and decayed
significantly on August 13 when it was numbered by SWPC.
New region 13403 [N27E32] emerged before noon and developed
moderately quickly. Weak polarity intermixing is present. C1 flares: C1.2 @
10:41, C1.1 @ 15:56, C1.3 @ 19:24 UT
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S8837 [N04W22] reemerged with tiny spots.
S8840 [S27W54] reemerged with tiny spots.
S8848 [N23E04] was quiet and stable.
S8849 [S09W40] was quiet and stable.
S8850 [N23E49] decayed slowly and quietly.
S8851 [N07E19] was quiet and stable.
New region S8854 [S17E08] emerged with tiny
spots.
New region S8855 [S08E73] rotated into view with mature spots.
New region S8856 [N20E24] emerged after noon with several spots.
New region S8857 [N10E88] began to rotate into view.
New region S8858 [S12W40] emerged with tiny spots.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.4 | 09:53 | N12W49 | 13395 | GOES16 | |
| C2.1 | 22:25 | 13395 | GOES16 | ||
| C2.1 | 22:37 | 13395 | GOES16 |
August 10-12: No obviously Earth direction CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A northern hemisphere coronal hole (CH1164) was in an Earth facing position on August 12-13. A southern hemisphere coronal hole (CH1165) will rotate across the central meridian on August 13-14.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on August 14. Effects from CH1164 and CH1165 could cause quiet to active conditions on August 15-17.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

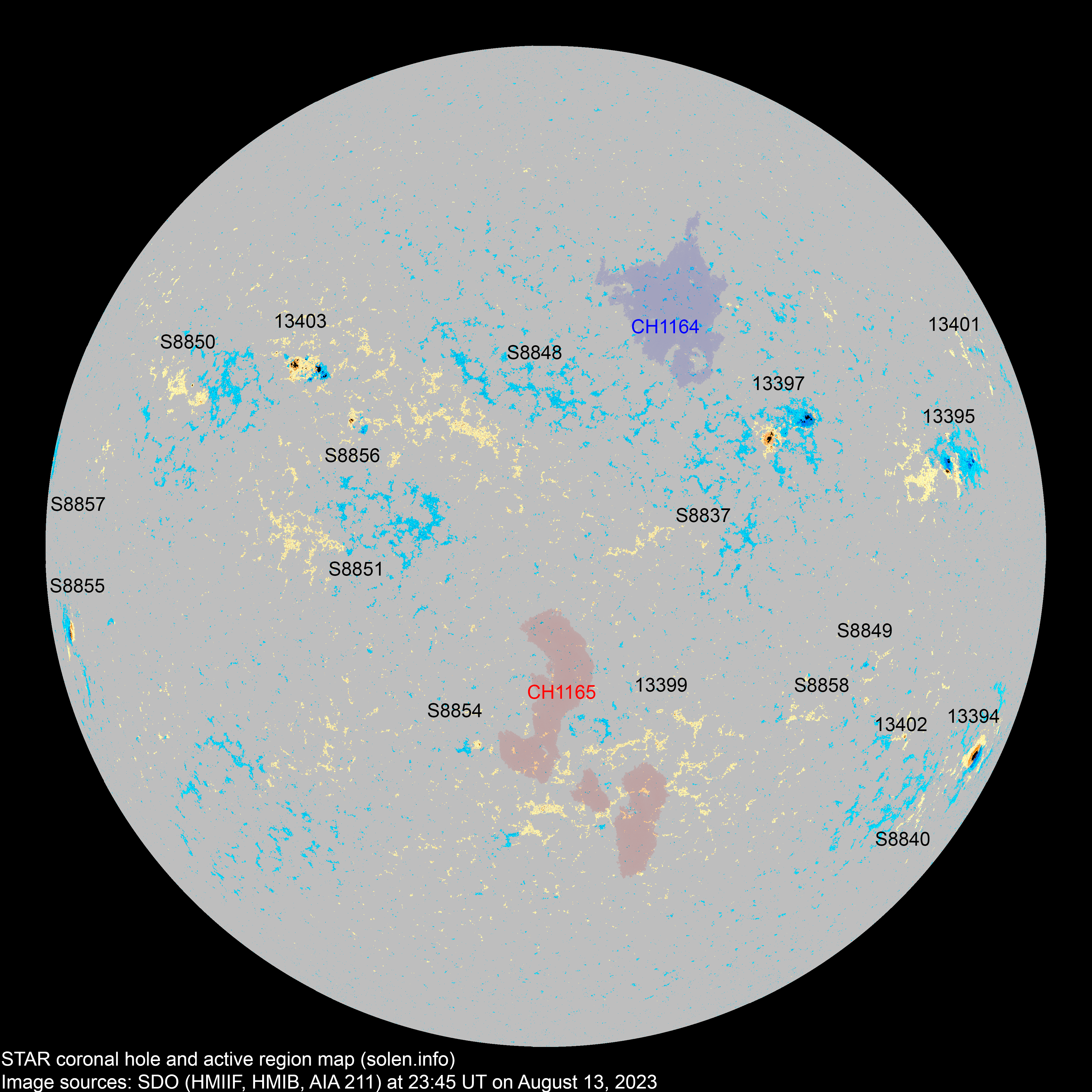

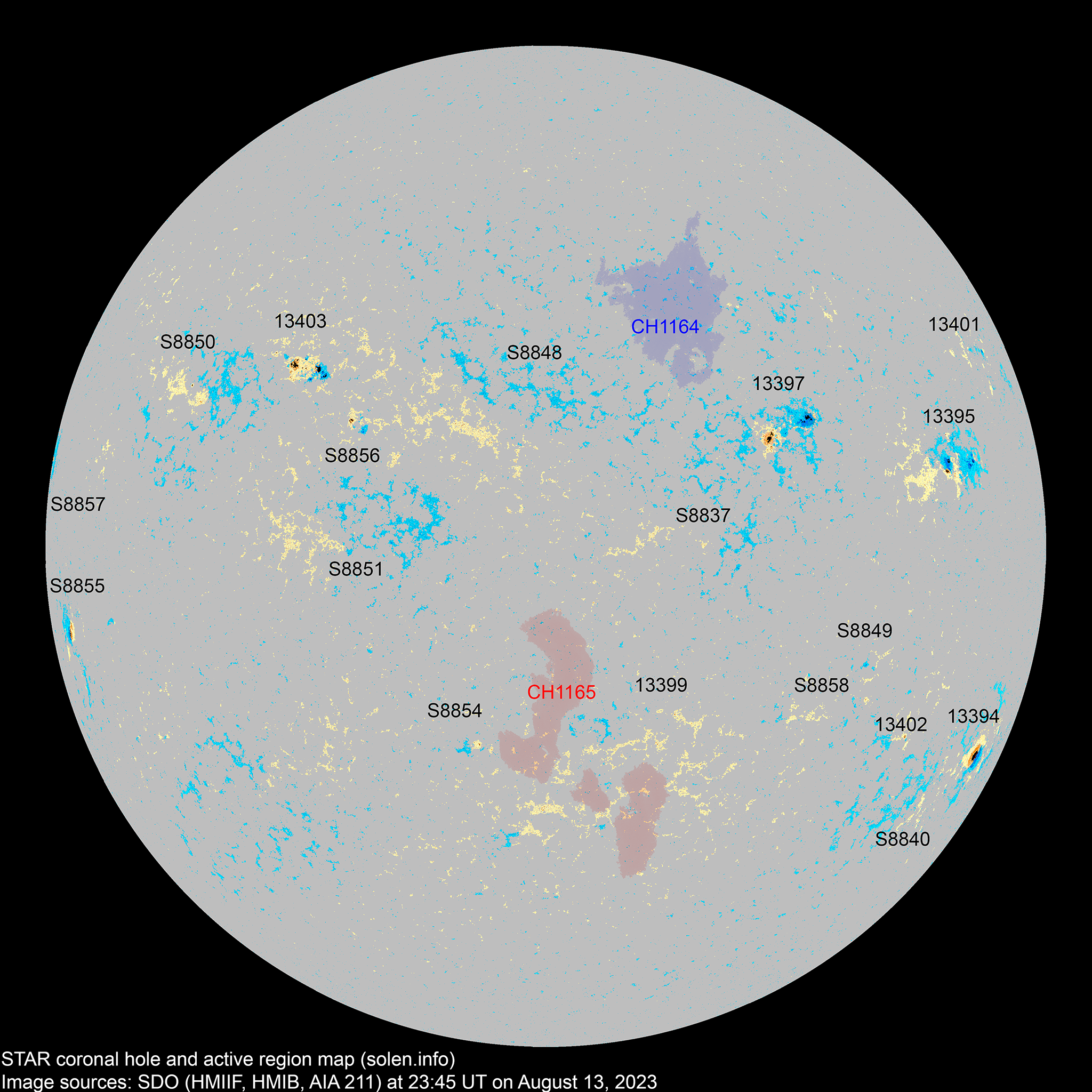

(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13394 | 2023.08.02 2023.08.03 |
1 | 1 | 1 | S23W67 | 0120 | HSX | HHX |
 |
 |
area: 0320 location: S22W67 |
| 13395 | 2023.08.03 | 9 | 17 | 5 | N13W57 | 0100 | DSO | DAO |
 |
 |
area: 0130 |
| S8821 | 2023.08.03 | N32W34 |
 |
||||||||
| 13401 | 2023.08.05 2023.08.11 |
2 | 1 | N25W73 | 0004 | AXX |
 |
 |
|||
| 13396 | 2023.08.06 2023.08.07 |
N19W78 | location: N19W72 | ||||||||
| 13397 | 2023.08.06 2023.08.07 |
10 | 14 | 8 | N19W31 | 0120 | DAO | DAO |
 |
 |
area: 0220 location: N19W30 |
| S8834 | 2023.08.06 | S13W54 | |||||||||
| 13399 | 2023.08.06 2023.08.09 |
6 | S15W20 | 0010 | AXX |
 |
 |
location: S16W11 | |||
| S8837 | 2023.08.07 | 3 | 1 | N04W22 | 0005 | AXX |
 |
||||
| S8838 | 2023.08.07 | S14W30 | |||||||||
| S8839 | 2023.08.08 | S28E02 | |||||||||
| S8840 | 2023.08.08 | 2 | S27W54 | 0002 | AXX |
 |
|||||
| 13400 | 2023.08.10 2023.08.11 |
S14W34 | |||||||||
| S8845 | 2023.08.10 | S19W06 | |||||||||
| S8847 | 2023.08.10 | N12W18 | |||||||||
| S8848 | 2023.08.10 | 7 | N23E04 | 0010 | BXO |
 |
 |
||||
| S8849 | 2023.08.11 | 2 | 1 | S09W40 | 0004 | AXX |
 |
 |
|||
| S8850 | 2023.08.11 | 3 | 1 | N23E49 | 0008 | BXO |
 |
 |
|||
| S8851 | 2023.08.11 | 4 | 1 | N07E19 | 0007 | BXO |
 |
 |
|||
| 13402 | 2023.08.12 2023.08.13 |
1 | 2 | 1 | S18W48 | 0010 | AXX | AXX |
 |
 |
area: 0006 |
| 13403 | 2023.08.13 2023.08.13 |
7 | 17 | 13 | N26E32 | 0050 | CAO | DRI |
 |
was AR S8853 area: 0130 |
|
| S8854 | 2023.08.13 | 4 | 1 | S17E08 | 0007 | BXO |
 |
||||
| S8855 | 2023.08.13 | 2 | 2 | S08E73 | 0130 | HAX |
 |
||||
| S8856 | 2023.08.13 | 6 | 3 | N20E24 | 0030 | CRO |
 |
||||
| S8857 | 2023.08.13 | 1 | N10E88 | 0030 | HSX |
 |
|||||
| S8858 | 2023.08.13 | 2 | S12W40 | 0003 | BXO |
 |
|||||
| Total spot count: | 28 | 95 | 39 | ||||||||
| Sunspot number: | 78 | 275 | 169 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 48 | 131 | 70 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 86 | 151 | 135 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.01 | 103.8 | 100.5 | 55.3 | 60.1 (+4.2) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 60.9 | 64.7 (+4.6) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.6 | 68.7 (+4.0) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.5 (+5.8) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.4 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.7 (+2.3) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.0 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.6 (+5.6) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 143.6 | 113.3 (+6.7) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 110.9 | (119.1 projected, +5.8) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 122.6 | (124.4 projected, +5.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 96.4 | (130.5 projected, +6.1) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.9 | (136.1 projected, +5.6) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 163.4 | (139.3 projected, +3.2) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 159.1 | (139.7 projected, +0.4) | 8.15 |
| 2023.08 | 163.1 (1) | 44.6 (2A) / 106.4 (2B) / 139.7 (2C) | (141.5 projected, +1.8) | (9.1) | |
| 2023.09 | (145.0 projected, +3.5) | ||||
| 2023.10 | (146.8 projected, +1.8) | ||||
| 2023.11 | (149.4 projected max SC25, +2.6) | ||||
| 2023.12 | (148.6 projected, -0.8) | ||||
| 2024.01 | (145.7 projected, -2.9) | ||||
| 2024.02 | (144.3 projected, -1.4) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
