The geomagnetic field was quiet to unsettled on May 19 under the weak influence of a high speed stream associated with CH1079. The high latitude magnetometer at Andenes recorded quiet to minor storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 173.2 - increasing 10.7 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 97.95). The Potsdam WDC planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 8.8). Three hour interval K indices: 32111112 (planetary), 32122313 (Boulder), 542x2233 (Andenes).
The background x-ray flux is at the class C1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 327) and in 10 active regions using 1K resolution (SN: 192) SDO/HMI images.
Region 13007 [S22W77] decayed slowly and
quietly.
Region 13010 [S16W18] decayed slowly and was mostly quiet.
Region 13011 [N19W16] was quiet and stable.
Region 13013 [S26W36] was quiet and stable.
Region 13014 [N22E06] developed slowly and has
multiple magnetic deltas within the huge penumbra. A major flare is possible.
Region 13015 [N14W00] decayed slowly and quietly.
Region 13016 [S19E32] was quiet and stable.
Region 13017 [N13E22] gained spots and is being considered for a
split into two active regions. The region was strongly involved in the major
flare shared with nearby AR S7577.
Region 13018 [S10E27] was quiet and stable.
New region 13019 [N12E69] rotated into view on May 18 and was
numbered the next day by SWPC.
Spotted regions not observed (or interpreted
differently) by SWPC:
S7577 [N16E21] was involved in the sequence of
events leading to the only major flare of the day.
A complex event began in this
region at 06:32 UT and first peaked as a C7.8 flare at 06:43. The flare then
triggered an event which spanned AR S7577 and 13017 and culminated in a
major M5.6 flare at 07:19 UT
New region S7579 [N21E48] was observed with a single tiny
spot.
C2+ flares:
Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
C3.0 | 00:52 | 13014 | GOES16 | ||
C2.0 | 01:47 | 13014 | GOES16 | ||
C3.9 | 02:52 | N22E19 | 13014 | GOES16 | |
C3.1 | 03:34 | N22E15 | 13014 | GOES16 | |
C5.5 | 05:51 | N21E18 | 13014 | GOES16 | |
C7.8 | 06:41 | N16E31 | S7577 | GOES16 | |
M5.6/2B | 07:19 | N12E37 | 13017 | GOES16 | Multiple flare centers including AR S7577 |
C5.1 | 07:58 | S7577 | GOES16 | ||
C3.7 | 09:26 | 13014 | GOES16 | ||
M1.5/1N | 10:09 | N20E18 | 13014 | GOES16 | |
C2.6 | 11:00 | 13014 | GOES16 | ||
C2.7 | 11:49 | 13014 | GOES16 | ||
C3.2 | 14:14 | 13014 | GOES16 | ||
M1.1 | 15:16 | N21E13 | 13014 | GOES16 | |
C3.3 | 19:14 | S16W11 | 13010 | GOES16 | |
C2.7 | 22:32 | S7577 | GOES16 |
May 18-19: No obviously Earth directed CMEs
were observed in available LASCO imagery.
May 17: The C6 flare in AR 13015 at 05:07 UT may have been the source
of a partial halo CME that was observed in LASCO imagery a little later. In
that case there is a chance of a weak CME impact on May 20.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A trans equatorial coronal hole (CH1079) was Earth facing on May 15-18.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
Quiet to unsettled conditions are likely on May 20-21 due to effects from CH1079 becoming quiet on May 22.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image

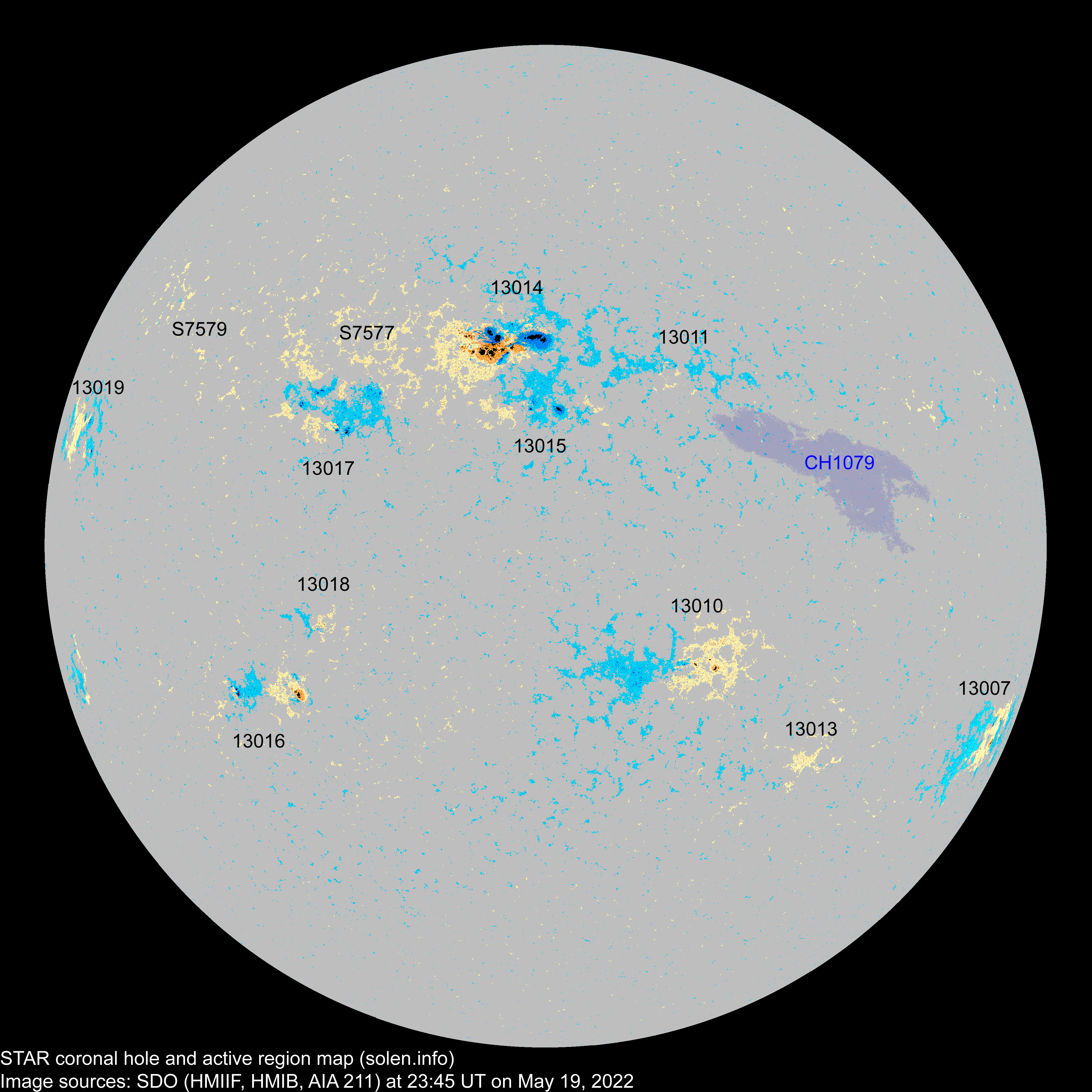

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
13007 | 2022.05.07 2022.05.08 |
4 | 9 | 5 | S22W75 | 0110 | HSX | CAO |
location: S22W77 |
||
13012 | 2022.05.09 2022.05.13 |
S19W81 | |||||||||
13008 | 2022.05.10 2022.05.11 |
N16W75 | location: N19W73 | ||||||||
13013 | 2022.05.11 2022.05.14 |
2 | S27W39 | 0002 | AXX | location: S26W36 | |||||
13010 | 2022.05.11 2022.05.12 |
16 | 29 | 14 | S16W18 | 0050 | CSO | CAI |
|
||
13011 | 2022.05.12 2022.05.13 |
8 | 2 | N14W20 | 0010 | AXX |
location: N19W16 |
||||
S7568 | 2022.05.13 | N15W51 | |||||||||
13015 | 2022.05.13 2022.05.15 |
5 | 19 | 5 | N14E01 | 0050 | HSX | CAO | |||
13014 | 2022.05.13 2022.05.15 |
30 | 59 | 36 | N22E04 | 1100 | EKC | EKC |
beta-gamma-delta area: 1280 location: N22E06 |
||
13016 | 2022.05.15 2022.05.16 |
4 | 16 | 6 | S19E35 | 0140 | DAO | EAO | location: S18E32 | ||
S7573 | 2022.05.15 | N05W28 | likely SC24 group | ||||||||
13017 | 2022.05.15 2022.05.16 |
9 | 35 | 13 | N13E27 | 0030 | CRO | CRI |
area: 0060 black area in image masks spots in AR S7577 northern spots may be separate group |
||
13018 | 2022.05.16 2022.05.17 |
3 | 6 | 2 | S11E26 | 0000 | AXX | BXO | area: 0015 | ||
S7576 | 2022.05.16 | N31W40 | |||||||||
S7577 | 2022.05.18 | 16 | 5 | N16E21 | 0025 | BXO | |||||
13019 | 2022.05.18 2022.05.19 |
3 | 7 | 4 | N11E69 | 0020 | CRO | CRO | |||
S7579 | 2022.05.19 | 1 | N21E48 | 0001 | AXX | ||||||
Total spot count: | 74 | 207 | 92 | ||||||||
Sunspot number: | 154 | 327 | 192 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 110 | 243 | 128 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 169 | 180 | 154 |
Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
---|---|---|---|---|---|
Measured | 1 AU | ||||
2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (solar max) | 7.88 |
2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (cycle peak) |
2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
2020.10 |
74.6 | 74.2 | 14.6 | 11.9 (+1.4) | 6.13 |
2020.11 | 89.9 | 88.0 | 34.5 | 13.6 (+1.7) | 4.77 |
2020.12 | 86.9 | 84.2 | 23.1 | 15.3 (+1.7) | 4.72 |
2021.01 | 76.0 | 73.6 | 10.4 | 17.3 (+2.0) | 4.39 |
2021.02 | 74.3 | 72.4 | 8.2 | 19.0 (+1.7) | 9.50 |
2021.03 | 76.0 | 75.2 | 17.2 | 21.7 (+2.7) | 10.17 |
2021.04 | 75.9 | 76.4 | 24.5 | 24.8 (+3.1) | 8.40 |
2021.05 | 75.3 | 77.1 | 21.2 | 25.8 (+1.0) | 6.50 |
2021.06 | 79.4 | 81.8 | 25.0 | 27.6 (+1.8) | 5.52 |
2021.07 | 81.0 | 83.6 | 34.3 | 31.3 (+3.7) | 5.51 |
2021.08 | 77.7 | 79.7 | 22.0 | 35.3 (+4.0) | 6.19 |
2021.09 | 87.0 | 88.2 | 51.3 | 40.0 (+4.7) | 6.33 |
2021.10 | 88.9 | 88.3 | 37.4 | 45.0 (+5.0) | 7.38 |
2021.11 | 86.2 | 84.4 | 34.8 | (50.0 projected, +5.0) | 9.83 |
2021.12 | 103.0 | 99.8 | 67.5 | (55.8 projected, +5.8) | 6.40 |
2022.01 | 103.8 | 100.5 | 54.0 | (60.3 projected, +4.5) | 8.92 |
2022.02 | 109.1 | 106.5 | 59.7 | (65.2 projected, +4.9) | 10.46 |
2022.03 | 117.0 | 115.8 | 78.5 | (70.7 projected, +5.5) | 10.20 |
2022.04 | 130.8 | 131.7 | 84.1 | (75.9 projected, +5.2) | 11.79 |
2022.05 | 135.6 (1) | 59.2 (2A) / 96.6 (2B) / 109.6 (2C) | (82.3 projected, +6.4) | (6.1) | |
2022.06 | (88.2 projected, +5.9) | ||||
2022.07 | (95.4 projected, +7.2) | ||||
2022.08 | (102.1 projected, +6.7) | ||||
2022.09 | (107.1 projected, +5.0) | ||||
2022.10 | (110.3 projected, +3.2) |
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
