The geomagnetic field was quiet on July 17. Solar wind speed at SOHO ranged between 358 and 450 km/sec. The high latitude magnetometer at Andenes recorded quiet levels.
Solar flux density measured at 20h UT on 2.8 GHz was 161.2 - increasing 24.7 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 105.64). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.4). Three hour interval K indices: 10111021 (planetary), 10212222 (Boulder), 11111122 (Andenes).
The background x-ray flux is at the class C1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 9 active regions using 2K resolution (SN: 247) and in 8 active regions using 1K resolution (SN: 169) SDO/HMI images.
Region 13053 [N18W85] rotated partly out of
view while decaying quickly.
Region 13055 [S16W75] decayed slowly and was mostly quiet. C1 flares: C1.5 @ 13:44 UT
Region 13056 [S16W28] decayed further losing spots in the eastern spot section. C1 flares: C1.5 @ 10:48, C1.6 @ 14:56, C1.6 @ 16:32 UT
Region 13057 [N16W10] decayed slowly and was mostly quiet. C1 flares: C1.9 @ 12:02 UT
Region 13058 [N14E26] decayed slowly and still has a magnetic delta at the center of the region. An M class flare is possible. C1 flares: C1.5 @ 09:02, C1.9 @ 09:51 UT
Region 13059 [S08E41] developed slowly and quietly.
Region 13060 [N11E35] decayed slowly and quietly.
New region 13061 [N23W38] emerged on July 16 and was numbered the next day by SWPC as the region developed slowly.
Spotted regions not observed (or interpreted
differently) by SWPC:
S7701 [N20W29] reemerged with tiny spots.
|Magnitude||Peak time (UT)||Location||Source||Recorded by||Comment|
July 16-17: No obviously Earth directed CMEs
were observed in available LASCO imagery.
July 15: A partial halo CME was observed after a filament eruption in the northern hemisphere after noon. The CME could reach Earth on July 19.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A small northern hemisphere coronal hole (CH1088) rotated across the central meridian on July 15. A large trans equatorial coronal hole (CH1089) will become Earth facing on July 18-20.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
Quiet conditions are likely on July 18 with a chance of unsettled intervals should the disturbance related to CH1088 reach Earth. Quiet to minor storm conditions are possible on July 19-20 due to CME effects and on July 21-23 due to effects from CH1089.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

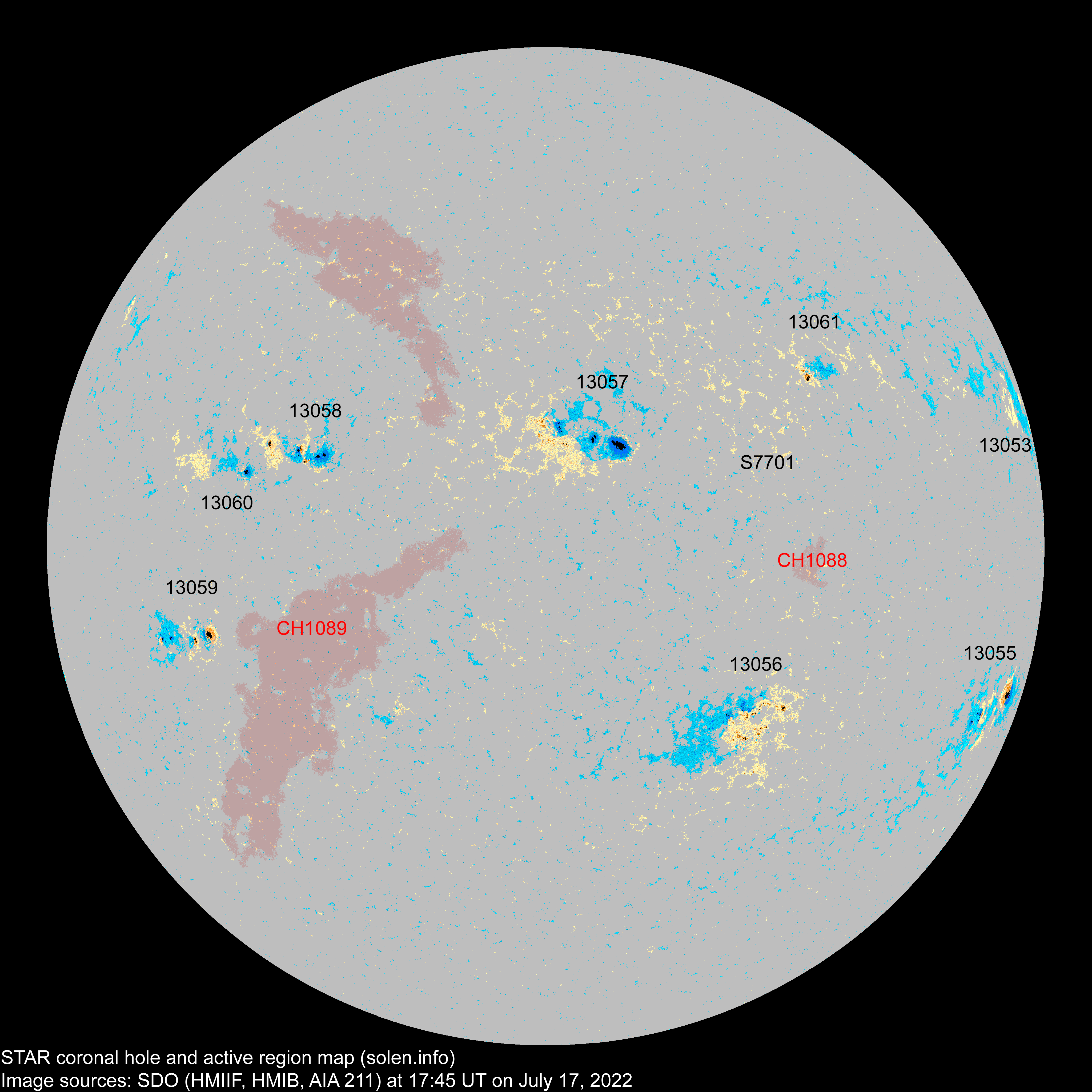

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
|Active region||SWPC date numbered
|Spot count||Location at midnigh4t||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||86||157||89|
|Sunspot number:||166||247||169||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||141||198||130||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||183||136||135|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (SC24 peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (solar max)||7.88|
(Solar minimum using 365d smoothing:
November 17, 2019)
(ISN 13 months smoothed
|2022.01||103.8||100.5||54.0||(59.5 projected, +3.8)||8.92|
|2022.02||109.1||106.5||59.7||(65.1 projected, +5.6)||10.46|
|2022.03||117.0||115.8||78.5||(70.5 projected, +5.4)||10.20|
|2022.04||130.8||131.7||84.1||(75.7 projected, +5.2)||11.79|
|2022.05||133.8||136.8||96.5||(82.2 projected, +6.5)||7.48|
|2022.06||116.1||119.8||70.6||(88.1 projected, +5.9)||8.20|
|2022.07||137.5 (1)||55.6 (2A) / 101.4 (2B) / 108.4 (2C)||(95.3 projected, +7.2)||(9.0)|
|2022.08||(101.9 projected, +6.6)|
|2022.09||(106.9 projected, +5.0)|
|2022.10||(110.1 projected, +3.2)|
|2022.11||(112.9 projected, +2.8)|
|2022.12||(117.7 projected, +4.8)|
|2023.11||(141.4 projected max SC25)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
