The geomagnetic field was at quiet to minor storm levels on January 22, predominantly under the influence of effects from CH1340. Solar wind speed at SOHO ranged between 463 and 675 km/sec, averaging 570 km/sec (-153 km/sec compared to the previous day). The high latitude magnetometer at Andenes was at unsettled to major storm levels. The above 10 MeV proton flux decreased gradually and was near 4 pfu at the end of the UT day.
Solar flux density measured at 20h UT on 2.8 GHz was 194.4 - increasing 28.0 over the previous solar rotation.
The 365 day average solar flux at 1 AU was 151.71 (183 days ago). The 81 day average solar flux at 1 AU was 146.9 (41 days ago, this is 49.2% of the total SC25 solar flux range from the max 81 day average peak on September 4, 2024 at 227.3 and an average 81 day flux of 69 at solar minimum). SC25 365d peak: 195.9 on October 13, 2024.
The Potsdam WDC planetary A index was 16 (STAR Ap - based on the average of three hour interval ap indices: 16.0). Three hour interval K indices: 43222225 (planetary), 43222315 (Boulder), 54333336 (Andenes).
The background x-ray flux is at the class C1 level (GOES 19).
At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 412) and in 15 active regions using 1K resolution (SN: 271) SDO/HMI images.

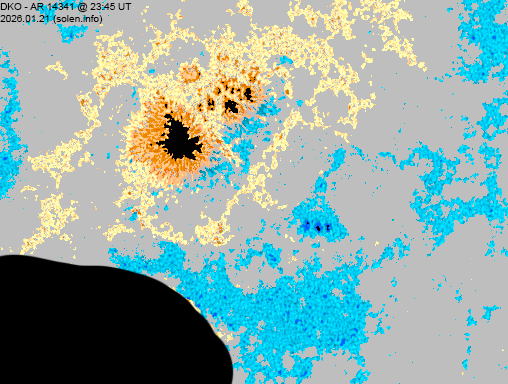

AR 14341 [S10W33] decayed further and was
mostly
quiet.

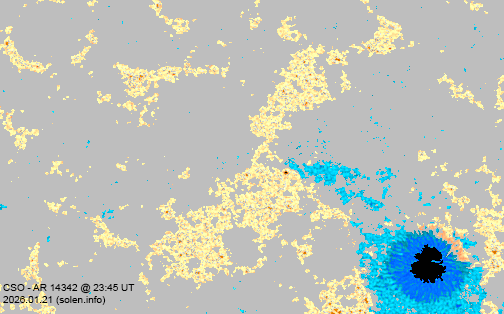

AR 14342 [N17W30] was mostly quiet and stable. Note that SWPC groups AR
S11780 with this AR.
AR 14343 [S11W84] decayed slowly and quietly.
AR 14344 [N18W40] was quiet and stable.

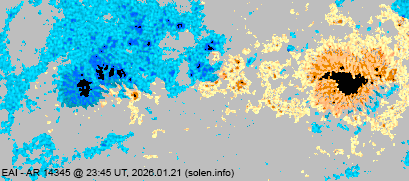

AR 14345 [S17W29] decayed slowly and produced a few C flares. C1
flares: C1.7 @ 06:36, C1.8 @ 13:52 UT

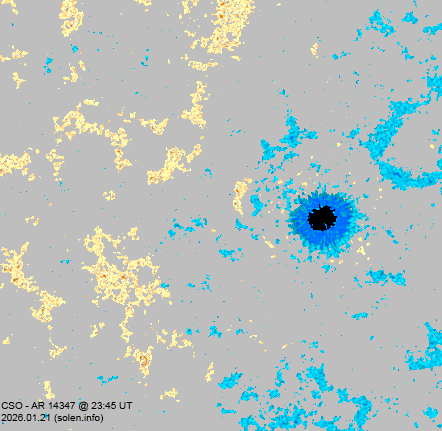

AR 14347 [N10W05] was mostly quiet and stable.
AR 14348 [S17W59] decayed slowly and quietly
AR 14349 [S13E34] produced the largest flare of the day. Slow decay
was observed.
AR 14350 [N20E18] decayed slowly and quietly.

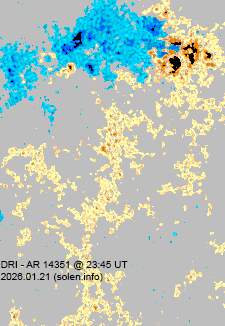

AR 14351 [S05E07] developed further and was mostly quiet. C1 flares:
C1.5 @ 21:57 UT
New
AR 14353 [N17E11] emerged quickly on January 21 and developed further
the next day when it was numbered by SWPC. M flares are possible. C1 flares:
C1.5 @ 00:23, C1.5 @ 00:47, C1.7 @ 02:27, C1.7 @ 09:41, C1.5 @ 18:56, C1.9 @
19:41, C1.5 @ 22:19, C1.9 @ 22:34, C1.5 @ 22:51 UT
New AR 14354 [S12E14] emerged with several spots.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:

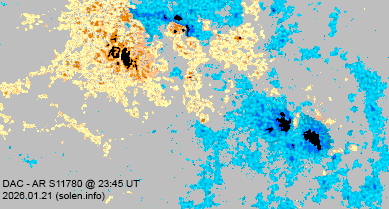

AR S11780 [N12W31] decayed significantly and
was mostly quiet. C1 flares: C1.6 @ 09:27 UT
AR S11793 [N18E28] was quiet and stable.
AR S11798 [S12E68] has tiny spots spread over a large area.
New AR S11801 [N08E11] emerged with tiny spots.
New AR S11802 [S24W20] emerged with a tiny spot.
New AR S11803 [S22W43] emerged with tiny spots.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.2 | 01:28 | 14347 | GOES18 | ||
| C2.0 | 03:53 | 14345 | GOES18 | ||
| C2.1 | 04:11 | 14351 | GOES18 | ||
| C8.3 | 10:49 | 14345 | GOES18 | ||
| C2.3 | 12:23 | 14342 | GOES18 | ||
| C2.0 | 15:38 | 14345 | GOES18 | ||
| C4.3 | 17:07 | 14351 | GOES18 | ||
| C2.6 | 17:45 | 14353 | GOES18 | ||
| C2.0 | 18:26 | 14353 | GOES18 | ||
| C9.5 | 19:54 | 14353 | GOES18 | ||
| C2.4 | 20:24 | 14353 | GOES18 | ||
| C2.1 | 20:33 | 14353 | GOES18 | ||
| C2.3 | 21:22 | 14345 | GOES18 | ||
| C2.0 | 23:10 | 14341 | GOES18 | ||
| C2.6 | 23:52 | 14341 | GOES18 |
January 20-22: No obviously Earth directed CMEs were observed in available coronagraph imagery.
[Coronal
hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A huge recurrent trans equatorial positive polarity coronal hole (CH1340) was Earth facing on January 15-22. A recurrent trans equatorial negative polarity coronal hole (CH1341) will likely rotate across the central meridian on January 24-25.
The geomagnetic field is expected to be at quiet to active levels on January 23-25 due to effects associated with CH1340.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could
reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).

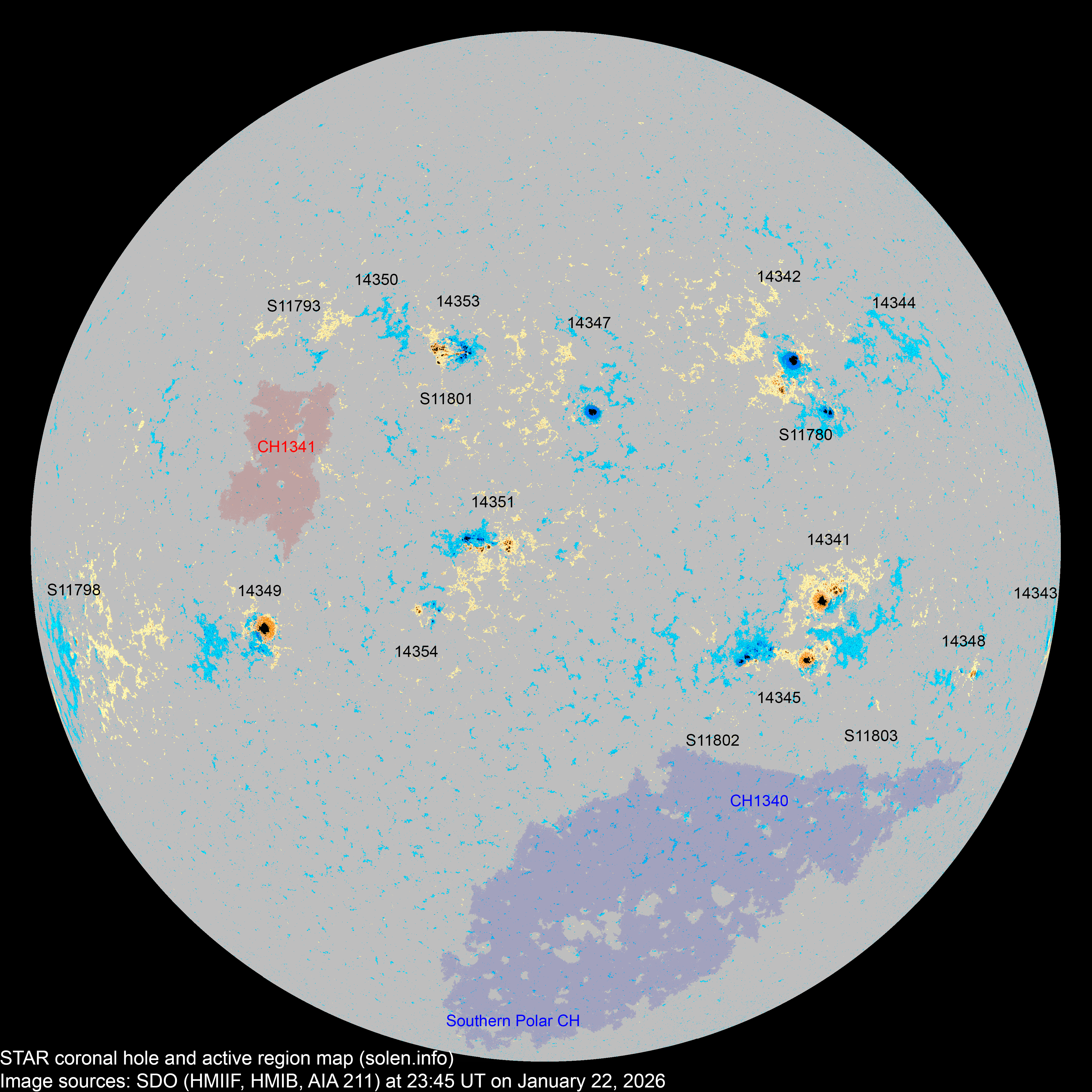

4K resolution.
Compare to the previous day's image. 0.5K image

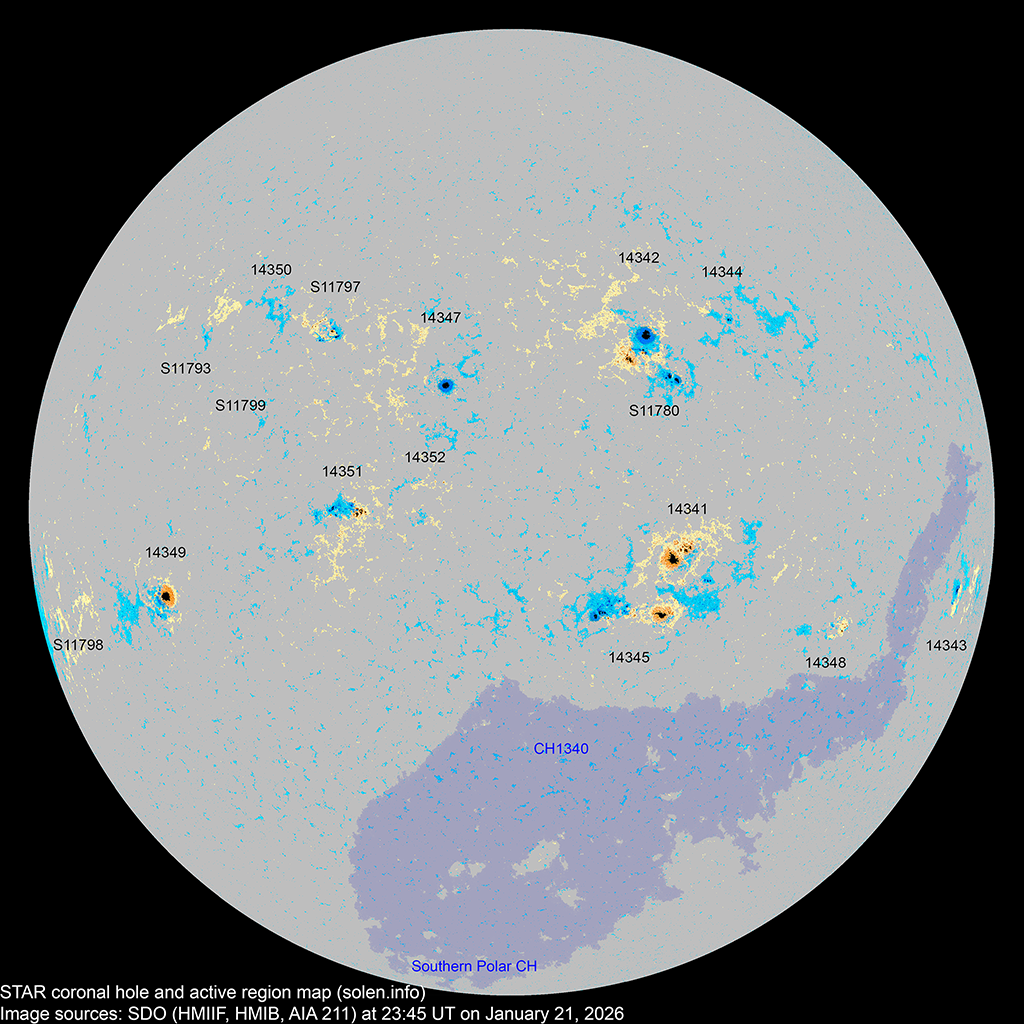

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
STAR | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 14341 | 2026.01.13 2026.01.14 |
12 | 23 | 12 | S11W35 | 0240 | CAI | CKO |
 |
 |
was AR S11770 area: 0350 location: S10W33 |
| 14342 | 2026.01.14 2026.01.14 |
13 | 8 | 1 | N14W31 | 0180 | DSI | CSO |
 |
 |
was AR S11772 area: 0180 location: N17W30 SWPC includes the spots of AR S11780 |
| 14343 | 2026.01.14 2026.01.15 |
1 | 2 | 1 | S11W84 | 0020 | HRX | HRX |
 |
 |
was AR S11774 area: 0006 |
| 14344 | 2026.01.15 | 1 | 6 | 1 | N19W42 | 0010 | AXX | AXX |
 |
 |
location: N18W40 |
| 14345 | 2026.01.15 2026.01.15 |
17 | 33 | 21 | S17W28 | 0110 | EAI | ESI |
 |
 |
beta-gamma was AR S11776 area: 0270 |
| 14346 | 2026.01.15 2026.01.15 |
S14W21 |
was AR S11777 location: S13W13 |
||||||||
| S11779 | 2026.01.15 | N12W47 | |||||||||
| S11780 | 2026.01.15 | 21 | 8 | N12W31 | 0130 | DAO |
 |
 |
|||
| 14347 | 2026.01.16 2026.01.16 |
1 | 5 | 1 | N10W05 | 0060 | HSX | CSO |
 |
 |
was AR S11781 area: 0120 |
| S11783 | 2026.01.16 | N02W23 | |||||||||
| 14348 | 2026.01.18 2026.01.18 |
4 | 8 | 5 | S17W59 | 0010 | CRO | CRO |
 |
 |
was AR S11784 area: 0040 |
| 14350 | 2026.01.18 2026.01.19 |
3 | 6 | 3 | N21E17 | 0010 | AXX | AXX |
 |
|
was AR S11786 location: N20E18 |
| 14351 | 2026.01.18 2026.01.19 |
16 | 34 | 18 | S05E07 | 0080 | DAI | DRI |
 |
 |
beta-gamma was AR S11787 area: 0150 |
| S11788 | 2026.01.18 | N04W21 | |||||||||
| 14349 | 2026.01.18 2026.01.19 |
5 | 25 | 8 | S14E35 | 0120 | CSO | CHI |
 |
 |
was AR S11789 area: 0440 location: S13E34 |
| 14352 | 2026.01.20 2026.01.20 |
S02W05 |
 |
was AR S11790 loction: S01W04 |
|||||||
| S11791 | 2026.01.20 | S05W02 | |||||||||
| S11793 | 2026.01.20 | 3 | 1 | N18E28 | 0005 | BXO |
 |
 |
|||
| S11794 | 2026.01.20 | S14W16 | |||||||||
| 14353 | 2026.01.21 2026.01.22 |
10 | 34 | 21 | N17E23 | 0040 | DRI | DRI |
 |
 |
beta-gamma was AR S11797 area: 0220 |
| S11798 | 2026.01.21 | 5 | 1 | S13E68 | 0020 | CRO |
 |
 |
|||
| S11799 | 2026.01.21 | N05E23 |
 |
||||||||
| 14354 | 2026.01.22 2026.01.22 |
3 | 14 | 8 | S13E13 | 0010 | BXO | DRI |
 |
was AR 11800 area: 0040 location S12E14 |
|
| S11801 | 2026.01.22 | 2 | 1 | N08E11 | 0005 | BXO |
 |
||||
| S11802 | 2026.01.22 | 1 | S24W20 | 0001 | AXX |
 |
|||||
| S11803 | 2026.01.22 | 2 | S22W43 | 0002 | BXO |
 |
|||||
| Total spot count: | 86 | 232 | 111 | ||||||||
| Sunspot number: | 206 | 412 | 271 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 127 | 290 | 183 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 227 | 227 | 217 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2024.05 | 187.7 | 191.9 | 172.1 | 149.1 (+4.6) | 23.56 (SC25 peak) |
| 2024.08 | 246.1 (SC25 peak) |
252.2 | 216.0 (SC25 peak) | 156.8 (+1.8) | 15.96 |
| 2024.10 | 221.0 | 219.6 | 165.8 | 160.9 (+1.5) (SC25 solar max) | 18.99 |
| 2024.11 | 199.6 | 195.3 | 154.1 | 157.2 (-3.7) | 9.33 |
| 2024.12 | 197.3 | 191.2 | 154.6 | 151.2 (-6.0) | 8.42 |
| 2025.01 | 190.3 | 184.2 | 137.0 | 146.2 (-5.0) | 13.17 |
| 2025.02 | 184.2 | 179.7 | 155.7 | 139.8 (-6.4) | 14.42 |
| 2025.03 | 163.7 | 162.1 | 134.2 | 135.9 (-3.9) | 15.96 |
| 2025.04 | 162.5 | 163.6 | 141.4 | 133.3 (-2.6) | 17.62 |
| 2025.05 | 135.3 | 138.3 | 78.5 | 128.6 (-4.7) | 17.26 |
| 2025.06 | 131.3 | 135.4 | 114.6 | 124.7 (-3.9) | 21.43 |
| 2025.07 | 137.8 | 142.3 | 125.9 | (122.4 projected, -2.3) | 11.80 |
| 2025.08 | 154.9 | 158.7 | 133.7 | (119.3 projected, -3.1) | 9.97 |
| 2025.09 | 154.4 | 156.0 | 129.7 | (115.8 projected, -3.5) | 14.02 |
| 2025.10 | 139.5 | 138.6 | 114.6 | (111.8 projected, -4.0) | 15.64 |
| 2025.11 | 140.3 | 137.3 | 91.7 | (109.6 projected, -2.2) | 21.01 |
| 2025.12 | 160.8 | 155.8 | 124.0 | (108.0 projected, -1.6) | 13.35 |
| 2026.01 | 149.4 (1) | 81.3 (2A) / 114.5 (2B) / 141.0 (2C) ISN to date: 112. At this level SSN for July 2025 would become: 122.4 |
(104.0 projected, -4.0) | (26.4) | |
| 2026.02 | (99.9 projected, -4.1) | ||||
| 2026.03 | (95.5 projected, -4.4) | ||||
| 2026.04 | (91.8 projected, -3.7) | ||||
| 2026.05 | (90.5 projected, -1.3) | ||||
| 2026.06 | (88.4 projected, -2.1) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value
at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 27 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap
indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Sunspot activity was on a decreasing trend from September
2024 until mid August 2025 (using the average solar flux over 3 solar rotations as a proxy).
Then a strong surge in activity saw solar flux peak in late August 2025 just
below the largest peaks seen in 2024. A slow decrease in activity from the
August level has been observed in September and October 2025.
All 365 day smoothed sunspot numbers reached a maximum on October 11-12, 2024.
This became the peak of SC25 (365 day smoothed peaks: STAR 1K: 236.1, STAR 2K: 364.3, NOAA SN: 156.0, ISN: 163.9),
while the 365d
smoothed solar flux peaked on October 13, 2024, just 1.7% below the SC23
peak, and 62.6% above the SC24 peak.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whichever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
