The geomagnetic field was quiet to unsettled on November 6. Solar wind speed at SOHO ranged between 407 and 487 km/sec, averaging 456 km/sec (-6 compared to the previous day). The high latitude magnetometer at Andenes recorded quiet to active levels. The above 10 MeV proton flux was at background levels at the end of the day.
Solar flux density measured at 20h UT on 2.8 GHz was 260.5 - increasing 44.2 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 184.67. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 184.67 on May 8, 2024). The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 9.5). Three hour interval K indices: 33222222 (planetary), 32323221 (Boulder), 34313234 (Andenes).
The background x-ray flux is at the class C3 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 19 active regions using 2K resolution (SN: 495) and in 18 active regions using 1K resolution (SN: 350) SDO/HMI images.
AR 13878 [N16W51] decayed and was mostly quiet.

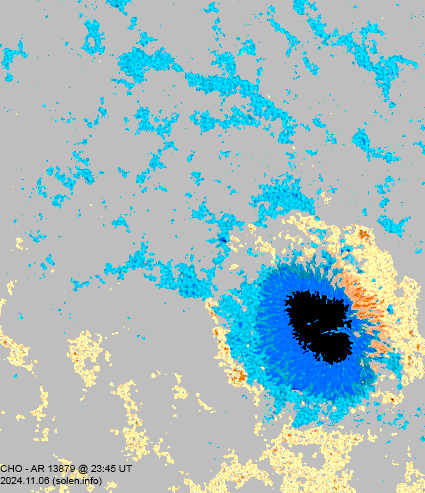

AR 13879 [N15W29] gained tiny spots and was quiet.
AR 13881 [S09W42] decayed slowly and quietly.

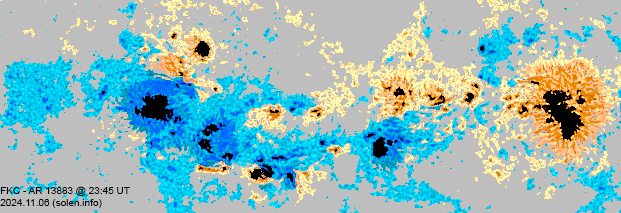

AR 13883 [S06E07] gained spots and has multiple magnetic delta
configurations in the trailing spot section. Further major flares are
likely.

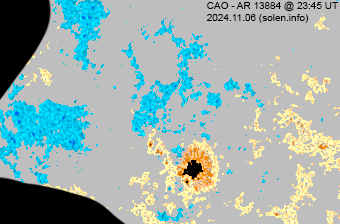

AR 13884 [S07E25] was quiet and stable.

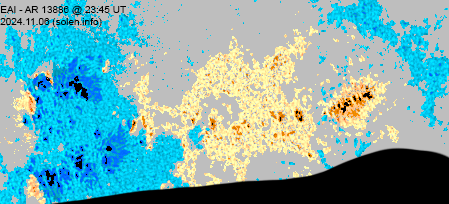

AR 13886 [S04E40] was mostly quiet and stable.
New AR 13887 [N15W71] was first observed with spots on October 27.
Late on November 4 new flux emerged quickly and many spots developed on
Nov.5. After the major flare on Nov. 6 the magnetic delta configuration
disappeared and the region seems to be slowly decaying.
New AR 13888 [N04W52] emerged on November 5 and was numbered by SWPC
the next day as the region began to decay.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:

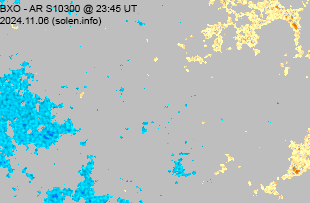

S10300 [S03W09] reemerged with tiny spots.
S10314 [S12E29] was quiet and stable.

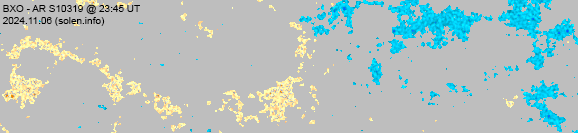

S10319 [N18E04] was quiet and stable.

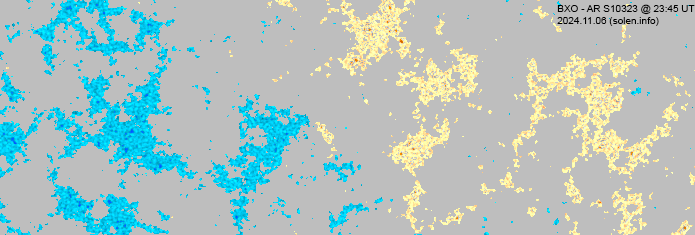

S10323 [S09W09] was quiet and stable.
S10324 [S12E38] developed slowly and quietly.
S10330 [S16E68] was quiet and stable.

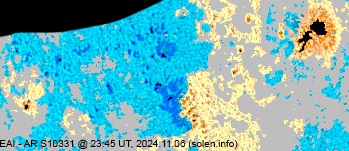

S10331 [S08E38] developed slowly and quietly.
New region S10333 [S09E80] rotated into view as a complex, compact
group with major flare potential.
New region S10334 [N12E08] emerged with tiny spots before noon, then
decayed slowly.
New region S10335 [N19W40] emerged with tiny spots.
New region S10336 [S15E12] was observed with tiny spots in an old
plage area.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C5.1 | 00:30 | 13883 | GOES16 | ||
| C4.4 | 00:47 | S10333 | GOES16 | ||
| C4.7 | 00:58 | S10333 | GOES16 | ||
| C4.4 | 01:18 | 13886 | GOES16 | ||
| C6.0 | 01:22 | 13883 | GOES16 | ||
| C5.0 | 01:55 | 13883 | GOES16 | ||
| C6.1 | 02:17 | 13883 | GOES16 | ||
| M1.1 | 02:37 | 13883 | GOES16 | ||
| M1.2 | 03:09 | 13883 | GOES16 | ||
| C6.1 | 03:32 | S10333 | GOES16 | ||
| C5.6 | 03:50 | S10333 | GOES16 | simultaneous flare in AR S10333 | |
| C7.9 | 04:08 | S10333 | GOES16 | ||
| C6.0 | 04:58 | S10333 | GOES16 | ||
| C6.1 | 05:10 | behind southwest limb | GOES16 | ||
| C6.4 | 05:14 | S10333 | GOES16 | ||
| C5.1 | 05:59 | S10333 | GOES16 | ||
| C5.3 | 06:15 | 13883 | GOES16 | ||
| C6.6 | 06:29 | S10333 | GOES16 | ||
| C6.7 | 06:35 | S10333 | GOES16 | ||
| C7.3 | 07:01 | S10333 | GOES16 | ||
| C7.5 | 07:06 | 13883 | GOES16 | ||
| C8.9 | 07:29 | 13883 | GOES16 | simultaneous flare in AR S10333 | |
| M2.9 | 08:04 | 13883 | GOES16 | ||
| M2.2 | 08:16 | 13887 | GOES16 | ||
| M5.8 | 08:50 | N15W59 | 13887 | GOES16 | |
| C7.2 | 09:37 | S10333 | GOES16 | ||
| C7.8 | 10:19 | S10333 | GOES16 | ||
| C7.2 | 10:30 | S10333 | GOES16 | ||
| C8.0 | 10:40 | 13883 | GOES16 | ||
| C7.6 | 10:53 | S10333 | GOES16 | ||
| C7.4 | 11:31 | 13883 | GOES16 | ||
| C8.4 | 11:58 | S10333 | GOES16 | ||
| M1.5 | 12:04 | S07E17 | 13883 | GOES16 | |
| C7.1 | 12:31 | S10333 | GOES16 | ||
| C7.4 | 12:53 | S10333 | GOES16 | ||
| M1.2 | 13:02 | S10333 | GOES16 | ||
| M1.5 | 13:33 | S10333 | GOES16 | ||
| X2.3 | 13:40 | 13883 | GOES16 | moderate type II radio sweep simultaneous flare in ARs 13887, 13884 |
|
| M2.8 | 14:16 | S10333 | GOES16 | ||
| M5.0 | 14:34 | S10333 | GOES16 | ||
| M5.3 | 14:38 | 13883 | GOES16 | ||
| M1.7 | 15:57 | S10333 | GOES16 | ||
| C9.2 | 16:42 | S10333 | GOES16 | ||
| C9.5 | 17:08 | S10333 | GOES16 | ||
| M1.2 | 17:18 | S10333 | GOES16 | ||
| M1.0 | 17:42 | S10333 | GOES16 | ||
| C9.6 | 18:43 | 13883 | GOES16 | ||
| M1.1 | 18:59 | S10333 | GOES16 | simultaneous flare in AR 13883 | |
| C8.1 | 19:26 | S10333 | GOES16 | ||
| C6.5 | 19:45 | S10333 | GOES16 | ||
| C7.1 | 20:04 | S10333 | GOES16 | ||
| C6.8 | 20:16 | S10333 | GOES16 | ||
| C6.7 | 20:22 | S10333 | GOES16 | ||
| M1.3 | 20:42 | S10333 | GOES16 | ||
| C5.1 | 21:27 | 13887 | GOES16 | ||
| C4.1 | 21:53 | S10333 | GOES16 | ||
| C5.5 | 22:29 | S10333 | GOES16 | ||
| M1.1 | 23:04 | S10333 | GOES16 | ||
| M1.1 | 23:15 | S10333 | GOES16 | ||
| M1.2 | 23:27 | 13887 | GOES16 | ||
| M1.2 | 23:52 | 13883 | GOES16 | ||
| M1.6 | 00:04 | S10333 | GOES16 |
November 5-6: No obviously Earth directed CMEs were observed.
November 4: A slow full halo CME was observed after the M3.8 flare in
AR 13883 at 01:40 UT.
[Coronal
hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A trans equatorial negative polarity coronal hole (CH1253) rotated acrosss the central meridian on November 4-5. A recurrent northern hemisphere positive polarity coronal hole (CH1254) could become Earth facing on November 8-10.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on November 6. The November 4 CME was observed reaching ACE at 14:24 UT on November 7 when a solar wind shock was detected. A high speed stream from CH1253 could cause some unsettled and active intervals on November 8-9.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could
reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96
hours.
3) There is a possibility of either M or X class flares within the
next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

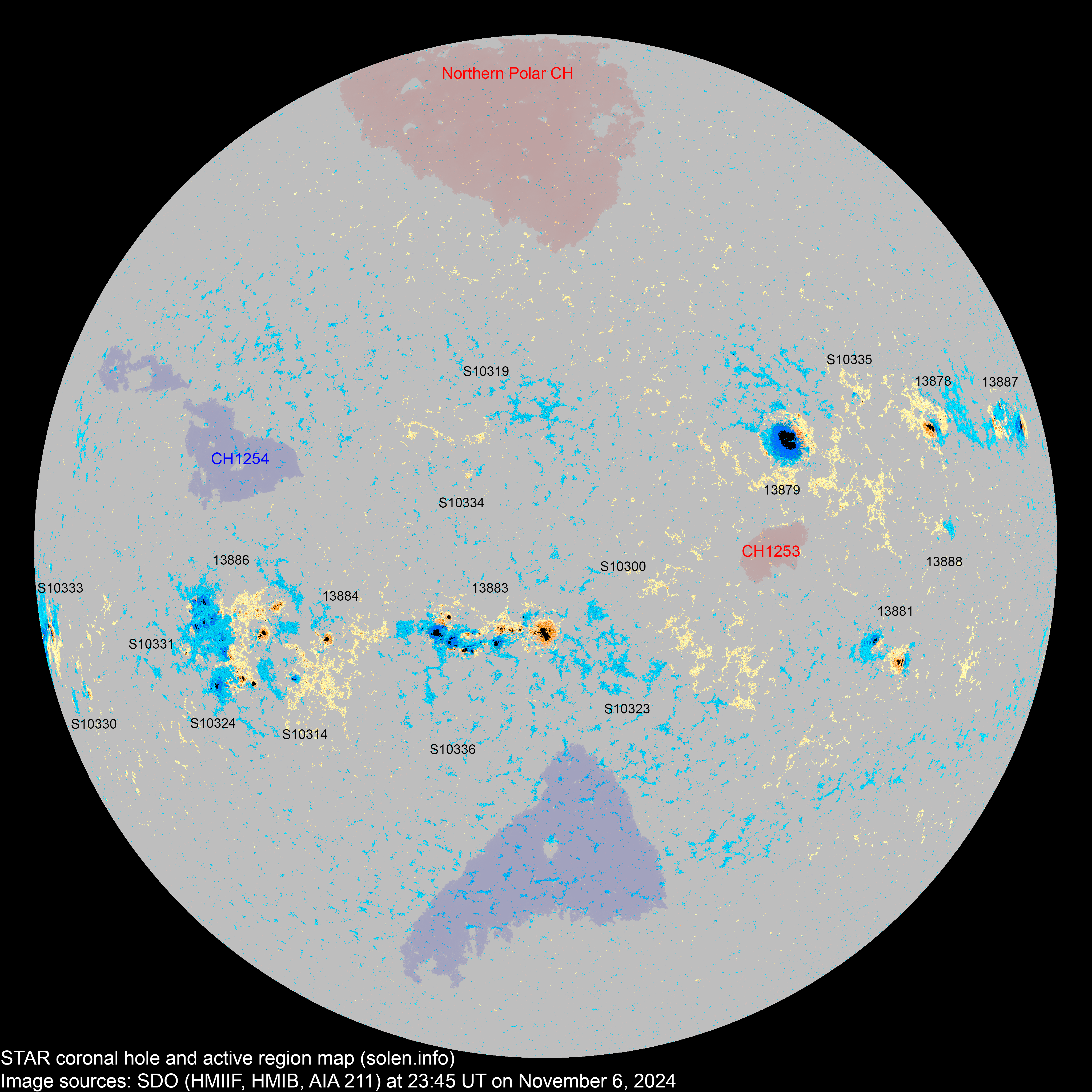

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13877 | 2024.10.25 2024.10.27 |
S17W88 |
location: S17W79 |
||||||||
| 13878 | 2024.10.26 2024.10.27 |
4 | 7 | 5 | N16W54 | 0150 | DAO | CSO |
 |
 |
location: N16W51 area: 0200 |
| 13887 | 2024.10.27 2024.11.06 |
8 | 18 | 9 | N16W69 | 0140 | DSI | DKO |
 |
 |
beta-gamma area: 0300 location: N16W71 |
| 13879 | 2024.10.28 2024.10.29 |
1 | 22 | 10 | N16W30 | 0440 | HHX | CHO |
 |
 |
area: 0810 location: N15W29 |
| 13880 | 2024.10.29 2024.10.31 |
S14W26 |
 |
location: S14W20 |
|||||||
| S10300 | 2024.10.30 | 4 | 1 | S03W09 |
 |
||||||
| 13881 | 2024.10.30 2024.11.01 |
7 | 15 | 10 | S09W41 | 0170 | DSO | DAO |
 |
 |
area: 0210 location: S09W42 |
| S10304 | 2024.10.31 | S11W57 |
 |
||||||||
| S10307 | 2024.11.01 | N08W40 | |||||||||
| 13883 | 2024.11.01 2024.11.02 |
24 | 64 | 46 | S06E07 | 0360 | EKC | FKC |
 |
 |
beta-gamma-delta area: 0980 |
| S10309 | 2024.11.01 | S24W32 | |||||||||
| 13884 | 2024.11.02 2024.11.02 |
1 | 11 | 5 | S07E25 | 0050 | HSX | CAO |
 |
 |
area: 0100 |
| 13885 | 2024.11.02 2024.11.03 |
S10W85 |
 |
location: S09W85 |
|||||||
| S10314 | 2024.11.02 | 10 | 5 | S12E29 | 0040 | CRO |
 |
 |
|||
| S10315 | 2024.11.02 | N27W59 | |||||||||
| S10316 | 2024.11.02 | N18W13 | |||||||||
| 13886 | 2024.11.03 2024.11.03 |
28 | 42 | 31 | S08E37 | 0320 | EKI | EAI |
 |
 |
location: S04E40 area: 0420 SWPC includes ARs S10331 and S10324 in this spot group |
| S10319 | 2024.11.03 | 6 | N18E04 | 0010 | BXO |
 |
 |
||||
| S10320 | 2024.11.03 | N16E24 | |||||||||
| S10321 | 2024.11.03 | N31W44 | |||||||||
| S10322 | 2024.11.04 | N03W17 | |||||||||
| S10323 | 2024.11.04 | 14 | 2 | S09W09 | 0025 | BXO |
 |
 |
|||
| S10324 | 2024.11.04 | 26 | 14 | S12E38 | 0200 | DAI |
 |
 |
|||
| S10325 | 2024.11.04 | S14W00 | |||||||||
| S10326 | 2024.11.04 | S34W40 | |||||||||
| 13888 | 2024.11.05 2024.11.06 |
2 | 5 | 1 | N04W51 | 0020 | BXO | BXO |
 |
 |
location: N04W52 area: 0007 |
| S10329 | 2024.11.05 | N15W15 |
 |
||||||||
| S10330 | 2024.11.05 | 5 | 2 | S16E68 | 0030 | CRO |
 |
 |
|||
| S10331 | 2024.11.05 | 37 | 18 | S08E38 | 0230 | EAI |
 |
 |
|||
| S10332 | 2024.11.05 | S33W32 |
 |
||||||||
| S10333 | 2024.11.06 | 11 | 7 | S09E80 | 0600 | EKC |
 |
beta-gamma | |||
| S10334 | 2024.11.06 | 2 | 1 | N12E08 | 0005 | AXX |
 |
||||
| S10335 | 2024.11.06 | 2 | 2 | N19W40 | 0008 | BXO |
 |
||||
| S10336 | 2024.11.06 | 4 | 1 | S15E12 | 0007 | AXX |
 |
||||
| Total spot count: | 75 | 305 | 170 | ||||||||
| Sunspot number: | 155 | 495 | 350 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 125 | 381 | 246 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 171 | 272 | 280 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.1 (+3.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.9 (+1.8) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | 124.2 (+1.3) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | 125.3 (+1.1) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 160.0 | 124.6 (-0.7) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | 124.3 (-0.3) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 134.2 | 124.0 (-0.3) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | 124.8 (+0.8) | 8.16 |
| 2023.11 | 153.5 | 150.2 | 105.4 | 127.9 (+3.1) | 12.20 |
| 2023.12 | 151.1 | 146.4 | 114.2 | 129.5 (+1.6) | 9.60 |
| 2024.01 | 164.6 | 159.3 | 126.0 | 131.1 (+1.6) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 123.0 | 136.9 (+5.8) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 103.7 | 141.4 (+4.5) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 137.0 | 144.4 (+3.1) | 9.69 |
| 2024.05 | 187.7 | 191.9 | 172.1 | (149.7 projected, +5.3) | 23.56 (SC25 peak) |
| 2024.06 | 184.3 | 190.2 | 164.1 | (153.6 projected, +3.9) | 10.24 |
| 2024.07 | 196.6 | 203.0 | 196.5 | (156.5 projected, +2.9) | 7.13 |
| 2024.08 | 246.1 (cycle peak) |
252.2 | 215.5 (SC25 peak) | (158.5 projected, +2.0) | 15.96 |
| 2024.09 | 195.7 | 197.8 | 141.4 | (161.2 projected, +2.7) | 15.36 |
| 2024.10 | 221.0 | 219.6 | 166.3 | (163.5 projected, +2.3) | 19.0 |
| 2024.11 | 249.3 (1) | 38.9 (2A) / 194.5 (2B) / 207.5 (2C) | (161.8 projected, -1.7) | (10.0) | |
| 2024.12 | (158.7 projected, -3.1) | ||||
| 2025.01 | (154.4 projected, -4.3) | ||||
| 2025.02 | (147.6 projected, -6.8) | ||||
| 2025.03 | (142.8 projected, -4.8) | ||||
| 2025.04 | (139.8 projected, -3.0) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value
at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap
indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Sunspot activity in October 2024 increased over September and looks to be headed for an SSN near 160. The average solar flux for October will become the second highest for a month during SC25. The above plot now displays the peak in 365d smoothed sunspot numbers in mid October. ISN has a peak on October 15, NOAA SN on October 14 while both the 1K and 2K SDO SN peaked on October 16. Assuming that the average sunspot number from October 2024 until April 14, 2025 becomes 150, we would be looking at a 365 days smoothed sunspot maximum of 164.5 centered on October 15. Should the average sunspot number for that period become 160 we would get a peak near 169.7.
--------------------------------------------------------------------------------------
