Solar Terrestrial Activity Report

Activity chart

Last major update issued on March 7, 2024 at 05:35 UT.

Charts (* = updated daily) Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data since 2003.01 (March 2, 2024)
Solar cycle Solar cycles 23-25 (March 2, 2024) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24-25 progress (March 2, 2024) Noon SDO sunspot count 1K image / 4K (*)
  Solar cycles 1-24 (July 1, 2020) POES auroral activity level [October 2009 - December 2012]
  Comparison of cycles 21-25 (March 2, 2024) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12-14, 16, 24-25 (March 2, 2024) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (March 3, 2024) Cycle 25 spots (final update December 25, 2019)
  Solar cycles 24-25 transition using 365d smoothing Research: Solar Cycle 25 Started on November 17, 2019 with 365 Days Smoothing
Calculating the Strength of Solar Cycle 25 Using 365-day Smoothing

Recent activity

The geomagnetic field was quiet to unsettled on March 6. Solar wind speed at SOHO ranged between 341 and 452 km/sec. The high latitude magnetometer at Andenes recorded quiet to active levels. The above 10 MeV proton flux was at background levels all day.

Solar flux density measured at 20h UT on 2.8 GHz was 136.0 - decreasing 49.0 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 156.88. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 158.71 on June 27, 2023). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.3). Three hour interval K indices: 13122100 (planetary), 23222210 (Boulder), 24112100 (Andenes).

The background x-ray flux is at the class B5 level (GOES 16).

At the time of counting spots (see image time), spots were observed in 13 active regions using 2K resolution (SN: 235) and in 10 active regions using 1K resolution (SN: 134) SDO/HMI images.

Region 13591 [S36W78] was quiet and stable.
Region 13595 [N20W84] rotated partly out of view and was quiet.
Region 13596 [N19W57] was quiet and stable.

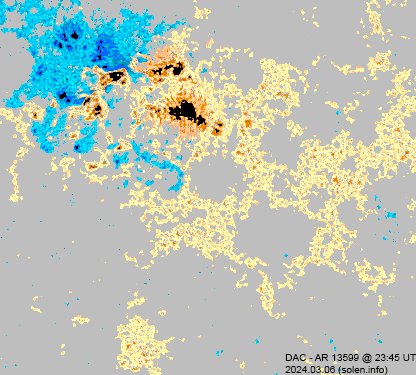

Region 13599 [S12E12] developed slowly and has a weak magnetic delta structure. There's a chance of a minor M class flare. C21 flares: C1.3 @ 12:04, C1.0 @ 16:30 UT

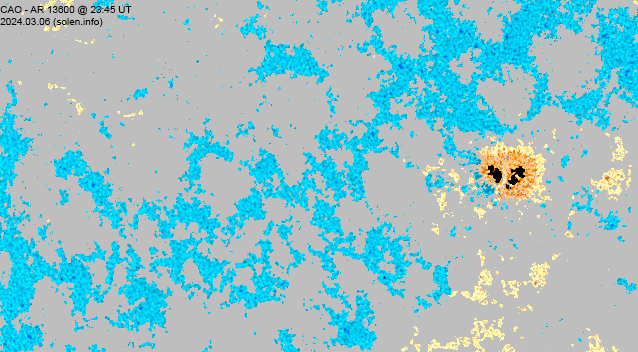

Region 13600 [S18E22] was mostly quiet and stable.
Region 13602 [N16E01] was quiet and stable.
Region 13603 [N14E26] was quiet and stable.
Region 13604 [N08E58] was quiet and stable.

Spotted regions not observed (or interpreted differently) by SWPC/USAF:

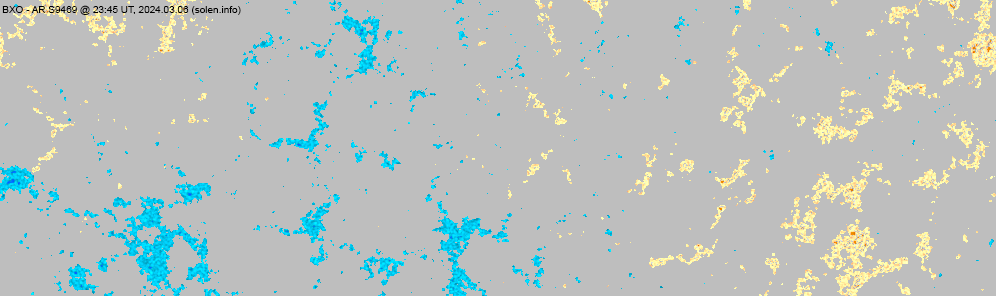

S9469 [S22W08] was quiet and stable.

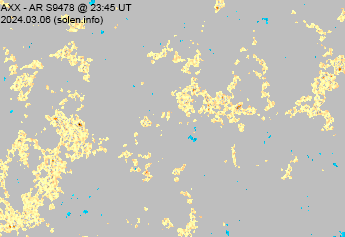

S9478 [S05E30] was quiet and stable.
New region S9479 [N01E33] emerged with a tiny spot.
New region S9480 [N07E22] emerged with a tiny spot.
New region S9481 [S02W03] emerged with a tiny spot.

AR 13592 near the southwest limb produced a C1.0 flare at 10:24 UT

C2+ flares

Magnitude Peak time (UT) Location Source Recorded by Comment

Coronal mass ejections (CMEs)

March 4-6: No obviously Earth directed CMEs were observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A small negative polarity southern hemisphere coronal hole (CH1203) was in an Earth facing position on March 5.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on March 7. A weak disturbance associated with CH1203 could begin on March 8 and cause quiet to active conditions that day and on March 9.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

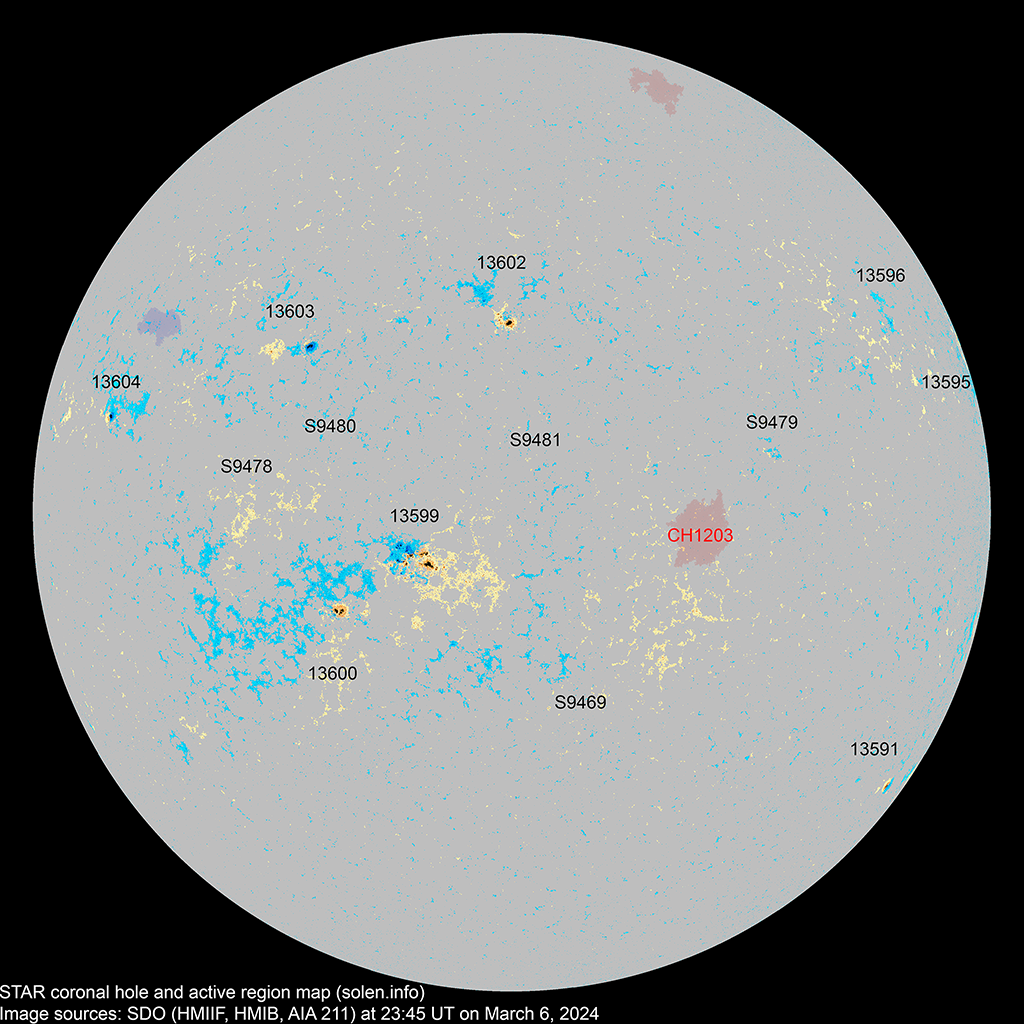

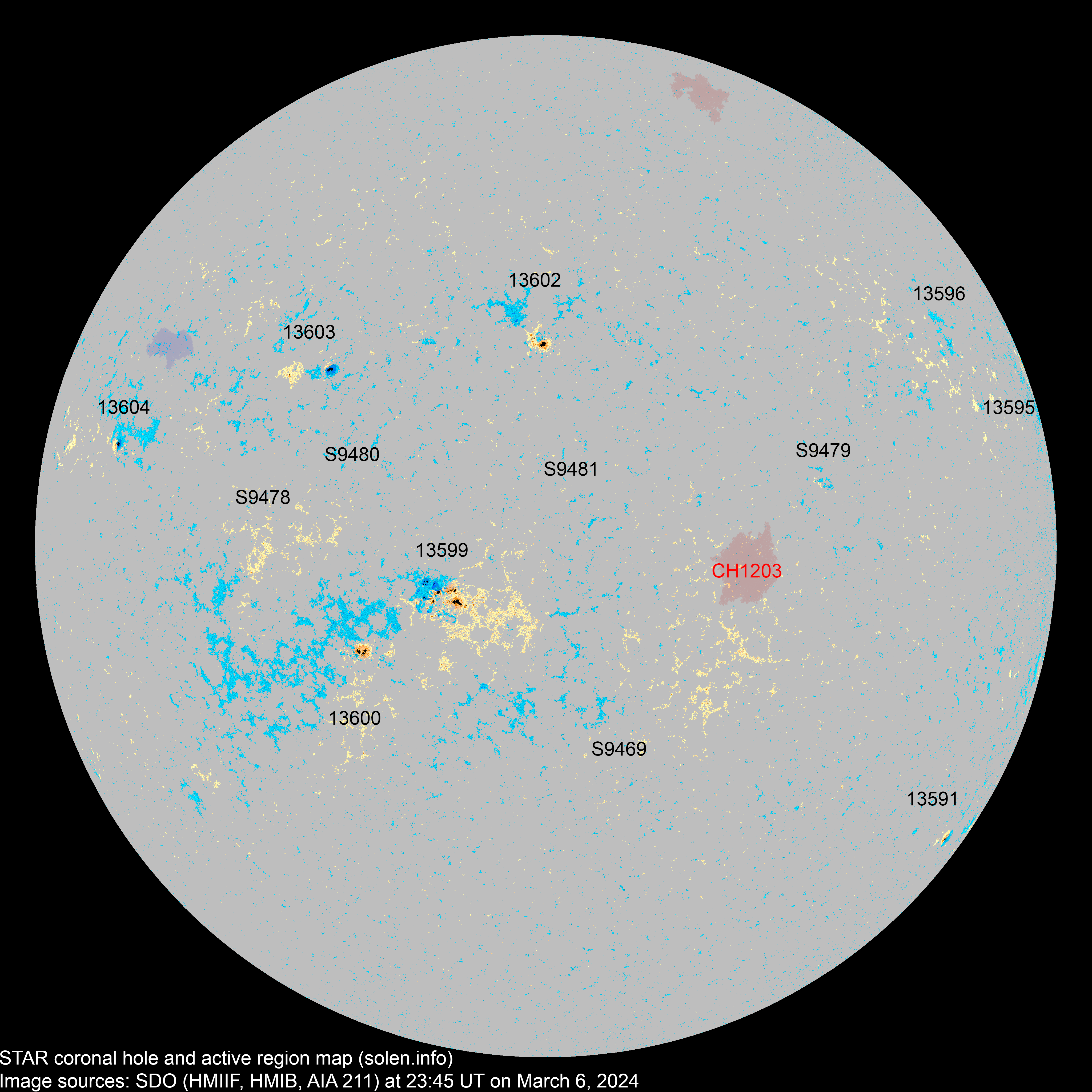

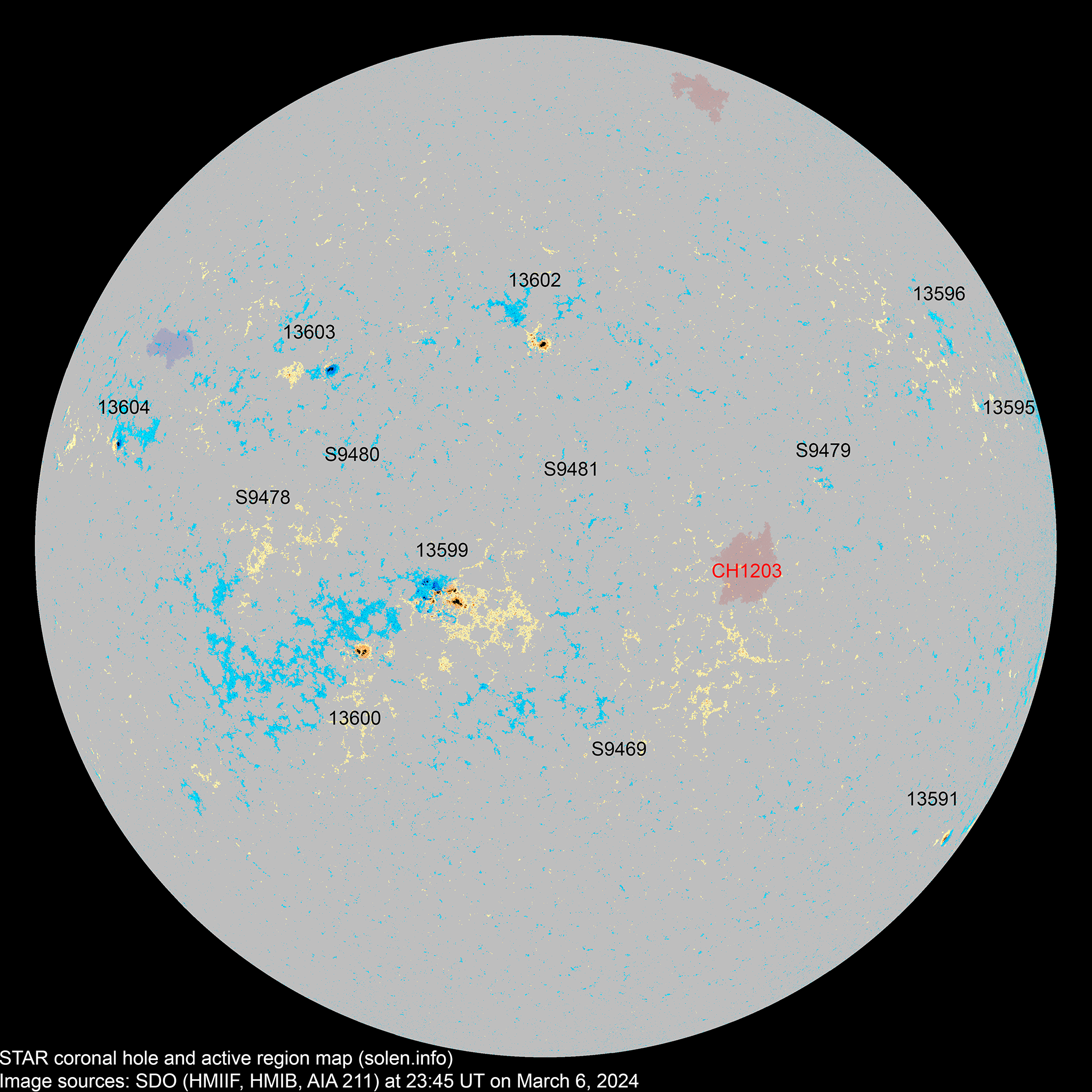

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.

Active region SWPC date numbered
STAR detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC/
USAF
Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
13591 2024.02.22
2024.02.23
1 2 1 S35W70 0050 HSX HSX

location: S36W78

13592 2024.02.22
2024.02.23
      S14W88         location: S14W83
13595 2024.02.23
2024.02.24
2 1   N21W85 0120 DSO HSX

area: 0070

location: N20W84

13596 2024.02.25
2024.02.26
1 4 1 N20W59 0010 AXX AXX

area: 0007

location: N19W57

13597 2024.02.28
2024.02.28
      N08W83
S9462 2024.02.28       N13W43
13599 2024.02.29
2024.03.01
12 42 22 S12E13 0130 DSI DAC beta-gamma-delta

area: 0270

location: S12E12

13600 2024.03.01
2024.03.02
2 21 5 S18E21 0070 HSX CAO area: 0150

location: S18E22

S9469 2024.03.01   9 2 S22W08 0020   BXO
13601 2024.03.02
2024.03.03
      N14W51

location: N13W48

13602 2024.03.03
2024.03.04
3 12 9 N17E01 0040 CSO CAO area: 0080

location: N16E01

13603 2024.03.03
2024.03.04
3 7 2 N13E28 0060 HSX DAO location: N14E26

area: 0080

S9474 2024.03.03       S21W40
S9475 2024.03.04       N12W59
13604 2024.03.04
2024.03.05
1 1 1 N08E65 0030 HAX HAX location: N08E58

area: 0060

S9478 2024.03.05   3   S05E30 0005   AXX
S9479 2024.03.06   1   N01W33 0001   AXX
S9480 2024.03.06   1 1 N07E22 0003   AXX
S9481 2024.03.06   1   S02W03 0002   AXX
Total spot count: 25 105 44
Sunspot number: 105 235 134  (total spot count + 10 * number of spotted regions)
Weighted SN: 60 140 75  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 116 129 107

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (SC24 peak) 110.5 10.70
2014.04 143.9 144.8 112.5 116.4 (SC24 solar max) 7.88
2017.09 91.3 92.3 43.6 18.2 (-1.3) 18.22
(SC24 peak)
2019.11 70.2 68.7 0.5 2.0 (-0.6)
(Solar minimum using 365d smoothing:
November 17, 2019)
4.19
2019.12 70.8 68.6 1.6 1.8 (-0.2)
(ISN 13 months smoothed
solar minimum)
3.22
2022.08 114.2 117.1 74.6 92.6 (+5.9) 10.92
2022.09 135.1 136.5 96.0 96.5 (+3.9) 12.18
2022.10 133.5 132.7 95.5 98.9 (+2.4) 11.16
2022.11 123.4 120.7 80.5 101.2 (+2.3) 9.33
2022.12 147.9 143.4 112.8 106.7 (+5.5) 10.99
2023.01 182.4 176.6 144.4 113.3 (+6.6) 8.73
2023.02 167.2 163.2 111.3 117.8 (+3.5) 14.48
(current
SC25 peak)
2023.03 157.2 155.6 123.3 121.1 (+3.3) 14.42
2023.04 145.4 146.4 97.6 122.9 (+1.8) 13.40
2023.05 155.6 159.2 137.4 124.1 (+1.2) 10.67
2023.06 161.7 166.8 160.5 125.2 (+1.1)
(SC25 solar max candidate)
8.95
2023.07  176.4 182.2 160.0 124.3 (-0.9) 8.15
2023.08  153.7 157.6 114.8 124.0 (-0.3) 7.19
2023.09  154.4 156.0 134.2 (124.2 projected, +0.2) 14.26
2023.10  142.8 141.9 99.4 (125.0 projected, +0.8) 8.16
2023.11 153.5 150.2 105.4 (125.0 projected, -0.0) 12.20
2023.12 151.1 146.4 114.2 (121.7 projected, -3.3) 9.60
2024.01 164.6 159.3 123.0 (118.3 projected, -3.4) 5.46
2024.02 172.5 168.3 124.6 (117.5 projected, -0.8) 5.4
2024.03 144.7 (1)   20.6 (2A) / 106.7 (2B) / 133.4 (2C) (116.9 projected, -0.6) (10.0)
2024.04       (116.9 projected, -0.0)
2024.05       (118.1 projected, +1.2)
2024.06       (117.3 projected, -0.8)
2024.07       (115.6 projected, -1.7)
2024.08       (113.7 projected, -1.9)
2024.09       (112.0 projected, -1.7)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory Of Belgium, Brussels

Solar cycles 24-25

Smoothed SF and sunspot numbers

Update on the progress of solar cycle 25 as of February 11, 2024

The relatively high solar activity during the first weeks of 2024 has changed the outlook regarding solar max. The first peak in June 2023 currently has a less than 10% probability of being the actual solar max. The next candidate month is October 2023 (October 8-11 if zooming in on a specific date). The likelihood of October 2023 surpassing June 2023 is at least 50%. It is still likely that solar max will be sometime between October 2023 and March 2025.

--------------------------------------------------------------------------------------

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
