The geomagnetic field was at quiet levels on June 25. The high latitude magnetometer at Andenes recorded quiet to active levels. The above 10 MeV proton flux returned to background levels.
Solar flux density measured at 20h UT on 2.8 GHz was 193.7 - increasing 23.2 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 162.90. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 162.90 on December 26, 2023). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.4). Three hour interval K indices: 11222221 (planetary), 21432432 (Boulder), 12222422 (Andenes).
The background x-ray flux is at the class C2 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 15 active regions using 2K resolution (SN: 338) and in 13 active regions using 1K resolution (SN: 213) SDO/HMI images.

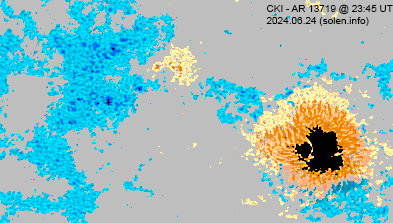

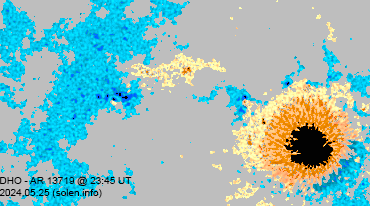

Region 13719 [S16W15] decayed early in the day,
then gained a few spots late in the day.

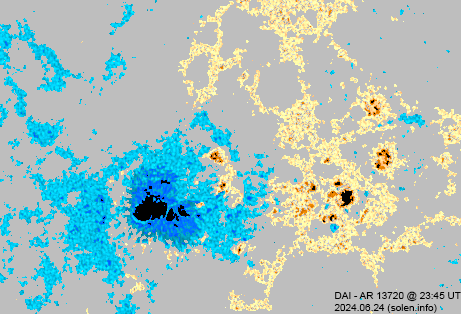

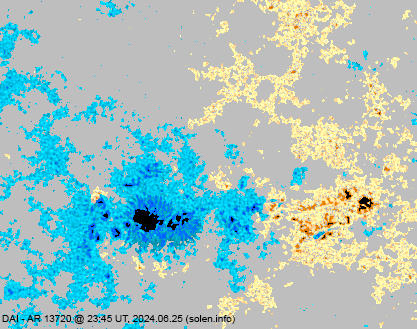

Region 13720 [S06E00] displayed no major changes and could produce M
flares.

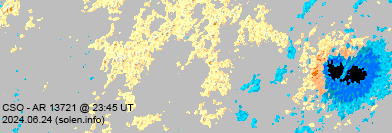

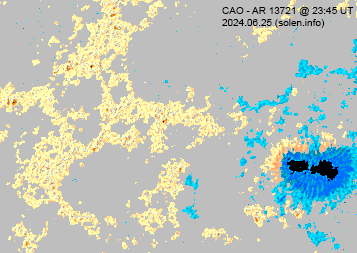

Region 13721 [N25E25] was mostly quiet and stable.
Region 13722 [S12E23] was quiet and stable.

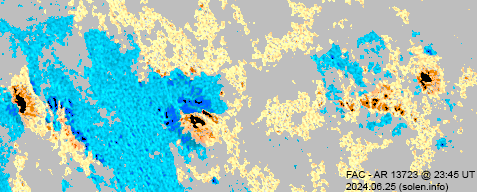

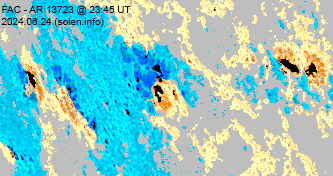

Region 13723 [S19E45] decayed slowly. The region has a magnetic delta
configuration in the intermediate spot section. The leading spot section has
both polarities and could be split off into a separate region.

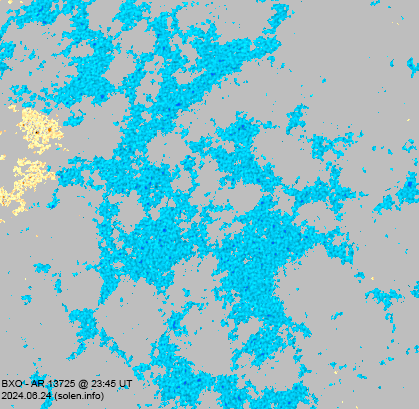

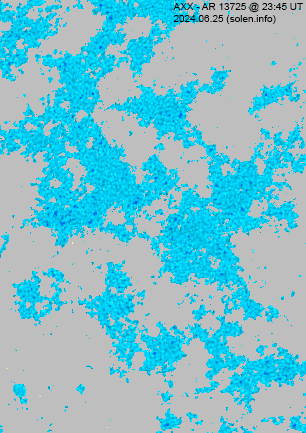

Region 13725 [N19E10] was quiet and stable.
Region 13726 [S05E41] was quiet and stable.
New region 13727 [S18E61] rotated into view on June 24 and was
numbered the next day by SWPC.
New region 13728 [S27E58] rotated into view on June 23 and received
its NOAA number 2 days later.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:

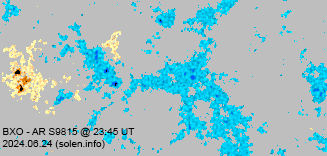

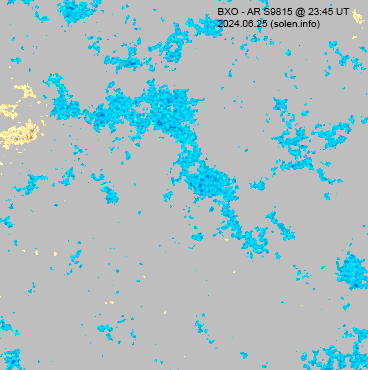

S9815 [N16W05] decayed slowly and quietly.
S9824 [N25W24] reemerged with tiny spots.
S9828 [S19W59] developed slowly and quietly.
S9830 [S05E61] was quiet and stable.
New region S9831 [S03E82] rotated into view with several spots. M
flares are possible.

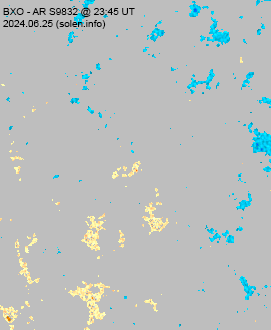

New region S9832 [N06E19] was observed with tiny spots in an
old plage area.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| Data gaps before 12:00 UT | |||||
| C3.1 | 02:08 | southeast limb | S9831 | GOES16 | |
| C2.7 | 04:10 | 13723 | GOES16 | ||
| M1.0 | 12:44 | S18E58 | 13723 | GOES16 | |
| C3.8 | 14:43 | southwest limb | S9829 | GOES16 | |
| C5.0 | 14:55 | southeast limb | S9831 | GOES16 | |
| C3.2 | 15:17 | southeast limb | S9831 | GOES16 | |
| C3.7 | 15:49 | 13723 | GOES16 | ||
| C4.0 | 16:04 | southwest limb | S9829 | GOES16 | |
| C3.9 | 17:50 | 13720 | GOES16 | ||
| C3.2 | 18:50 | S9831 | GOES16 | ||
| C5.6 | 19:25 | S19E46 | 13723 | GOES16 | |
| C3.3 | 20:13 | S19E48 | 13723 | GOES16 | |
| C3.3 | 20:26 | 13719 | GOES16 | ||
| C3.7 | 22:04 | 13727 | GOES16 | ||
| C3.9 | 22:31 | 13720 | GOES16 | ||
| C3.0 | 23:55 | southwest limb | S9829 | GOES16 |
June 23-25: No obviously Earth directed CMEs observed. A large filament eruption in the southwestern quadrant late on June 24 was associated with a CME. If there are any Earth directed components a weak disturbance will be possible on June 28.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A small positive polarity southern hemisphere coronal hole will be Earth facing on June 25-26.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to active on June 26 and quiet to unsettled on June 27-28.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

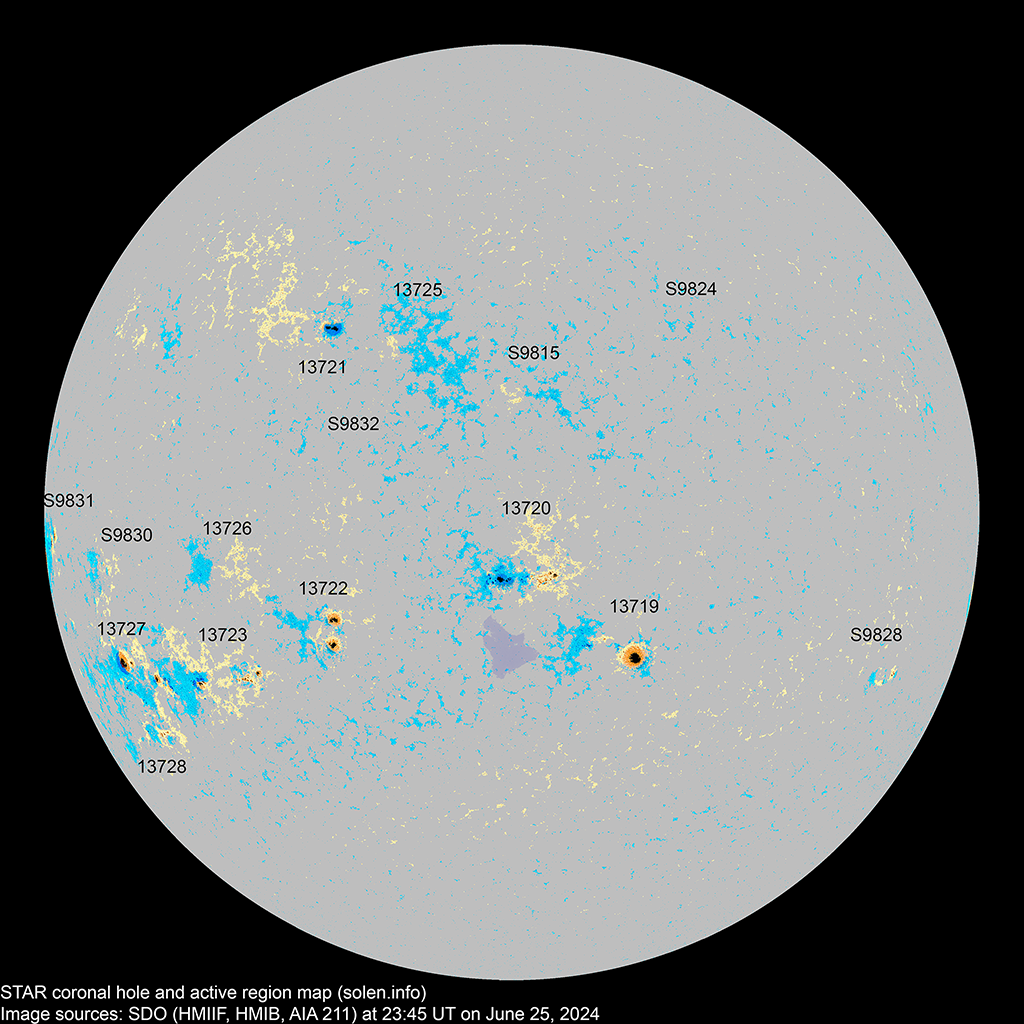

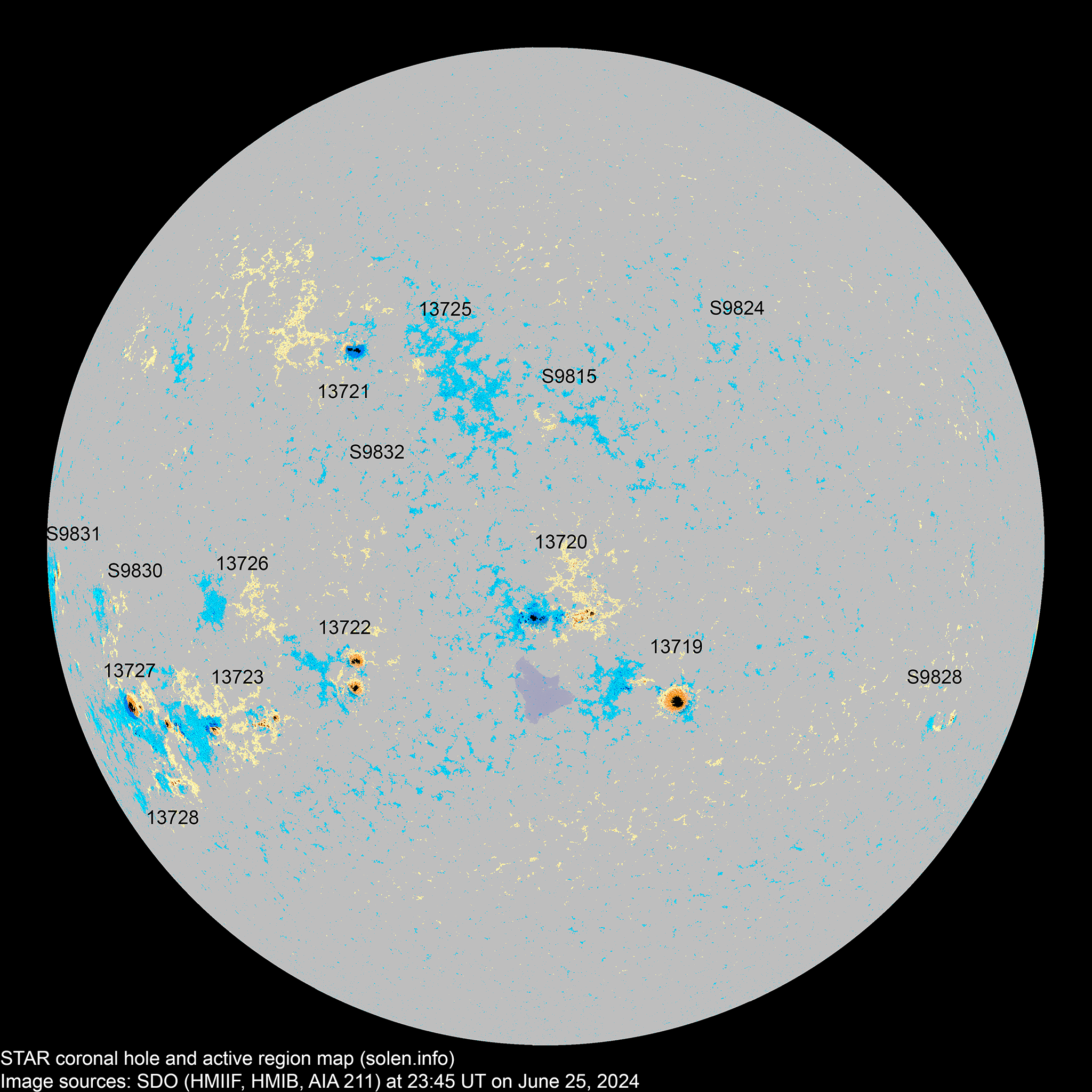

(Click on image for 2K resolution).
4K resolution.

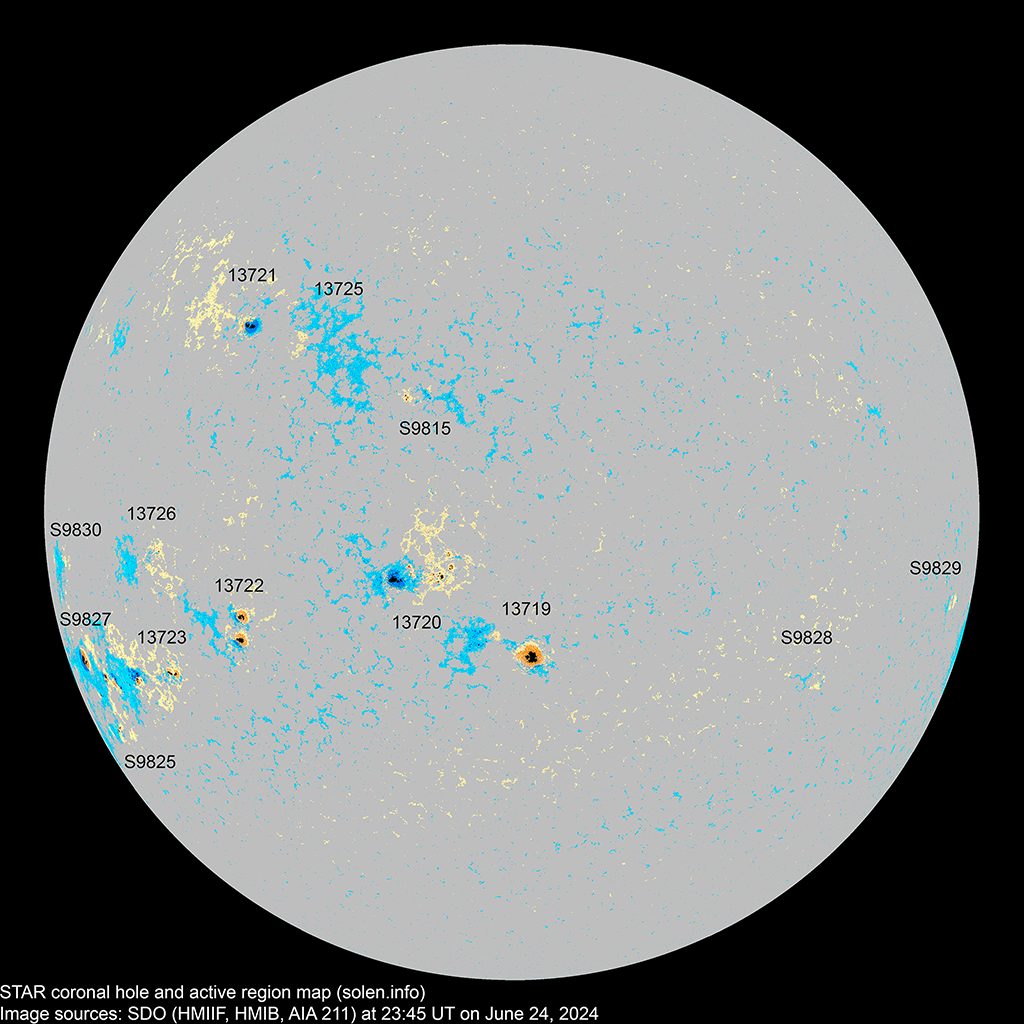

Compare to the previous
day's image. 0.5K image

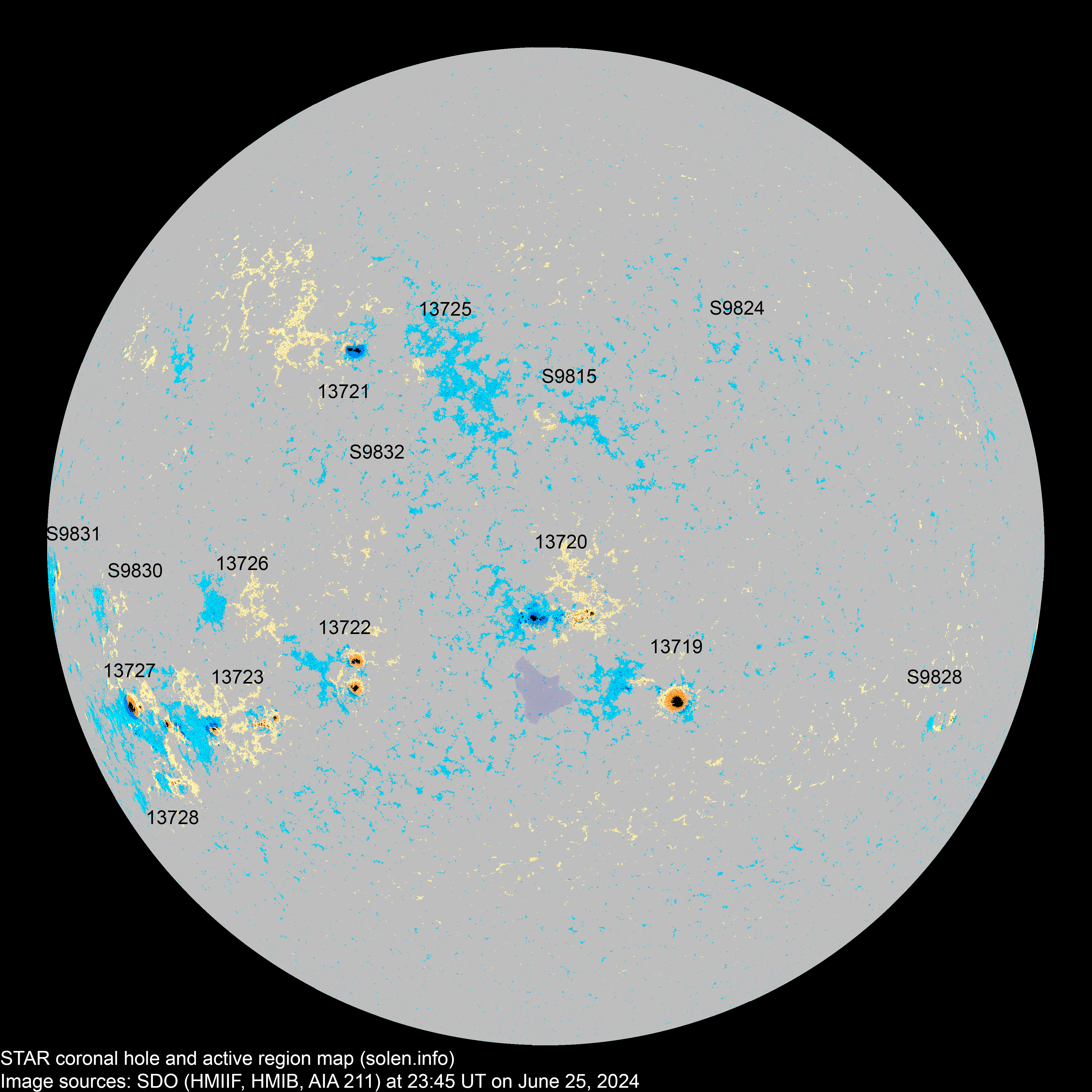

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| S9805 | 2024.06.16 | S11W50 | |||||||||
| 13718 | 2024.06.18 2024.06.19 |
N12W69 | location: N17W62 | ||||||||
| 13719 | 2024.06.19 2024.06.19 |
13 | 20 | 11 | S14W12 | 0150 | DSO | DHO |
 |
 |
area: 0370 location: S16W15 |
| 13720 | 2024.06.19 2024.06.19 |
15 | 40 | 23 | S06W03 | 0130 | DAI | DAI |
 |
 |
area: 0190 location: S06E00 |
| S9815 | 2024.06.19 | 7 | 1 | N16W05 | 0012 | BXO |
 |
 |
|||
| S9816 | 2024.06.20 | S17W56 | |||||||||
| 13725 | 2024.06.20 2024.06.23 |
13 | 1 | N18E13 | 0020 | AXX |
 |
 |
location: N19E10 | ||
| 13721 | 2024.06.21 2024.06.21 |
2 | 12 | 3 | N25E24 | 0100 | HAX | CAO |
 |
 |
area: 0160 |
| 13722 | 2024.06.21 2024.06.21 |
1 | 18 | 8 | S12E22 | 0050 | HSX | CSO |
 |
 |
area: 0280 location: S12E23 |
| S9820 | 2024.06.21 | N04W46 | |||||||||
| 13723 | 2024.06.22 2024.06.23 |
12 | 34 | 17 | S19E44 | 0210 | FAI | FAC |
 |
 |
beta-gamma-delta area: 0270 location: S19E45 |
| 13726 | 2024.06.22 2024.06.23 |
6 | 1 | S04E35 | 0010 | BXO |
 |
 |
location: S05E41 | ||
| 13724 | 2024.06.23 | 1 | S14E22 | 0050 | HSX | SWPC split this off from AR 13722 | |||||
| S9824 | 2024.06.23 | 2 | N26W34 | 0003 | AXX |
 |
|||||
| 13728 | 2024.06.23 2024.06.25 |
4 | 5 | 4 | S25E55 | 0010 | BXO | CRO |
 |
 |
area: 0020 location: S27E58 |
| S9826 | 2024.06.23 | N08W34 | |||||||||
| 13727 | 2024.06.24 2024.06.25 |
1 | 13 | 7 | S18E59 | 0080 | HSX | CHO |
 |
 |
area: 0310 location: S18E61 |
| S9828 | 2024.06.24 | 5 | 2 | S19W59 | 0015 | CRO |
 |
 |
|||
| S9830 | 2024.06.24 | 4 | 1 | S05E61 | 0007 | BXO |
 |
 |
|||
| S9831 | 2024.06.25 | 6 | 4 | S03E82 | 0270 | DAO |
 |
||||
| S9832 | 2024.06.25 | 3 | N06E19 | 0008 | BXO |
 |
|||||
| Total spot count: | 49 | 188 | 83 | ||||||||
| Sunspot number: | 129 | 338 | 213 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 84 | 239 | 134 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 142 | 186 | 170 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.1 (+3.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.9 (+1.8) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | 124.2 (+1.3) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | 125.3 (+1.1) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 160.0 | 124.4 (-0.9) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | 124.1 (-0.3) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 134.2 | 123.9 (-0.2) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | 124.8 (+0.9) | 8.16 |
| 2023.11 | 153.5 | 150.2 | 105.4 | 127.8 (+3.0) | 12.20 |
| 2023.12 | 151.1 | 146.4 | 114.2 | (128.7 projected, +0.9) | 9.60 |
| 2024.01 | 164.6 | 159.3 | 123.0 | (127.0 projected, -1.7) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 124.7 | (126.2 projected, -0.8) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 104.9 | (125.6 projected, -0.6) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 136.5 | (125.6 projected, -0.0) | 9.69 |
| 2024.05 | 187.7 (cycle peak) |
191.9 | 171.7 (SC25 peak) | (126.7 projected, +1.1) | 23.56 (current SC25 peak) |
| 2024.06 | 185.0 (1) | 128.4 (2A) / 154.1 (2B) / 156.8 (2C) | (125.9 projected, -0.8) | (8.1) | |
| 2024.07 | (124.2 projected, -1.7) | ||||
| 2024.08 | (122.2 projected, -2.0) | ||||
| 2024.09 | (121.0 projected, -1.2) | ||||
| 2024.10 | (119.6 projected, -1.4) | ||||
| 2024.11 | (114.5 projected, -5.1) | ||||
| 2024.12 | (109.1 projected, -5.4) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
May 2024 easily became the month with the highest sunspot counts during solar cycle 25, and early June has seen no change in that pattern of many spot groups, some of which are large and complex. The next candidate for solar max is still uncertain, however, May 20-21, 2024 has all of the smoothed 365d sunspot numbers as well as the 365d smoothed solar flux signalling a peak on those days.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
