The geomagnetic field was at quiet levels on June 9. The high latitude magnetometer at Andenes recorded quiet to unsettled levels. The above 10 MeV proton flux was at 9 pfu at the end of the day.
Solar flux density measured at 20h UT on 2.8 GHz was 180.9 - decreasing 34.5 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 161.85. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 161.85 on December 10, 2023). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.6). Three hour interval K indices: 11112121 (planetary), 21211311 (Boulder), 31113233 (Andenes).
The background x-ray flux is at the class C2 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 320) and in 14 active regions using 1K resolution (SN: 196) SDO/HMI images.
Region 13697 [S19W83] rotated partly out of
view and produced several C and M flares. Another major flare is possible
until the region is about one day behind the southwest limb.
Region 13702 [N17W22] decayed slowly and quietly.
Region 13703 [S07W63] decayed slowly and quietly.
Region 13704 [S17W18] decayed slowly and quietly.
Region 13707 [S14E18] decayed slowly and quietly.
Region 13708 [S22E33] was quiet and stable.
Region 13709 [S09E40] was mostly unchanged and could produce further
M class flares.
New region 13710 [S15W51] was first observed with tiny spots on June
6, then new flux emerged on June 8 and several spots formed. Slow decay was
observed on June 9 when the region was numbered by SWPC.
New region 13711 [S09E53] rotated into view on June 7 and was
numbered by SWPC 2 days later.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9769 [N09W11] reemerged with a tiny spot.
S9778 [N15E02] reemerged with tiny spots.
S9781 [S23E21] reemerged with tiny spots.
S9782 [S09E32] reemerged with tiny spots.
S9785 [N16E67] was quiet and stable.
S9786 [S23E02] was quiet and stable.
New region S9787 [N23W22] was observed with tiny spots in an old
plage area.
New region S9788 [S18W55] emerged with tiny
spots to the southwest of AR 13710.
New region S9789 [N13E26] was observed with tiny spots in an old
plage area.
C2+ flares
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C3.8 | 00:22 | 13697 | GOES16 | ||
| C2.6 | 00:45 | 13697 | GOES16 | ||
| C2.9 | 01:21 | 13697 | GOES16 | ||
| C2.5 | 01:36 | 13697 | GOES16 | ||
| C3.4 | 02:08 | 13697 | GOES16 | ||
| C5.2 | 02:42 | S12E59 | 13709 | GOES16 | simultaneous flare in AR 13697 |
| C2.9 | 04:53 | 13697 | GOES16 | ||
| C2.4 | 05:42 | 13697 | GOES16 | ||
| M1.6 | 07:01 | S15W80 | 13697 | GOES16 | |
| C6.6 | 07:48 | 13709 | GOES16 | ||
| M1.2 | 08:19 | 13709 | GOES16 | ||
| C2.9 | 09:32 | 13697 | GOES16 | ||
| C2.5 | 10:47 | 13697 | GOES16 | ||
| C3.3 | 11:14 | 13697 | GOES16 | ||
| C3.0 | 11:31 | 13697 | GOES16 | ||
| C2.2 | 12:16 | 13697 | GOES16 | ||
| C2.2 | 13:34 | S9785 | GOES16 | ||
| C2.1 | 14:43 | 13697 | GOES16 | ||
| C3.1 | 15:19 | 13697 | GOES16 | ||
| C3.2 | 15:58 | 13697 | GOES16 | ||
| C3.2 | 17:49 | 13697 | GOES16 | ||
| C4.0 | 18:07 | 13697 | GOES16 | ||
| C3.8 | 19:29 | 13697 | GOES16 | ||
| M1.0 | 20:17 | 13697 | GOES16 | ||
| C3.8 | 21:35 | 13697 | GOES16 | simultaneous event in AR 13703 |
June 7, 9: No obviously Earth directed CME observed.
June 8: A partial halo CME was observed after the M9 flare in AR
13697 at 01:49 UT. The CME could reach Earth on June 10 and cause active to
severe storm conditions.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A southern hemisphere negative polarity coronal hole (CH1225) could become Earth facing on June 10, however, is showing signs of decay.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be at quiet to unsettled levels on June 9 due to effects from CH1224 and quiet to severe storm levels on June 10-11 due to CME effects.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

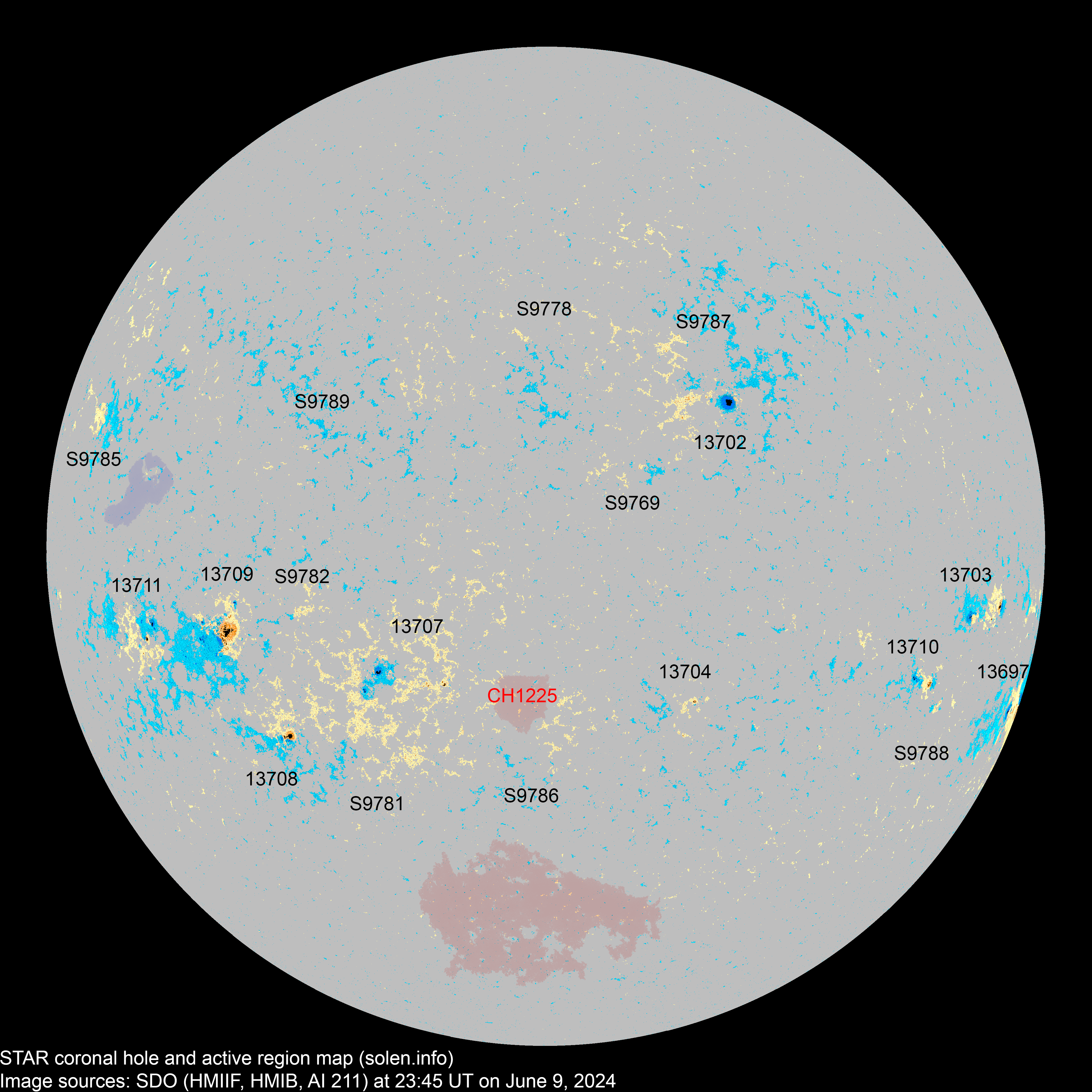

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13697 | 2024.05.27 2024.05.28 |
13 | 6 | 3 | S19W86 | 0270 | EKC | DKC |
 |
 |
location: S19W83 area: 0400 |
| 13701 | 2024.05.31 2024.06.01 |
1 | S06W83 | 0010 | HSX |
 |
spotless |
||||
| 13703 | 2024.05.31 2024.06.03 |
5 | 7 | 3 | S08W66 | 0100 | DAO | DAO |
 |
 |
location: S07W63 area: 0170 |
| S9760 | 2024.06.01 | N11W53 | |||||||||
| 13702 | 2024.06.01 2024.06.02 |
2 | 8 | 3 | N16W22 | 0100 | CSO | CSO |
 |
 |
area: 0160 location: N17W22 |
| S9762 | 2024.06.01 | S14W32 | |||||||||
| 13704 | 2024.06.02 2024.06.03 |
1 | 4 | 3 | S18W20 | 0010 | AXX | CRO |
 |
 |
location: S17W18 |
| 13706 | 2024.06.03 2024.06.04 |
S12W41 | location: S12W47 | ||||||||
| S9769 | 2024.06.03 | 1 | N09W11 | 0002 | AXX |
 |
|||||
| S9770 | 2024.06.04 | N15W49 | |||||||||
| S9771 | 2024.06.04 | N36W22 | |||||||||
| S9772 | 2024.06.04 | S05W25 | |||||||||
| S9774 | 2024.06.05 | S27W00 | |||||||||
| 13707 | 2024.06.05 2024.06.06 |
6 | 22 | 9 | S15E18 | 0080 | CAO | EAO |
 |
 |
location: S14E18 |
| 13708 | 2024.06.05 2024.06.06 |
2 | 7 | 2 | S23E31 | 0050 | CAO | CAO |
 |
 |
area: 0100 location: S22E33 |
| 13710 | 2024.06.06 2024.06.09 |
6 | 11 | 6 | S15W51 | 0060 | CAO | DRI |
 |
 |
|
| S9778 | 2024.06.06 | 4 | N19E02 | 0006 | BXO |
 |
|||||
| 13709 | 2024.06.06 2024.06.07 |
9 | 30 | 16 | S10E46 | 0140 | CAI | DKO |
 |
 |
area: 0480 location: S09E40 |
| S9781 | 2024.06.07 | 5 | 1 | S23E21 | 0007 | BXO |
 |
||||
| S9782 | 2024.06.07 | 3 | 1 | S09E32 | 0006 | BXO |
 |
||||
| 13711 | 2024.06.07 2024.06.09 |
3 | 10 | 5 | S09E52 | 0060 | CAO | DAO |
 |
 |
location: S09E53 |
| S9784 | 2024.06.08 | S09W27 |
 |
||||||||
| S9785 | 2024.06.08 | 4 | 1 | N16E67 | 0006 | BXO |
 |
 |
|||
| S9786 | 2024.06.08 | 2 | S23E02 | 0002 | BXO |
 |
 |
||||
| S9787 | 2024.06.09 | 9 | S23W22 | 0012 | BXO |
 |
|||||
| S9788 | 2024.06.09 | 3 | 1 | S18W55 | 0006 | BXO |
 |
||||
| S9789 | 2024.06.09 | 4 | 2 | N13E26 | 0008 | AXX |
 |
||||
| Total spot count: | 48 | 140 | 56 | ||||||||
| Sunspot number: | 148 | 320 | 196 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 98 | 191 | 107 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 163 | 176 | 157 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.1 (+3.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.9 (+1.8) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | 124.2 (+1.3) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | 125.3 (+1.1) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 160.0 | 124.4 (-0.9) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | 124.1 (-0.3) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 134.2 | 123.9 (-0.2) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | 124.8 (+0.9) | 8.16 |
| 2023.11 | 153.5 | 150.2 | 105.4 | 127.8 (+3.0) | 12.20 |
| 2023.12 | 151.1 | 146.4 | 114.2 | (128.7 projected, +0.9) | 9.60 |
| 2024.01 | 164.6 | 159.3 | 123.0 | (127.0 projected, -1.7) | 5.46 |
| 2024.02 | 172.5 | 168.3 | 124.7 | (126.2 projected, -0.8) | 5.31 |
| 2024.03 | 154.4 | 152.9 | 104.9 | (125.6 projected, -0.6) | 11.03 |
| 2024.04 | 161.3 | 162.6 | 136.5 | (125.6 projected, -0.0) | 9.69 |
| 2024.05 | 187.7 (cycle peak) |
191.9 | 171.7 (SC25 peak) | (126.7 projected, +1.1) | 23.56 (current SC25 peak) |
| 2024.06 | 187.5 (1) | 53.2 (2A) / 171.7 (2B) / 180.3 (2C) | (125.9 projected, -0.8) | (9.0) | |
| 2024.07 | (124.2 projected, -1.7) | ||||
| 2024.08 | (122.2 projected, -2.0) | ||||
| 2024.09 | (121.0 projected, -1.2) | ||||
| 2024.10 | (119.6 projected, -1.4) | ||||
| 2024.11 | (114.5 projected, -5.1) | ||||
| 2024.12 | (109.1 projected, -5.4) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
May 2024 easily became the month with the highest sunspot counts during solar cycle 25, and early June has seen no change in that pattern of many spot groups, some of which are large and complex. The next candidate for solar max is still uncertain, however, May 20-21, 2024 has all of the smoothed 365d sunspot numbers as well as the 365d smoothed solar flux signalling a peak on those days.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
