Recent activity

The geomagnetic field was quiet to unsettled on January 16. Solar wind speed at SOHO ranged between 313 and 395 km/sec. The high latitude magnetometer at Andenes recorded quiet to minor storm levels.

Solar flux density measured at 20h UT on 2.8 GHz was 179.6 - decreasing 15.7 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 157.74. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 158.71 on June 27, 2023). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.0). Three hour interval K indices: 32111111 (planetary), 22111211 (Boulder), 52001022 (Andenes).

The background x-ray flux is at the class C1 level (GOES 16).

At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 317) and in 17 active regions using 1K resolution (SN: 238) SDO/HMI images.

Region 13540 [S18W80] decayed and was mostly quiet. C1 flares: C1.1 @ 15:03, C1.5 @ 20:01 UT
Region 13541 [S23W72] decayed slowly and was mostly quiet. C1 flares: C1.5 @ 02:28, C1.5 @ 03:17, C1.3 @ 04:07, C1.2 @ 05:08 UT
Region 13545 [S06W24] was mostly quiet and stable. C1 flares: C1.2 @ 00:28, C1.6 @ 11:15 UT
Region 13546 [S23W43] was quiet and stable.
Region 13548 [N11W10] was quiet and stable.
Region 13549 [S21E10] was mostly quiet and stable. C1 flares: C1.2 @ 06:08, C1.5 @ 08:09 UT
Region 13550 [S18W29] was quiet and stable.
Region 13551 [N27E02] developed slowly and was mostly quiet. C1 flares: C1.6 @ 21:11 UT
Region 13553 [N05E29] decayed slowly and was mostly quiet. C1 flares: C1.2 @ 13:48 UT
Region 13554 [N07E39] was quiet and stable.
Region 13555 [S11E58] was quiet and stable.
New region 13556 [N16E65] rotated into view on January 15 and was numbered the next day by SWPC.
New region 13557 [S18E74] rotated into view.
New region 13558 [S09W63] saw new flux emerge forming several spots. This region was previously AR S9303 which had tiny spots since January 6. C1 flares: C1.2 @ 10:10 UT

Spotted regions not observed (or interpreted differently) by SWPC/USAF:
S9329 [S19E52] was quiet and stable.
New region S9332 [S16E49] emerged with tiny spots.
New region S9333 [N11E49] emerged with tiny spots.
New region S9334 [N13E17] was observed with tiny spots in an old plage area.

C2+ flares:

Magnitude Peak time (UT) Location Source Recorded by Comment
C2.4 03:30 S21W63 13541 GOES16

Coronal mass ejections (CMEs)

January 14-16: No obviously Earth directed CME observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A positive polarity northern hemisphere coronal hole (CH1197) rotated across the central meridian on January 13. Another positive polarity northern hemisphere coronal hole (CH1198) will be Earth facing on January 16-18.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on January 17-18 due to effects from CH1197. January 19-21 could see quiet to active levels due to effects from CH1198.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

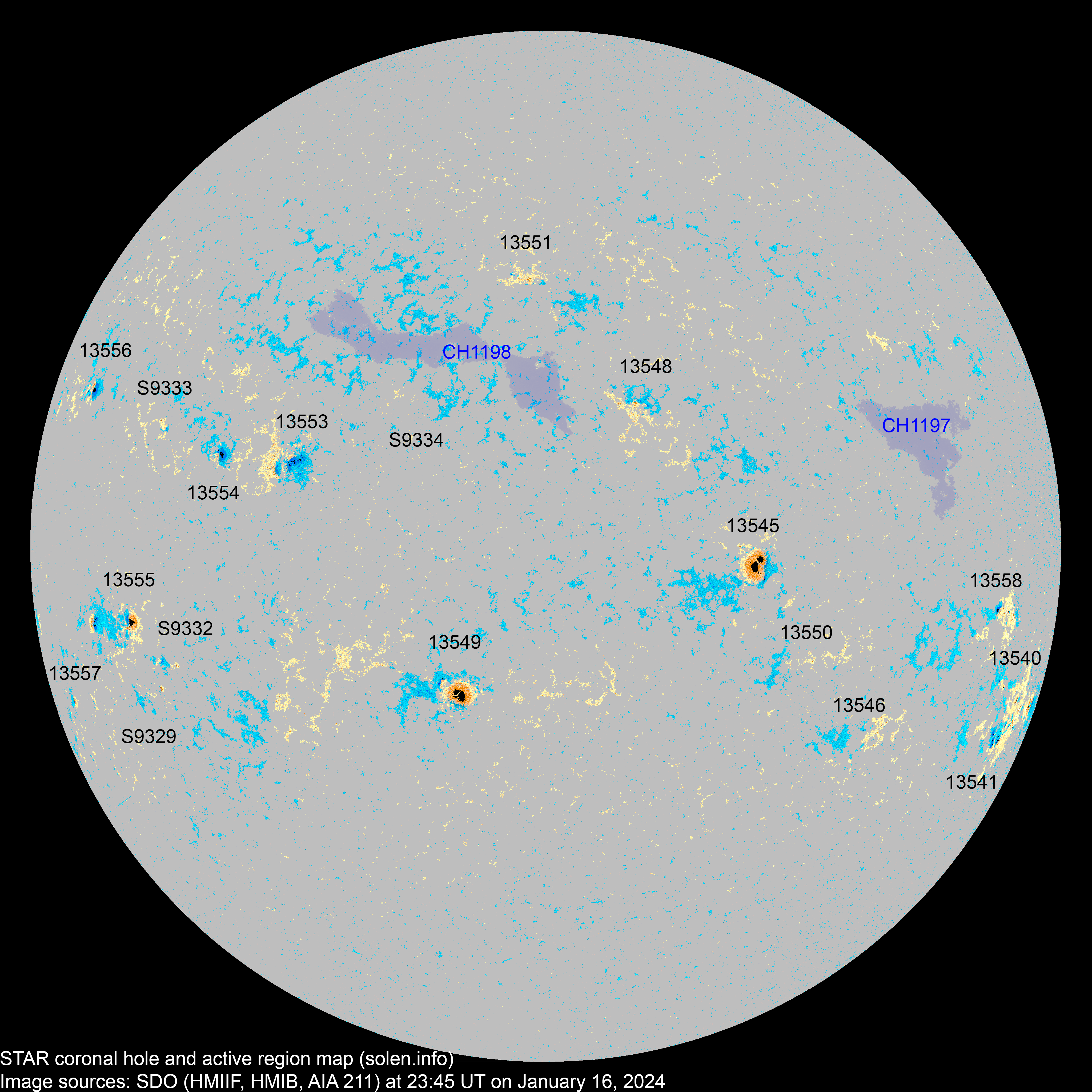

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.

Active region SWPC date numbered
STAR detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC/
USAF
Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
13541 2024.01.04
2024.01.05
3 11 6 S22W77 0060 CAO CAI

location: S23W72

area: 0090

13540 2024.01.04
2024.01.05
4 8 4 S20W81 0080 CAO CAO location: S18W80

area: 0200

13544 2024.01.05
2024.01.07
      N18W66
13558 2024.01.06
2024.01.16
1 11 5 S10W65 0010 HSX CRO location: S10W63

area: 0050

13545 2024.01.08
2024.01.09
2 12 7 S07W26 0110 HAX CKO area: 0500

location: S06W24

13546 2024.01.08
2024.01.09
  4 1 S24W45 0010   BXO

location: S23W43

S9311 2024.01.09       N19W44
13550 2024.01.09
2024.01.12
  2   S18W31 0004   BXO location: S18W29
13552 2024.01.09
2024.01.12
2     S24W67 0100 CAO     location: S22W65

spotless

SWPC data does not reflect physical reality

13547 2024.01.10
2024.01.11
      N18W51

location: N19W44

13551 2024.01.10
2024.01.12
  10 4 N26W03 0010   BXO

location: N27E02

13548 2024.01.10
2024.01.12
1 10 6 N02W19 0010 AXX BXO location: N11W10

area: 0030

not sure what SWPC has observed

13549 2024.01.10
2024.01.12
7 19 9 S21E10 0180 CSO DHO

area: 0360

S9319 2024.01.12       N35W20
13553 2024.01.13
2024.01.13
5 19 10 N05E28 0070 HSX CAO area: 0150
S9321 2024.01.13       N11W33
13554 2024.01.13
2024.01.15
1 3 2 N07E37 0040 HSX HAX area: 0100

location: N07E39

S9324 2024.01.13       S19E28
13555 2024.01.14
2024.01.15
2 10 7 S11E56 0080 DSO DSO location: S11E58

area: 0310

S9326 2024.01.14       S10W29
S9327 2024.01.14       N12E11
S9328 2024.01.14       N21E08
S9329 2024.01.15   4 1 S19E52 0013   BXO
13556 2024.01.15
2024.01.16
1 3 1 N16E62 0070 HSX HSX location: N16E65

area: 0130

13557 2024.01.16
2024.01.16
1 1 1 S13E74 0010 HAX HRX   was AR S9331

location: S18E74

area: 0030

S9332 2024.01.16   4 2 S16E49 0008   BXO
S9333 2024.01.16   2 1 N11E49 0006   BXO
S9334 2024.01.16   4 1 N13E17 0006   BXO
Total spot count: 30 137 68
Sunspot number: 150 317 238  (total spot count + 10 * number of spotted regions)
Weighted SN: 85 193 124  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 165 174 190

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (SC24 peak) 110.5 10.70
2014.04 143.9 144.8 112.5 116.4 (SC24 solar max) 7.88
2017.09 91.3 92.3 43.6 18.2 (-1.3) 18.22
(SC24 peak)
2019.11 70.2 68.7 0.5 2.0 (-0.6)
(Solar minimum using 365d smoothing:
November 17, 2019)
4.19
2019.12 70.8 68.6 1.6 1.8 (-0.2)
(ISN 13 months smoothed
solar minimum)
3.22
2022.05 133.8 136.8 96.5 77.4 (+4.4) 7.48
2022.06 116.1 119.8 70.3 81.1 (+3.7) 8.20
2022.07 125.4 129.5 91.4 86.7 (+5.6) 9.51
2022.08 114.2 117.1 74.6 92.6 (+5.9) 10.92
2022.09 135.1 136.5 96.0 96.5 (+3.9) 12.18
2022.10 133.5 132.7 95.5 98.9 (+2.4) 11.16
2022.11 123.4 120.7 80.5 101.2 (+2.3) 9.33
2022.12 147.9 143.4 112.8 106.7 (+5.5) 10.99
2023.01 182.4 176.6 144.4 113.3 (+6.6) 8.73
2023.02 167.2 163.2 111.3 117.8 (+3.5) 14.48
(current
SC25 peak)
2023.03 157.2 155.6 123.3 121.0 (+3.2) 14.42
2023.04 145.4 146.4 97.6 122.7 (+1.7) 13.40
2023.05 155.6 159.2 137.4 123.9 (+1.2) 10.67
2023.06 161.7 166.8 160.5 125.0 (+1.1)
(SC25 solar max candidate)
8.95
2023.07  176.4 182.2 160.0 (124.6 projected, -0.4) 8.15
2023.08  153.7 157.6 114.8 (124.1 projected, -0.5) 7.19
2023.09  154.4 156.0 134.2 (123.8 projected, -0.3) 14.26
2023.10  142.8 141.9 99.4 (124.6 projected, +0.8) 8.16
2023.11 153.5 150.2 105.4 (124.6 projected, +0.0) 12.20
2023.12 151.1 146.4 114.2 (121.2 projected, -3.4) 9.60
2024.01 168.5 (1)   71.0 (2A) / 137.6 (2B) / 153.9 (2C) (117.9 projected, -3.3) (5.1)
2024.02       (117.1 projected, -0.8)
2024.03       (116.6 projected, -0.5)
2024.04       (116.6 projected, +0.0)
2024.05       (117.0 projected, -0.8)
2024.06       (114.9 projected, -2.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory Of Belgium, Brussels

Solar cycles 24-25

Smoothed SF and sunspot numbers

Update on the progress of solar cycle 25 as of January 3, 2024

The relatively low solar activity during the last months of 2023 significantly increased the possibility that solar cycle 25 has already peaked. Whether the first peak in June 2023 will be the actual solar max will not be known for some time. Due to the relatively high solar activity early in 2023 it is unlikely there will be another solar max candidate, if at all, until at least May 2024. Both the northern and southern polar fields, as well as the averaged total field, have already reversed polarities.

--------------------------------------------------------------------------------------
