The geomagnetic field was quiet to unsettled on February 9. Solar wind speed at SOHO ranged between 366 and 493 km/sec. The high latitude magnetometer at Andenes recorded very quiet levels. The above 10 MeV proton flux was at 187 pfu at the end of the day.
Solar flux density measured at 20h UT on 2.8 GHz was 183.4 - decreasing 2.0 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 157.22. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 158.71 on June 27, 2023). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.8). Three hour interval K indices: 10112113 (planetary), 10121213 (Boulder), 00000001 (Andenes).
The background x-ray flux is at the class C2 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 13 active regions using 2K resolution (SN: 319) and in 12 active regions using 1K resolution (SN: 212) SDO/HMI images.
Region 13567 [N20W68] was mostly quiet and
stable.
Region 13571 [S17W42] decayed slowly and
quietly.
Region 13574 [N16W32] decayed slowly and was mostly quiet. The region has reversed
polarities.
Region 13576 [S16E03] developed in the northwestern part where a new
magnetic delta structure formed. The delta within the huge leader spot
continued to decay slowly. A major flare is possible. C1 flares: C1.7 @
12:28 UT
Region 13577 [N22W28] decayed slowly and quietly.
Region 13578 [S07E15] decayed slowly and quietly. The region has reversed polarities.
Region 13579 [S10E18] decayed slowly and quietly.
Region 13581 [S21E59] was quiet and stable.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9406 [N12E33] was quiet and stable.
S9411 [S11W16] decayed slowly and quietly.
S9412 [N07E29] developed and could produce C
flares.
S9413 [N08E57] was quiet and stable.
New region S9414 [S15E83] rotated partly into view. This region was
the likely source of an M3.4 long duration event peaking at 03:54 UT on
February 10.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| M3.1/1N | 00:36 | S16E17 | 13576 | GOES16 | |
| M1.1 | 01:14 | 13576 | GOES16 | ||
| C5.8 | 01:55 | 13576 | GOES16 | ||
| C6.6 | 02:25 | 13575 | GOES16 | ||
| C4.7 | 03:27 | southwest limb | S9404 | GOES16 | |
| C3.7 | 04:09 | 13576 | GOES16 | ||
| C2.2 | 05:28 | 13576 | GOES16 | ||
| C2.4 | 05:56 | 13576 | GOES16 | ||
| C3.0 | 06:29 | 13576 | GOES16 | ||
| C2.0 | 07:04 | 13576 | GOES16 | ||
| C9.4 | 07:31 | S15E14 | 13576 | GOES16 | |
| C3.0 | 08:04 | 13575 | GOES16 | ||
| C5.6 | 08:16 | S15E17 | 13576 | GOES16 | |
| C6.2 | 10:21 | S15E17 | 13576 | GOES16 | |
| C2.4 | 11:12 | 13576 | GOES16 | ||
| X3.3 | 13:14 | behind southwest limb | 13575 | GOES16 | moderate type IV radio sweep full halo CME, proton event |
| C6.7 | 17:31 | 13576 | GOES16 | ||
| M1.2 | 18:00 | 13576 | GOES16 | ||
| C2.9 | 19:56 | 13576 | GOES16 | ||
| C2.5 | 21:13 | 13575 | GOES16 | ||
| C3.9 | 00:07 (started 23:58) | 13576 | GOES16 |
February 7-8: No obviously Earth directed CMEs were observed.
February 9: An impressive asymmetrical full halo CME was observed after the X3.3
proton flare in AR 13575 peaking at 13:14 UT. While the source of this event
was behind the southwest limb, a strong coronal wave was observed over large
parts of the western frontsided hemisphere. The associated CME was very wide and very
fast, and while it is not likely that even the outer edges will reach Earth,
on rare occasions that has happened historically from similar large events.
Any shock effects could reach Earth on February 11.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
No obvious coronal holes are currently in or near Earth facing positions.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is very poor due to a particle storm. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on February 10-11. Any effects from the February 9 CME could materialize on February 11-12.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

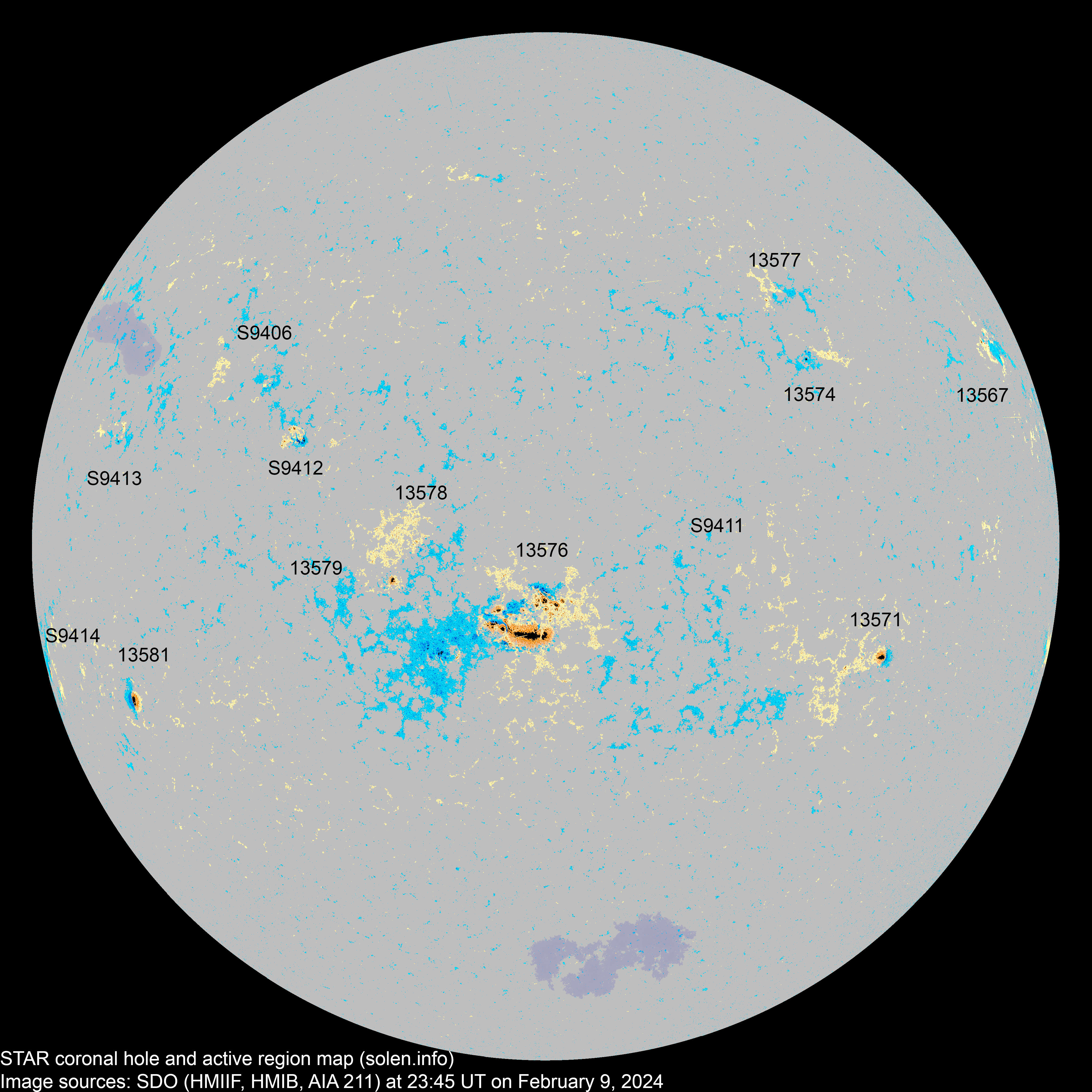

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13567 | 2024.01.28 2024.01.30 |
6 | 2 | N17W77 | 0012 | CRO |
 |
 |
location: N20W68 |
||
| 13570 | 2024.01.30 2024.02.01 |
S03W65 |
location: S02W58 |
||||||||
| 13572 | 2024.01.31 2024.02.01 |
S12W88 |
 |
location: S12W85 |
|||||||
| 13571 | 2024.01.31 2024.02.01 |
2 | 4 | 2 | S18W43 | 0070 | HAX | HAX |
 |
 |
area: 0120 location: S17W42 |
| 13574 | 2024.02.01 2024.02.01 |
2 | 7 | 3 | N17W33 | 0020 | AXX | BXO |
 |
 |
area: 0013 location: N16W32 reversed polarities |
| 13577 | 2024.02.02 2024.02.05 |
1 | 4 | 1 | N22W29 | 0010 | AXX | BXO |
 |
 |
location: N22W28 area: 0007 |
| 13576 | 2024.02.03 2024.02.03 |
27 | 130 | 68 | S16E05 | 0710 | FKC | FKC |
 |
 |
beta-gamma-delta area: 1030 location: S16E03 |
| S9401 | 2024.02.04 | S23W31 |
 |
||||||||
| 13578 | 2024.02.04 2024.02.05 |
8 | 2 | S04E11 | 0015 | CRO |
 |
 |
reversed polarities location: S07E15 |
||
| S9403 | 2024.02.04 | S07W48 | |||||||||
| S9405 | 2024.02.05 | N39E07 | |||||||||
| S9406 | 2024.02.06 | 2 | 1 | N12E33 | 0005 | AXX |
 |
 |
|||
| 13579 | 2024.02.06 2024.02.07 |
1 | 6 | 2 | S11E17 | 0020 | HSX | CRO |
 |
 |
location: S10E18 area: 0030 |
| 13581 | 2024.02.07 2024.02.08 |
1 | 2 | 1 | S21E58 | 0080 | HSX | HSX |
 |
 |
location: S21E59 area: 0200 |
| 13580 | 2024.02.08 | 1 | N21W66 | 0010 | AXX | see AR 13567 | |||||
| S9411 | 2024.02.08 | 4 | S11W16 | 0005 | AXX |
 |
 |
||||
| S9412 | 2024.02.08 | 12 | 8 | N07E29 | 0050 | DRI |
 |
 |
|||
| S9413 | 2024.02.08 | 3 | 1 | N08E57 | 0003 | BXO |
 |
 |
|||
| S9414 | 2024.02.09 | 1 | 1 | S15E83 | 0050 | HAX |
 |
||||
| Total spot count: | 35 | 189 | 92 | ||||||||
| Sunspot number: | 105 | 319 | 212 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 60 | 226 | 129 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 116 | 175 | 170 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.6 (+5.9) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.5 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.1 (+3.3) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.9 (+1.8) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | 124.1 (+1.2) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | 125.2 (+1.1) (SC25 solar max candidate) |
8.95 |
| 2023.07 | 176.4 | 182.2 | 160.0 | 124.3 (-0.9) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | (123.4 projected, -0.9) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 134.2 | (123.1 projected, -0.3) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | (123.9 projected, +0.8) | 8.16 |
| 2023.11 | 153.5 | 150.2 | 105.4 | (123.9 projected, +0.0) | 12.20 |
| 2023.12 | 151.1 | 146.4 | 114.2 | (120.5 projected, -3.4) | 9.60 |
| 2024.01 | 164.6 | 159.3 | 123.0 | (117.1 projected, -3.3) | 5.46 |
| 2024.02 | 168.4 (1) | 43.4 (2A) / 140.0 (2B) / 164.0 (2C) | (116.3 projected, -0.8) | (4.3) | |
| 2024.03 | (115.8 projected, -0.5) | ||||
| 2024.04 | (115.7 projected, -0.1) | ||||
| 2024.05 | (117.0 projected, +1.3) | ||||
| 2024.06 | (116.2 projected, -0.8) | ||||
| 2024.07 | (114.5 projected, -1.7) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
The relatively low solar activity during the last months of 2023 significantly increased the possibility that solar cycle 25 has already peaked. Whether the first peak in June 2023 will be the actual solar max will not be known for some time. Due to the relatively high solar activity early in 2023 it is unlikely there will be another solar max candidate, if at all, until at least May 2024. Both the northern and southern polar fields, as well as the averaged total field, have already reversed polarities.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
