The geomagnetic field was quiet on November 11. Solar wind speed at SOHO ranged between 466 and 614 km/sec. The high latitude magnetometer at Andenes recorded quiet levels.
Solar flux density measured at 20h UT on 2.8 GHz was 141.5 - decreasing 3.1 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 156.35. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.8). Three hour interval K indices: 11211011 (planetary), 11112210 (Boulder), 21200011 (Andenes).
The background x-ray flux is at the class B7 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 9 active regions using 2K resolution (SN: 199) and in 8 active regions using 1K resolution (SN: 115) SDO/HMI images.
Region 13477 [S14W67] decayed slowly and
produced a number of C flares and the only M flare of the day. C1 flares:
C1.5 @ 16:10, C1.8 @ 16:47 UT
Region 13480 [S09W32] decayed further and lost nearly all leading
polarity spots.
Region 13483 [N07W54] gained area and has major flare potential.
Several C flare were recorded during the day. C1 flares: C1.5 @ 00:07, C1.8
@ 02:19, C1.5 @ 02:44, C1.2 @ 04:41, C1.7 @ 06:24, C1.4 @ 22:15, C1.2 @
22:37, C1.0 @ 23:28, C1.7 @ 00:05 (flare began at 23:50) UT.
Region 13484 [S14W50] developed slowly and produced . C1
flares: C1.4 @ 13:14 UT
Region 13485 [S19W39] developed slowly and was mostly quiet.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S9128 [N25W49] decayed slowly and quietly.
S9133 [N08E40] was quiet and stable.
S9134 [N22W05] reemerged with tiny spots.
New region S9136 [S09E06] emerged late in the
day with tiny spots.
AR 13479 behind the northwest limb produced a C1.4 flare at 08:08 UT
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C2.2 | 00:24 | 13483 | GOES16 | ||
| C2.0 | 02:09 | 13477 | GOES16 | ||
| C2.0 | 03:02 | 13477 | GOES16 | ||
| C2.4 | 03:32 | 13477 | GOES16 | ||
| C7.1 | 03:59 | N10W35 | 13483 | GOES16 | |
| C3.7 | 06:08 | 13483 | GOES16 | ||
| C2.5 | 07:38 | N08W39 | 13483 | GOES16 | |
| C3.8 | 08:34 | S15W54 | 13477 | GOES16 | |
| C6.5 | 09:16 | 13483 | GOES16 | ||
| C2.8 | 12:36 | 13484 | GOES16 | simultaneous flare in AR 13477 | |
| C2.1 | 13:42 | 13484 | GOES16 | ||
| M1.2 | 17:29 | 13477 | GOES16 | ||
| C4.7 | 18:06 | 13483 | GOES16 | ||
| C7.9 | 18:30 | 13477 | GOES16 | ||
| C2.4 | 20:16 | 13477 | GOES16 | ||
| C2.1 | 20:43 | 13477 | GOES16 | ||
| C2.3 | 21:04 | behind northwest limb | 13479 | GOES16 |
November 10-11: No obviously Earth directed CMEs were observed.
November 9: A full halo CME was observed after a complex event before
noon involving a filament eruption and ARs 13484, 13483 and 13480. The
filament eruption was the likely trigger of small flares in ARs 13480 and
13483. The CME was observed reaching DSCOVR at 05:31 UT on November 12.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A small positive polarity southern hemisphere coronal hole (CH1184) was Earth facing on November 10. A small negative polarity trans equatorial coronal hole (CH1185) will be Earth facing on November 12-13.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to minor storm on November 12 due to CME effects and quiet to unsettled on November 13. On November 14 quiet to active conditions are likely due to effects from CH1184.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous
day's image. 0.5K image

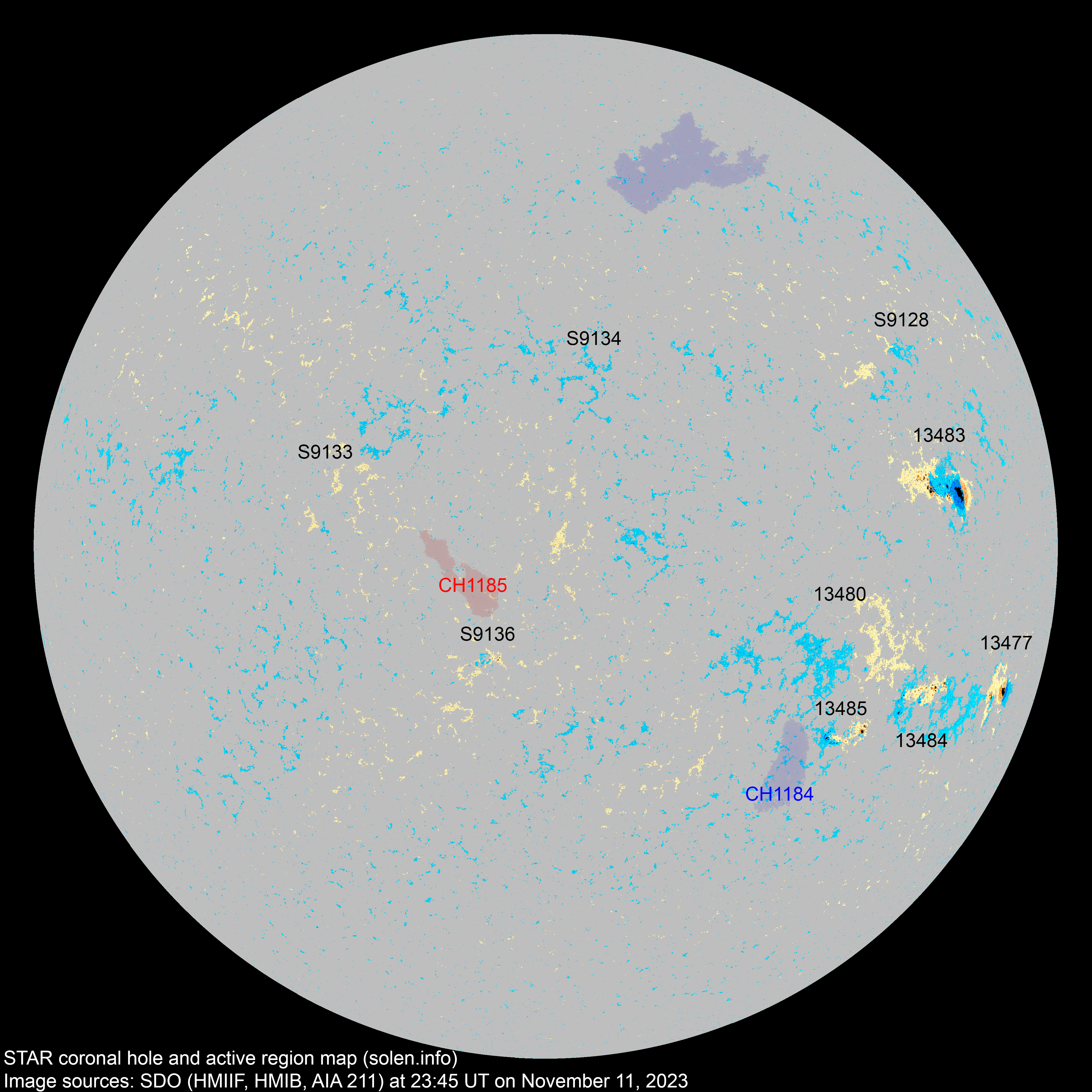

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13478 | 2023.10.31 2023.11.01 |
N12W67 |
location: N13W60 |
||||||||
| 13477 | 2023.10.31 | 5 | 7 | 3 | S15W67 | 0200 | CAO | CHO |
 |
 |
area: 0290 |
| 13480 | 2023.11.02 2023.11.03 |
13 | 3 | S19W42 | 0020 | BXI |
 |
 |
location: S09W32 SWPC location is way off |
||
| 13481 | 2023.11.02 2023.11.04 |
1 | N25W50 | 0010 | AXX |
spotless actual location: N21W41 SWPC has moved this region to the location of AR S9128 |
|||||
| 13482 | 2023.11.04 2023.11.05 |
N04W12 |
|
||||||||
| 13483 | 2023.11.05 2023.11.07 |
16 | 32 | 19 | N09W52 | 0240 | DAI | DKI |
 |
 |
beta-gamma location: N07W54 area: 0620 |
| S9123 | 2023.11.05 | S31W47 | |||||||||
| S9126 | 2023.11.06 | S34W31 | |||||||||
| S9127 | 2023.11.06 | S29W16 | |||||||||
| S9128 | 2023.11.07 | 1 | N25W49 | 0001 | AXX |
 |
 |
||||
| S9129 | 2023.11.07 | S18W06 | |||||||||
| 13485 | 2023.11.08 2023.11.10 |
5 | 19 | 12 | S19W39 | 0020 | BXO | DRI |
 |
 |
area: 0070 |
| 13484 | 2023.11.08 2023.11.08 |
8 | 24 | 16 | S14W49 | 0040 | BXI | DRI |
 |
 |
location: S14W50 area: 0070 |
| S9133 | 2023.11.08 | 4 | N08E25 | 0006 | AXX |
 |
 |
||||
| S9134 | 2023.11.08 | 4 | N22W05 | 0006 | AXX |
 |
|||||
| S9135 | 2023.11.10 | S10W06 |
 |
||||||||
| S9136 | 2023.11.11 | 5 | 2 | S09E06 | 0010 | AXX |
 |
||||
| Total spot count: | 35 | 109 | 55 | ||||||||
| Sunspot number: | 85 | 199 | 115 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 45 | 135 | 81 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 94 | 109 | 92 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.6 (+5.9) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.5 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.9 (+2.4) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.2 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.7 (+5.5) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 144.4 | 113.3 (+6.6) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 111.3 | 117.8 (+3.5) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 123.3 | 121.0 (+3.2) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 97.6 | 122.7 (+1.7) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.4 | (124.7 projected, +2.0) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 160.5 | (127.9 projected, +3.2) | 8.95 |
| 2023.07 | 176.4 | 182.2 | 159.1 | (128.3 projected, +0.4) | 8.15 |
| 2023.08 | 153.7 | 157.6 | 114.8 | (130.1 projected, +1.8) | 7.19 |
| 2023.09 | 154.4 | 156.0 | 133.6 | (133.5 projected, +3.4) | 14.26 |
| 2023.10 | 142.8 | 141.9 | 99.4 | (135.2 projected, +1.7) | 8.16 |
| 2023.11 | 149.5 (1) | 33.1 (2A) / 90.2 (2B) / 103.5 (2C) | (137.8 projected max SC25, +2.6) | (16.7) | |
| 2023.12 | (137.1 projected, -0.7) | ||||
| 2024.01 | (134.4 projected, -2.7) | ||||
| 2024.02 | (134.2 projected, -0.2) | ||||
| 2024.03 | (133.7 projected, -0.5) | ||||
| 2024.04 | (134.5 projected, +0.8) | ||||
| 2024.05 | (135.8 projected, +1.3) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
Looking back 6 months, the 365d smoothed values for solar flux and all sunspot numbers with the exception of NOAA's, are all above their solar cycle 24 peak. The first peak of solar cycle 25 is forecast to be between July 7 and 10, 2023 (solar flux on July 7, ISN and STAR 1K and 2K all have that peak on July 9, while NOAA peaks on July 10). This is unlikely to be the final peak of SC25, however, there is a small probability that it is the actual sunspot and solar flux maximum.
--------------------------------------------------------------------------------------
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
