The geomagnetic field was quiet on June 3. Solar wind speed at SOHO ranged between 311 and 395 km/sec. The high latitude magnetometer at Andenes recorded quiet to unsettled levels. Early on June 4 a relatively low speed stream associated with CH1150 is causing a geomagnetic disturbance.
Solar flux density measured at 20h UT on 2.8 GHz was 164.9 - increasing 7.7 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 142.17. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.5). Three hour interval K indices: 11110012 (planetary), 11111222 (Boulder), 31110012 (Andenes).
The background x-ray flux is at the class C1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 16 active regions using 2K resolution (SN: 312) and in 13 active regions using 1K resolution (SN: 206) SDO/HMI images.
Region 13319 [S18W69] was mostly unchanged and
produced a few C flares. An M class flare is possible while the region
rotates over the southwest limb.

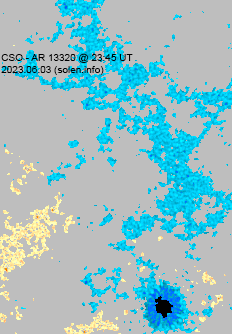

Region 13320 [N10E05] was mostly quiet and stable.

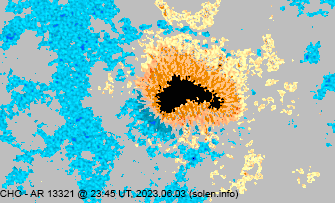

Region 13321 [S15E15] was quiet and stable.

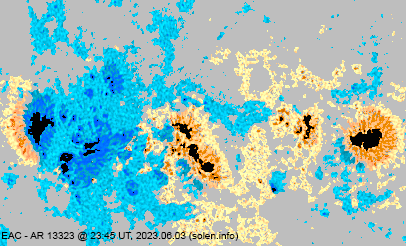

Region 13323 [S08E35] gained area and spots in the trailing and
intermediate spot sections. The region still has major flare potential. C1
flares: C1.7 @ 06:23, C1.7 @ 08:01 UT
Region 13324 [N15W25] decayed slowly and was mostly quiet. C1 flares:
C1.9 @ 03:03 UT
Region 13325 [N11W18] decayed slowly and quietly.

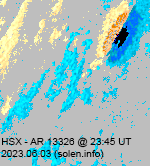

Region 13326 [N25E65] was quiet and stable.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:

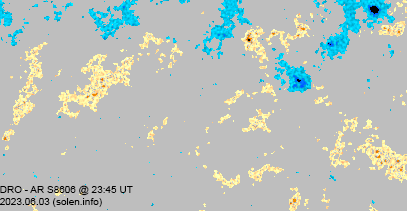

S8606 [N10E13] developed slowly and quietly.
S8610 [N30E10] reemerged with tiny spots.
S8617 [N10E64] was quiet and stable.
New region S8618 [N18W22] emerged to the north of AR 13324 with tiny
spots.
New region S8621 [S13W64] emerged with tiny spots to the north of AR
13319.
New region S8622 [S14E80] rotated into view with a few small and tiny
spots. C1 flares: C1.6 @ 17:04, C1.7 @ 17:57 UT
New region S8623 [N15E27] was observed with tiny spots in an
old plage area.
New region S8624 [S03W07] emerged with tiny
spots.

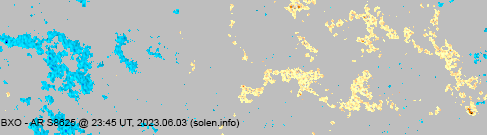

New region S8625 [S25E27] was observed with tiny spots in an
old plage area.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C4.1 | 00:22 | 13323 | GOES16 | ||
| C2.6 | 01:10 | southeast limb | S8622 | GOES16 | |
| C2.2 | 01:33 | 13316 | GOES16 | ||
| C2.0 | 07:16 | southeast limb | S8622 | GOES16 | incorrectly assigned to AR 13323 by SWPC |
| C3.3 | 10:15 | 13323 | GOES16 | simultaneous flare behind the northwest limb. | |
| C2.9 | 11:49 | southeast limb | S8622 | GOES16 | incorrectly assigned to AR 13320 by SWPC |
| C2.6 | 13:14 | 13323 | GOES16 | ||
| C2.8 | 13:26 | 13319 | GOES16 | ||
| C2.2 | 14:09 | 13319 | GOES16 | ||
| C3.4 | 18:43 | S8622 | GOES16 | simultaneous flare in AR 13319 | |
| C3.2 | 20:56 | S8622 | GOES16 | ||
| C2.4 | 20:04 | 13319 | GOES16 | ||
| C2.8 | 21:47 | 13319 | GOES16 | ||
| C2.5 | 22:02 | 13319 | GOES16 | ||
| C2.0 | 22:44 | S8622 | GOES16 | ||
| C2.8 | 23:10 | S8622 | GOES16 |
June 1-3: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A trans equatorial coronal hole (CH1150) rotated across the central meridian on May 31 - June 1. A northern hemisphere coronal hole (CH1152) will likely become Earth facing on June 7.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
Quiet to active conditions are possible on June 4 due to effects from CH1150. Quiet conditions are likely on June 5-7.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

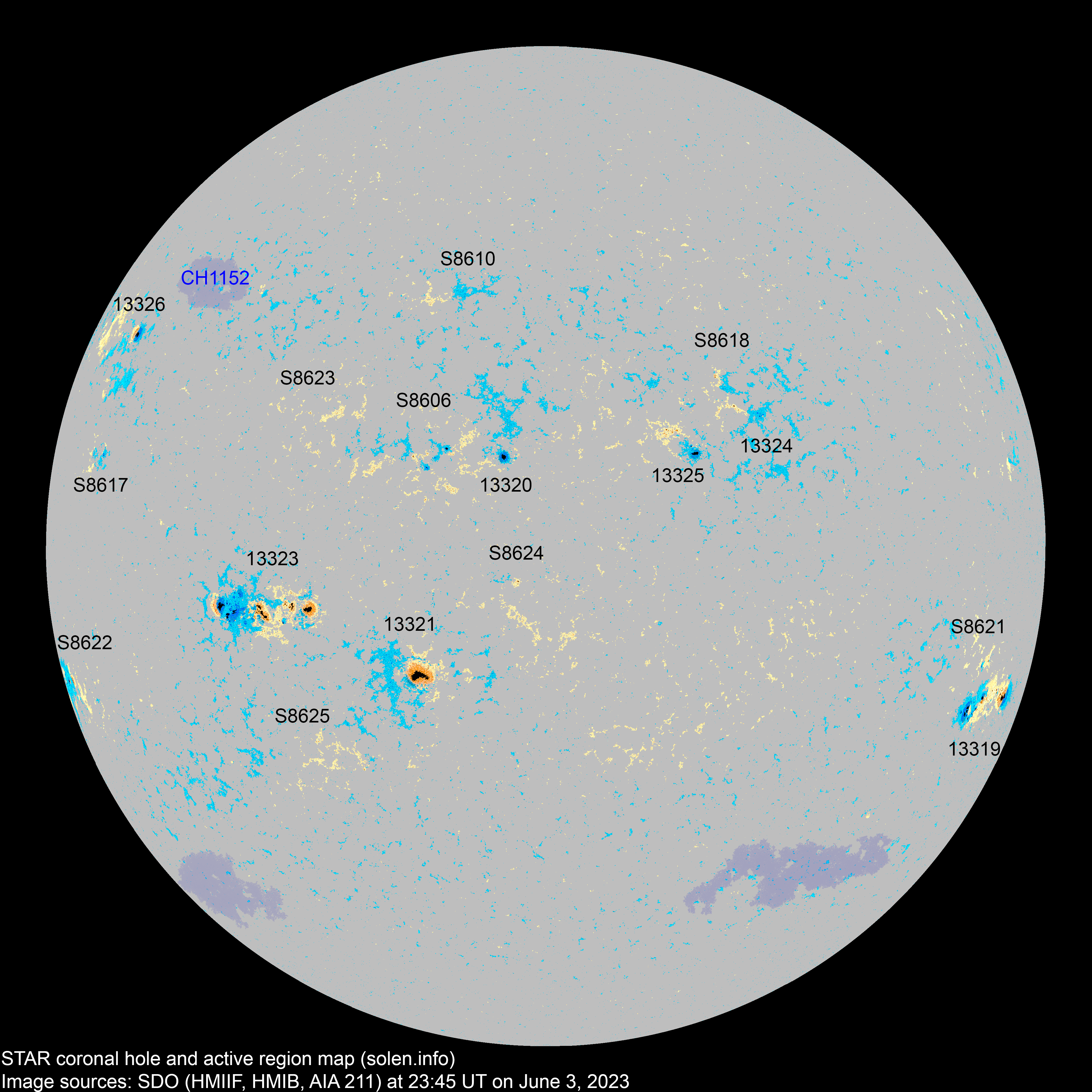

(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13316 | 2023.05.24 2023.05.26 |
N09W73 | |||||||||
| 13319 | 2023.05.27 2023.05.29 |
13 | 22 | 16 | S19W70 | 0200 | EAI | EKI |
 |
 |
area: 0500 location: S18W69 |
| S8600 | 2023.05.27 | S11W56 | |||||||||
| 13320 | 2023.05.28 2023.05.29 |
4 | 4 | 1 | N10E07 | 0030 | CSO | CSO |
 |
 |
area: 0060 location: N10E05 |
| 13321 | 2023.05.29 2023.05.30 |
1 | 11 | 5 | S15E13 | 0180 | HAX | CHO |
 |
 |
area: 0330 location: S15E15 |
| S8606 | 2023.05.29 | 11 | 4 | N10E13 | 0040 | DRO |
 |
 |
|||
| S8608 | 2023.05.29 | S33W42 | |||||||||
| S8609 | 2023.05.30 | N18W10 | |||||||||
| S8610 | 2023.05.30 | 3 | N30E10 | 0005 | AXX |
 |
|||||
| 13324 | 2023.05.30 2023.06.02 |
6 | 10 | 6 | N15W25 | 0010 | BXO | BXO |
 |
 |
|
| 13323 | 2023.05.30 2023.05.31 |
13 | 55 | 28 | S07E32 | 0310 | EKC | EAC |
 |
 |
area: 0680 location: S08E35 |
| S8613 | 2023.06.01 | S08E04 |
 |
||||||||
| S8614 | 2023.06.01 | N07W58 |
 |
||||||||
| 13325 | 2023.06.01 2023.06.02 |
4 | 9 | 6 | N11W16 | 0030 | CAO | DAO |
 |
 |
location: N11W18 area: 0080 |
| 13326 | 2023.06.02 2023.06.02 |
1 | 2 | 1 | N25E59 | 0120 | HSX | HSX |
 |
 |
location: N25E65 area: 0140 |
| S8617 | 2023.06.02 | 2 | 1 | N10E64 | 0006 | AXX |
 |
 |
|||
| S8618 | 2023.06.03 | 4 | 1 | N18W22 | 0010 | BXO |
 |
||||
| S8621 | 2023.06.03 | 2 | 2 | S13W64 | 0006 | BXO |
 |
||||
| S8622 | 2023.06.03 | 6 | 4 | S14E80 | 0070 | CAO |
 |
||||
| S8623 | 2023.06.03 | 4 | N15E27 | 0006 | AXX |
 |
|||||
| S8624 | 2023.06.03 | 2 | 1 | S03W07 | 0005 | AXX |
 |
||||
| S8625 | 2023.06.03 | 5 | S25E27 | 0007 | BXO |
 |
|||||
| Total spot count: | 42 | 152 | 76 | ||||||||
| Sunspot number: | 112 | 312 | 206 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 77 | 200 | 124 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 123 | 172 | 165 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2021.10 | 88.9 | 88.3 | 37.4 | 45.2 (+5.0) | 7.38 |
| 2021.11 | 86.2 | 84.4 | 34.8 | 50.8 (+5.6) | 9.83 |
| 2021.12 | 103.0 | 99.8 | 67.5 | 55.9 (+5.1) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 55.3 | 60.1 (+4.2) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 60.9 | 64.7 (+4.6) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.6 | 68.7 (+4.0) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.5 (+5.8) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.4 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.7 (+2.3) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.0 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | (105.8 projected, +4.8) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 143.6 | (112.2 projected, +6.4) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 110.9 | (117.0 projected, +4.8) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 122.6 | (120.1 projected, +3.1) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 96.4 | (125.5 projected, +5.4) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.9 | (131.2 projected, +5.7) | 10.9 |
| 2023.06 | 163.6 (1) | 13.4 (2A) / 134.0 (2B) / 158.2 (2C) | (134.3 projected, +3.1) | (5.8) | |
| 2023.07 | (133.8 projected, -0.5) | ||||
| 2023.08 | (134.8 projected, +1.0) | ||||
| 2023.09 | (138.2 projected, +3.4) | ||||
| 2023.10 | (140.1 projected, +1.9) | ||||
| 2023.11 | (142.7 projected max SC25) | ||||
| 2023.12 | (142.6 projected, 0.1) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
