Last major update issued on December 29, 2023 at 10:20 UT.

Charts (* = updated daily) Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data since 2003.01 (December 7, 2023)
Solar cycle Solar cycles 23-25 (December 1, 2023) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24-25 progress (December 1, 2023) Noon SDO sunspot count 1K image / 4K (*)
  Solar cycles 1-24 (July 1, 2020) POES auroral activity level [October 2009 - December 2012]
  Comparison of cycles 21-25 (December 1, 2023) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12-14, 16, 24-25 (December 1, 2023) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (November 26, 2023) Cycle 25 spots (final update December 25, 2019)
  Solar cycles 24-25 transition using 365d smoothing Research: Solar Cycle 25 Started on November 17, 2019 with 365 Days Smoothing

Recent activity

The geomagnetic field was quiet on December 28. Solar wind speed at SOHO ranged between 318 and 399 km/sec. The high latitude magnetometer at Andenes recorded inactive levels. A weak solar wind shock was recorded at 23:02 UT at SOHO, wind speed increased abruptly from 327 to 388 km/sec.

Solar flux density measured at 20h UT on 2.8 GHz was 146.7 - decreasing 15.3 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 158.65. In comparison SC24 peaked on June 28, 2014 at 145.50. Current SC25 peak: 158.71 on June 27, 2023). The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.8). Three hour interval K indices: 00100102 (planetary), 00111212 (Boulder), 00000000 (Andenes).

The background x-ray flux is at the class B8 level (GOES 16).

At the time of counting spots (see image time), spots were observed in 7 active regions using 2K resolution (SN: 182) and in 7 active regions using 1K resolution (SN: 120) SDO/HMI images.

Region 13529 [S20W80] was quiet and stable.
Region 13530 [N07W62] decayed slowly and quietly.

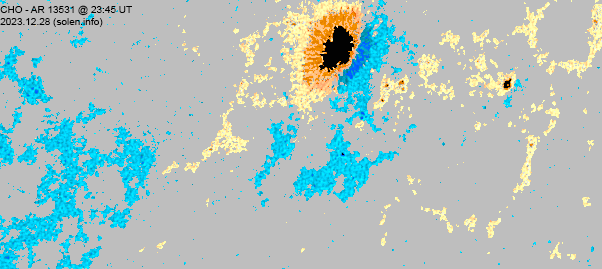

Region 13531 [S19W35] was quiet and stable.
Region 13533 [N15W38] developed further and produced low level C flares. A C9.8 flare was recorded at 07:54 UT on December 29. C1 flares: C1.8 @ 10:58, C1.5 @ 22:51 UT
Region 13534 [S12E44] developed slowly and was mostly quiet. C1 flares: C1.0 @ 20:32 UT
New region 13535 [S05W18] emerged on December 24 and was numbered by SWPC 4 days later as the region developed slowly.

Spotted regions not observed (or interpreted differently) by SWPC/USAF:

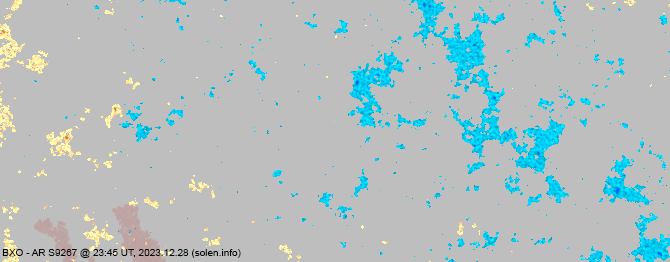

S9267 [N21W13] was quiet and stable.

C2+ flares:

Magnitude Peak time (UT) Location Source Recorded by Comment
C2.1 20:52 behind northeast limb   GOES16

Coronal mass ejections (CMEs)

December 26-28: No obviously Earth directed CME observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent negative polarity trans equatorial coronal hole (CH1195) will become Earth facing on December 29-31.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on December 29-30 and most of December 31. December 31-January 3 could see quiet to minor storm conditions due to effects from CH1195.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

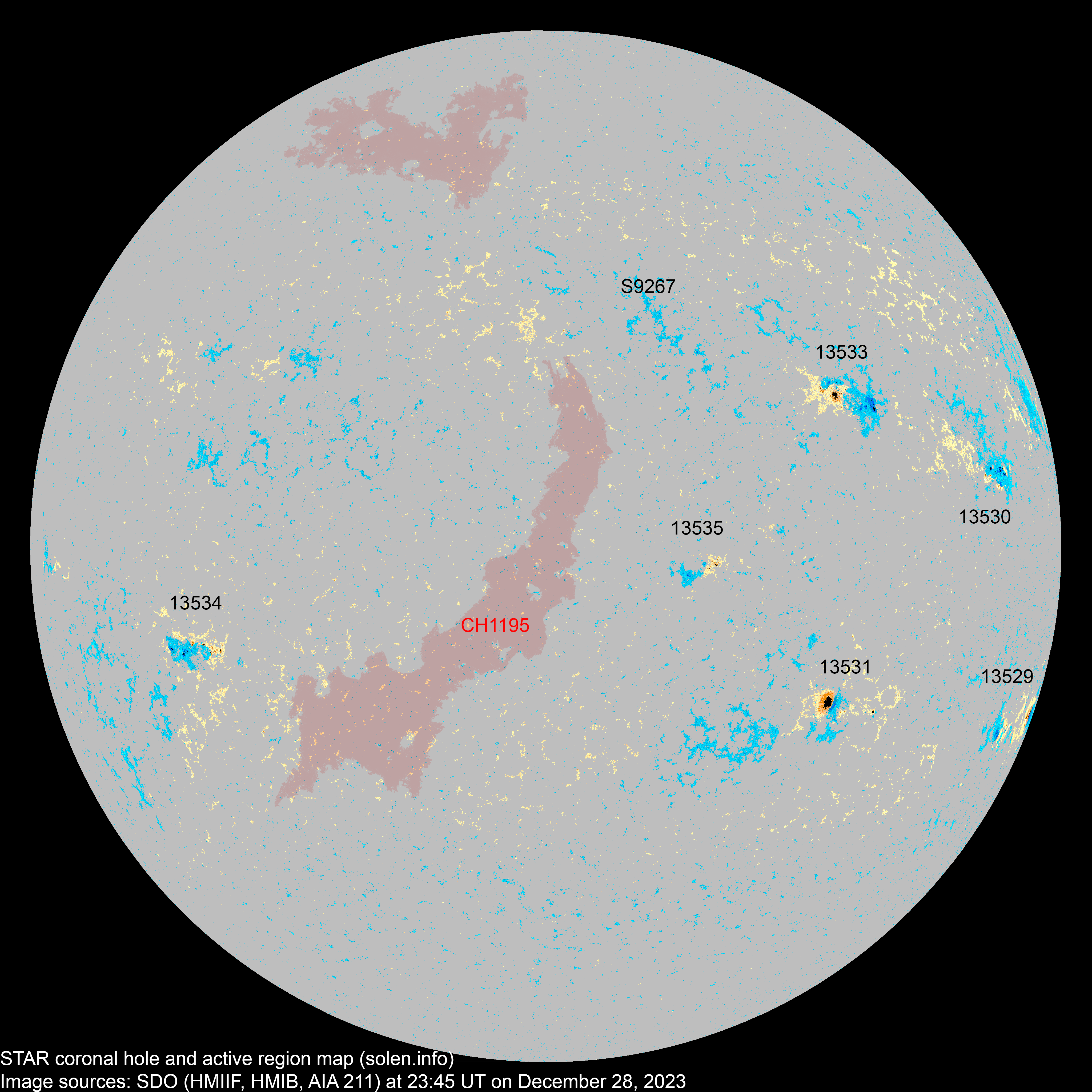

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.

Active region SWPC date numbered
STAR detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC/
USAF
Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
13526 2023.12.16
2023.12.17
      N13W78

location: N13W75

13529 2023.12.16
2023.12.18
2 8 4 S20W76 0130 EAO EKO

area: 0350

location: S20W80

13530 2023.12.18
2023.12.19
4 18 8 N07W60 0020 CAO CRI

area: 0070

location: N07W62

13531 2023.12.19
2023.12.20
2 13 5 S20W36 0140 CSO CHO area: 0320

location: S19W35

13533 2023.12.19
2023.12.22
7 29 15 N14W36 0110 DAO DAI area: 0200

location: N15W38

S9259 2023.12.23       N17W51
S9260 2023.12.23       N28W50
13535 2023.12.24
2023.12.28
3 11 6 S05W18 0010 BXO CRO
S9263 2023.12.25       N08E05
13534 2023.12.26
2023.12.27
5 25 11 S12E47 0020 CRO DRI area: 0110

location: S12E44

S9266 2023.12.26       S33W36
S9267 2023.12.27   8 1 N21W13 0012   BXO
S9268 2023.12.27       N00W25
S9269 2023.12.27       N19E30
S9270 2023.12.27       N15W50
Total spot count: 23 112 50
Sunspot number: 83 182 120  (total spot count + 10 * number of spotted regions)
Weighted SN: 46 146 84  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 91 100 96

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (SC24 peak) 110.5 10.70
2014.04 143.9 144.8 112.5 116.4 (SC24 solar max) 7.88
2017.09 91.3 92.3 43.6 18.2 (-1.3) 18.22
(SC24 peak)
2019.11 70.2 68.7 0.5 2.0 (-0.6)
(Solar minimum using 365d smoothing:
November 17, 2019)
4.19
2019.12 70.8 68.6 1.6 1.8 (-0.2)
(ISN 13 months smoothed
solar minimum)
3.22
2022.04 130.8 131.7 84.0 73.0 (+4.3) 11.79
2022.05 133.8 136.8 96.5 77.4 (+4.4) 7.48
2022.06 116.1 119.8 70.3 81.1 (+3.7) 8.20
2022.07 125.4 129.5 91.4 86.7 (+5.6) 9.51
2022.08 114.2 117.1 74.6 92.6 (+5.9) 10.92
2022.09 135.1 136.5 96.0 96.5 (+3.9) 12.18
2022.10 133.5 132.7 95.5 98.9 (+2.4) 11.16
2022.11 123.4 120.7 80.5 101.2 (+2.3) 9.33
2022.12 147.9 143.4 112.8 106.7 (+5.5) 10.99
2023.01 182.4 176.6 144.4 113.3 (+6.6) 8.73
2023.02 167.2 163.2 111.3 117.8 (+3.5) 14.48
(current
SC25 peak)
2023.03 157.2 155.6 123.3 121.0 (+3.2) 14.42
2023.04 145.4 146.4 97.6 122.7 (+1.7) 13.40
2023.05 155.6 159.2 137.4 123.9 (+1.2) 10.67
2023.06 161.7 166.8 160.5 (126.3 projected, +2.4) 8.95
2023.07  176.4 182.2 159.1 (127.1 projected, +0.8) 8.15
2023.08  153.7 157.6 114.8 (128.2 projected, +1.1) 7.19
2023.09  154.4 156.0 133.6 (130.4 projected, +2.2) 14.26
2023.10  142.8 141.9 99.4 (132.2 projected, +1.8) 8.16
2023.11 153.5 150.2 105.4 (134.1 projected max SC25, +1.9) 12.20
2023.12 151.9 (1)   107.4 (2A) / 118.9 (2B) / 142.8 (2C) (132.7 projected, -1.4) (10.3)
2024.01       (130.0 projected, -2.7)
2024.02       (129.9 projected, -0.1)
2024.03       (129.3 projected, -0.6)
2024.04       (130.1 projected, +0.8)
2024.05       (132.2 projected, +2.1)
2024.06       (131.5 projected, -0.7)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory Of Belgium, Brussels

Solar cycles 24-25

Smoothed SF and sunspot numbers

Update on the progress of solar cycle 25 as of December 7, 2023

Due to relatively low solar activity over the last couple of months, the possibility that solar cycle 25 has already peaked has increased significantly. Whether the first peak (and maybe solar max) will be in June or July depends on solar activity in December and early January 2024. If the average solar flux is less than 150 during this period, the first peak of solar cycle 25 using 365 day smoothing will likely be sometime between June 2 and July 9. Should the average solar flux instead become 140 then the peak date will be in early June (June 4 for solar flux, June 6 for STAR 2K SN, and June 7 for all the other sunspot numbers in the graph above). We won't know for a while yet when the final peak will be, however, it is interesting that the peak of SC25 could be as early as June 2023. The next update will likely be posted here in January 2024.

--------------------------------------------------------------------------------------

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
