The geomagnetic field was very quiet on May 5. The high latitude magnetometer at Andenes recorded quiet to active levels.
Solar flux density measured at 20h UT on 2.8 GHz was 119.9 - increasing 11.0 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 95.30). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.4). Three hour interval K indices: 11100111 (planetary), 11111211 (Boulder), 42212122 (Andenes).
The background x-ray flux is at the class B8 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 198) and in 6 active regions using 1K resolution (SN: 106) SDO/HMI images.
Region 12998 [S20W79] was quiet and stable. Note that SWPC assigned a new number (12999) to the region due to the faulty initial
location of AR 12998. For data consistency the original number is used in
this report.
Region 13001 [S31W39] was quiet and stable.
Region 13004 [S14W30] developed further in the leading penumbra,
however, some decay was observed in the trailing spot section. There is
still an elongated magnetic delta in the southeastern part of the largest
penumbra, positive polarity umbrae and penumbra are sandwiched between
negative polarity areas. A major flare is possible. C1 flares: C1.7 @ 00:15,
C1.9 @ 06:46, C1.7 @ 10:00, C1.8 @ 13:04, C1.4 @ 16:12, C1.4 @ 18:04, C1.7 @
19:09, C1.7 @ 23:37 UT
Region 13006 [S30E56] developed slowly and
became less active. The main penumbra contains opposite polarity umbrae and
this delta is likely the cause of most flares from this region. Another
major flare is possible. C1 flares: C1.8 @ 07:46, C1.3 @ 18:32 UT
Spotted regions not observed (or interpreted
differently) by SWPC:
S7518 [S09W61] reemerged with a tiny spot.
S7542 [S15W18] was quiet and stable.
New region S7545 [S21W07] emerged with a tiny spot.
New region S7546 [S25E18] was observed with tiny spots.
New region S7547 [S19W62] emerged with a tiny spot.
New region S7548 [S18E33] emerged with a tiny spot.
New region S7549 [N25E01] emerged with tiny spots.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C4.0 | 01:38 | S16W17 | 13004 | GOES16 | |
| C3.8 | 03:03 | 13004 | GOES16 | ||
| C2.9 | 03:22 | S18W19 | 13004 | GOES16 | |
| C2.9 | 04:24 | 13004 | GOES16 | ||
| C5.7 | 04:49 | 13004 | GOES16 | weak type IV radio sweep | |
| C2.1 | 06:21 | 13004 | GOES16 | ||
| C3.8 | 07:20 | 13004 | GOES16 | ||
| C2.6 | 08:35 | 13004 | GOES16 | ||
| C4.1 | 09:03 | 13004 | GOES16 | ||
| C6.5 | 11:19 | 13006 | GOES16 | ||
| C8.7 | 11:55 | 13004 | GOES16 | ||
| M2.2 | 13:16 | 13004 | GOES16 | ||
| C6.8 | 13:37 | 13004 | GOES16 | ||
| M2.7 | 14:10 | 13006 | GOES16 | ||
| C3.4 | 15:39 | 13004 | GOES16 | ||
| C2.4 | 22:20 | 13004 | GOES16 | ||
| C2.6 | 23:03 | S16W27 | 13004 | GOES16 | |
| C3.9 | 23:59 | S16W29 | 13004 | GOES16 |
May 3-5: No obviously Earth directed CMEs were observed in available LASCO imagery.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
No obvious coronal holes are currently in or near Earth facing locations.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
Quiet conditions are likely on May 5-7.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

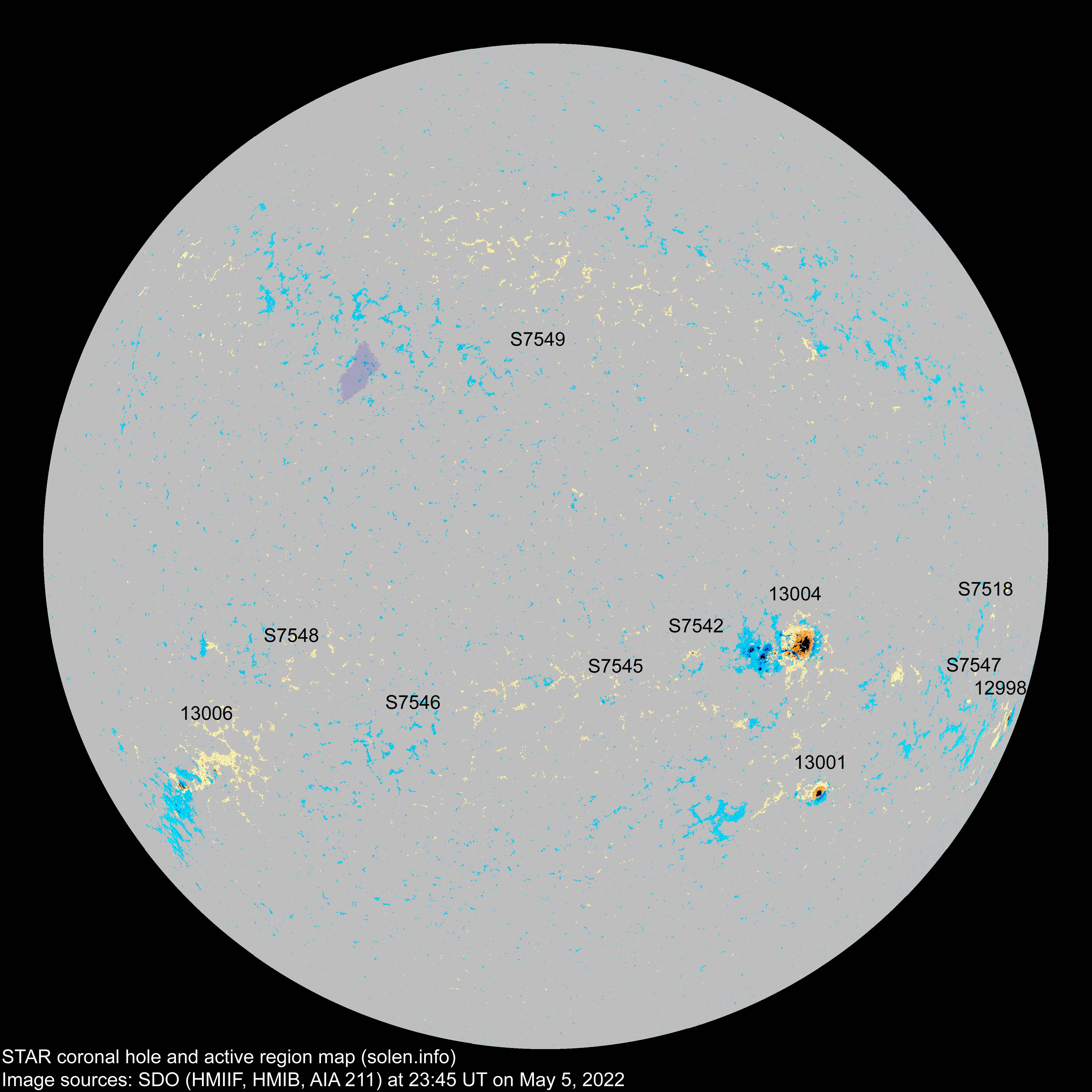

(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12998 | 2022.04.23 2022.04.23 |
1 | 1 | 0110 | HSX |
 |
 |
location: S20W79 |
|||
| 12999 | 2022.04.25 | 1 | S21W80 | 0070 | HSX | SWPC renumber of AR 12998 | |||||
| S7518 | 2022.04.25 | 1 | S09W61 | 0003 | AXX |
 |
|||||
| 13000 | 2022.04.25 2022.04.26 |
S17W51 | location: S18W46 | ||||||||
| 13001 | 2022.04.25 2022.04.26 |
1 | 5 | 2 | S32W40 | 0090 | HSX | CSO |
 |
 |
location: S31W39 area: 0120 |
| 13002 | 2022.04.26 2022.04.28 |
N13W73 | |||||||||
| S7525 | 2022.04.26 | N31W38 | |||||||||
| S7526 | 2022.04.26 | S17W57 | |||||||||
| 13004 | 2022.04.27 2022.05.02 |
26 | 56 | 32 | S16W29 | 0500 | DKC | DKC |
 |
 |
beta-gamma-delta area: 0650 location: S14W30 |
| 13003 | 2022.04.28 2022.04.29 |
3 | S24W27 | 0010 | BXO |
|
|||||
| S7534 | 2022.04.30 | N18W50 | |||||||||
| 13005 | 2022.05.01 2022.05.02 |
N20W36 |
 |
||||||||
| S7537 | 2022.05.02 | S17W08 | |||||||||
| S7538 | 2022.05.02 | S19E02 | |||||||||
| 13006 | 2022.05.02 2022.05.04 |
4 | 24 | 9 | S27E50 | 0050 | CAO | EAO |
 |
 |
beta-gamma-delta location: S30E56 |
| S7540 | 2022.05.02 | S13E43 | |||||||||
| S7541 | 2022.05.04 | S23W25 |
 |
wrongly numbered, this is AR 13003 | |||||||
| S7542 | 2022.05.04 | 3 | 1 | S15W18 | 0010 | CRO |
 |
 |
|||
| S7543 | 2022.05.04 | N32W22 |
 |
||||||||
| S7544 | 2022.05.04 | S30W52 |
 |
||||||||
| S7545 | 2022.05.05 | 1 | 1 | S21W07 | 0004 | AXX |
 |
||||
| S7546 | 2022.05.05 | 3 | S25E18 | 0006 | AXX |
 |
|||||
| S7547 | 2022.05.05 | 1 | S19W62 | 0001 | AXX |
 |
|||||
| S7548 | 2022.05.05 | 1 | S18E33 | 0001 | AXX |
 |
|||||
| S7549 | 2022.05.05 | 2 | N25E01 | 0002 | BXO |
 |
|||||
| Total spot count: | 35 | 98 | 46 | ||||||||
| Sunspot number: | 85 | 208 | 106 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 60 | 126 | 74 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 94 | 112 | 85 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (cycle peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2020.10 |
74.6 | 74.2 | 14.6 | 11.9 (+1.4) | 6.13 |
| 2020.11 | 89.9 | 88.0 | 34.5 | 13.6 (+1.7) | 4.77 |
| 2020.12 | 86.9 | 84.2 | 23.1 | 15.3 (+1.7) | 4.72 |
| 2021.01 | 76.0 | 73.6 | 10.4 | 17.3 (+2.0) | 4.39 |
| 2021.02 | 74.3 | 72.4 | 8.2 | 19.0 (+1.7) | 9.50 |
| 2021.03 | 76.0 | 75.2 | 17.2 | 21.7 (+2.7) | 10.17 |
| 2021.04 | 75.9 | 76.4 | 24.5 | 24.8 (+3.1) | 8.40 |
| 2021.05 | 75.3 | 77.1 | 21.2 | 25.8 (+1.0) | 6.50 |
| 2021.06 | 79.4 | 81.8 | 25.0 | 27.6 (+1.8) | 5.52 |
| 2021.07 | 81.0 | 83.6 | 34.3 | 31.3 (+3.7) | 5.51 |
| 2021.08 | 77.7 | 79.7 | 22.0 | 35.3 (+4.0) | 6.19 |
| 2021.09 | 87.0 | 88.2 | 51.3 | 40.0 (+4.7) | 6.33 |
| 2021.10 | 88.9 | 88.3 | 37.4 | 45.0 (+5.0) | 7.38 |
| 2021.11 | 86.2 | 84.4 | 34.8 | (50.0 projected, +5.0) | 9.83 |
| 2021.12 | 103.0 | 99.8 | 67.5 | (55.8 projected, +5.8) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 54.0 | (60.3 projected, +4.5) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 59.7 | (65.2 projected, +4.9) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.5 | (70.7 projected, +5.5) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.1 | (75.9 projected, +5.2) | 12.0 |
| 2022.05 | 117.1 (1) | 9.9 (2A) / 61.4 (2B) / 88.7 (2C) | (82.3 projected, +6.4) | (5.4) | |
| 2022.06 | (88.2 projected, +5.9) | ||||
| 2022.07 | (95.4 projected, +7.2) | ||||
| 2022.08 | (102.1 projected, +6.7) | ||||
| 2022.09 | (107.1 projected, +5.0) | ||||
| 2022.10 | (110.3 projected, +3.2) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
