Recent activity

The geomagnetic field was quiet to active on June 27 under the influence of a high speed stream from CH1085. Solar wind speed ranged between 488 and 810 km/sec. The high latitude magnetometer at Andenes recorded quiet to major storm levels.

Solar flux density measured at 20h UT on 2.8 GHz was 98.2 - increasing 0.2 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 102.82). The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 10.1). Three hour interval K indices: 44211012 (planetary), 55332222 (Boulder), 56312133 (Andenes).

The background x-ray flux is at the class B2 level (GOES 16).

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 164) and in 8 active regions using 1K resolution (SN: 108) SDO/HMI images.

Region 13040 [S13W10] was mostly quiet and stable. C1 flares: C1.4 @ 18:43 UT.
New region 13041 [N15W69] emerged with several spots and was quiet.

Spotted regions not observed (or interpreted differently) by SWPC:
S7651 [N27W32] was quiet and stable.
S7653 [S23W28] was quiet and stable.
New region S7655 [N08W07] emerged with several spots.
New region S7656 [N15E28] emerged with tiny spots.
New region S7657 [S24W17] emerged with small spots.
New region S7658 [S19E27] emerged with several spots.
New region S7659 [S13E36] emerged with several spots, most of them tiny.
New region S7660 [N16W20] was observed with tiny spots in an old plage area.

C2+ flares:

Magnitude Peak time (UT) Location Source Recorded by Comment


Coronal mass ejections (CMEs)

June 25-27: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A trans equatorial coronal hole (CH1085) was Earth facing on June 22.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

Quiet conditions are likely on June 28-30. There is a slight chance effects from a CME observed on June 26 could reach Earth on June 29 and cause some unsettled and active intervals.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

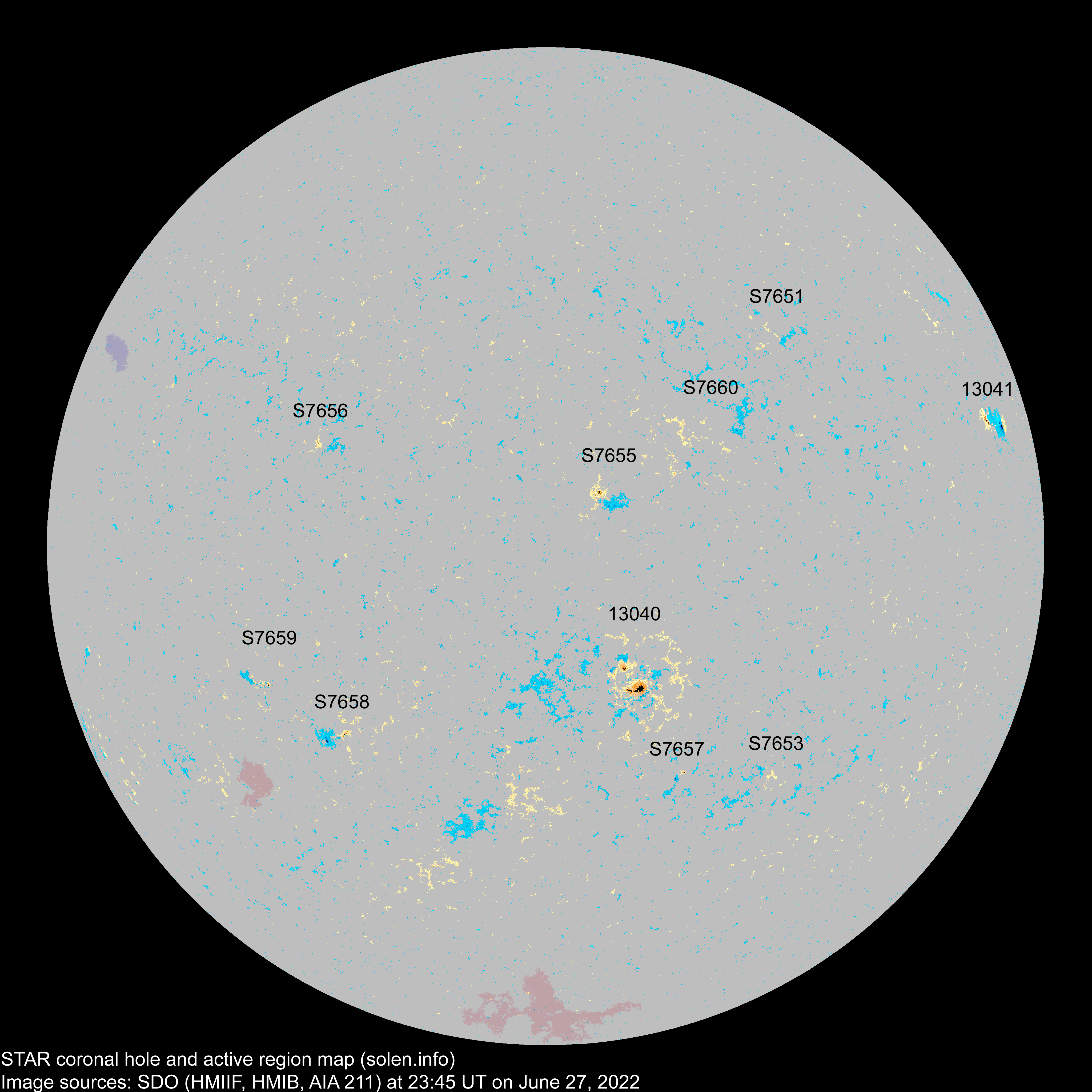

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.

Active region SWPC date numbered
STAR detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC/
USAF
Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
S7651 2022.06.20   1   N27W32 0001   AXX
S7653 2022.06.20   1 1 S23W28 0003   AXX
13040 2022.06.20
2022.06.21
9 17 7 S13W11 0160 CAO CAO
13041 2022.06.27 3 6 5 N15W69 0020 BXO DAO   area: 0070
S7655 2022.06.27   10 5 N08W07 0025   CRO
S7656 2022.06.27   4 1 N15E28 0005   BXO
S7657 2022.06.27   3 2 S24W17 0009   BXO
S7658 2022.06.27   10 4 S19E27 0025   DRO
S7659 2022.06.27   6 3 S13E36 0025   CRO
S7660 2022.06.27   6   N16W20 0006   BXO



Total spot count: 12 64 28
Sunspot number: 32 164 108  (total spot count + 10 * number of spotted regions)
Weighted SN: 17 83 47  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 35 90 86

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (SC24 peak) 110.5 10.70
2014.04 143.9 144.8 112.5 116.4 (solar max) 7.88
2017.09 91.3 92.3 43.6 18.2 (-1.3) 18.22
(cycle peak)
2019.11 70.2 68.7 0.5 2.0 (-0.6)
(Solar minimum using 365d smoothing:
November 17, 2019)
4.19
2019.12 70.8 68.6 1.6 1.8 (-0.2)
(ISN 13 months smoothed
solar minimum)
3.22
2020.12 86.9 84.2 23.1 15.3 (+1.7) 4.72
2021.01 76.0 73.6 10.4 17.3 (+2.0) 4.39
2021.02 74.3 72.4 8.2 19.0 (+1.7) 9.50
2021.03 76.0 75.2 17.2 21.7 (+2.7) 10.17
2021.04 75.9 76.4 24.5 24.8 (+3.1) 8.40
2021.05 75.3 77.1 21.2 25.8 (+1.0) 6.50
2021.06 79.4 81.8 25.0 27.6 (+1.8) 5.52
2021.07 81.0 83.6 34.3 31.3 (+3.7) 5.51
2021.08 77.7 79.7 22.0 35.3 (+4.0) 6.19
2021.09 87.0 88.2 51.3 40.0 (+4.7) 6.33
2021.10 88.9 88.3 37.4 45.0 (+5.0) 7.38
2021.11 86.2 84.4 34.8 50.6 (+5.6) 9.83
2021.12 103.0 99.8 67.5 (55.7 projected, +5.1) 6.40
2022.01 103.8 100.5 54.0 (60.4 projected, +4.7) 8.92
2022.02 109.1 106.5 59.7 (66.9 projected, +6.5) 10.46
2022.03 117.0 115.8 78.5 (72.4 projected, +5.5) 10.20
2022.04 130.8 131.7 84.1 (77.6 projected, +5.2) 11.79
2022.05 133.8 136.8 96.5 (84.1 projected, +6.5) 7.48
2022.06 118.4 (1)   66.2 (2A) / 73.6 (2B) / 95.3 (2C) (89.9 projected, +5.8) (9.2)
2022.07       (97.2 projected, +7.3)
2022.08       (103.8 projected, +6.6)
2022.09       (108.8 projected, +5.0)
2022.10       (112.0 projected, +3.2)
2022.11       (114.8 projected, +2.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.

Solar cycles 24-25

Smoothed SF and sunspot numbers



This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
