The geomagnetic field was quiet to unsettled on October 18. A low speed stream associated with CH1037 began to influence the field after 06h UT. The high latitude magnetometer at Andenes recorded quiet to minor storm conditions.
Solar flux density measured at 20h UT on 2.8 GHz was 75.9 - decreasing 9.0 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 80.06). The Potsdam WDC planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 9.4). Three hour interval K indices: 32212123 (planetary), ******** (Boulder), 54212355 (Andenes).
The background x-ray flux is at the class A3 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 5 active regions using 2K resolution (SN: 56) and in 3 active regions using 1K resolution (SN: 33) SDO/HMI images.
New region 12886 [S19E64] rotated into view on October 17 and was numbered the next day by SWPC.
Spotted regions not observed (or interpreted
differently) by SWPC:
S7128 [N20W11] was quiet and stable.
S7133 [N11W42] developed early in the day and at one point had a spot with rudimentary penumbra. The region decayed after noon.
New region S7134 [N13W03] emerged with a tiny spot.
New region S7135 [N16E28] was observed with a tiny spot in an old plage area.
|Magnitude||Peak time (UT)||Location||AR||Recorded by||Comment|
October 16-18: No obviously Earth directed CMEs were observed in available LASCO imagery.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

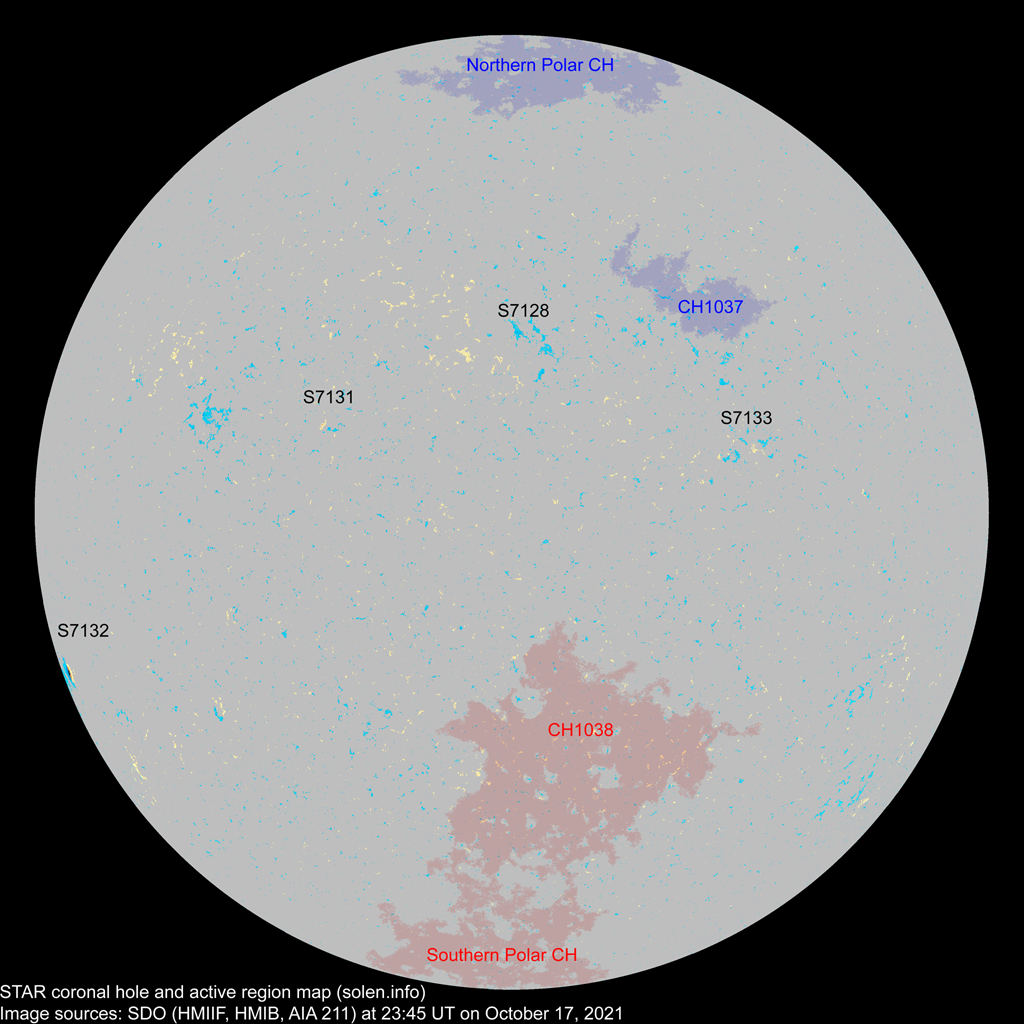

A recurrent northern hemisphere coronal hole (CH1037) rotated across the central meridian on October 15-16. A recurrent extension (CH1038) of southern polar coronal hole was Earth facing on October 16-17.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to active on October 19-20 due to effects from CH1037 and CH1038 and quiet to unsettled on October 21.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image

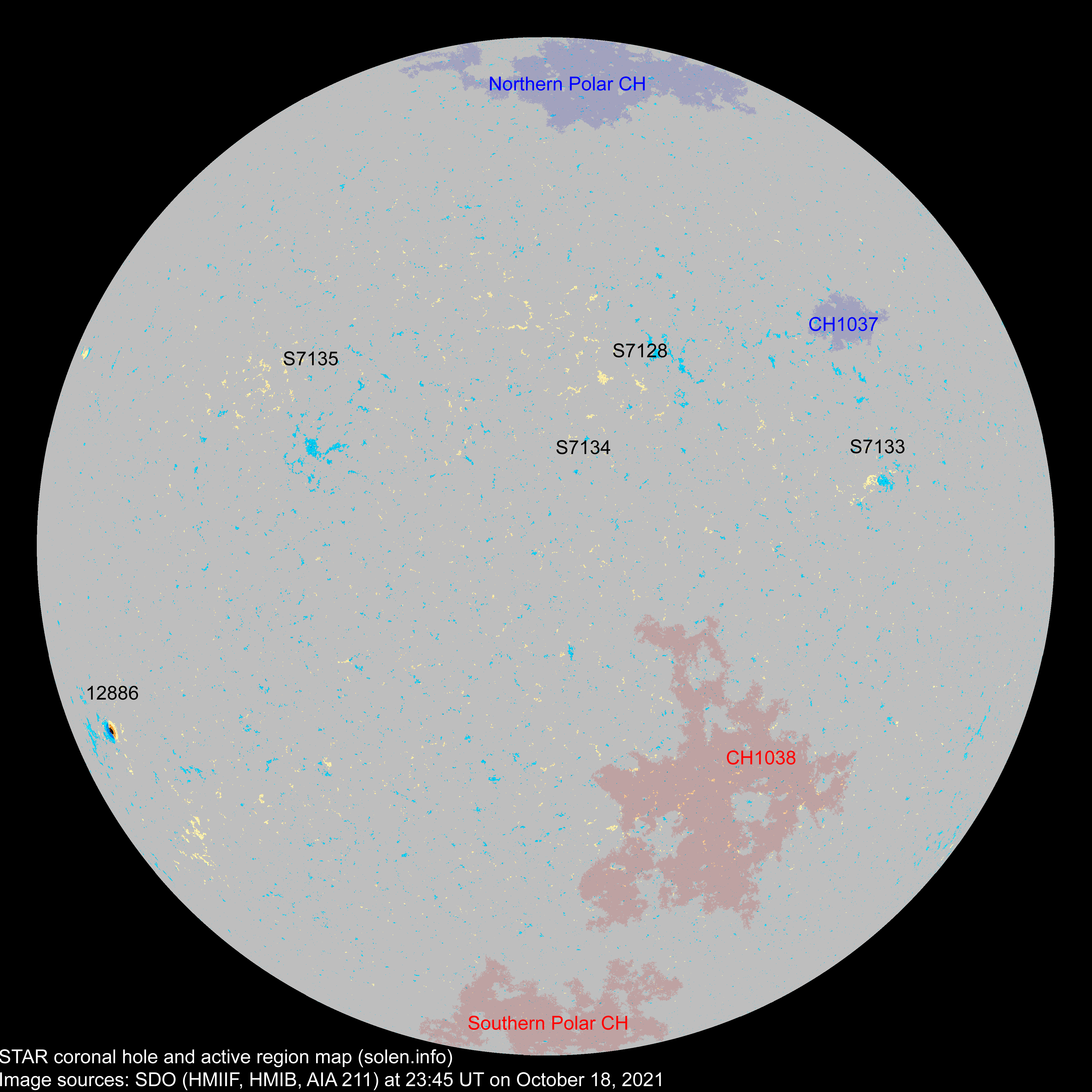

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are red colored.
|Active region||SWPC date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||1||6||3|
|Sunspot number:||11||56||33||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||6||11||8||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||12||31||26|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (cycle peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (solar max)||7.88|
(Solar minimum using 365d smoothing:
November 17, 2019)
(ISN 13 months smoothed
|2021.04||75.9||76.4||24.5||(26.0 projected, +4.2)||8.40|
|2021.05||75.3||77.1||21.2||(28.7 projected, +2.7)||6.50|
|2021.06||79.4||81.8||25.3||(31.9 projected, +3.2)||5.52|
|2021.07||81.0||83.6||34.4||(36.5 projected, +4.6)||5.51|
|2021.08||77.7||79.7||22.4||(41.1 projected, +4.6)||6.19|
|2021.09||87.0||88.2||51.5||(46.8 projected, +5.7)||6.33|
|2021.10||83.7 (1)||12.6 (2A) / 21.8 (2B) / 43.7 (2C)||(51.2 projected, +4.4)||(8.8)|
|2021.11||(55.8 projected, +4.6)|
|2021.12||(61.7 projected, +5.9)|
|2022.01||(65.3 projected, +3.6)|
|2022.02||(70.0 projected, +4.7)|
|2022.03||(75.4 projected, +5.4)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
