The geomagnetic field was quiet on October 30. Solar wind speed ranged between 347 and 421 km/s. A sudden increase in the total interplanetary magnetic field at ACE near 09:15 UTC was followed by a weak sudden impulse at Earth near 10h. This was likely the arrival of the CME observed on October 26.
Solar flux measured at 20h UTC on 2.8 GHz was 84.8 (up 4.8 over the last solar rotation). The planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.1). Three hour interval K indices: 00011200 (planetary), 00011301 (Boulder).
The background x-ray flux is at the class B1 level.
At midnight UTC the visible solar disk had 2 spotted regions.
Region 11117 decayed further and will rotate to the northwest limb
New region 11120 rotated partly into view on October 29 and was numbered the next day by NOSAA/SWPC.
October 28-30: No obviously Earth directed CMEs were seen in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
No obvious coronal holes are currently in or near Earth facing positions. An extension of the southern polar coronal hole rotated across the central meridian on October 27-28 but was probably too far to the south to cause a disturbance. Another coronal hole in the northern hemisphere may have been in an Earth facing position on October 30 but was probably too far to the north to become geoeffective.
Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to unsettled on October 31 due to weak effects from the CME which reached Earth on October 30. Another weak disturbance is possible today and on November 1 from the coronal hole extension that rotated across the central meridian on October 28. Quiet conditions are likely on November 2.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image

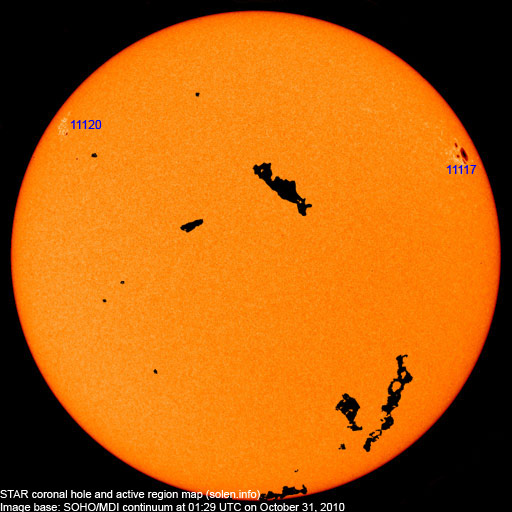

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered||Spot count||Location at midnight||Area||Classification||SDO (NASA) / AIA 4500
|11120||2010.10.30||3||6||N39E69||0010||BXO||CAO||formerly region S831|
|Total spot count:||12||15|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
cycle 23 sunspot max.
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.07||68.2||3.2||3.6 (+0.9)||5.49 / 4.55|
|2009.08||67.3||0.0||4.8 (+1.2)||5.70 / 4.89|
|2009.09||70.5||4.3||6.2 (+1.4)||3.88 / 3.61|
|2009.10||72.6||4.8||7.1 (+0.9)||3.66 / 3.56|
|2009.11||73.6||4.1||7.6 (+0.5)||2.45 / 2.63|
|2009.12||76.7||10.8||8.3 (+0.7)||1.41 / 1.92|
|2010.01||81.1||13.2||9.3 (+1.0)||2.93 / 3.07|
|2010.02||84.7||18.8||10.6 (+1.3)||4.15 / 4.61|
|2010.03||83.4||15.4||12.3 (+1.7)||4.58 / 4.65|
|2010.04||75.9||8.0||(13.9 predicted, +1.6)||10.22 / 10.24|
|2010.05||73.8||8.7||(15.2 predicted, +1.3)||9.18 / 8.15|
|2010.06||72.5||13.6||(16.7 predicted, +1.5)||8.17 / 6.85|
|2010.07||79.8||16.1||(18.3 predicted, +1.6)||6.31 / 5.15|
|2010.08||79.2||19.6||(19.5 predicted, +1.2)||8.49 / 7.77|
|2010.09||81.1||25.2||(20.7 predicted, +1.2)||5.33|
|2010.10||81.6 (1)||33.6 (2A) / 34.8 (2B)||(23.1 predicted, +2.4)||(6.17)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
