The geomagnetic field was quiet on March 22. Solar wind speed at SOHO ranged between 361 and 460 km/s. The forecast high speed stream from CH723 has failed to arrive, probably because the coronal hole is too far to the north.
Solar flux at 20h UTC on 2.8 GHz was 87.3 (decreasing 0.6 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 99.4. The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.8). Three hour interval K indices: 22121002 (planetary), 22231212 (Boulder).

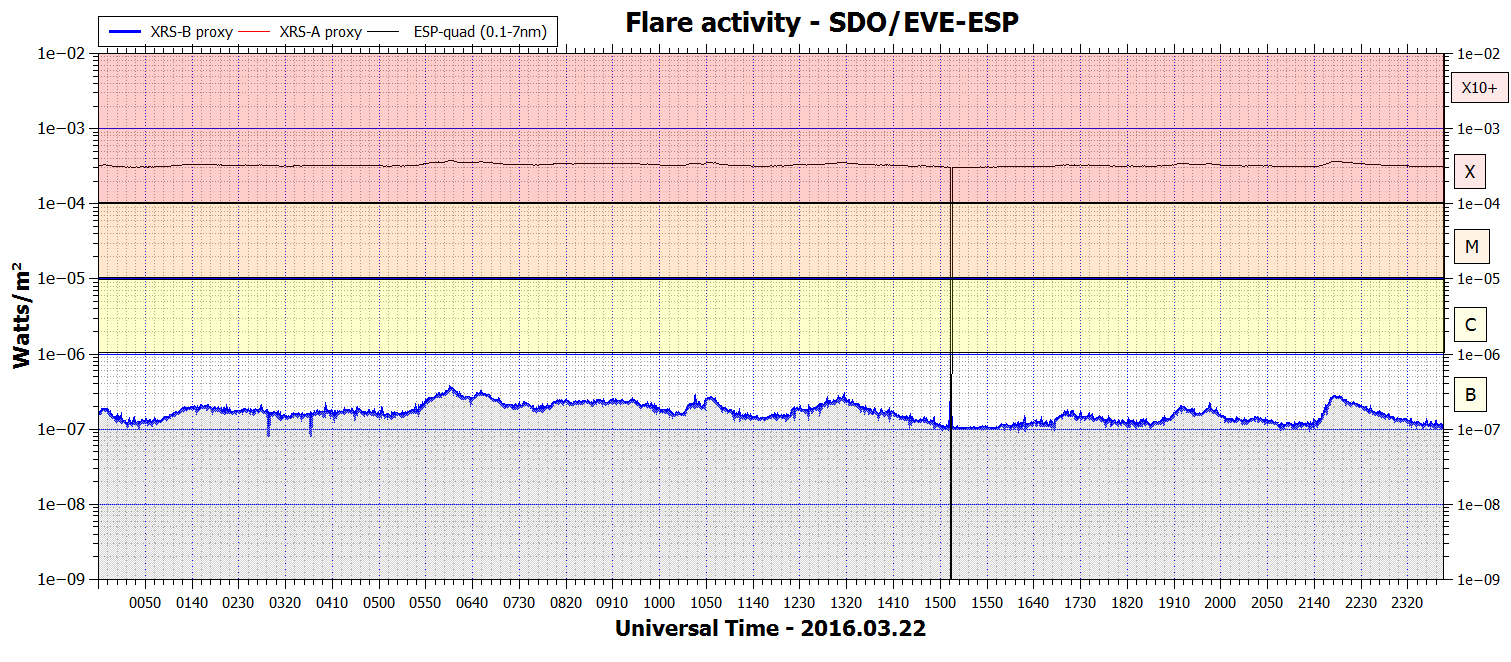

The background x-ray flux is at the class B1 level.
At the time of counting spots (see image time), spots were observed in 4 active regions using 2K resolution (SN: 64) and 2 active regions using 1K resolution (SN: 28) SDO images on the visible solar disk.
Region 12524 [N14W05] decayed slowly with some fragmentation of the largest trailing spot. The region was the source of a long duration C1 event peaking near 03:50 UT on March 23. There may have been a small CME associated with this event.
Spotted regions not numbered (or interpreted differently) by SWPC:
New region S5199 [S05E43] was observed with tiny spots.
New region S5200 [S06W03] emerged with tiny spots.
New region S5201 [S16W30] emerged with tiny spots.
|Magnitude||Peak time (UT)||Location||AR||Recorded by||Comment|
March 20-22: No obviously Earth directed CMEs were observed in available LASCO imagery.
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent trans equatorial extension (CH724) of a northern hemisphere coronal hole will likely rotate into an Earth facing position on March 24-25.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet on March 23-26. Effects from CH724 could cause unsettled to active conditions on March 27-29.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

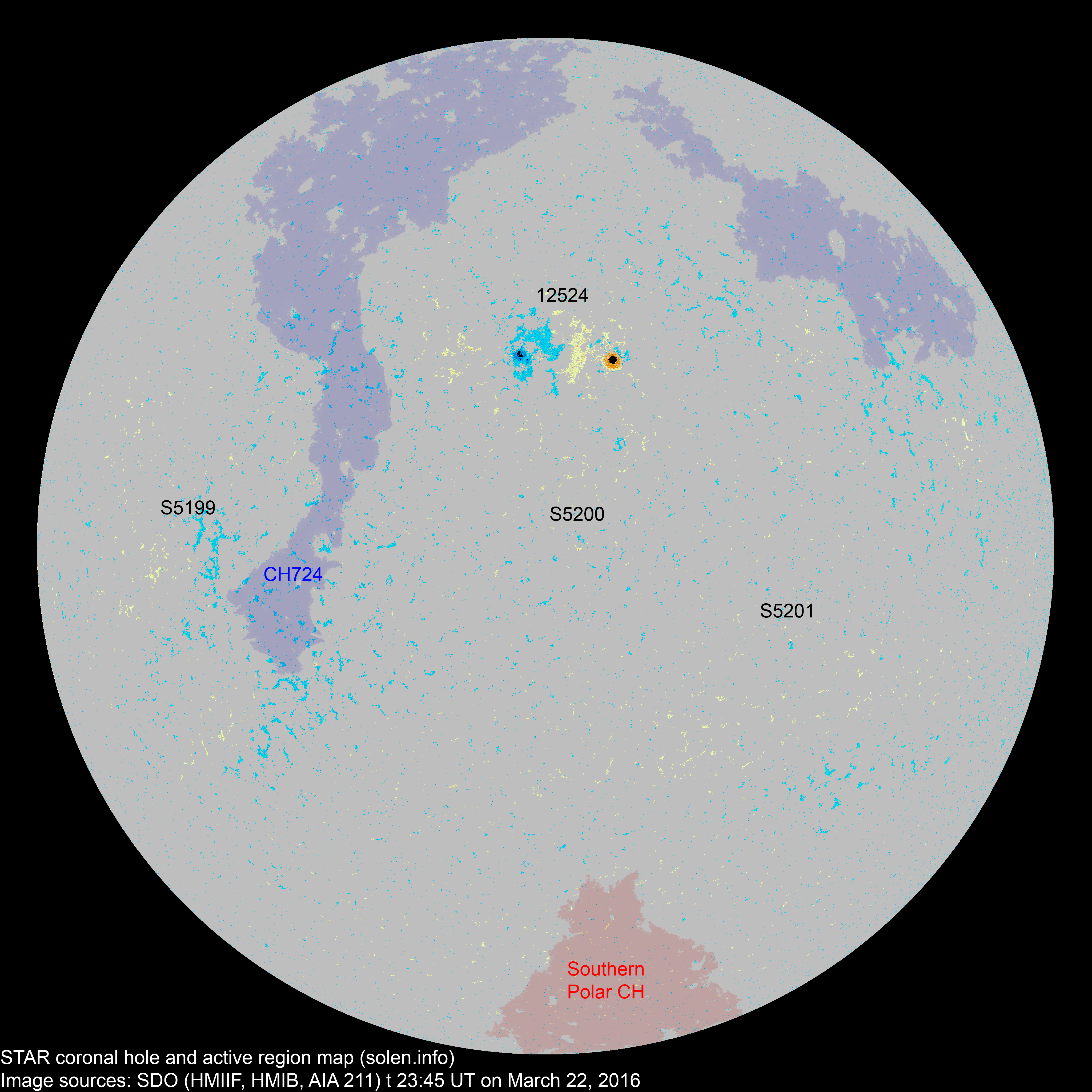

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||3||24||8|
|Sunspot number:||13||64||28||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||8||29||13||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||14||29||22||k * (sunspot number)
As of February 19, 2015: k = 1.1 for SWPC, k = 0.45 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average
|166.3||146.1 (cycle peak)||110.5 (+1.2)||10.70|
|2014.04||143.9||144.8||112.5||116.4 (+2.1) (solar max)||7.88|
|2015.09||101.7||102.7||78.1||(66.0 projected, -0.3)||15.78|
|2015.10||104.1||103.3||61.7||(65.3 projected, -0.7)||14.02|
|2015.11||109.3||106.9||63.2||(63.2 projected, -2.1)||12.09|
|2015.12||113.1||109.5||57.7||(61.5 projected, -1.7)||14.29|
|2016.01||103.4||100.1||56.6||(59.8 projected, -1.7)||9.4|
|2016.02||103.6||101.0||57.2||(57.4 projected, -2.4)||9.9|
|2016.03||(93.8)||35.2 (2A) / 49.5 (2B) / 58.6 (2C)||(54.5 projected, -3.1)||(10.5)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
