Last major update issued on June 19, 2016 at 05:55 UT.

Charts (* = updated daily Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data from 2003.01 (June 2, 2016)
Solar cycle Solar cycles 23-24 (June 1, 2016) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24 progress (June 1, 2016) Noon SDO sunspot count 1K / 4K (*)
  Solar cycles 1-24 (July 17, 2015) POES auroral activity level October 2009 - December 2012
  Comparison of cycles 21, 22, 23 and 24 (June 1, 2016) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12, 13, 14, 16 and 24 (June 1, 2016) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (May 20, 2016)

Recent activity

The geomagnetic field was quiet on June 18, weakly under the influence of a high speed stream from the eastern part of CH739. Solar wind speed at SOHO ranged between 505 and 582 km/s.

Solar flux at 20h UTC on 2.8 GHz was 83.6 (decreasing 13.8 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 92.1. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.9). Three hour interval K indices: 22222112 (planetary), 13323221 (Boulder).

The background x-ray flux is at the class B1 level.

At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 78) and 5 active regions using 1K resolution (SN: 63) SDO images on the visible solar disk.

Region 12553 [S07W34] was quiet and stable.
Region 12556 [N05E58] was quiet and stable.
New region 12557 [N09E08] emerged on June 17 and was numbered the next day by SWPC.

Spotted regions not numbered (or interpreted differently) by SWPC:
New region S5338 [N11W23] emerged with several spots.
New region S5339 [S18W09] emerged with a tiny spot.
New region S5340 [N04E27] was observed with a tiny spot.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

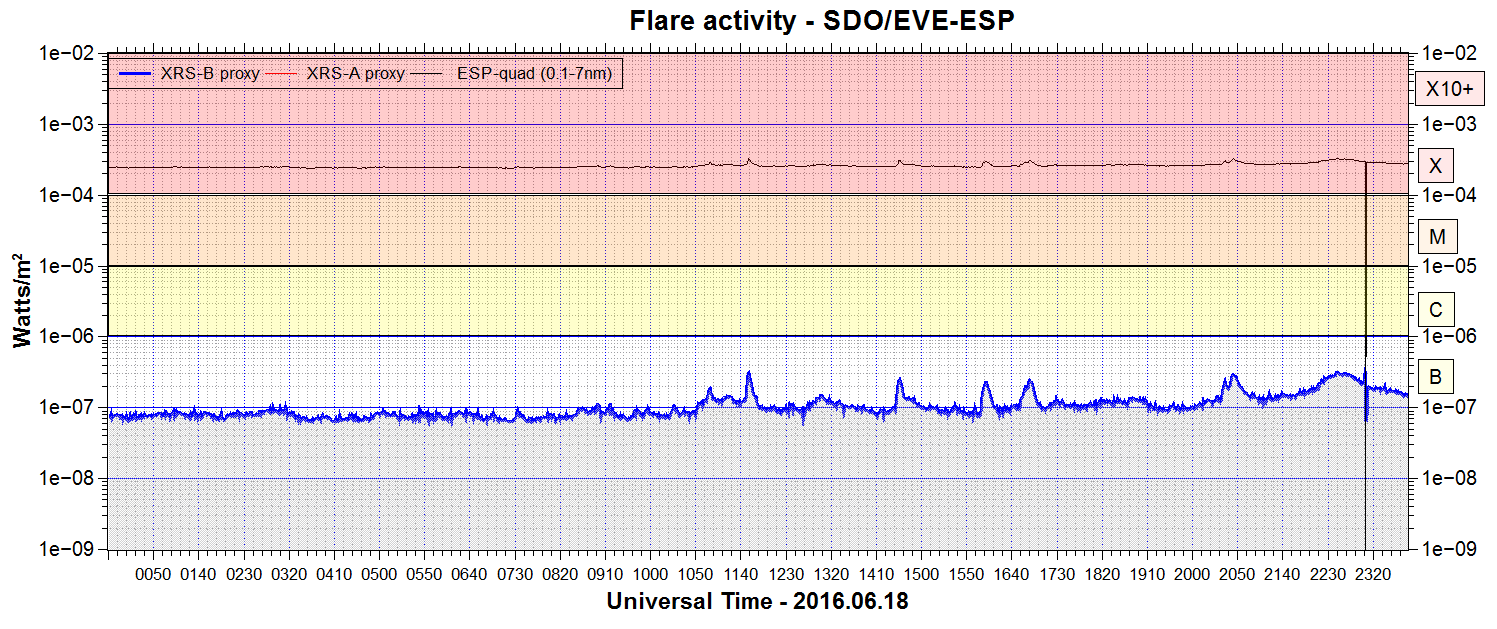

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

June 16-18: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A southern hemisphere coronal hole (CH741) will be Earth facing on June 18-20. A recurrent trans equatorial coronal hole (CH742) will rotate across the central meridian on June 19-20. A northern hemisphere coronal hole (CH743) will likely be Earth facing on June 21-22.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet on June 19-20. Quiet to active conditions are possible on June 21-25 due to effects from CH741/CH742/CH743.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

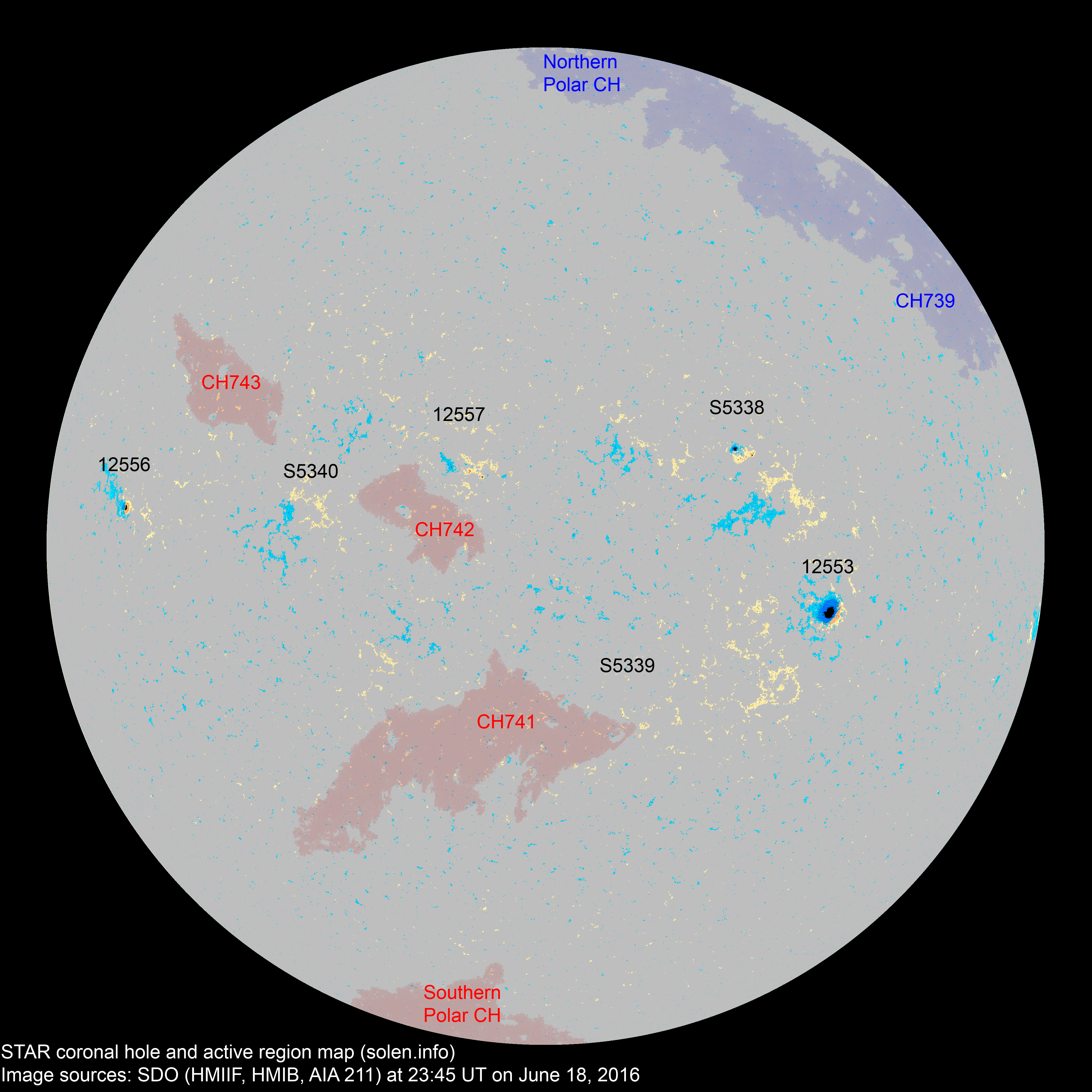

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12553 2016.06.09
2016.06.10
1 2 1 S07W36 0250 HHX HHX area: 0310

location: S07W34

S5328 2016.06.12       S18W30
S5329 2016.06.12       S32W42
S5331 2016.06.14       N04W12
12555 2016.06.14
2016.06.16
3     S09W83 0020 BXO     spotless
12556 2016.06.16
2016.06.17
1 1 1 N05E57 0030 HSX HSX area: 0045
12557 2016.06.17
2016.06.18
1 6 4 N10E07 0010 AXX CRO area: 0020
S5338 2016.06.18   7 6 N11W23 0035   CRI
S5339 2016.06.18   1 1 S18W09 0003   AXX
S5340 2016.06.18   1   N04E27 0002   AXX
Total spot count: 6 18 13
Sunspot number: 46 78 63  (total spot count + 10 * number of spotted regions)
Weighted SN: 21 39 31  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 51 43 50 k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.9 (-3.3) 10.73
2015.05 120.0 122.6 88.8 76.1 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.1 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.3 (-3.8) 8.83
2015.08 105.4 108.0 64.6 66.4 (-1.9) 14.58
2015.09 101.7 102.7 78.1 66.0 (-0.4) 15.78
2015.10 104.1 103.3 61.7 64.4 (-1.6) 14.02
2015.11 109.3 106.9 63.2 61.4 (-3.0) 12.09
2015.12 113.1 109.5 57.7 (59.1 projected, -2.3) 14.29
2016.01 103.4 100.1 56.6 (57.5 projected, -1.6) 9.4
2016.02 103.6 101.0 57.2 (55.1 projected, -2.4) 9.9
2016.03 91.5 90.6 54.9 (52.2 projected, -2.9) 10.58
2016.04 93.3 94.0 38.0 (49.4 projected, -2.8) 9.03
2016.05 93.0 95.3 52.1 (47.6 projected, -1.8) 11.65
2016.06 (84.9)   12.9 (2A) / 21.4 (2B) / 35.0 (2C) (45.8 projected, -1.8) (8.5)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
