Solar Terrestrial Activity Report

Activity chart

Last major update issued on July 23, 2016 at 06:10 UT.

Charts (* = updated daily Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data from 2003.01 (July 2, 2016)
Solar cycle Solar cycles 23-24 (July 1, 2016) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24 progress (July 1, 2016) Noon SDO sunspot count 1K / 4K (*)
  Solar cycles 1-24 (July 17, 2015) POES auroral activity level October 2009 - December 2012
  Comparison of cycles 21, 22, 23 and 24 (July 1, 2016) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12, 13, 14, 16 and 24 (July 1, 2016) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (July 9, 2016)

Recent activity4

The geomagnetic field was quiet to unsettled on July 22. Solar wind speed at SOHO ranged between 350 and 488 km/s. A low to moderate speed stream associated with CH750 became the dominant solar wind source after noon.

Solar flux at 20h UTC on 2.8 GHz was 90.4 (increasing 13.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 90.9. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.6). Three hour interval K indices: 11222322 (planetary), 12223322 (Boulder).

The background x-ray flux is at the class B3 level.

At the time of counting spots (see image time), spots were observed in 3 active regions using 2K resolution (SN: 58) and 3 active regions using 1K resolution (SN: 48) SDO images on the visible solar disk.

Region 12565 [N04W73] display minor fragmentation within the large penumbra.
Region 12567 [N05W65] gained some spots due to fragmentation of the largest penumbrae, however, some area was lost. The region became very active early on July 23 and has so far produced 3 major M class events, the largest an M7.6 at 05:16 UT and the latest an M5.5 event at 05:31 UT (the events occurred at different locations in the region and were separated by a few degrees).
Region 12569 [N16W22] decayed slowly and quietly.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment
C6.6 06:51 N01W59 12567 GOES15
C2.4 20:20   12567 GOES15

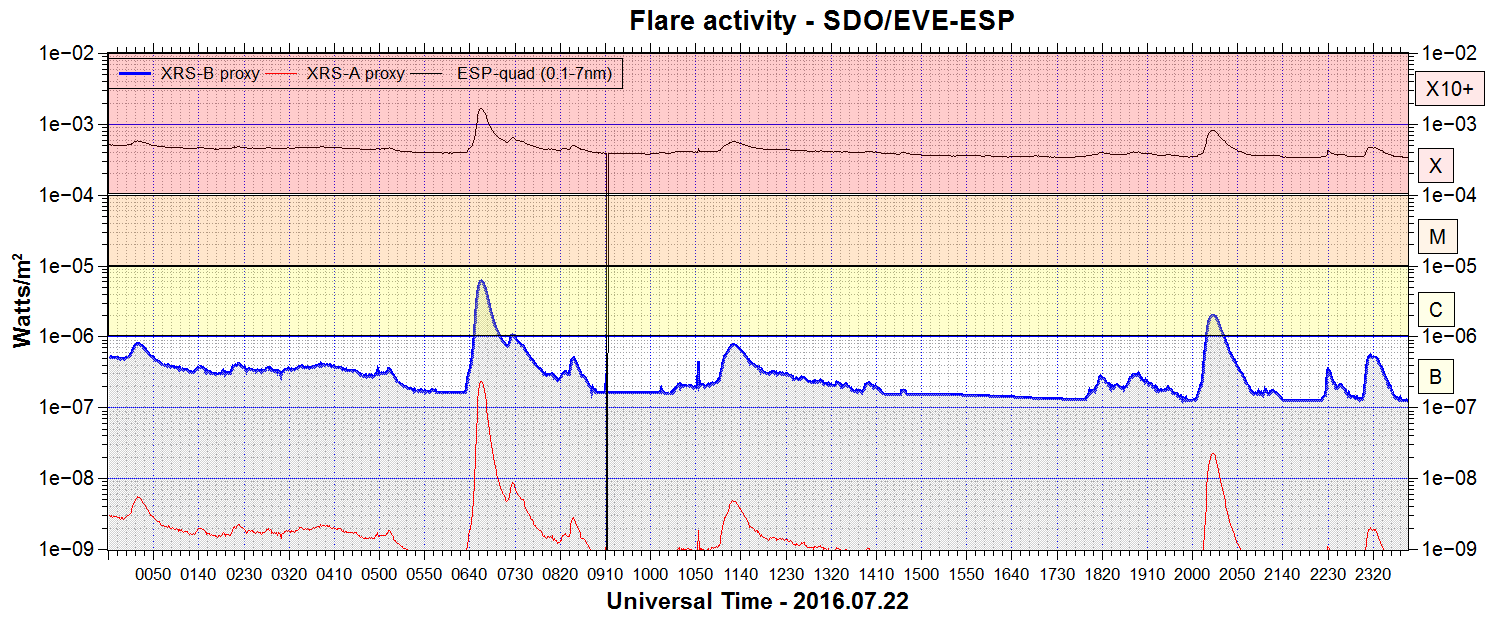

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

July 20-22: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

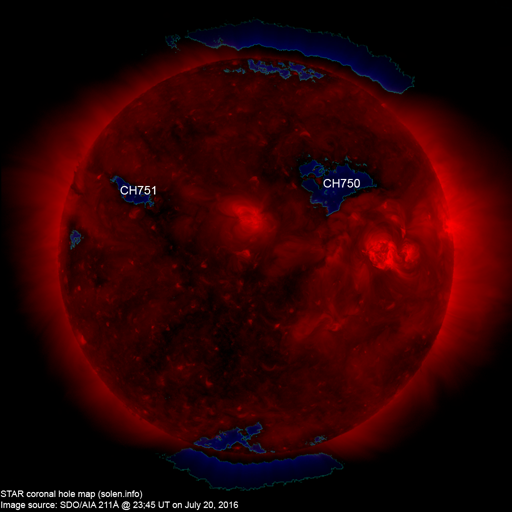

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent northern hemisphere coronal hole (CH750) was in an Earth facing position on July 18-19. Another recurrent northern hemisphere coronal hole (CH751) will be in an Earth facing position on July 23.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on July 23 due to weak coronal hole effects with quiet conditions expected on July 24-25. Quiet to unsettled is possible on July 26 due to effects from CH751.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

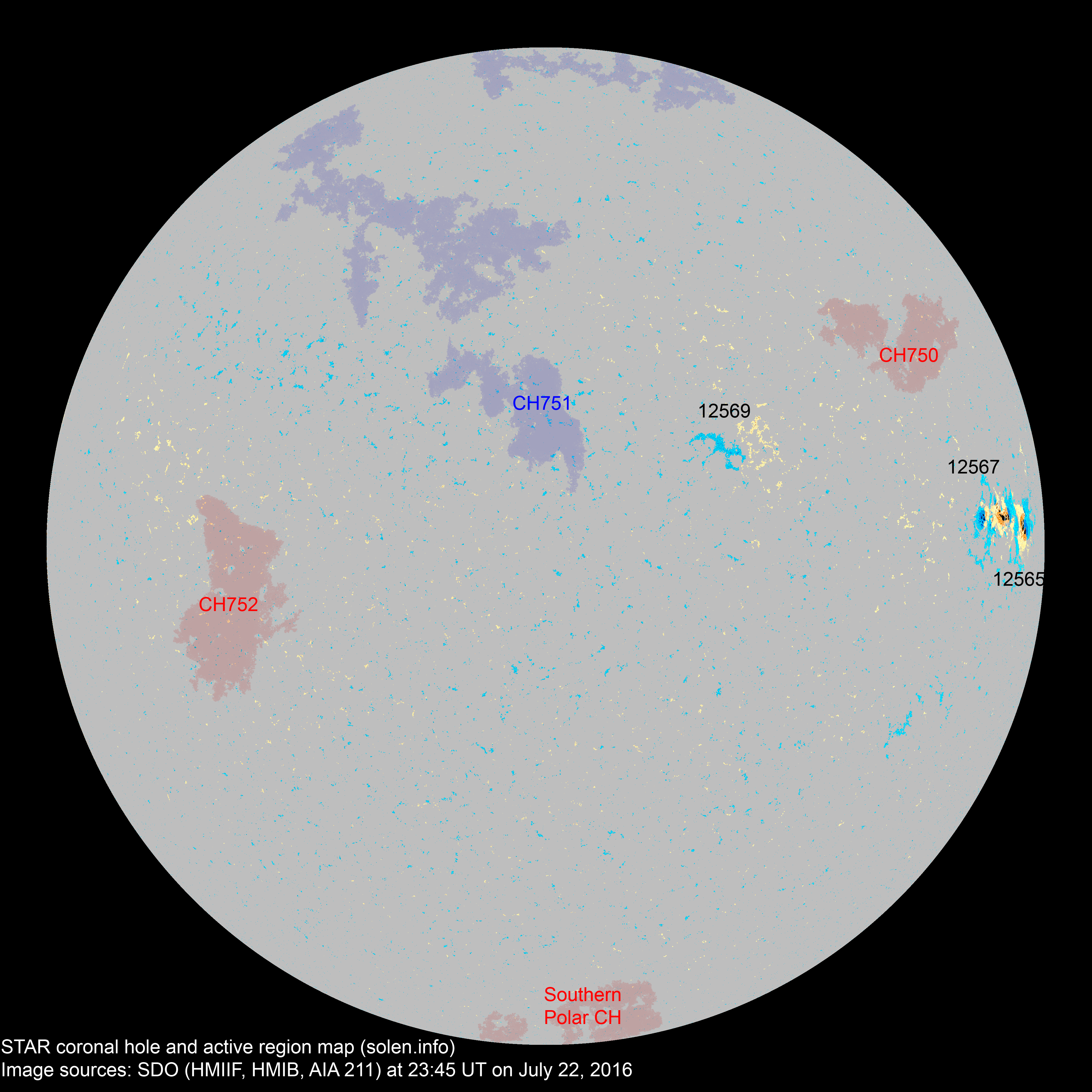

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12565 2016.07.10
2016.07.11
4 6 3 N04W75 0250 HKX CKO
12566 2016.07.11
2016.07.15
      N11W79
12567 2016.07.14
2016.07.15
12 20 13 N06W66 0330 DKO DAI
12568 2016.07.14
2016.07.15
      S13W60
S5372 2016.07.14       S14W40
12569 2016.07.17
2016.07.18
  2 2 N16W29 0006   AXX
S5376 2016.07.20       N06W58
Total spot count: 16 28 18
Sunspot number: 36 58 48  (total spot count + 10 * number of spotted regions)
Weighted SN: 36 43 33  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 40 32 38 k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.04 128.8 129.7 75.3 78.9 (-3.3) 10.73
2015.05 120.0 122.6 88.8 76.1 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.1 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.3 (-3.8) 8.83
2015.08 105.4 108.0 64.6 66.4 (-1.9) 14.58
2015.09 101.7 102.7 78.1 66.0 (-0.4) 15.78
2015.10 104.1 103.3 61.7 64.4 (-1.6) 14.02
2015.11 109.3 106.9 63.2 61.4 (-3.0) 12.09
2015.12 113.1 109.5 57.7 57.9 (-3.5) 14.29
2016.01 103.4 100.1 56.6 (54.5 projected, -3.4) 9.4
2016.02 103.6 101.0 57.2 (51.5 projected, -3.0) 9.9
2016.03 91.5 90.6 54.9 (47.9 projected, -3.4) 10.58
2016.04 93.3 94.0 38.0 (44.5 projected, -3.4) 9.03
2016.05 93.0 95.3 52.1 (41.8 projected, -2.7) 11.65
2016.06 81.9 84.5 20.9 (39.3 projected, -2.5) 8.44
2016.07 (90.8)   28.8 (2A) / 40.6 (2B) / 35.9 (2C) (36.6 projected, -2.7) (8.7)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
