Last major update issued on January 27, 2016 at 04:05 UT.

Charts (* = updated daily) Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data from 2003.01 (January 1, 2016)
Solar cycle Solar cycles 23-24 (January 1, 2016) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24 progress (January 1, 2016) Noon SDO sunspot count 1K Reference: 4K (large file) (*)
  Solar cycles 1-24 (July 17, 2015) POES auroral activity level October 2009 - December 2012
  Comparison of cycles 21, 22, 23 and 24 (January 1, 2016) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12, 13, 14, 16 and 24 (January 1, 2016) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (December 27, 2015)

Recent activity

The geomagnetic field was quiet on January 26. Solar wind speed at SOHO ranged between 294 and 385 km/s.

Solar flux at 20h UTC on 2.8 GHz was 114.8 (increasing 13.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 105.8. The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.6). Three hour interval K indices: 10111121 (planetary), 00111221 (Boulder).

The background x-ray flux is at the class B3 level.

At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 144) and 4 active regions using 1K resolution (SN: 91) SDO images on the visible solar disk.

Region 12487 [S12W46] decayed slowly and quietly.
Region 12488 [N02W28] was mostly quiet and stable.
Region 12489 [N09E39] developed further. The region has polarity intermixing and C flares are possible.
Region 12490 [S19E52] was quiet and stable.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5039 [N03W35] was quiet and stable.
New region S5056 [N25E50] emerged with a tiny spot.

A filament eruption in the southwest quadrant was associated with a long duration C1 event peaking at 17:15 UT. A fairly narrow CME was observed off the southwest limb and appears not to have any Earth directed components.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

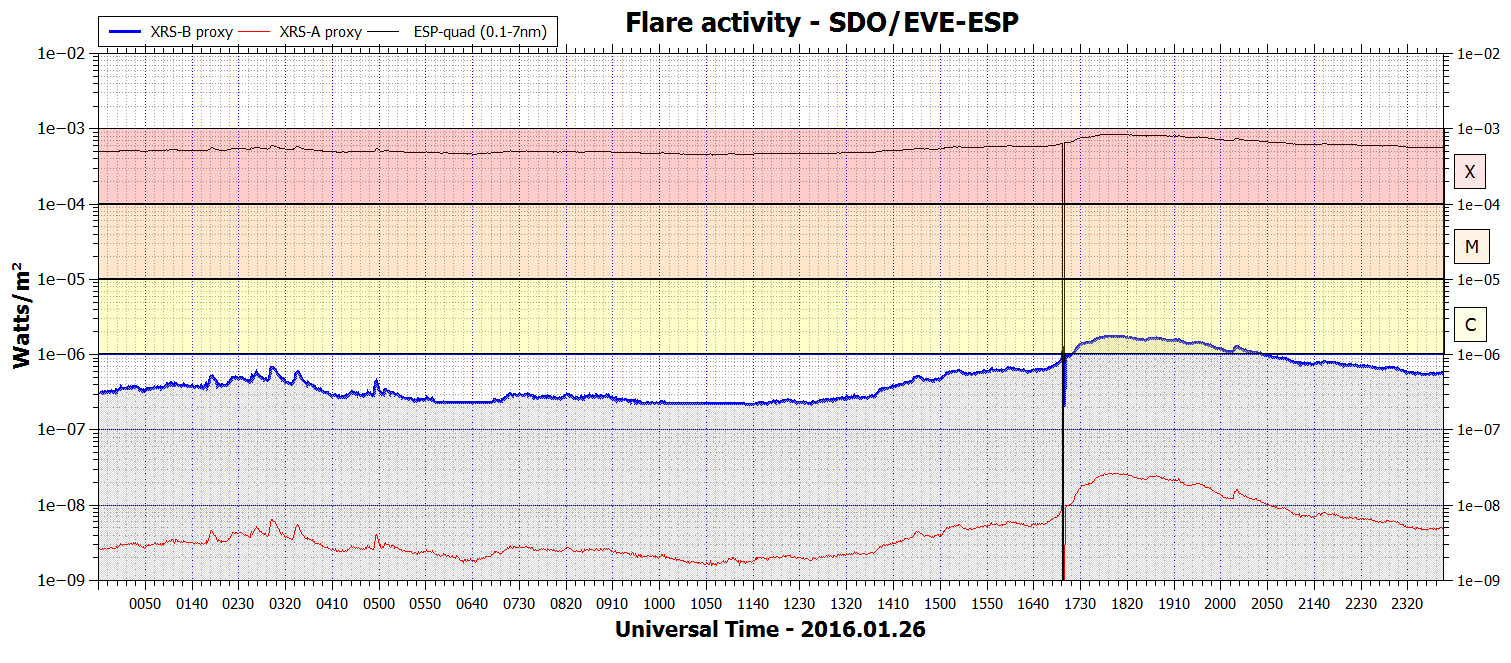

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

January 24-26: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent northern hemisphere coronal hole (CH711) was in an Earth facing position on January 25-26. CH711 may be too far to the north to become geoeffective. A southern hemisphere coronal hole (CH712) could rotate across the central meridian on January 31.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on January 27. On January 28-29 there is a chance of unsettled to active conditions due to effects from CH711.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

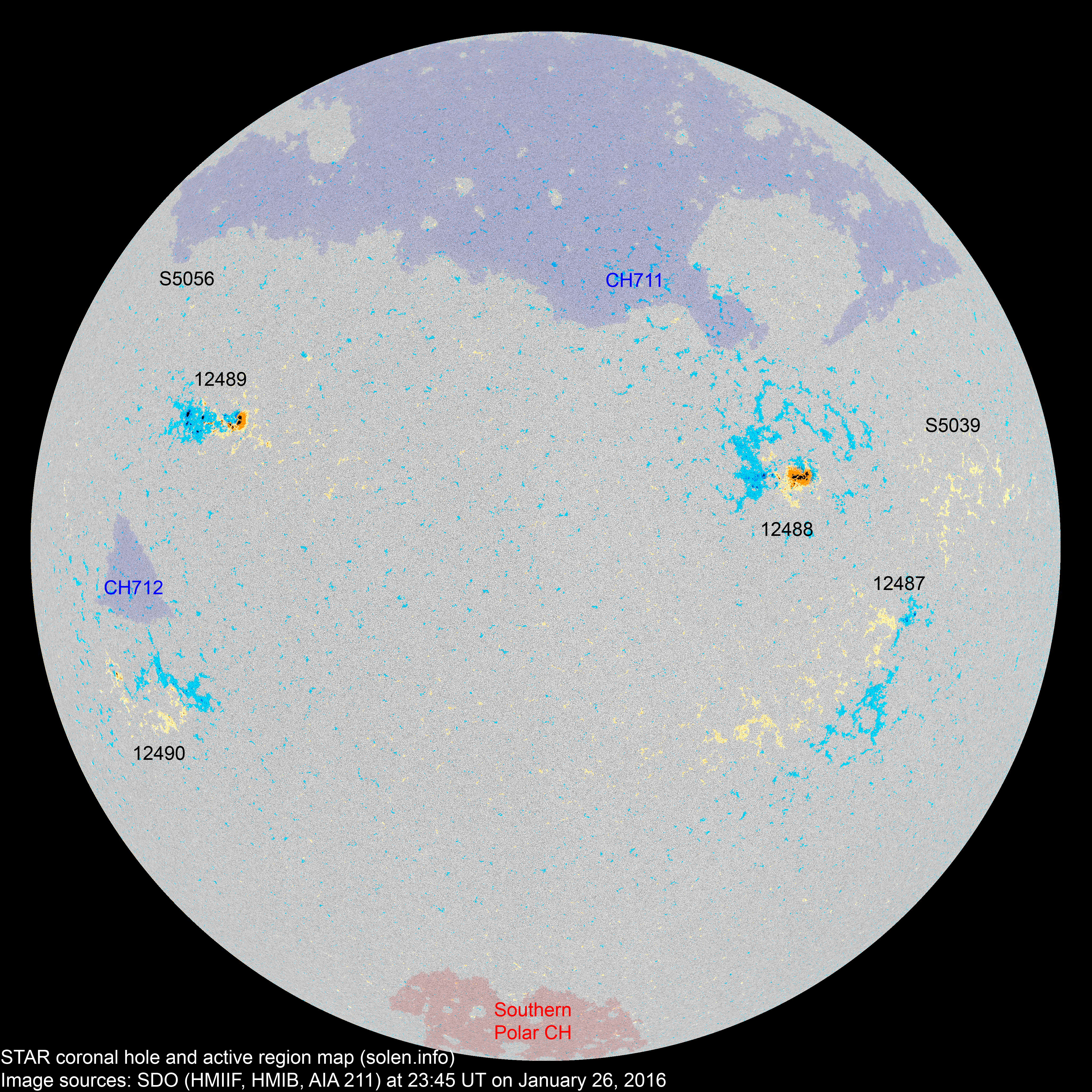

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
As of December 12, 2015, the active region maps are based on image products from semi-automated sunspot counting at 4K resolution.

0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12486 2016.01.16
2016.01.17
      S19W51         images/AR_12486_20160125_2345.png
12487 2016.01.18
2016.01.19
1 7 3 S12W48 0010 AXX CRO

area: 0020

S5039 2016.01.18   3   N04W45 0005   BXO images/AR_S5039_20160126_2345.png images/AR_S5039_20160125_2345.png
12488 2016.01.18
2016.01.20
10 33 19 N02W28 0230 DAO DKI area: 0300
S5045 2016.01.20       S04W46
S5047 2016.01.21       N19W48
S5048 2016.01.23       S28W14
S5049 2016.01.23       S18W57
12490 2016.01.24
2016.01.25
2 16 9 S18E57 0020 CRO CRI

area: 0040

location: S19E52

12489 2016.01.24
2016.01.25
8 26 20 N10E39 0100 DAO DAI beta-gamma

area: 0260

S5052 2016.01.24       N06E02
S5053 2016.01.24       N26W13
S5055 2016.01.24       N17W56
S5056 2016.01.26   1   N25E50 0001   AXX
Total spot count: 21 86 51
Sunspot number: 61 146 91  (total spot count + 10 * number of spotted regions)
Weighted SN: 34 107 72  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 67 80 77 k * (sunspot number)
As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2014.11 154.8 151.4 103.6 94.7 (-2.6) 9.33
2014.12 158.7 153.8 112.9 92.2 (-2.5) 11.24
2015.01 141.9 137.3 93.0 89.3 (-2.9) 9.46
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.8 (-3.4) 10.73
2015.05 120.0 122.6 88.8 76.0 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.0 (-4.0) 13.15
2015.07 107.0 110.8 66.4 (68.3 projected, -3.7) 8.83
2015.08 105.4 108.0 64.6 (66.3 projected, -2.0) 14.58
2015.09 101.7 102.7 78.1 (66.3 projected, +0.0) 15.78
2015.10 104.1 103.3 61.7 (65.9 projected, -0.4) 14.02
2015.11 109.3 106.9 63.2 (63.8 projected, -2.1) 12.09
2015.12 113.1 109.5 57.7 (62.1 projected, -1.7) 14.29
2016.01 (102.7)   42.2 (2A) / 50.3 (2B) / 66.2 (2C) (60.4 projected, -1.7) (11.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
