Recent activity

The geomagnetic field was very quiet on May 25. Solar wind speed at SOHO ranged between 287 and 352 km/s.

Solar flux at 20h UTC on 2.8 GHz was 96.5 (decreasing 11.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 127.0. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.4). Three hour interval K indices: 00000011 (planetary), 10012211 (Boulder).

The background x-ray flux is at the class B3 level.

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 145) and 7 active regions using 1K resolution (SN: 89) SDO images on the visible solar disk.

Region 12348 [S10W85] decayed slowly and quietly.
Region 12349 [S19W65] decayed slowly and quietly
Region 12351 [N22W18] was quiet and stable.
Region 12352 [N07W25] was quiet and stable.
Region 12353 [N08W45] decayed slowly and quietly.
Region 12354 [S20W43] decayed slowly and quietly.
Region 12355 [S10E27] decayed slowly and quietly.

Spotted regions not numbered (or interpreted differently) by SWPC:
New region S4497 [N08W51] emerged as a reversed polarity region with penumbra spots.
New region S4498 [N02E50] emerged with a penumbra spot.
New region S4499 [S19E05] was observed with a penumbra spot.

C2+ flares:

Magnitude Peak time (UTC) Location AR Recorded by Comment


Flare activity according to SDO/EVE/ESP XRS-B proxy

Coronal mass ejections (CMEs)

May 23-25: No obviously Earth directed CMEs were observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent southern hemisphere coronal hole (CH669) was in an Earth facing position on May 23-25, while a northern hemisphere coronal hole (CH670) rotated across the central meridian on May 24-26.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to minor storm on May 26-28 unsettled to minor storm conditions due to high speed streams associated with CH669 and CH670.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

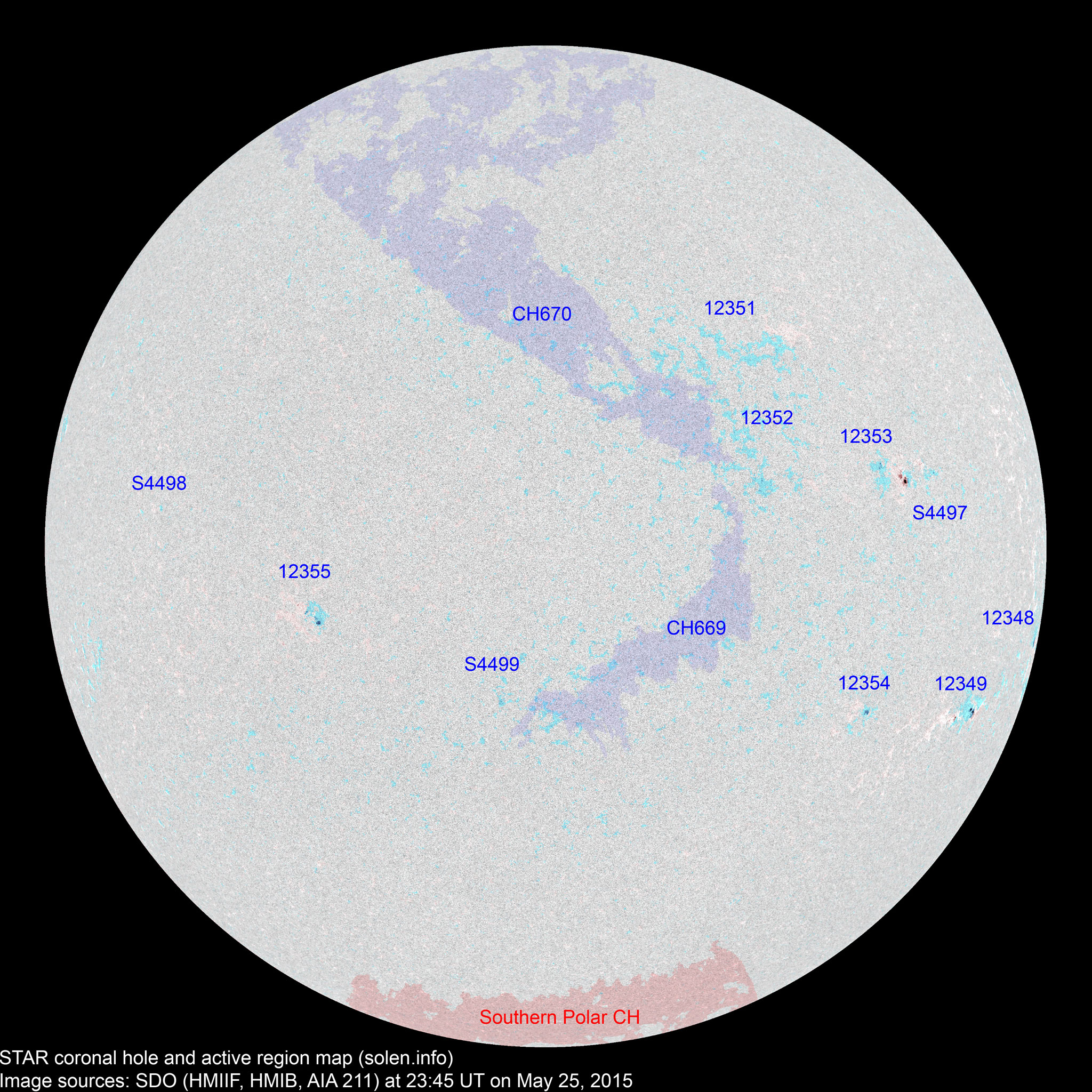

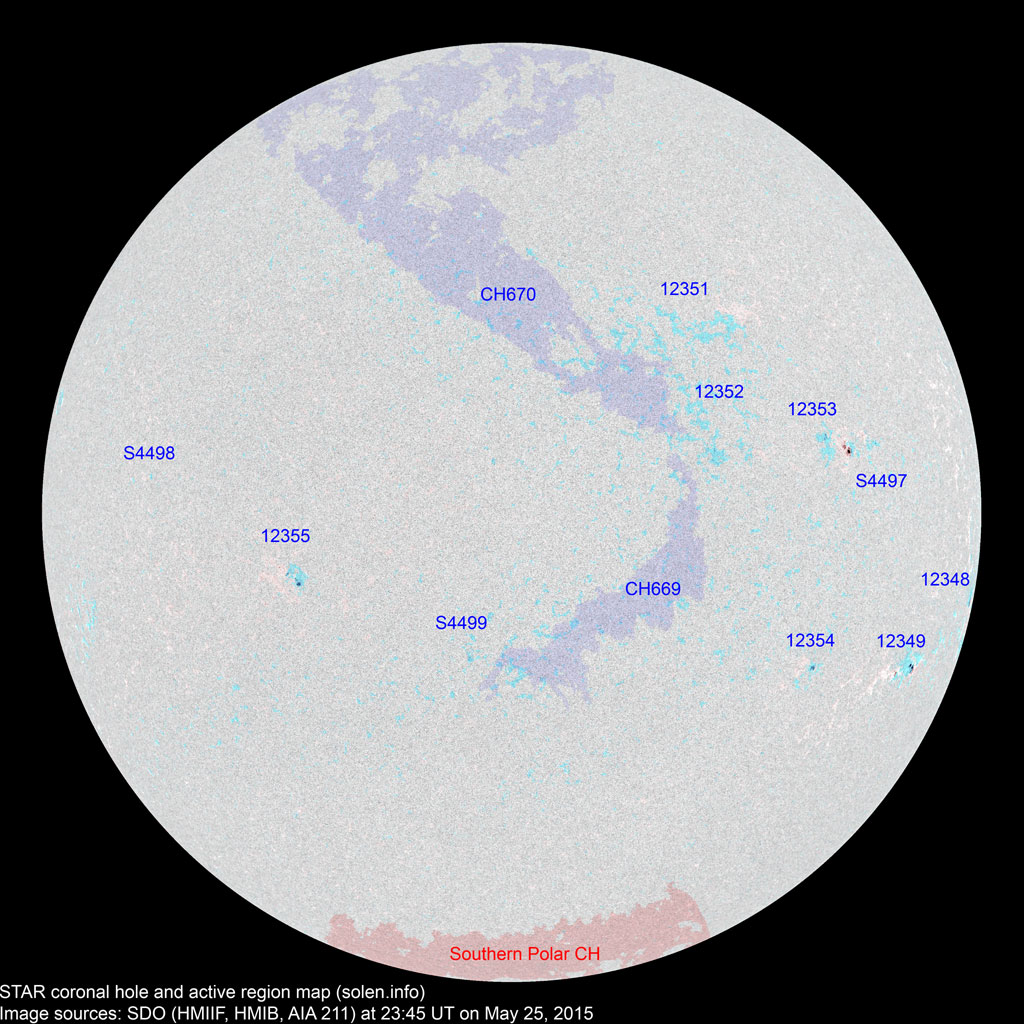

Active solar regions


(Click on image for 2K resolution) Compare to the previous day's image.

0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected

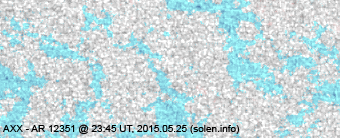

Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12348 2015.05.12
2015.05.14
1 1 1 S11W84 0030 HSX HAX
12349 2015.05.17
2015.05.18
5 7 3 S20W62 0050 CAO DRO



12350 2015.05.17
2015.05.18
      S15W77
12351 2015.05.17
2015.05.19
  3   N22W37 0005   AXX
12352 2015.05.20
2015.05.22
  4 1 N07W25 0008   AXX
S4485 2015.05.20       S08W07
S4486 2015.05.20       N16W17
12353 2015.05.21
2015.05.22
5 13 5 N07W45 0070 CAO CAO



S4489 2015.05.21       N19W07
S4490 2015.05.21       S11W42
S4491 2015.05.22       N08W37
12354 2015.05.22
2015.05.23
1 3 2 S21W43 0000 AXX HRX area: 0020
S4493 2015.05.22       S10E11
S4494 2015.05.22       N17W16
12355 2015.05.23
2015.05.24
4 8 5 S10E28 0030 CAO CRO
S4497 2015.05.25   4 2 N08W51 0010   BXO
S4498 2015.05.25   1   N02E50 0002   AXX
S4499 2015.05.25   1   S19E05 0003   AXX
Total spot count: 16 45 19
Sunspot number: 66 145 89  (total spot count + 10 * number of spotted regions)
Weighted SN: 36 64 38  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 40 51 49 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1) (solar max) 7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 78.5 (-1.2) 4.50
2014.08 124.7 127.9 74.7 75.5 (-3.0) 7.71
2014.09 146.6 148.1 87.6 70.8 (-4.7) 9.78
2014.10 153.4 152.9 60.6 67.3 (-3.5) 8.96
2014.11 154.8 151.4 70.1 (64.9 projected, -2.4) 9.33
2014.12 158.7 153.8 78.0 (62.6 projected, -2.3) 11.24
2015.01 141.9 137.3 67.0 (60.4 projected, -2.2) 9.46
2015.02 129.1 126.0 44.8 (58.7 projected, -1.7) 9.92
2015.03 125.9 124.6 38.4 (56.3 projected, -2.4) 16.14
2015.04 128.8 129.7 54.4 (53.7 projected, -2.6) 10.73
2015.05 (126.2)   77.4 (2A) / 95.9 (2B) / 75.5 (2C) (51.5 projected, -2.2) (8.4)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
