Recent activity

The geomagnetic field was quiet on May 1, weakly under the influence of a high speed stream from CH665. Solar wind speed at SOHO ranged between 339 and 633 km/s.

Solar flux at 20h UTC on 2.8 GHz was 99.9 (decreasing 22.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 126.5. The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.8). Three hour interval K indices: 12101212 (planetary), 22111312 (Boulder).

The background x-ray flux is at the class B2 level.

At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 97) and 5 active regions using 1K resolution (SN: 69) SDO images on the visible solar disk.

Region 12334 [S19W02] decayed slowly and quietly.
Region 12335 [S15E65] developed slowly and could produce C and maybe a minor M class flare as there is polarity intermixing.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4426 [S12E32] lost the trailing spot and was quiet.
New region S4429 [S30E16] was observed with penumbra spots.
New region S4430 [S22W19] was observed with a penumbra spot.

C2+ flares:

Magnitude Peak time (UTC) Location AR Recorded by Comment
C2.3 02:57   12335 GOES15

Flare activity according to SDO/EVE/ESP XRS-B proxy

Coronal mass ejections (CMEs)

April 29 - May 1: No obviously Earth directed CMEs were observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent trans equatorial coronal hole (CH666) will likely rotate into a potentially geoeffective position on May 2.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet on May 2-3 with a chance of unsettled intervals due to weak coronal hole effects. Quiet conditions are likely on May 4.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

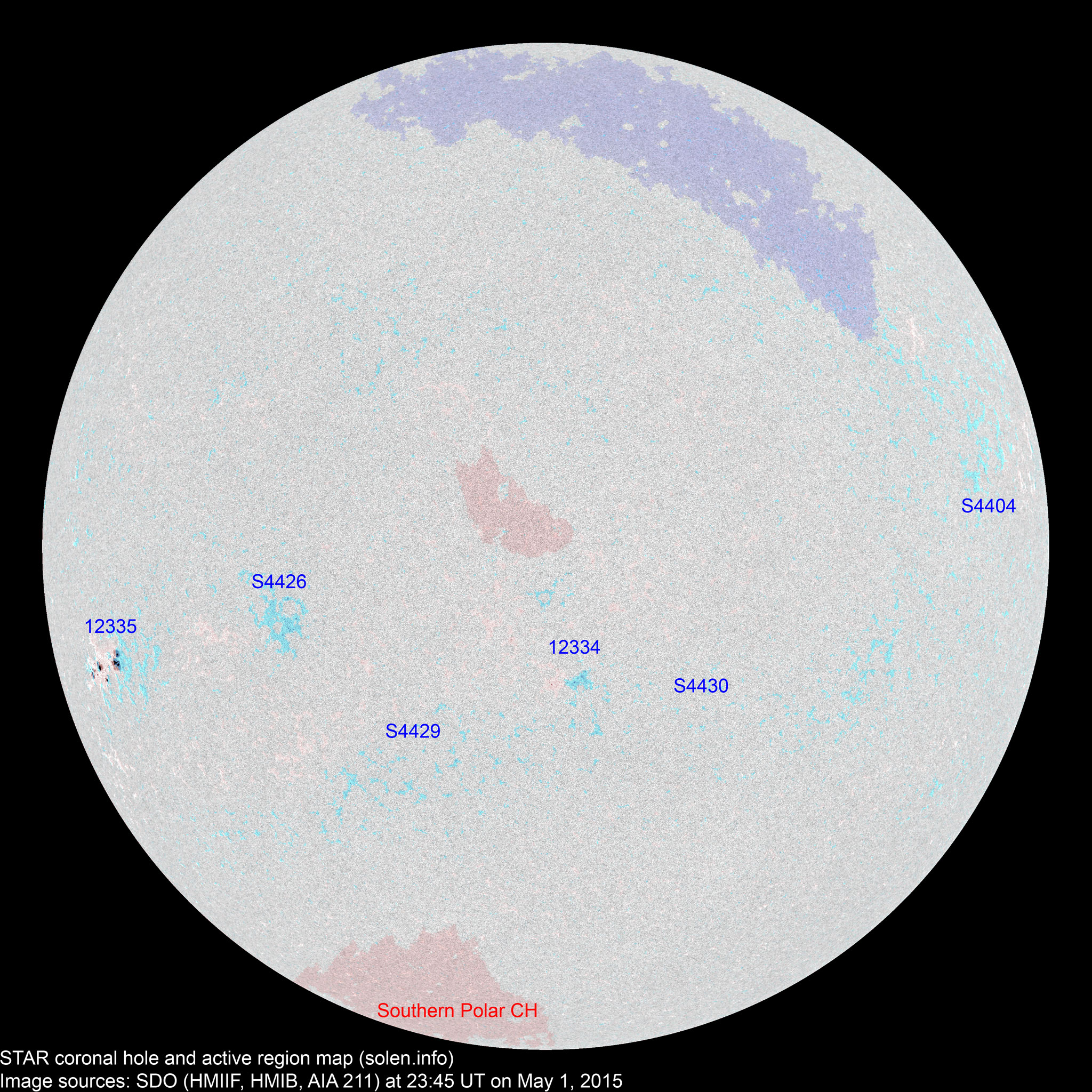

Active solar regions


(Click on image for 2K resolution) Compare to the previous day's image.

0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
S4404 2015.04.21   1 1  N07W62 0004   AXX
12333 2015.04.21
2015.04.22
       N22W55
S4411 2015.04.24       S17W44
S4414 2015.04.26       S15W45
S4415 2015.04.26       N02W40
S4419 2015.04.27       S05W50
12334 2015.04.27
2015.04.30
  7 4 S20W03 0016   BXO
S4421 2015.04.27       S10W05
S4423 2015.04.29       S27W19
12335 2015.04.30 3 16 9 S15E63 0070 DAO DAI beta-gamma

area: 0200

S4426 2015.04.30   10 4 S11E32 0020   AXX
S4427 2015.04.30       N13W18
S4428 2015.04.30       N13E10
S4429 2015.05.01   2 1 S30E16 0005   AXX
S4430 2015.05.01   1   S22W19 0004   AXX
Total spot count: 3 37 19
Sunspot number: 13 97 69  (total spot count + 10 * number of spotted regions)
Weighted SN: 8 42 24  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 8 34 38 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1) (solar max) 7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 78.5 (-1.2) 4.50
2014.08 124.7 127.9 74.7 75.5 (-3.0) 7.71
2014.09 146.6 148.1 87.6 70.8 (-4.7) 9.78
2014.10 153.4 152.9 60.6 67.3 (-3.5) 8.96
2014.11 154.8 151.4 70.1 (64.9 projected, -2.4) 9.33
2014.12 158.7 153.8 78.0 (62.6 projected, -2.3) 11.24
2015.01 141.9 137.3 67.0 (60.4 projected, -2.2) 9.46
2015.02 129.1 126.0 44.8 (58.7 projected, -1.7) 9.92
2015.03 125.9 124.6 38.4 (56.3 projected, -2.4) 16.14
2015.04 128.8 129.7 54.4 (53.7 projected, -2.6) 10.3
2015.05 (99.9)    0.4 (2A) / 13 (2B) / 77.2 (2C) (51.5 projected, -2.2) (4.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
