The geomagnetic field was quiet on January 18. Solar wind speed at SOHO ranged between 287 and 372 km/s.
Solar flux at 20h UTC on 2.8 GHz was 125.8 (decreasing 53.4 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 153.8. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.0). Three hour interval K indices: 01001112 (planetary), 11112212 (Boulder).
The background x-ray flux is at the class B5 level.
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 196) and 11 active regions using 1K resolution (SN: 144) SDO images on the visible solar disk.
Region 12259 [S16W60] decayed slowly and
was mostly quiet.
Region 12263 [N22E16] decayed slowly and quietly.
New region 12265 [S22E04] emerged on January 17 and was numbered the next day by SWPC.
New region 12266 [S05E11] emerged on January 17 and developed quickly on January 18 when it was numbered by SWPC.
Spotted regions not numbered (or interpreted differently) by SWPC:

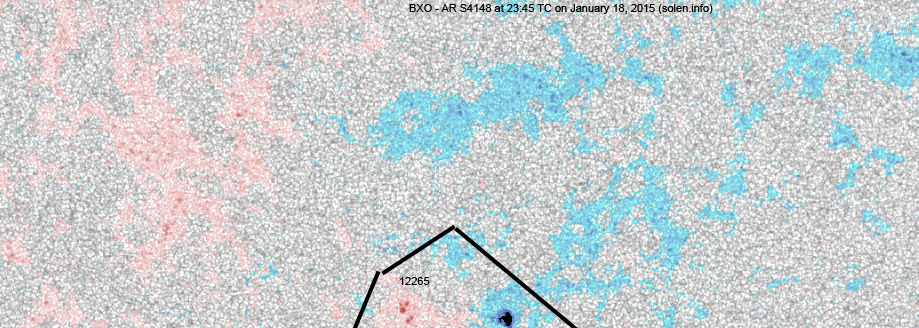

S4148 [S15E02] was quiet and stable.

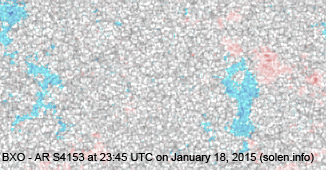

S4153 [N09E02] decayed slowly and quietly.
New region S4154 [N18E72] rotated into view.
New region S4155 [S19E45] was observed with penumbra spots.
New region S4156 [N19E50] emerged with penumbra spots.
New region S4157 [N04E22] was observed with penumbra spots.
New region S4158 [N13W07] emerged with a penumbra spot.
New region S4159 [S18W35] emerged with a penumbra spot.
C2+ flares (GOES):
|Magnitude||Peak time (UTC)||Location||AR||Comment|
January 16-18: No obviously Earth directed CMEs were observed in (very limited) LASCO imagery.
[Coronal hole history (since October
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A trans equatorial coronal hole (CH650) was in an Earth facing position on January 14-15.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet with a slight chance of unsettled intervals on January 19 due to effects from CH650. Quiet conditions are likely on January 20-21.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

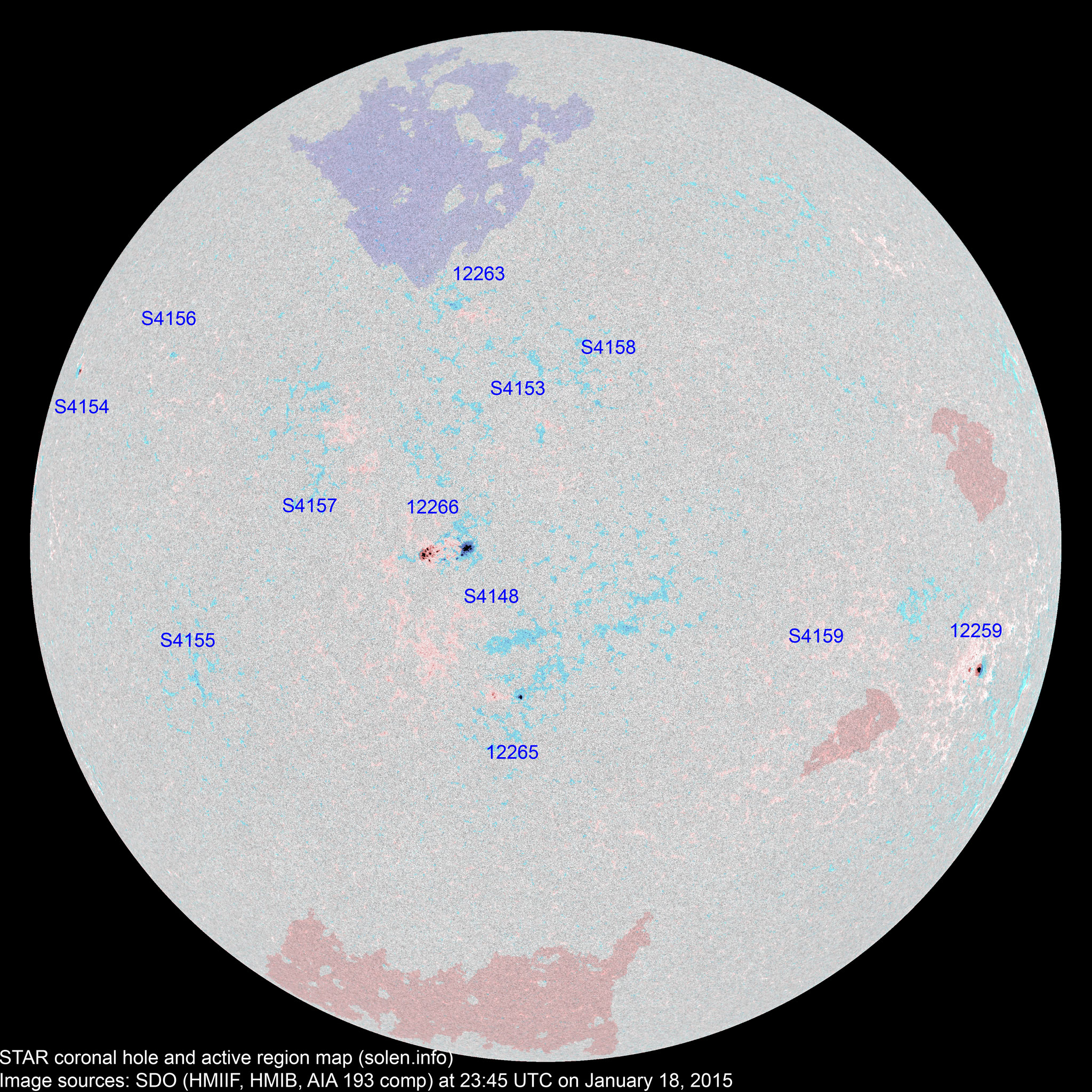

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
|Total spot count:||25||76||34|
|Sunspot number:||75||196||144||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||36||92||50||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||45||69||79||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average ap
|166.3||102.3 (cycle peak)||78.4 (+1.1)||10.70|
(likely solar max)
|2014.07||137.4||141.8||72.5||(78.6 projected, -1.1)||4.50|
|2014.08||124.7||127.9||74.7||(76.2 projected, -2.4)||7.71|
|2014.09||146.6||148.1||87.6||(73.0 projected, -3.2)||9.78|
|2014.10||153.4||152.9||60.6||(70.5 projected, -2.5)||8.96|
|2014.11||154.8||151.4||70.1||(68.8 projected, -1.7)||9.33|
|2014.12||158.7||153.8||78.0||(67.7 projected, -1.1)||11.24|
|2015.01||142.5 (1)||60.7 (2A) / 99.1 (2B) / 79.0 (2C)||(66.5 projected, -1.2)||(9.5)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
