The geomagnetic field was quiet to unsettled on September 28. Solar wind speed at SOHO ranged between 357 and 463 km/s.
Solar flux at 20h UTC on 2.8 GHz was 181 (increasing 54.4 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 138.4. The Potsdam WDC planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 7.6). Three hour interval K indices: 22233221 (planetary), 13323321 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time), spots were observed in 13 active regions using 2K resolution (SN: 342) and 12 active regions using 1K resolution (SN: 238) SDO images on the visible solar disk.

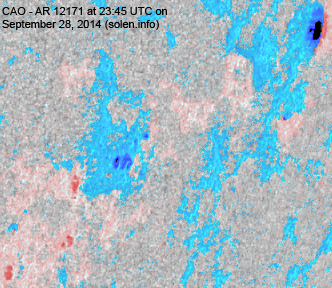

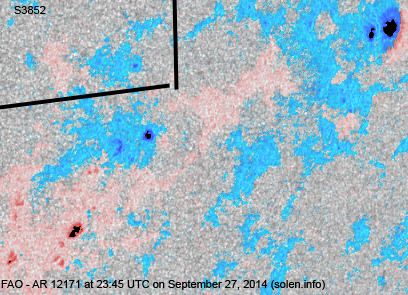

Region 12171 [S10W54] decayed slowly and lost umbra
on the trailing spots.

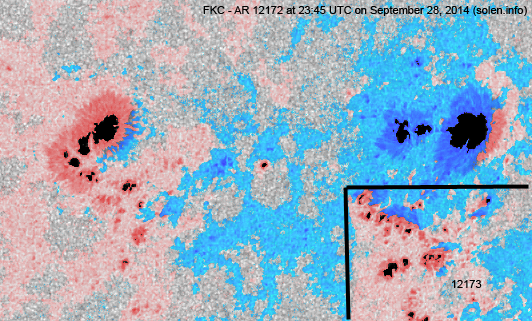

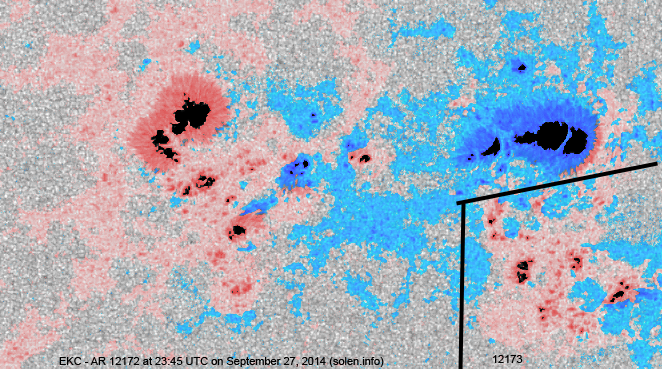

Region 12172 [S11W29] decayed slowly. The leading spot section changed
significantly due to interaction with the trailing polarity flux of AR 12173. An
M class flare is still possible.
Region 12173 [S15W36] developed further in the trailing polarity section.
Another major flare is possible.

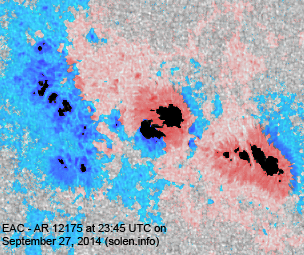

Region 12175 [N15W50] developed with most of the spots with a single
large penumbral area. Considering the fairly strong magnetic delta structure in
the center of the region, there has been surprisingly little activity. An X
class flare is possible.
Region 12176 [N07E03] developed slowly and quietly.
Region 12177 [N12E42] is a compact region with minor M class flare
potential and may have a weak magnetic delta structure.
Region 12178 [S01E59] was quiet and stable.
New region 12179 [S10E70] rotated into view on September 27 and was
numbered by SWPC the next day.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3848 [S15E27] decayed slowly and quietly.
S3858 [N04E70] decayed slowly and quietly.
S3861 [N11E49] was quiet and stable.
New region S3862 [S10E52] emerged with penumbra spots.
New region S3863 [S18E08] emerged with a penumbra spot.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C3.4 | 01:16 | S10W16 | 12172 | |
| M5.1/2B (LDE) | 02:58 | S13W23 | 12173 | Small CME |
| C6.3 | 07:08 | S17W29 | 12173 | |
| C2.9 | 10:59 | S12W22 | 12172 | |
| M1.0 (LDE) | 17:33 | S15W30 | 12173 | |
| C4.0 | 20:35 | S17W37 | 12173 |
September 26-28: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A small southern hemisphere coronal hole (CH637) was in an Earth facing position on August 28.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be mostly quiet on September 29-30. On October 1 there is a chance of unsettled intervals if a low speed stream from CH637 reaches Earth.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

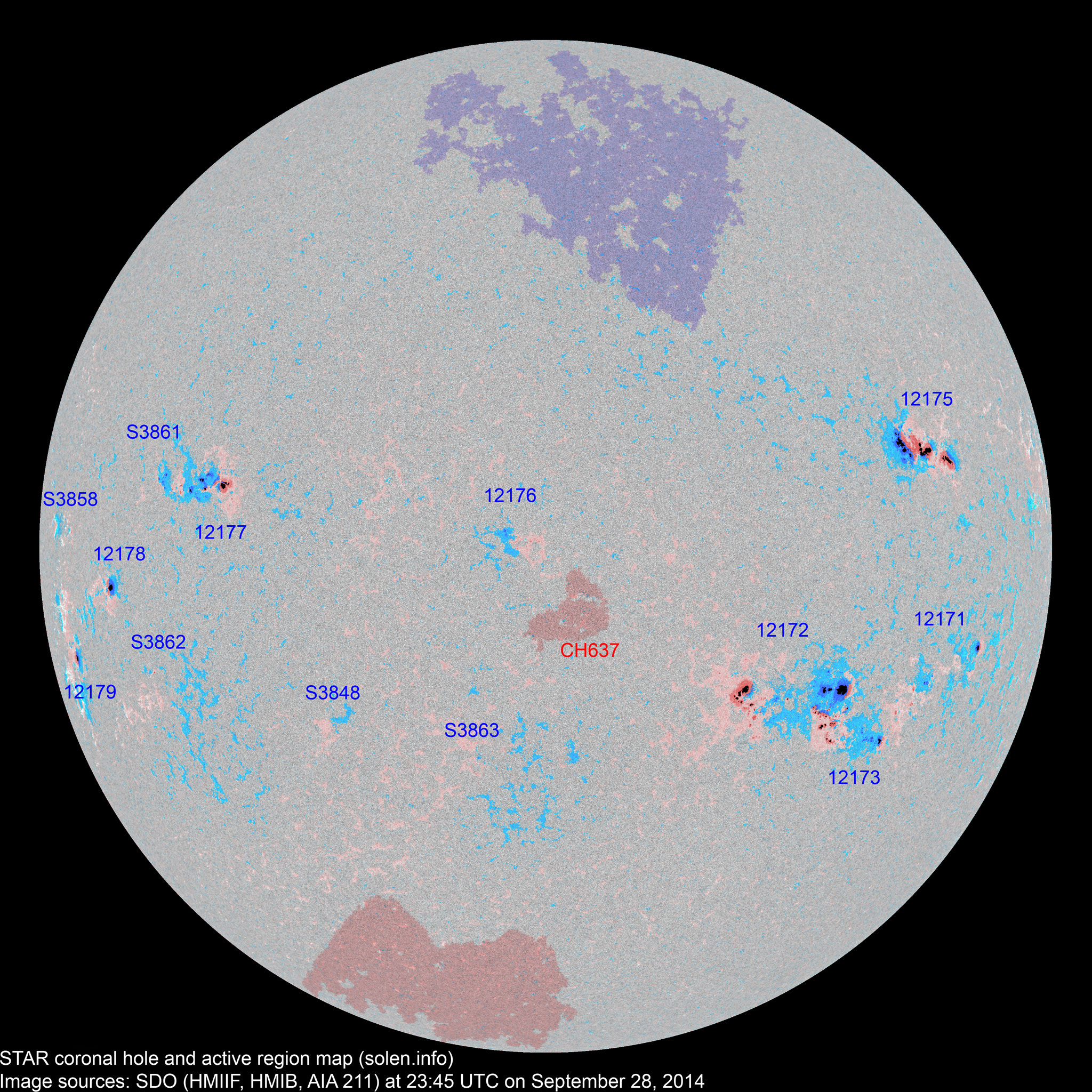

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12169 | 2014.09.16 2014.09.17 |
N07W86 |
plage |
||||||||
| 12170 | 2014.09.16 2014.09.17 |
N12W80 |
plage |
||||||||
| 12171 | 2014.09.18 2014.09.19 |
12 | 12 | 8 | S11W54 | 0100 | CAO | CAO |
 |
 |
|
| 12173 | 2014.09.19 2014.09.20 |
22 | 53 | 31 | S17W39 | 0160 | DAC | EAC |
 |
 |
area: 0400 |
| 12172 | 2014.09.20 | 56 | 59 | 30 | S12W31 | 0490 | FKC | FKC |
 |
 |
beta-gamma location: S11W29 |
| 12175 | 2014.09.21 2014.09.25 |
23 | 27 | 15 | N16W51 | 0390 | DKC | EKC |
 |
 |
beta-gamma-delta area: 0700 |
| 12176 | 2014.09.22 2014.09.25 |
10 | 7 | N07W02 | 0025 | CRO |
 |
 |
location: N07E03 | ||
| S3844 | 2014.09.24 | N17W54 | plage | ||||||||
| 12177 | 2014.09.25 | 12 | 29 | 14 | N12E43 | 0120 | EAI | DAC |
 |
 |
location: N12E42 area: 0200 |
| S3848 | 2014.09.25 | 1 | S15E27 | 0002 | AXX |
 |
 |
||||
| S3850 | 2014.09.26 | S16W01 | plage | ||||||||
| S3851 | 2014.09.26 | N10W29 | plage | ||||||||
| S3852 | 2014.09.26 | S08W49 |
 |
plage | |||||||
| S3853 | 2014.09.26 | N29W45 | plage | ||||||||
| S3854 | 2014.09.26 | N23W48 | plage | ||||||||
| 12178 | 2014.09.27 | 4 | 2 | 1 | S03E60 | 0050 | CAO | HAX |
 |
 |
area: 0170 location: S01E59 |
| 12179 | 2014.09.27 2014.09.28 |
1 | 2 | 1 | S11E71 | 0060 | HSX | HSX |
 |
 |
area: 0110 |
| S3858 | 2014.09.27 | 2 | 1 | N04E70 | 0006 | AXX |
 |
 |
|||

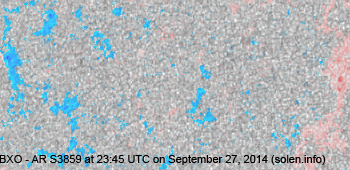

| S3859 | 2014.09.27 | N11E26 |
 |
plage | |||||||
| S3860 | 2014.09.27 | S00W18 |
 |
plage | |||||||
| S3861 | 2014.09.27 | 12 | 8 | N11E49 | 0030 | DRI |
 |
 |
|||
| S3862 | 2014.09.28 | 2 | 1 | S10E52 | 0005 | BXO |
 |
||||
| S3863 | 2014.09.28 | 1 | 1 | S18E08 | 0003 | AXX |
 |
||||
| Total spot count: | 130 | 212 | 118 | ||||||||
| Sunspot number: | 200 | 342 | 238 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 175 | 263 | 169 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 120 | 120 | 131 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | (80.3 projected, +1.9) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | (81.0 projected, +0.7) | 7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | (79.2 projected, -1.8) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (76.6 projected, -2.6) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (73.6 projected, -3.0) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (70.1 projected, -3.5) | 7.71 |
| 2014.09 | 144.6 (1) | 119.1 (2A) / 127.6 (2B) / 92.7 (2C) | (65.9 projected, -4.2) | (9.6) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
