The geomagnetic field was quiet to unsettled on November 18. Solar wind speed at SOHO ranged between 398 and 483 km/s.
Solar flux at 20h UTC on 2.8 GHz was 167.4 (decreasing 48.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 146.1 - the highest since May 24, 2014). The Potsdam WDC planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 9.1). Three hour interval K indices: 32223311 (planetary), 22233221 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 267) and 9 active regions using 1K resolution (SN: 173) SDO images on the visible solar disk.
Region 12208 [S12W54] developed slowly and quietly.

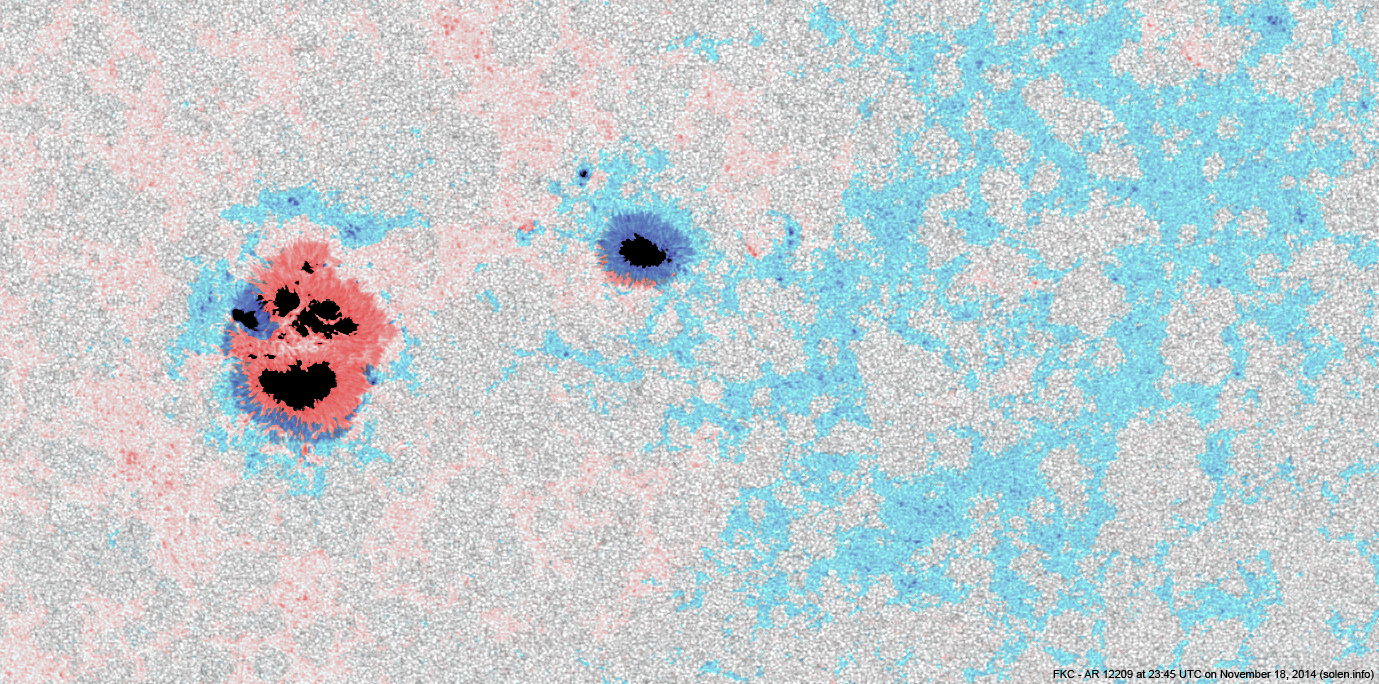

Region 12209 [S14E15] was mostly unchanged and quiet. There is still a
magnetic delta in the eastern part of the largest penumbra and a major flare is
possible.
Region 12214 [S12E33] developed slowly and quietly. Weak polarity
intermixing is currently observed.
Region 12215 [N09E38] was quiet and stable.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4000 [S05W12] decayed early in the day, then developed slowly.
New region S4002 [N03E19] emerged with a few spots.

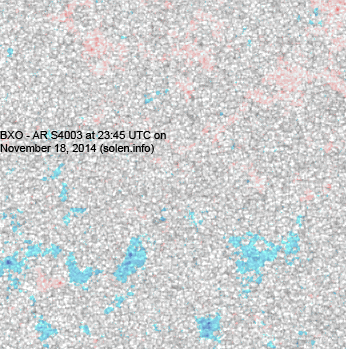

New region S4003 [N17W02] was observed with penumbra spots.
New region S4004 [N03W12] emerged with a penumbra spot.
New region S4005 [S08W28] was observed with a penumbra spot.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
November 16-18: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A recurrent trans equatorial coronal hole (CH643) was in a geoeffective position on November 15-17.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to active on November 19-20 due to a high speed stream from CH643 and quiet on November 21.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

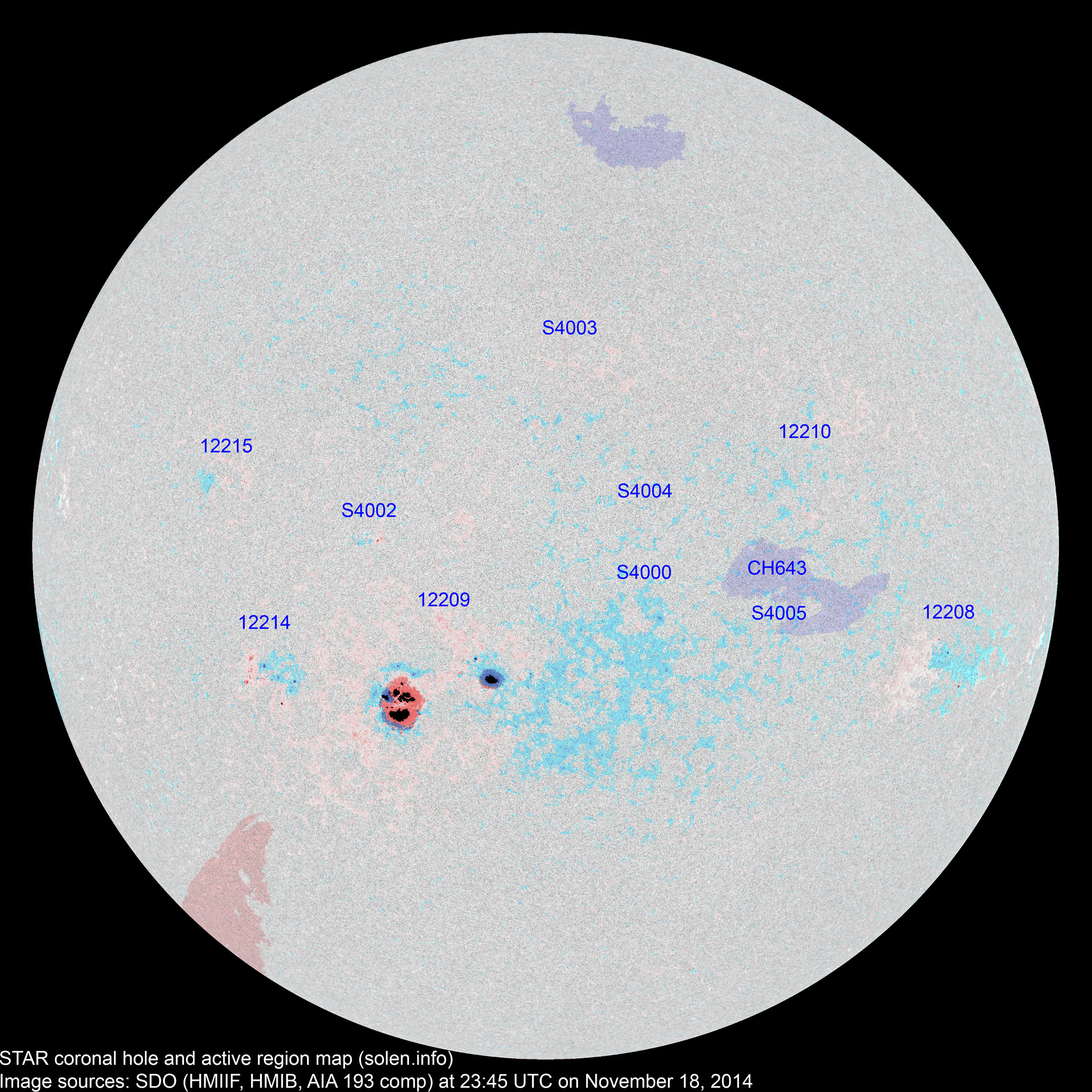

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12207 | 2014.11.07 2014.11.08 |
S09W69 | plage | ||||||||
| 12208 | 2014.11.08 2014.11.09 |
2 | 16 | 5 | S12W54 | 0010 | BXO | DRI |
 |
 |
area: 0030 |
| 12210 | 2014.11.10 2014.11.13 |
2 | 2 | N05W42 | 0007 | BXO |
 |
location: N08W28 | |||
| 12209 | 2014.11.12 | 26 | 97 | 46 | S13E07 | 1100 | FKC | FKC |
 |
 |
beta-gamma-delta location: S14E15 area: 1800 |
| S3985 | 2014.11.12 | S07W13 | plage | ||||||||
| 12212 | 2014.11.12 2014.11.14 |
N16W40 | plage | ||||||||
| 12213 | 2014.11.14 2014.11.15 |
6 | S09W15 | 0010 | BXO |
 |
plage | ||||
| S3990 | 2014.11.14 | S11W37 | plage | ||||||||
| S3992 | 2014.11.14 | S17W34 | plage | ||||||||
| S3993 | 2014.11.15 | N24W29 | plage | ||||||||
| 12214 | 2014.11.15 2014.11.16 |
6 | 24 | 16 | S13E47 | 0010 | BXO | DRI |
 |
 |
area: 0070 |
| 12215 | 2014.11.15 2014.11.17 |
2 | 4 | 3 | N09E38 | 0010 | BXO | BXO |
 |
 |
|
| S3996 | 2014.11.15 | N26W45 | plage | ||||||||
| S3997 | 2014.11.16 | N22W08 | plage | ||||||||
| S3998 | 2014.11.16 | N02E23 | plage | ||||||||
| S3999 | 2014.11.16 | N03W38 | plage | ||||||||
| S4000 | 2014.11.17 | 12 | 5 | S05W12 | 0020 | BXO |
 |
 |
|||
| S4002 | 2014.11.18 | 3 | 3 | N03E19 | 0012 | CRO |
 |
||||
| S4003 | 2014.11.18 | 7 | 2 | N17W02 | 0015 | BXO |
 |
||||
| S4004 | 2014.11.18 | 1 | 1 | N03W12 | 0003 | AXX |
 |
||||
| S4005 | 2014.11.18 | 1 | S08W28 | 0003 | AXX |
 |
|||||
| Total spot count: | 42 | 167 | 83 | ||||||||
| Sunspot number: | 92 | 267 | 173 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 52 | 186 | 102 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 55 | 93 | 95 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | (80.3 projected, -1.6) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (78.7 projected, -1.6) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (77.1 projected, -1.6) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (74.7 projected, -3.0) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (71.5 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (69.0 projected, -2.5) | 8.96 |
| 2014.11 | 143.2 (1) | 55.7 (2A) / 92.9 (2B) / 88.2 (2C) | (67.3 projected, -1.7) | (9.3) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
