Partial update issued on May 21, 2014 at 06:00 UTC. The active region section was updated at 11:10 UTC. Updates May 18-23 will be irregular and possibly incomplete.
[Solar and geomagnetic data - last month (updated
daily)]
[Solar wind and
electron fluence charts (updated
daily)]
[Solar cycles 23-24 (last update May 1, 2014)] [Cycle
24 progress (last update May 1, 2014) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last
update May 1, 2014)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and
24 (last update May 1, 2014)]
[Historical solar and geomagnetic data charts 1954-2006
(last update April 5, 2007)]
[Archived reports since January 2003 (last update
May 1, 2014)]
[POES auroral activity level October
2009 - December 2012]
[Solar polar fields vs solar cycles - updated
April 17, 2014]
[Presentations:
3rd
SSN Workshop, Tucson, 2013 (pdf)
/
4th SSN Workshop, Locarno, 2014]
The geomagnetic field was quiet on May 20. Solar wind speed at SOHO ranged between 328 and 358 km/s.
Solar flux at 20h UTC on 2.8 GHz was 117.2 (decreasing 18.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 148.1. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.9). Three hour interval K indices: 11111100 (planetary), 11122211 (Boulder).
The background x-ray flux is at the class B4 level.
At the time of counting spots (see image time), spots were observed in 14 active regions in 2K resolution (SN: 192) and 10 active regions in 1K resolution (SN: 126) SDO images on the visible solar disk.
Region 12061 [S23W47] was quiet and stable.
Region 12063 [N10W38] decayed slowly and quietly.

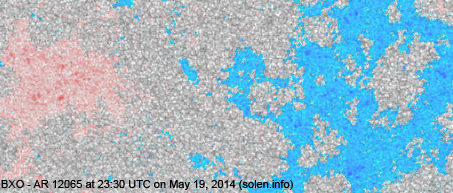

Region 12065 [S18W02] decayed slowly and quietly and lost the trailing
spot section when AR 12072 emerged.
Region 12066 [S17W53] was quiet and stable.
Region 12068 [S16W14] was quiet and stable.
Region 12069 [S18E27] developed slowly and quietly.
Region 12070 [S17W75] decayed slowly and quietly.
Region 12071 [S12E64] developed slowly and was
mostly quiet.
New region 12072 [S18E08] emerged in what used to be the trailing spot
section of AR 12065.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3444 [S26E38] was quiet and stable.
S3446 [N02W08] reemerged with a penumbra spot.
New region S3455 [S11E77] rotated into view.
New region S3456 [N25W80] emerged with a penumbra spot.
New region S3457 [N20W17] emerged with a penumbra
spot.
| Magnitude | Time (UTC) | Location | AR |
May 18-20: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A small trans equatorial coronal hole (CH618) will rotate into an Earth facing position on May 21.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on May 21-23. On May 24 there is a slight chance of unsettled intervals should a stream from CH618 reach Earth.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

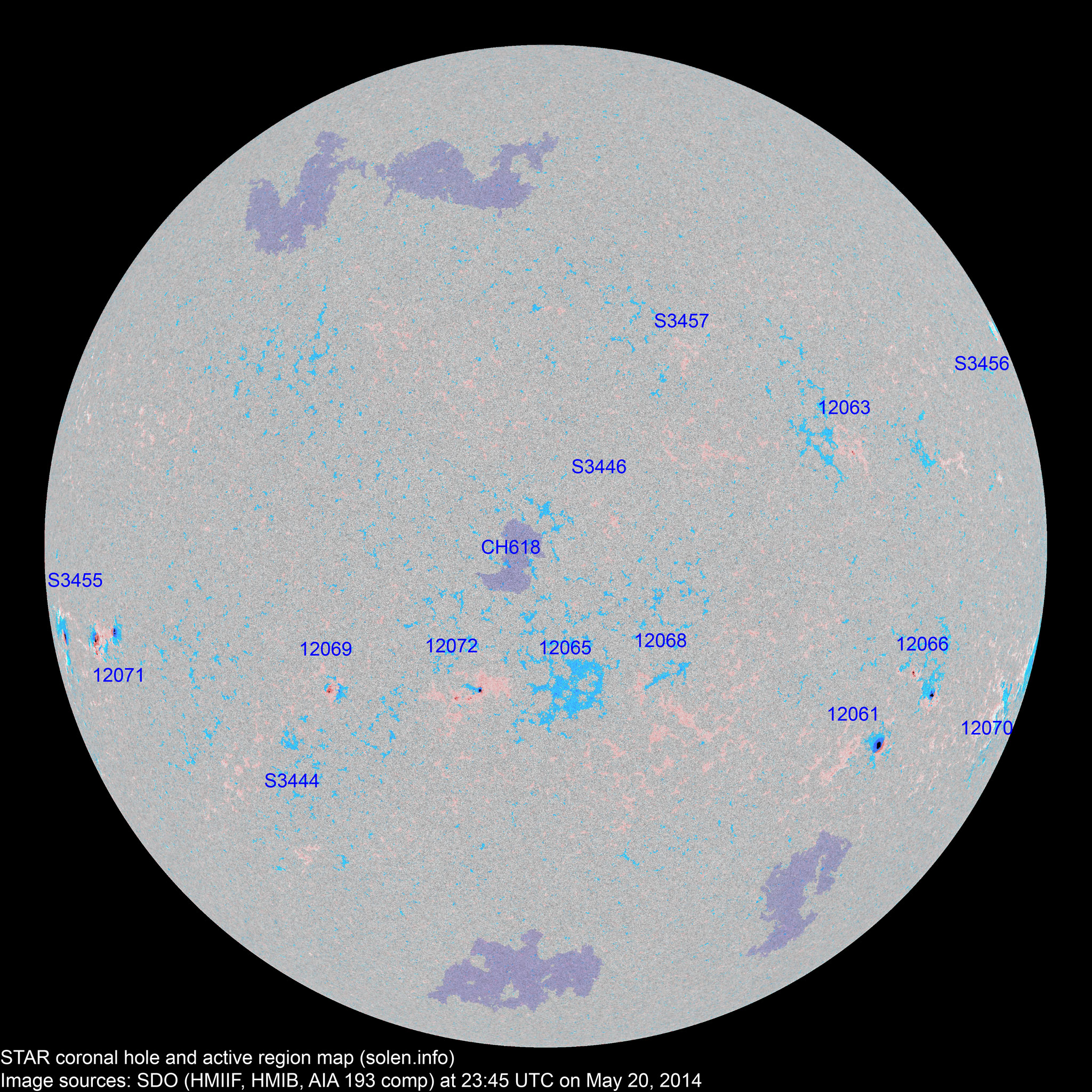

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12060 | 2014.05.08 2014.05.11 |
2 | S13W89 | HAX |
 |
rotated out of view |
|||||
| 12061 | 2014.05.10 2014.05.11 |
1 | 2 | 2 | S25W49 | 0050 | HSX | CSO |
 |
 |
area: 0150 |
| S3417 | 2014.05.11 | S23W58 | plage | ||||||||
| S3418 | 2014.05.11 | N22W43 | plage | ||||||||
| S3422 | 2014.05.13 | S23W16 | plage | ||||||||
| S3423 | 2014.05.13 | S09W45 | plage | ||||||||
| 12063 | 2014.05.13 2014.05.14 |
2 | 2 | 2 | N09W38 | 0010 | AXX | HRX |
 |
 |
|
| 12064 | 2014.05.13 2014.05.14 |
N09W54 | plage | ||||||||
| 12066 | 2014.05.13 2014.05.16 |
5 | 9 | 3 | S17W53 | 0040 | DAO | DAO |
 |
 |
|
| 12065 | 2014.05.14 2014.05.15 |
2 | 4 | 2 | S20E01 | 0010 | BXO | AXX |
 |
 |
location: S18W03 |
| S3433 | 2014.05.15 | N18W55 | plage | ||||||||
| S3436 | 2014.05.15 | N08W17 | plage | ||||||||
| S3437 | 2014.05.15 | N25E03 | plage | ||||||||
| 12068 | 2014.05.16 2014.05.17 |
3 | 2 | 2 | S15W16 | 0010 | BXO | BXO |
 |
 |
location: S16W14 |
| S3440 | 2014.05.16 | S12W39 | plage | ||||||||
| S3441 | 2014.05.16 | N27W50 | plage | ||||||||
| S3443 | 2014.05.16 | N10W34 | plage | ||||||||
| S3444 | 2014.05.17 | 1 | S25E34 | 0003 | AXX |
 |
 |
||||
| 12069 | 2014.05.17 2014.05.18 |
1 | 6 | 3 | S18E27 | 0000 | AXX | CRO |
 |
 |
|
| S3446 | 2014.05.17 | 1 | N02W08 |
 |
|||||||
| S3448 | 2014.05.17 | S35W11 |
 |
plage | |||||||
| S3449 | 2014.05.18 | N26W00 |
 |
plage | |||||||
| 12070 | 2014.05.18 2014.05.19 |
4 | 2 | S18W76 | 0010 | BXO | BXO |
 |
 |
||
| S3452 | 2014.05.18 | N17W35 | |||||||||
| 12071 | 2014.05.19 | 4 | 12 | 5 | S12E64 | 0030 | CRO | DAO |
 |
 |
area: 0180 |
| 12072 | 2014.05.20 | 2 | 8 | 5 | S20E07 | 0010 | AXX | DRO |
 |
area: 0045 | |
| S3455 | 2014.05.20 | 1 | 1 | S11E77 | 0090 | HSX |
 |
||||
| S3456 | 2014.05.20 | 1 | N25W80 | 0002 | AXX |
 |
|||||
| S3457 | 2014.05.20 | 1 | 1 | N20W17 | 0003 | AXX |
 |
||||
| Total spot count: | 26 | 52 | 26 | ||||||||
| Sunspot number: | 126 | 192 | 126 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 44 | 86 | 60 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 76 | 67 | 69 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | (75.6 projected, +0.6) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | (76.6 projected, +1.0) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 82.0 | (77.6 projected, +1.0) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.8 (cycle peak) | (77.4 projected, -0.2) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 92.2 | (77.9 projected, +0.5) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | (77.0 projected, -0.9) | 7.88 |
| 2014.05 | 141.9 (1) | 84.7 (2A) / 131.3 (2B) / 98.7 (2C) | (74.4 projected, -2.6) | (5.7) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
