Solar Terrestrial Activity Report

Activity chart

Last major update issued on June 16, 2014 at 04:30 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update June 1, 2014)] [Cycle 24 progress (last update June 1, 2014) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update June 1, 2014)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update June 1, 2014)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update May 1, 2014)]

[POES auroral activity level October 2009 - December 2012]
[Solar polar fields vs solar cycles - updated June 4, 2014]
[Presentations: 3rd SSN Workshop, Tucson, 2013 (pdf) / 4th SSN Workshop, Locarno, 2014]

Recent activity

The geomagnetic field was very quiet on June 15. Solar wind speed at SOHO ranged between 348 and 429 km/s.

Solar flux at 20h UTC on 2.8 GHz was 130.2 (increasing 13.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 140.7. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.3). Three hour interval K indices: 10111011 (planetary), 21232312 (Boulder).

The background x-ray flux is at the class C1 level.

At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 177) and 8 active regions using 1K resolution (SN: 116) SDO images on the visible solar disk.

Region 12087 [S18E04] was quiet and stable.
Region 12089 [N18W38] matured and was quiet.
Region 12090 [N25E16] was quiet and stable.
Region 12092 [S19E19] decayed slowly and produced a single C flare.

Spotted regions not numbered (or interpreted differently) by SWPC:
S3522 [S22W47] reemerged with a penumbra spot.
New region S3538 [S08E67] rotated into view.
New region S3539 [S10E79] rotated into view.
New region S3540 [S18E83] rotated into view with one spot.
New region S3541 [S15E34] was observed with penumbra spots.
New region S3542 [S09E14] emerged with a penumbra spot.
New region S3543 [N12W22] was observed with penumbra spots.

C2+ Flares (GOES):

Magnitude Peak time (UTC) Location AR
C2.9 04:00   12082
C7.5 06:05   12082
C7.0 08:09   12085
M1.1 (LDE) 11:39   12085
C5.4 (LDE) 13:21 S18E27 12092
C2.6 15:24   12087
C3.5 15:59   12087
C3.2 (LDE) 17:25   S3540?
M1.0 (filament eruption?) 00:01 (June 16) SE quadrant 12087/12092

Coronal mass ejections (CMEs)

June 15: A CME was observed after the C5 event in AR 12092. While the core of this fairly narrow CME was headed to the southeast, there could be a weak Earth directed component.
June 13-14
: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal hole are currently in or near Earth facing positions.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be mostly quiet on June 15-17 with a chance of unsettled and active intervals on June 15-16 if the June 13 CME reaches Earth.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

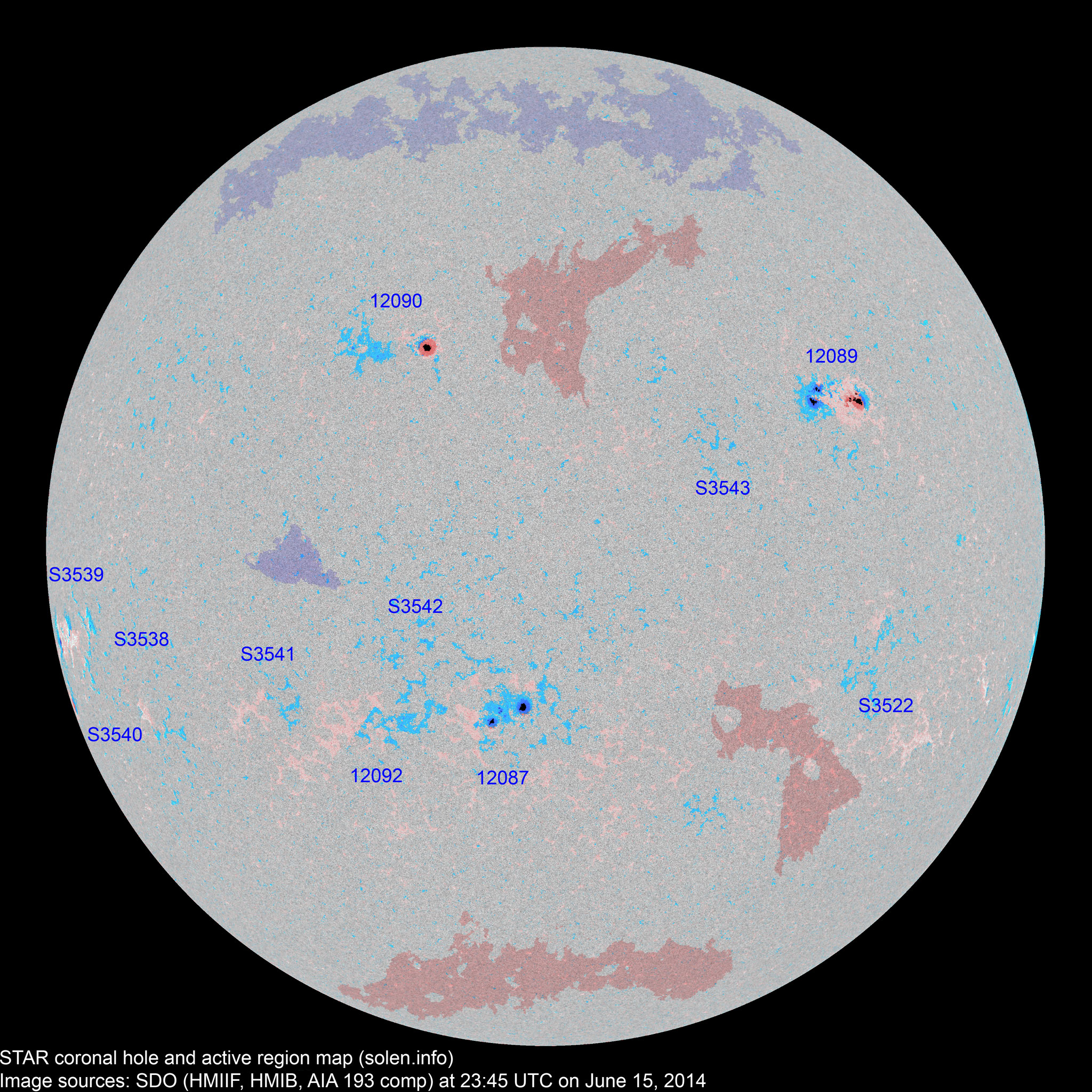

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12082 2014.06.04
2014.06.05
2     N15W93 0060 CAO     rotated out of view
12088 2014.06.06
2014.06.11
      S09W88         plage
12089 2014.06.07
2014.06.11
16 29 17 N18W38 0150 DAI DAC

area: 0400

S3516 2014.06.07       N22W41           plage
12086 2014.06.08       N01W62
S3522 2014.06.08   1   S22W47 0002   AXX
12087 2014.06.09
2014.06.10
5 10 7 S18E03 0150 DSO CAO area: 0240
S3524 2014.06.09       S16W36           plage

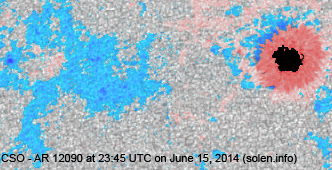

12090 2014.06.10
2014.06.11
3 7 3 N24E18 0130 CSO CSO area: 0180

location: N25E16

12091 2014.06.11
2014.06.12
      S08W43         plage

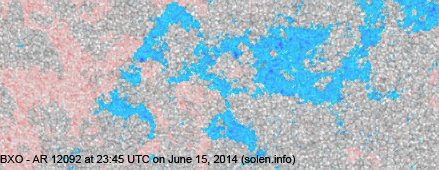

12092 2014.06.11
2014.06.12
4 7 3 S20E19 0010 BXO BXO
S3531 2014.06.11       S22E10           plage
S3532 2014.06.11       S29W13         plage
S3536 2014.06.13       N18W37           plage
S3537 2014.06.13       S19W25           plage
S3538 2014.06.15   2 1 S08E67 0005   AXX
S3539 2014.06.15   5 3 S10E79 0050   DSO
S3540 2014.06.15   1 1 S18E83 0100   HSX
S3541 2014.06.15   2   S15E34 0005   BXO
S3542 2014.06.15   1 1 S09E14 0004   AXX
S3543 2014.06.15   2   N12W22 0003   AXX
Total spot count: 30 67 36
Sunspot number: 80 177 116  (total spot count + 10 * number of spotted regions)
Weighted SN: 50 92 61  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 48 62 64 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.02 104.3 101.8 38.0 58.4 (-0.3) 6.11
2013.03 111.3 110.2 57.9 57.5 (-0.9) 10.56
2013.04 124.8 125.9 72.4 57.9 (+0.4) 5.40
2013.05 131.4 134.3 78.7 59.9 (+2.0) 9.73
2013.06 110.1 113.7 52.5 62.6 (+2.7) 12.60
2013.07 115.5 119.3 57.0 65.5 (+2.9) 9.47
2013.08 114.6 118.3 66.0 69.0 (+3.5) 8.27
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 (75.8 projected, +0.4) 4.68
2014.01 157.4 152.4 82.0 (76.4 projected, +0.6) 5.44
2014.02 170.3
(cycle peak)
166.3 102.8 (cycle peak) (76.2 projected, -0.2) 10.70
2014.03 149.9 148.5 92.2 (76.6 projected, +0.4) 4.88
2014.04 143.9 144.8 84.7 (75.8 projected, -0.8) 7.88
2014.05 129.7 132.9 75.2 (73.2 projected, -2.6) 5.75
2014.06 136.4 (1)   65.9 (2A) / 131.7 (2B) / 82.1 (2C) (70.5 projected, -2.7) (7.3)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
