The geomagnetic field was very quiet on January 6. Solar wind speed at SOHO ranged between 327 and 418 km/s.
Solar flux estimated at 20h UTC on 2.8 GHz was 204 (increasing 28.8 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 145.4. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.5). Three hour interval K indices: 00100011 (planetary), 10101231 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time) spots were observed in 12 active regions in 2K resolution (SN: 318) and 9 active regions in 1K resolution (SN: 195) SDO images on the visible solar disk.
Region 11937 [S15W82] was mostly quiet and stable
Region 11938 [S14W70] decayed slowly and quietly.
Region 11942 [N10W19] decayed, however, a positive polarity spot emerged
inside the negative polarity area causing weak polarity intermixing. The region
was the origin of an eruptive event late in the day, this event may have been
associated with a CME (imagery for the hours after the event is poor when this
is written).

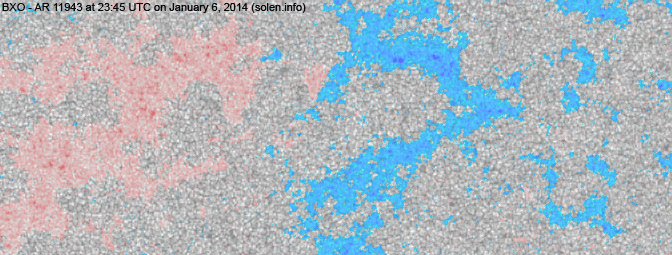

Region 11943 [S13W03] wdecayed slowly and quietly.

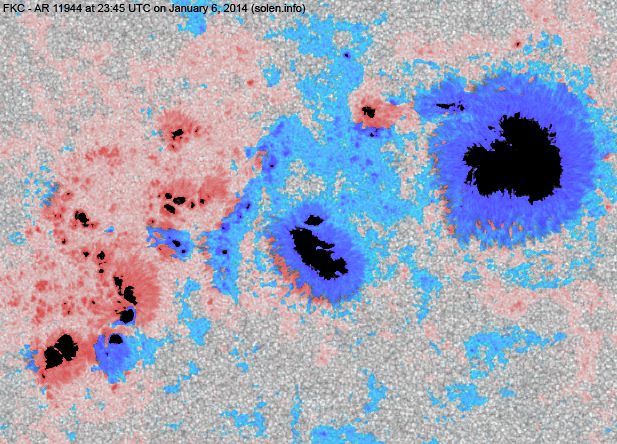

Region 11944 [S09E12] still has several fairly minor magnetic delta
structures. M flares are possible, and there's a small chance of an X flare.
C5+ flare: C7.1/1F at 00:19 UTC.
Region 11945 [N11W37] decayed slowly and
quietly.

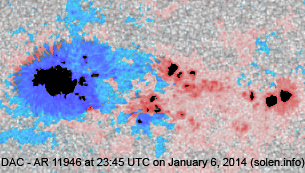

Region 11946 [N09E10] developed further and gained a weak magnetic delta
structure. C and
minor M class flares are possible. The region was the source of an impulsive
M1.0 flare at 03:53 UTC on January 7.
New region 11947 [N11W70] emerged on January 5 and was numbered by SWPC
the next day.
New region 11948 [N06E67] rotated into view on January 5 and got its NOAA
number the next day.
Spotted regions not numbered (or interpreted differently) by SWPC:
S2971 [S22W32] reemerged with a penumbra spot.
S2995 [S18E27] was quiet and stable.
New region S2996 [S01E13] emerged with a penumbra spot.
AR 11937 behind the southwest limb produced a large proton flare which peaked at 07:45 UTC. This event was associated with a halo CME.
Minor update added at 19:10 UTC: A relatively weak solar wind shock was observed arriving at ACE near 14:20 UTC. Although Bz has been southwards, the total field of the IMF has been unimpressive. Two major flares have been observed so far today. AR 11944 produced an M7.2/2B flare at 10:13 UTC. Only a minor CME was observed after this event. Then, beginning just after 18h and peaking at 18:32 UTC, AR 11943 and 11944 both contributed to an X1.2 long duration event. The event apparently began in AR 11943 and quickly spread to AR 11944. A fast CME was observed in STEREO-A at the time. This CME could reach Earth on January 9 and cause active to major storm conditions, possibly with severe storm intervals.
January 5-6: No obviously Earth directed CMEs were observed in LASCO
and
STEREO imagery.
January 4: A full halo CME was observed late in the day after the M4
event in AR 11943. This CME could reach Earth on January 7.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A trans equatorial coronal hole (CH599) will likely rotate into an Earth facing position on January 9-10.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is very poor due to a proton event. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to minor storm with a chance of major storm intervals on January 7-8 due to CME effects. Quiet conditions are likely on January 9.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

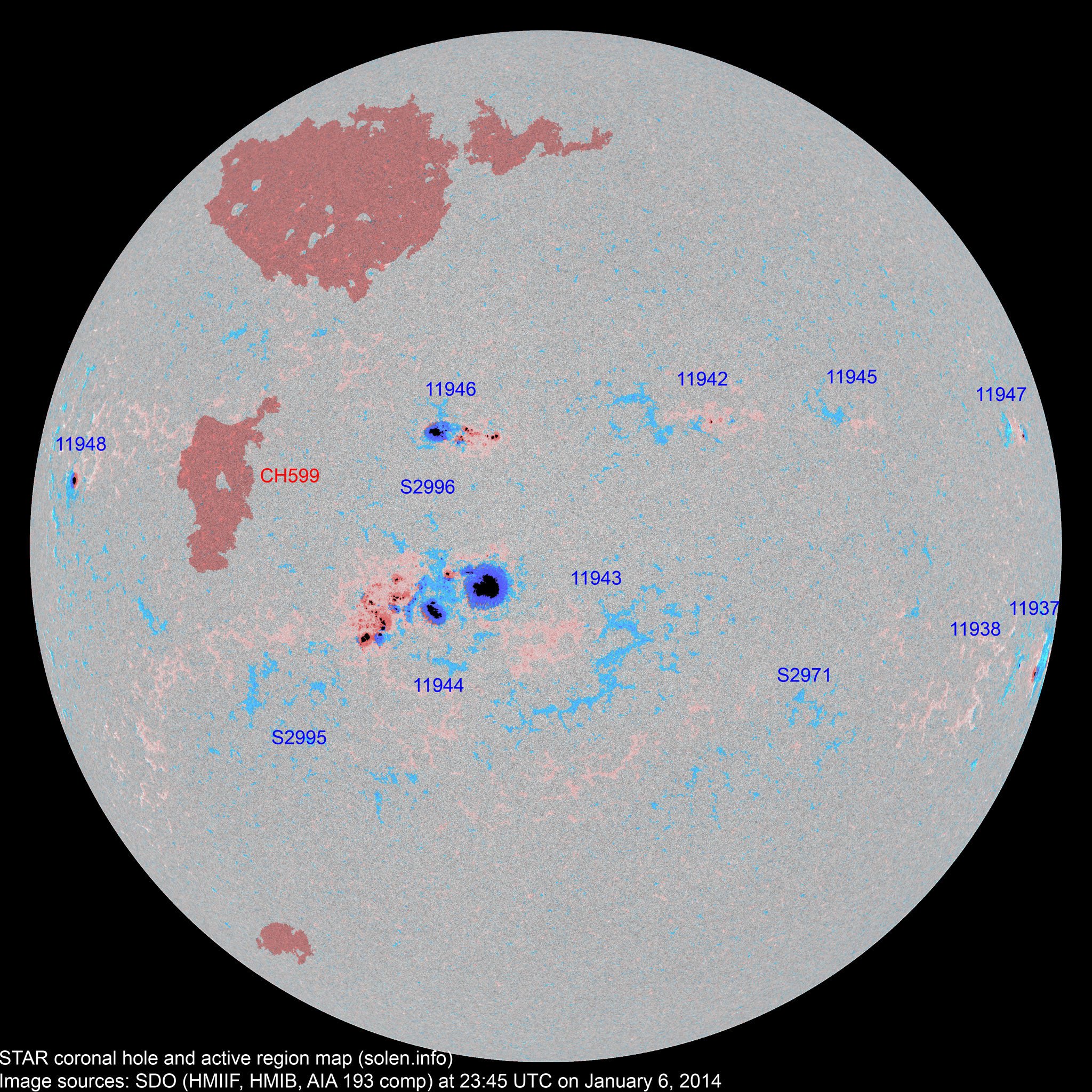

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11937 | 2013.12.25 2013.12.26 |
21 | 6 | 3 | S13W85 | 0160 | DAI | DAO |
 |
 |
|
| 11938 | 2013.12.26 2013.12.27 |
1 | 2 | 1 | S14W73 | 0010 | HRX | CRO |
 |
 |
|
| S2966 | 2013.12.29 | S14W45 | plage | ||||||||
| S2971 | 2013.12.30 | 1 | S22W32 | 0002 | AXX |
 |
|||||
| 11943 | 2013.12.30 2013.12.31 |
1 | 16 | 5 | S11W07 | 0010 | AXX | BXO |
 |
 |
area: 0035 location: S13W03 |
| 11942 | 2013.12.30 2013.12.31 |
3 | 14 | 3 | N10W20 | 0020 | CRO | CRO |
 |
 |
|
| 11944 | 2013.12.31 2014.01.01 |
112 | 121 | 69 | S09E11 | 1415 | FKC | FKC |
 |
 |
beta-gamma-delta area: 2600 |
| S2977 | 2013.12.31 | N14W55 | plage | ||||||||
| 11945 | 2014.01.01 2014.01.02 |
1 | 1 | 1 | N11W39 | 0010 | AXX | AXX |
 |
 |
area: 0004 |
| S2980 | 2014.01.01 | S04W45 | plage | ||||||||
| S2983 | 2014.01.03 | N21E26 | plage | ||||||||
| S2984 | 2014.01.03 | N38W44 | plage | ||||||||
| S2986 | 2014.01.03 | S26W20 | plage | ||||||||
| 11946 | 2014.01.04 | 11 | 29 | 20 | N09E07 | 0140 | DAC | DAC |
 |
 |
beta-gamma-delta location: N09E10 area: 0400 |
| S2988 | 2014.01.04 | N20W05 | plage | ||||||||
| S2989 | 2014.01.04 | N00W41 | plage | ||||||||
| S2990 | 2014.01.04 | S09W45 |
 |
plage | |||||||
| 11948 | 2014.01.05 2014.01.06 |
1 | 1 | 1 | N06E67 | 0060 | HSX | HSX |
 |
 |
area: 0140 |
| S2992 | 2014.01.05 | N17E22 |
 |
plage | |||||||
| S2993 | 2014.01.05 | N04W05 |
 |
plage | |||||||
| 11947 | 2014.01.05 2014.01.06 |
4 | 3 | 2 | N11W70 | 0030 | CRO | DRO |
 |
 |
|
| S2995 | 2014.01.05 | 3 | S18E27 | 0008 | AXX |
 |
 |
||||
| S2996 | 2014.01.06 | 1 | S01E13 | 0002 | AXX |
 |
|||||
| Total spot count: | 155 | 198 | 105 | ||||||||
| Sunspot number: | 245 | 318 | 195 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 189 | 232 | 139 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 147 | 111 | 107 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2011.11 | 153.5 (cycle peak) | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
| 2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
| 2012.11 | 121.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 57.0 | (65.4 projected, +2.8) | 9.47 |
| 2013.08 | 114.6 | 66.0 | (67.8 projected, +2.4) | 8.27 |
| 2013.09 | 102.6 | 36.9 | (70.1 projected, +2.3) | 5.23 |
| 2013.10 | 132.1 | 85.6 | (70.0 projected, -0.1) | 7.71 |
| 2013.11 | 148.3 | 77.6 | (68.1 projected, -1.9) | 5.68 |
| 2013.12 | 147.7 | 90.3 | (67.4 projected, -0.7) | 4.6 |
| 2014.01 | 189.5 (1) | 33.8 (2A) / 174.8 (2B) / 99.7 (2C) | (67.6 projected, +0.2) | (8.2) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
