Recent activity

The geomagnetic field was quiet to active on January 1. Solar wind speed at SOHO ranged between 359 and 596 km/s. A high speed stream associated with CH598 began at ACE near 10h UTC.

Solar flux measured at 20h UTC on 2.8 GHz was 159.6 (increasing 10.0 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 140.9. The Potsdam WDC planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 12.0). Three hour interval K indices: 12234333 (planetary), 01235332 (Boulder).

The background x-ray flux is at the class C2 level.

At the time of counting spots (see image time) spots were observed in 12 active regions in 2K resolution (SN: 249) and 10 active regions in 1K resolution (SN: 165) SDO images on the visible solar disk.

Region 11936 [S17W52] lost spots and complexity after the M9 flare. C5+ flare: major M9.9/2B at 18:52 UTC.
Region 11937 [S13W18] gained a trailing umbra.
Region 11938 [S14W02] was quiet and stable.
Region 11940 [S11W59] changed quickly during the day. Early in the day a new region emerged nearby and to the west of AR 11940. For some hours both regions were distinct, however, flux emerged quickly in the western region and obliterated the original AR 11940. At least C flares are possible.
Region 11941 [S13W33] developed slowly and quietly.
Region 11942 [N09E52] developed slowly and quietly.
Region 11943 [S12E58] was quiet and stable.
New region 11944 [S07E77] rotated partly into view on December 31 and was numbered the next day by SWPC. This is a large and complex region with X class flare potential. The region produced an M class flare early on January 2.

Spotted regions not numbered (or interpreted differently) by SWPC:
S2959 [N18W01] decayed slowly and quietly.
S2971 [S22E31] reemerged with penumbra spots.
New region S2979 [N10E32] emerged with penumbra spots.

New region S2980 [S04E20] emerged with a penumbra spot.

Coronal mass ejections (CMEs)

December 30 - January 1: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH598) was in an Earth facing position on December 29-31.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to active on January 2-3 due to effects from CH598 and quiet to unsettled on January 4.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

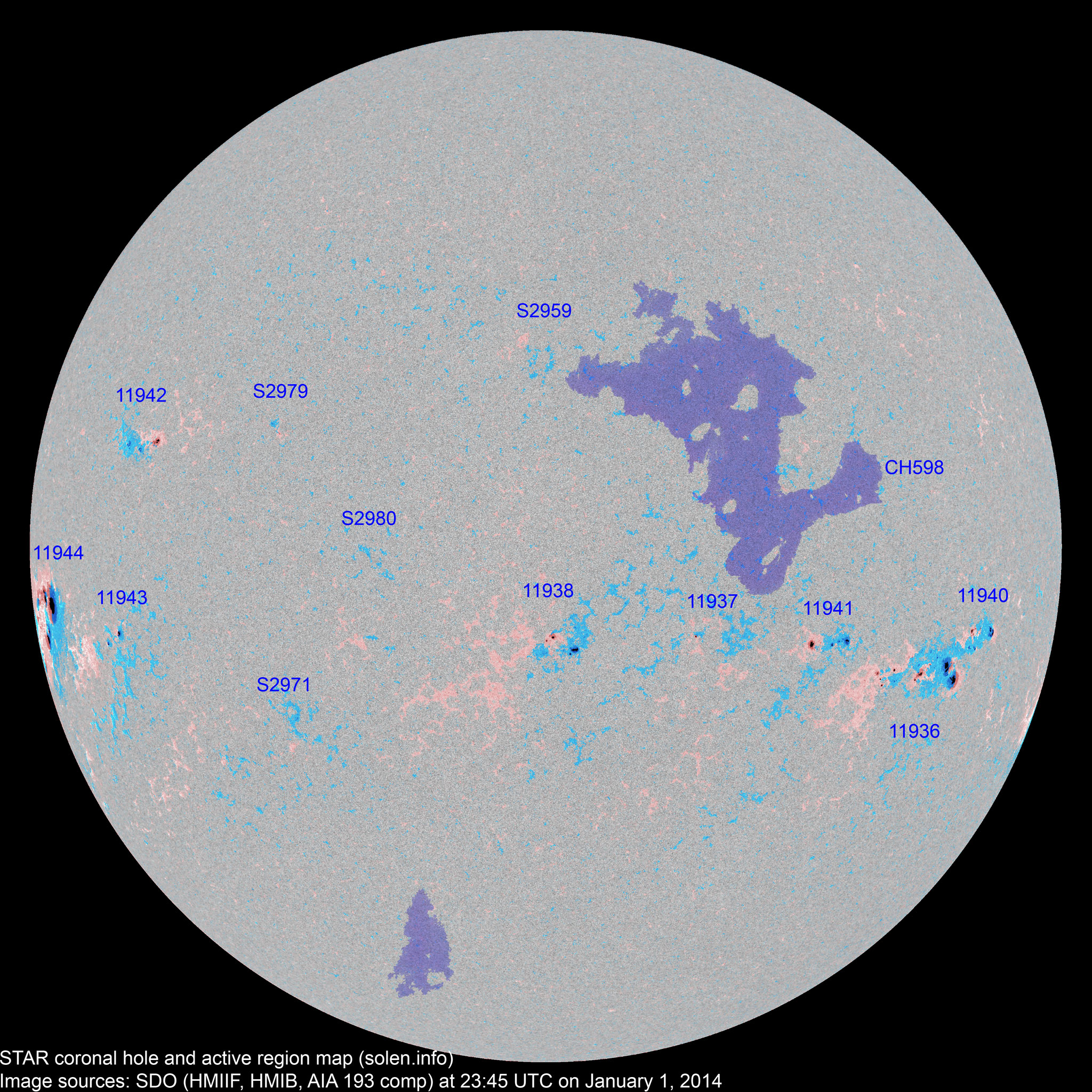

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K

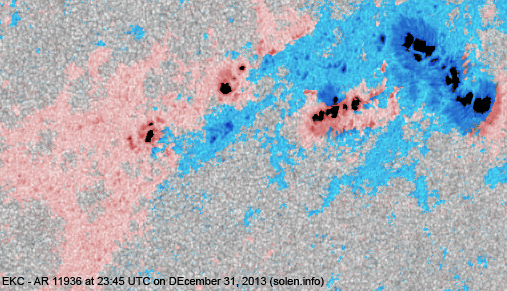

11936 2013.12.22
2013.12.23
18 43 17 S16W49 0210 EAC EAC beta-gamma

area: 0380

location: S17W52

11935 2013.12.22
2013.12.23
      S06W82           plage
S2947 2013.12.24       S21W27           plage
S2948 2013.12.24       S30W52           plage
S2949 2013.12.24       N07W29           plage
11937 2013.12.25
2013.12.26
  3 2 S12W23 0010   CRO location: S13W18

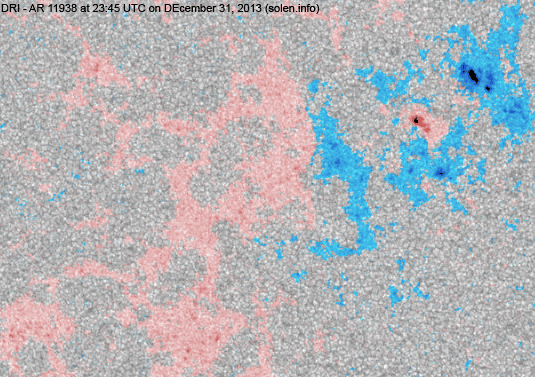

11938 2013.12.26
2013.12.27
6 20 11 S12W03 0030 CRO DAO area: 0080
S2956 2013.12.26       N10W58           plage
S2959 2013.12.27   1   N18W01 0002   AXX
S2960 2013.12.27       S12W58           plage
11941 2013.12.28
2013.12.31
4 13 6 S12W34 0040 DAO DAI area: 0100
S2965 2013.12.29       S28E03           plage
S2966 2013.12.29       S13E22           plage
S2967 2013.12.29       S35W23           plage
S2968 2013.12.29       N23W46           plage
S2971 2013.12.30   3 1 S22E31 0010   AXX
11943 2013.12.30
2013.12.31
1 6 3 S11E57 0020 CRO CRO area: 0040
11942 2013.12.30
2013.12.31
1 9 5 N10E49 0020 CRO CAI area: 0080

location: N09E52

11940 2013.12.30
2013.12.31
3 16 8 S12W59 0040 CAO DAI area: 0090
S2975 2013.12.30       S30W25         plage
11944 2013.12.31
2014.01.01
3 12 10 S07E75 0250 DKO EKC beta-gamma-delta

area: 1300

location: S07E77

S2977 2013.12.31       N14E10         plage
S2979 2014.01.01   2 2 N10E32 0009   BXO
S2980 2014.01.01   1   S04E20 0002   AXX
Total spot count: 36 129 65
Sunspot number: 106 249 165  (total spot count + 10 * number of spotted regions)
Weighted SN: 70 170 106  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 64 87 91 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 57.5 (-0.9) 10.56
2013.04 124.8 72.4 57.9 (+0.4) 5.40
2013.05 131.4 78.7 59.9 (+2.0) 9.73
2013.06 110.1 52.5 62.6 (+2.7) 12.60
2013.07 115.5 57.0 (65.4 projected, +2.8) 9.47
2013.08 114.6 66.0 (67.8 projected, +2.4) 8.27
2013.09 102.6 36.9 (70.1 projected, +2.3) 5.23
2013.10  132.1 85.6 (70.0 projected, -0.1) 7.71
2013.11  148.3 77.6 (68.1 projected, -1.9) 5.68
2013.12 147.7 90.3 (67.4 projected, -0.7) 4.6
2014.01 159.6 (1) 3.4 (2A) / 106 (2B) / 93.2 (2C) (67.6 projected, +0.2) (12)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
