The geomagnetic field was quiet on February 25. Solar wind speed at SOHO ranged between 348 and 439 km/s.
Solar flux at 20h UTC on 2.8 GHz was 173.9 (increasing 17.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 152.0. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.5). Three hour interval K indices: 10001012 (planetary), 00012212 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time) spots were observed in 18 active regions in 2K resolution (SN: 386) and 15 active regions in 1K resolution (SN: 261) SDO images on the visible solar disk.
Region 11981 [S07W47] decayed slowly and quietly.
Region 11982 [S11W35] decayed slowly with the exception of the southern
central section where a small magnetic delta structure has formed. The region
was mostly quiet.
Region 11983 [S14W49] decayed slowly and quietly.
Region 11984 [S18W49] reemerged with several spots.
Region 11986 [N13W03] decayed slowly and was mostly quiet.
C5+ flare: C5.7/1N at 15:10 UTC.
Region 11987 [S01E23] was quiet and stable.
Region 11989 [N08E40] decayed slowly and quietly.
Region 11990 [S12E66] lost penumbral area after the X flare, however,
there is still strong magnetic
delta structure inside the single large spot.
C5+ flares: X4.9/2B at 00:49 (associated with a fast
and asymmetric full halo CME), C5.0 at 04:32 UTC.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3141 [S06W35] was quiet and stable.
S3154 [S27W06] reemerged with a penumbra spot.
S3155 [S06E26] was quiet and stable.
S3156 [N04E48] developed slowly and was quiet.
New region S3161 [S26E81] rotated into view.
New region S3162 [S20E35] emerged with penumbra spots.
New region S3163 [S11E47] emerged with a few spots.
New region S3164 [N14E54] emerged with a penumbra spot.
New region S3165 [N16E73] emerged with a penumbra spot.
New region S3166 [N06E11] emerged with a penumbra spot.
February 23-24: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
February 25: An asymmetric full halo CME was observed after the X4 flare in AR
11990. The CME will likely reach Earth on February 27.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A negative polarity trans equatorial coronal hole (CH605) was in an Earth facing position on February 24-25.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on February 26. On February 27-28 a CME could cause unsettled to minor storm conditions. On February 28 there is a chance of a few active intervals due to effects from CH605.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

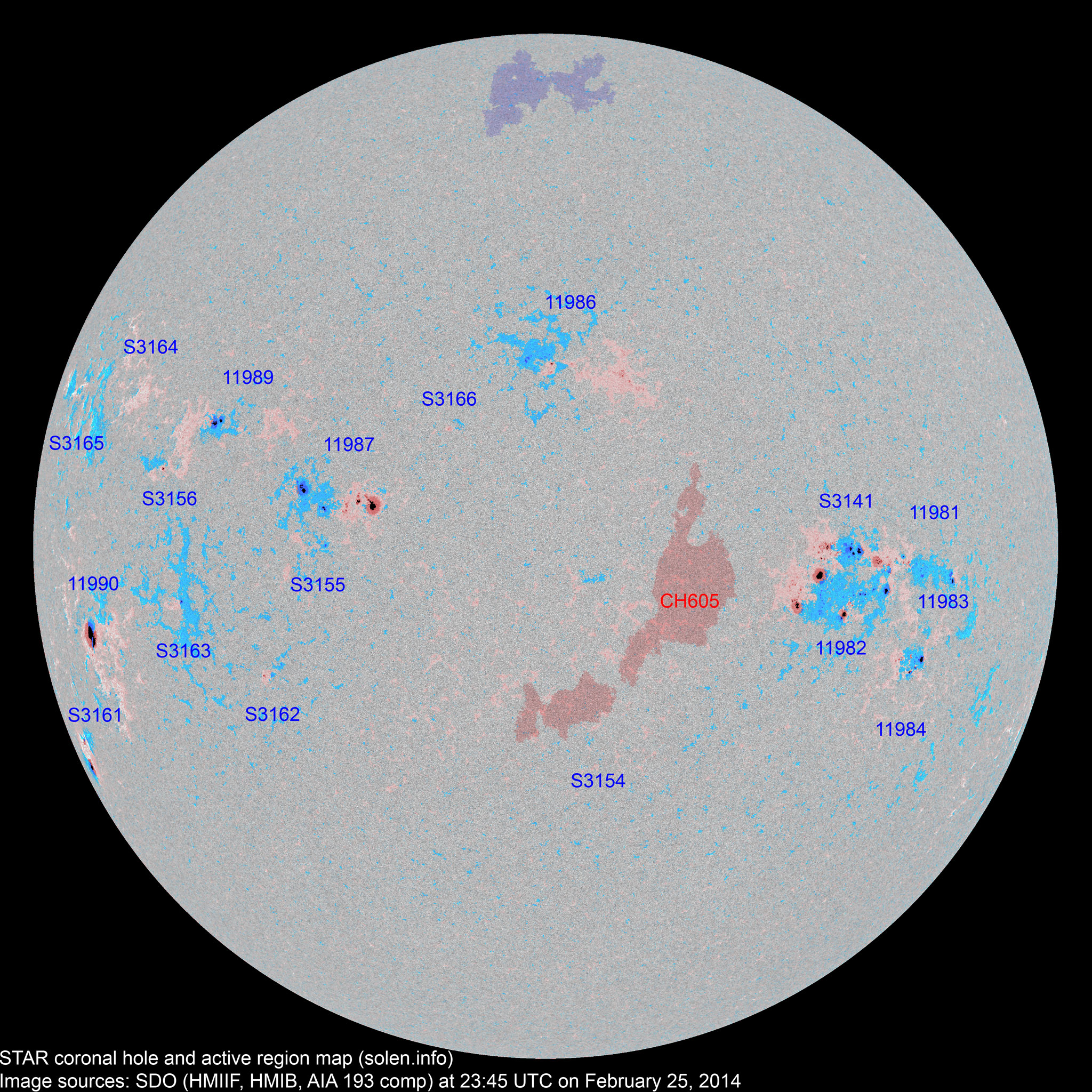

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11983 | 2014.02.16 2014.02.18 |
1 | S13W59 | 0003 | AXX |
 |
 |
location: S14W49 |
|||
| 11982 | 2014.02.16 2014.02.17 |
43 | 44 | 24 | S10W36 | 0330 | ESC | ESC |
 |
 |
beta-gamma-delta area: 0380 location: S11W35 |
| 11981 | 2014.02.16 2014.02.17 |
14 | 30 | 19 | S08W47 | 0110 | EAI | EAI |
 |
 |
beta-gamma area: 0170 |
| 11984 | 2014.02.17 2014.02.18 |
2 | 18 | 9 | S18W49 | 0020 | HRX | DAI |
 |
beta-gamma area: 0090 |
|
| S3137 | 2014.02.17 | S21W53 | plage | ||||||||
| 11986 | 2014.02.19 2014.02.20 |
10 | 23 | 13 | N14W05 | 0040 | CRO | ERI |
 |
 |
area: 0070 |
| S3141 | 2014.02.19 | 28 | 18 | S06W35 | 0180 | DAC |
 |
 |
|||
| 11987 | 2014.02.21 | 9 | 21 | 12 | S01E23 | 0170 | DAI | EAI |
 |
 |
area: 0360 |
| 11988 | 2014.02.21 2014.02.22 |
S10W07 |
 |
plage | |||||||
| S3150 | 2014.02.22 | S17W07 | plage | ||||||||
| 11989 | 2014.02.22 2014.02.23 |
7 | 6 | 3 | N08E38 | 0060 | CAO | CAO |
 |
 |
area: 0130 location: N08E40 |
| S3154 | 2014.02.23 | 1 | S27W06 | 0003 | AXX |
 |
|||||
| S3155 | 2014.02.23 | 3 | 1 | S06E26 | 0010 | BXO |
 |
 |
|||
| S3156 | 2014.02.23 | 7 | 1 | N04E48 | 0020 | CRO |
 |
 |
|||
| S3159 | 2014.02.24 | S22W03 | 0004 | AXX |
 |
plage | |||||
| 11990 | 2014.02.24 | 2 | 7 | 3 | S12E64 | 0180 | HKX | DKC |
 |
 |
delta area: 0440 |
| S3161 | 2014.02.25 | 7 | 2 | S26E81 | 0180 | CAO |
 |
||||
| S3162 | 2014.02.25 | 4 | 3 | S20E35 | 0020 | BXO |
 |
||||
| S3163 | 2014.02.25 | 3 | 1 | S11E47 | 0016 | CRO |
 |
||||
| S3164 | 2014.02.25 | 1 | N14E54 | 0001 | AXX |
 |
|||||
| S3165 | 2014.02.25 | 1 | 1 | N16E73 | 0005 | AXX |
 |
||||
| S3166 | 2014.02.25 | 1 | 1 | N06E11 | 0004 | AXX |
 |
||||
| Total spot count: | 87 | 206 | 111 | ||||||||
| Sunspot number: | 157 | 386 | 261 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 123 | 260 | 165 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 94 | 135 | 144 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2011.11 | 153.5 | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 | |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) | 8.81 | |
| 2012.11 | 121.3 | 118.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 105.0 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 123.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | (69.0 projected, +3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | (73.0 projected, +4.0) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | (74.0 projected, +1.0) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | (72.9 projected, -1.1) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | (71.8 projected, -1.1) | 4.68 |
| 2014.01 | 157.4 (cycle peak) |
152.4 | 82.0 | (71.0 projected, -0.8) | 5.44 |
| 2014.02 | 169.7 (1) | 149.5 (2A) / 167.4 (2B) / 111.4 (2C) | (71.2 projected, +0.2) | (10.8) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
