Recent activity

The geomagnetic field was quiet to active on February10. Solar wind speed at SOHO ranged between 399 and 556 km/s under the influence of a high speed coronal hole stream.

Solar flux at 20h UTC on 2.8 GHz was 161.0 (increasing 24.0 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 150.0. The Potsdam WDC planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 10.6). Three hour interval K indices: 32121134 (planetary), 22222233 (Boulder).

The background x-ray flux is at the class C1 level.

At the time of counting spots (see image time) spots were observed in 12 active regions in 2K resolution (SN: 306) and 9 active regions in 1K resolution (SN: 201) SDO images on the visible solar disk.

Region 11970 [S17W47] was quiet and stable.
Region 11971 [S12W31] decayed slowly and quietly.
Region 11973 [N04W05] decayed slowly and quietly.
Region 11974 [S11E08] gained a few spots and was quiet.
Region 11975 [S13W62] decayed slowly and quietly.
Region 11976 [S14E50] decayed early in the day and developed again after noon.
New region 11977 [S10E78] rotated into view.

Spotted regions not numbered (or interpreted differently) by SWPC:

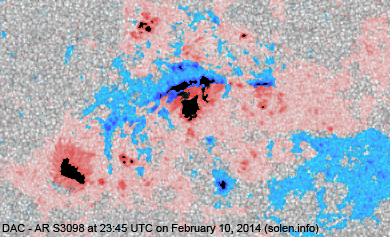

S3098 [S12E18] developed quickly and has become the most complex region on the visible disk with an elongated magnetic delta structure in the central section. The region produced an M1.7 flare early on February 11. Further M class flaring is likely.
S3105 [S14E60] was quiet and stable.
S3106 [N17W12] was quiet and stable.
New region S3108 [N05W25] emerged with several spots.
New region S3110 [S37W07] emerged with a penumbra spot.

Coronal mass ejections (CMEs)

February 8-10: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.

Forecast

The geomagnetic field is expected to be quiet to unsettled on February 11 due to coronal hole effects and quiet on February 12-13.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

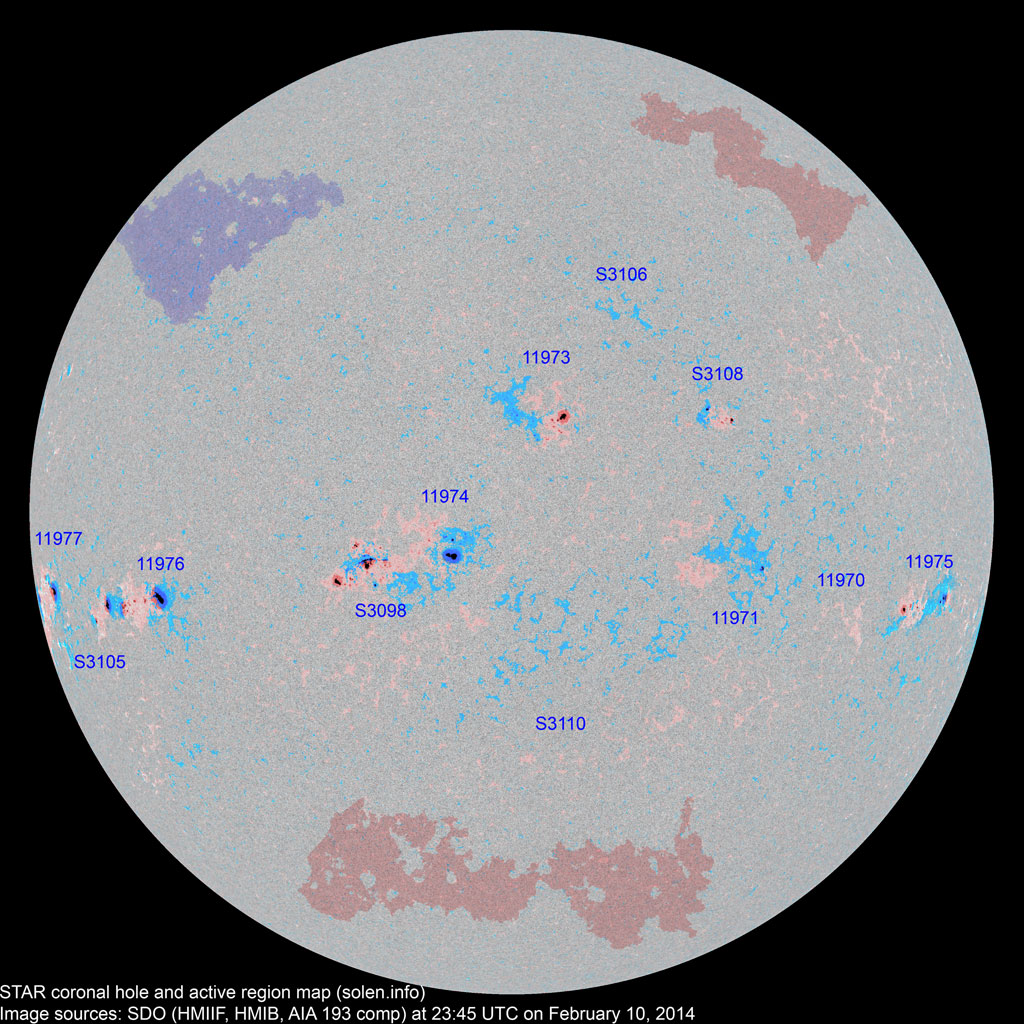

Active solar regions

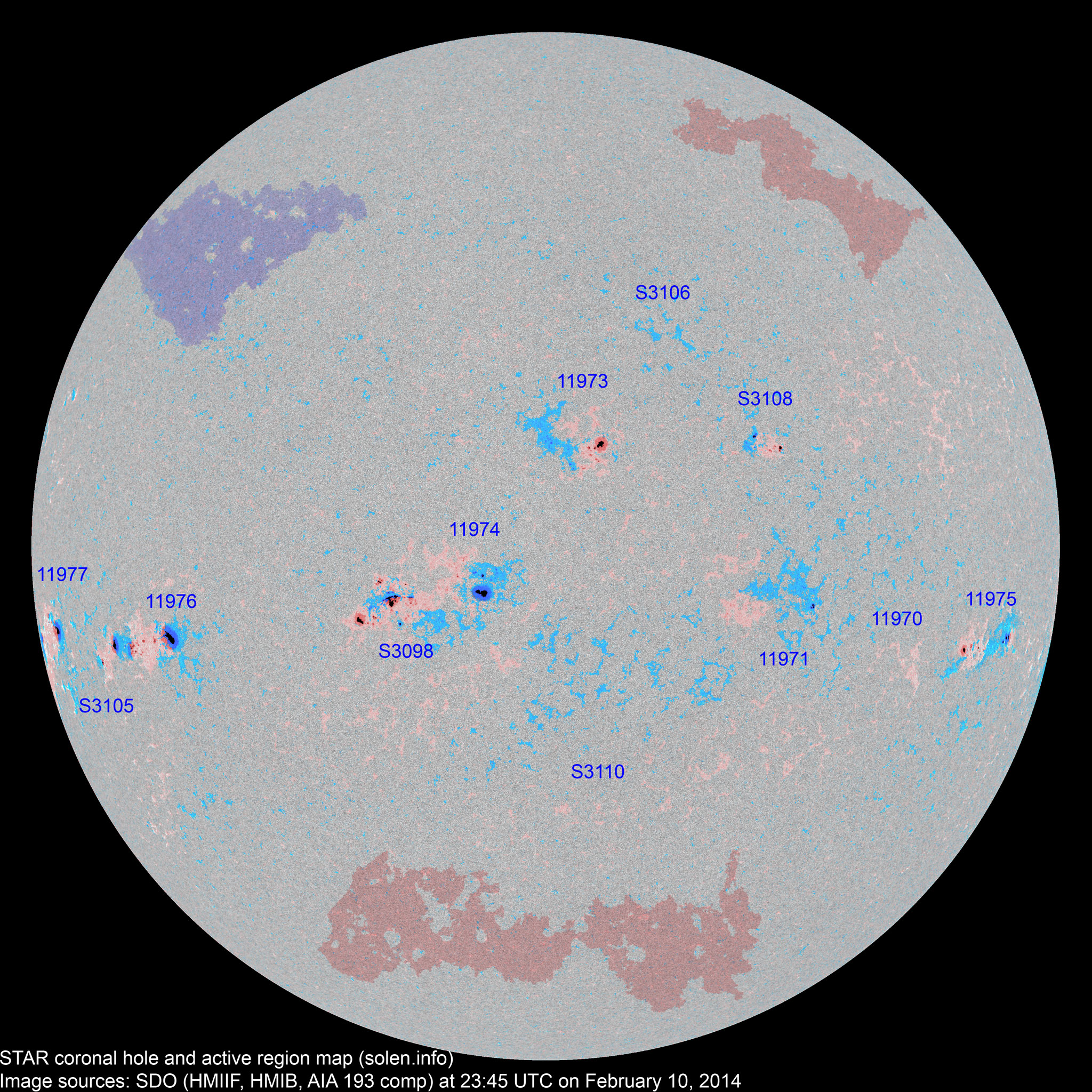

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11970 2014.02.01
2014.02.02
  1   S17W58 0003   AXX

location: S17W47

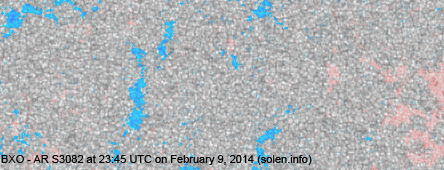

S3082 2014.02.01       N08W30         plage
11975 2014.02.02
2014.02.09
9 15 7 S14W63 0110 DAI EAI

area: 0190

11972 2014.02.02
2014.02.05
      S12W81

plage

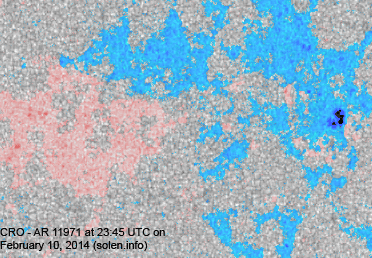

11971 2014.02.03
2014.02.04
4 19 7 S11W30 0040 CAO CRO



S3090 2014.02.03       N18W44           plage
S3092 2014.02.04       S08W19         plage

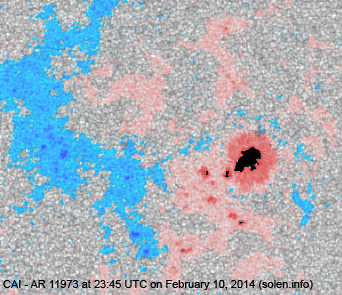

11973 2014.02.04
2014.02.05
12 24 17 N03W03 0100 CAO CAI

area: 0150

location: N04W05

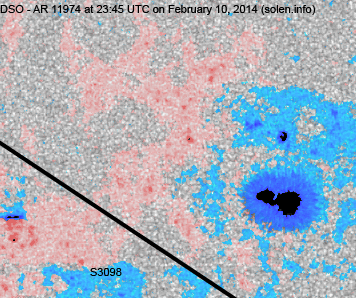

11974 2014.02.04
2014.02.05
25 24 17 S13E12 0220 FSI DAO location: S11E08

area: 0200

S3096 2014.02.05       N15E01           plage
S3098 2014.02.06   51 33 S12E18 0330   DAC beta-gamma-delta

SWPC has this as part of AR 11974

S3099 2014.02.07       S26W34         plage
11976 2014.02.07
2014.02.08
11 21 14 S14E53 0390 EKI DKI area: 0550

location: S14E50

S3102 2014.02.08       S21E01         plage
S3105 2014.02.09   6 3 S14E60 0210   DAO SWPC has this as part of AR 11976

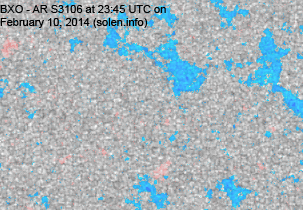

S3106 2014.02.09   4   N17W12 0007   BXO
S3107 2014.02.09       S21W21         plage
11977 2014.02.10 1 6 4 S11E77 0080 HSX DAO   area: 0270
S3108 2014.02.10   14 9 N05W25 0050   DRO
S3110 2014.02.10   1   S37W07 0002   AXX
Total spot count: 62 186 111
Sunspot number: 122 306 201  (total spot count + 10 * number of spotted regions)
Weighted SN: 97 232 157  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 73 107 111 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2011.11 153.5   96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5   32.9 66.9 (+1.4) 8.81
2012.11 121.3 118.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 105.0 40.8 59.6 (-0.1) 3.44
2013.01 127.1 123.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 101.8 38.0 58.4 (-0.3) 6.11
2013.03 111.3 110.2 57.9 57.5 (-0.9) 10.56
2013.04 124.8 125.9 72.4 57.9 (+0.4) 5.40
2013.05 131.4 134.3 78.7 59.9 (+2.0) 9.73
2013.06 110.1 113.7 52.5 62.6 (+2.7) 12.60
2013.07 115.5 119.3 57.0 65.5 (+2.9) 9.47
2013.08 114.6 118.3 66.0 (67.8 projected, +2.3) 8.27
2013.09 102.6 103.7 36.9 (69.6 projected, +1.8) 5.23
2013.10  132.1 131.2 85.6 (69.3 projected, -0.3) 7.71
2013.11  148.3 145.1 77.6 (67.5 projected, -1.8) 5.68
2013.12 147.7 143.1 90.3 (66.7 projected, -0.8) 4.68
2014.01 157.4
(cycle peak)
152.4 82.0 (66.9 projected, +0.2) 5.44
2014.02 180.8 (1)   66.0 (2A) / 184.7 (2B) / 105.4 (2C) (65.9 projected, -1.0) (8.2)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
