The geomagnetic field was quiet to unsettled on December 10. Solar wind speed at SOHO ranged between 449 and 546 km/s.
Solar flux at 20h UTC on 2.8 GHz was 149.8 (decreasing 3.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 149.9. The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.5). Three hour interval K indices: 32221111 (planetary), 21232211 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 231) and 11 active regions using 1K resolution (SN: 163) SDO images on the visible solar disk.
Region 12227 [S05W32] was quiet and stable. The
region has minor polarity intermixing.
Region 12230 [S15E08] decayed in the trailing spot section and was mostly
quiet.
Region 12232 [N09E39] decayed further losing penumbral area.
Region 12233 [N01E02] decayed slowly and quietly.
New region 12234 [N03E17] emerged on December 9 and was numbered by SWPC
the next day as the region continued to develop.
New region 12235 [S08E64] rotated into view on December 9 and received
its NOAA number the following day.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4047 [N18W35] lost the leading penumbra spot while a trailing penumbra
spot emerged.
S4054 [S13W22] was quiet and stable.
New region S4069 [S12E80] rotated into view.
New region S4071 [N12E24] emerged with a penumbra spot.
New region S4072 [S12E39] was observed with penumbra spots.
New region S4073 [N29E86] rotated partly into view. C flares are possible.
A filament eruption began just before 15h UTC near AR S4054 and expanded to include a fairly large area, mostly in the southwest quadrant and extending to near the central meridian and the equator. LASCO imagery of the hours after this event is missing, therefore it is uncertain whether there was a potentially Earth directed CME or not.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C5.9 (LDE) | 19:22 | behind SW limb |
December 8-9: No obviously Earth directed CMEs were observed in LASCO imagery.
December 10: A filament eruption mainly in the southwest quadrant may
have caused a potentially Earthbound CME. If that is the case the CME would
reach Earth on December 13.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A recurrent northern hemisphere coronal hole (CH645) will rotate into an Earth facing position on December 10-12.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor and slowly improving. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be mostly quiet on December 11-12. On December 13 there is a chance of a small CME impact. A high speed stream from CH645 will likely arrive that day and cause quiet to active conditions until December 16.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

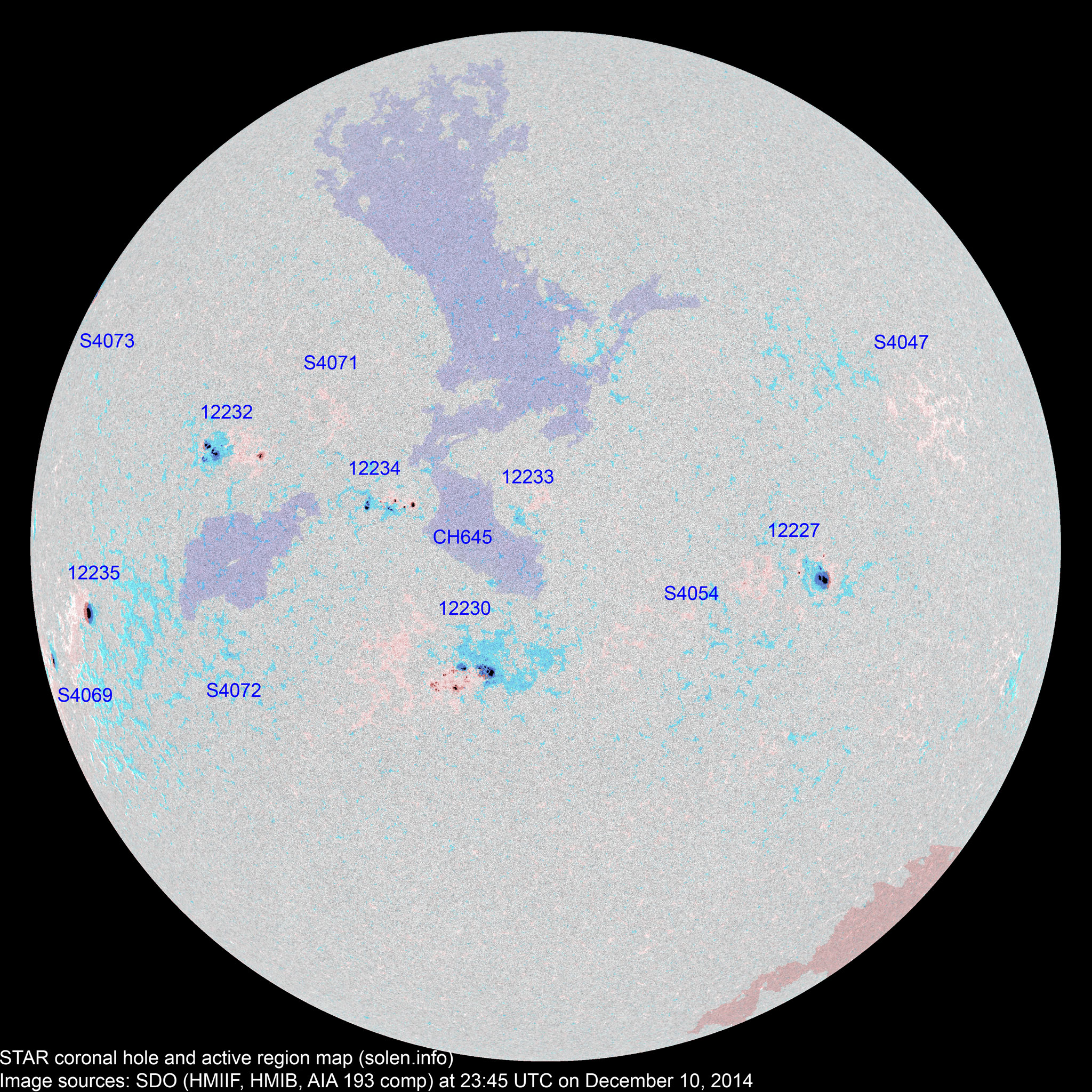

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12225 | 2014.11.29 2014.11.30 |
S15W76 | plage | ||||||||

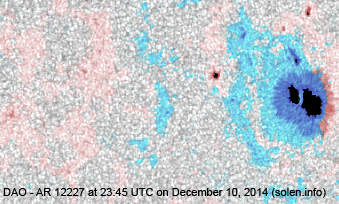

| 12227 | 2014.12.02 | 4 | 10 | 8 | S03W34 | 0120 | CAO | DAO |
 |
 |
beta-gamma location: S05W32 |
| S4047 | 2014.12.02 | 1 | 1 | N18W35 | 0003 | AXX |
 |
 |
|||
| S4048 | 2014.12.02 | N07W39 | plage | ||||||||
| S4054 | 2014.12.03 | 3 | 1 | S13W22 | 0007 | AXX |
 |
 |
|||
| 12229 | 2014.12.04 2014.12.06 |
S23W32 | plage | ||||||||
| S4057 | 2014.12.04 | S14W42 | plage | ||||||||

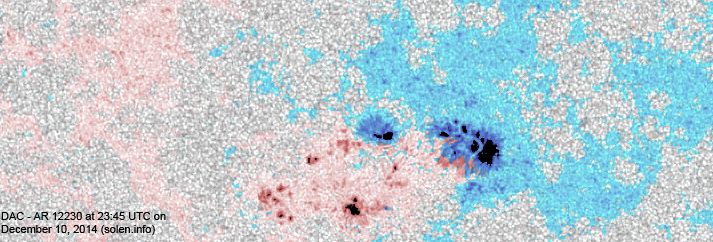

| 12230 | 2014.12.05 2014.12.06 |
20 | 48 | 17 | S15E08 | 0130 | DAI | DAC |
 |
 |
beta-gamma area: 0250 |
| 12231 | 2014.12.07 | S03W28 | merged with AR 12227 | ||||||||
| 12232 | 2014.12.07 | 7 | 18 | 9 | N10E37 | 0240 | DAO | DAO |
 |
 |
location: N09E39 |
| 12233 | 2014.12.07 2014.12.09 |
2 | 2 | 1 | N03E02 | 0010 | BXO | AXX |
 |
 |
location: N01E02 |

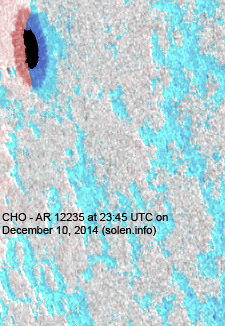

| 12235 | 2014.12.09 2014.12.10 |
1 | 3 | 1 | S07E63 | 0140 | HSX | CHO |
 |
 |
area: 0270 |
| 12234 | 2014.12.09 2014.12.10 |
3 | 18 | 12 | N05E18 | 0020 | CRO | DRI |
 |
 |
beta-gamma area: 0090 location: N03E17 |
| S4068 | 2014.12.09 | N20W02 |
 |
plage | |||||||
| S4069 | 2014.12.10 | 3 | 1 | S12E80 | 0080 | CSO |
 |
||||
| S4071 | 2014.12.10 | 1 | N12E24 | 0002 | AXX |
 |
|||||
| S4072 | 2014.12.10 | 3 | 1 | S12E39 | 0007 | AXX |
 |
||||
| S4073 | 2014.12.10 | 1 | 1 | N29E86 | 0200 | HAX |
 |
||||
| Total spot count: | 37 | 111 | 53 | ||||||||
| Sunspot number: | 97 | 231 | 163 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 60 | 149 | 91 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 58 | 81 | 90 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | 80.5 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (79.1 projected, -1.6) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (77.5 projected, -1.6) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (75.1 projected, -3.0) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (71.9 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (69.5 projected, -2.4) | 8.96 |
| 2014.11 | 154.8 | 151.4 | 70.1 | (67.7 projected, -1.8) | 9.33 |
| 2014.12 | 146.1 (1) | 34.0 (2A) / 105.3 (2B) / 89.4 (2C) | (66.0 projected, -1.7) | (10.5) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
