The geomagnetic field was quiet to active on December 7. Solar wind speed at SOHO ranged between 751 and 779 km/s (very limited sample set due to SOHO keyhole event). After further evaluation of available data the disturbance that began on December 6 may be related to a co-rotating interaction region associated with the large southern hemisphere coronal hole.
Solar flux at 20h UTC on 2.8 GHz was 131.8 (decreasing 4.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 150.6. The Potsdam WDC planetary A index was 21 (STAR Ap - based on the mean of three hour interval ap indices: 21.4). Three hour interval K indices: 42234444 (planetary), 42335442 (Boulder).
The background x-ray flux is at the class B6 level.
At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 170) and 9 active regions using 1K resolution (SN: 119) SDO images on the visible solar disk.
Region 12222 [S19W78] decayed slowly producing a
few minor C class events.
Region 12225 [S16W30] was quiet and stable.
Region 12227 [S04E07] was quiet and stable. The emerging flux in the trailing polarity section was split off as new AR 12231.
Region 12229 [S24E11] was quiet and stable.
Region 12230 [S13E48] was quiet and stable.
New region 12231 [S05E14] was split off from AR 12227 as more flux emerged. C flares are possible.
New region 12232 [N10E77] rotated into view. C and minor M class flares are possible.
Spotted regions not numbered (or interpreted differently) by SWPC:

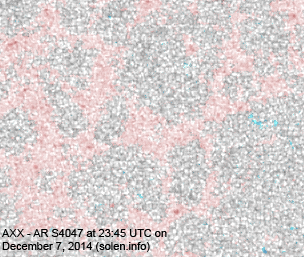

S4047 [N12W12] was quiet and stable.

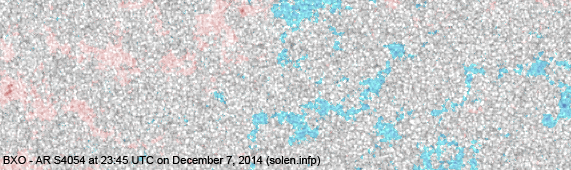

S4054 [S10E23] was quiet and stable.
S4057 [S14W03] reemerged with a penumbra spot.
New region S4064 [N03E42] emerged with penumbra spots.
C2+ flares (GOES):
|Magnitude||Peak time (UTC)||Location||AR||Comment|
December 5-7: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole history (since October
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent northern hemisphere coronal hole (CH645) will likely rotate into an Earth facing position on December 10.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to active on December 8 due to lingering effects from a co-rotating interaction region and quiet to unsettled on December 9-10.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

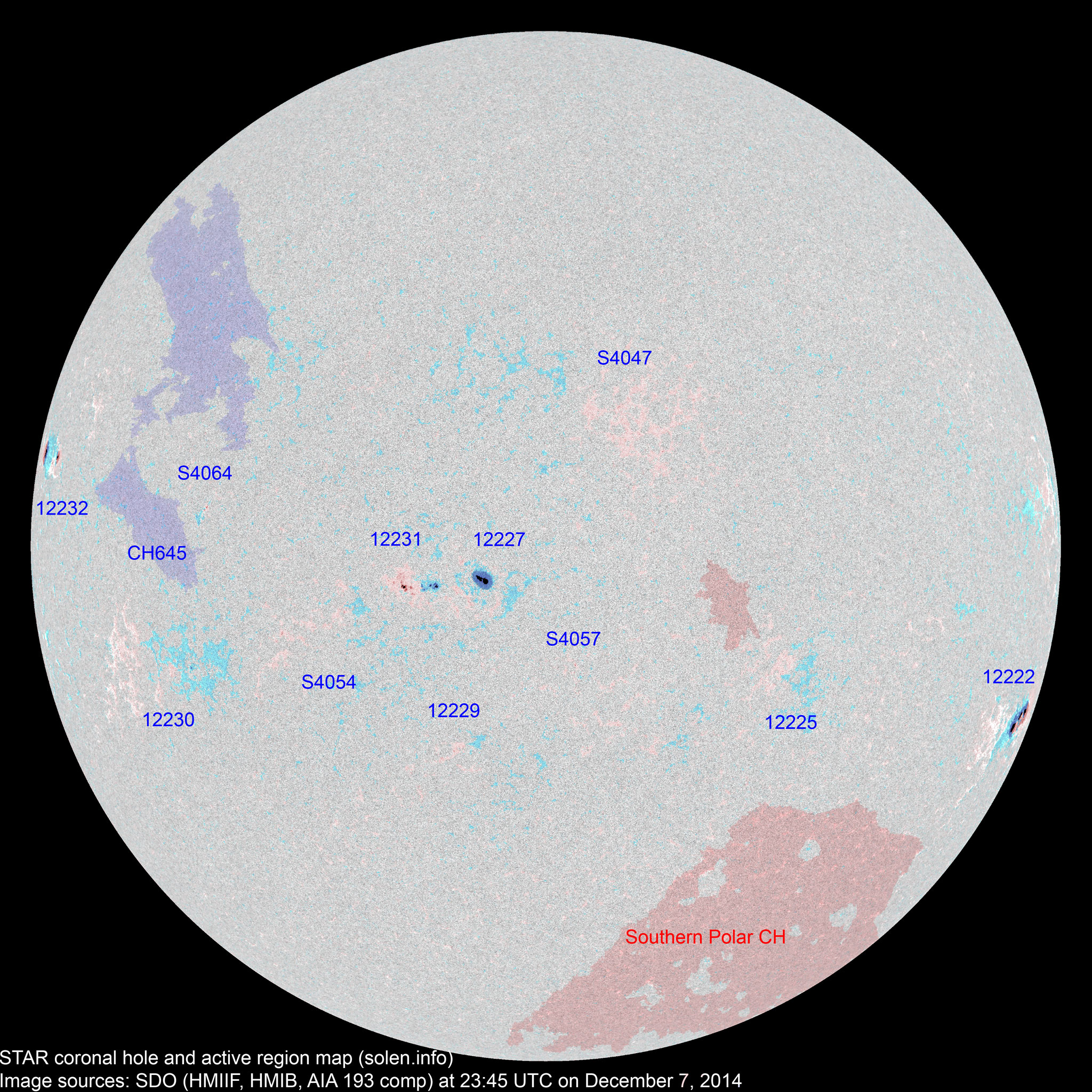

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
split off from AR 12227
|Total spot count:||18||60||29|
|Sunspot number:||58||170||119||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||43||88||57||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||35||60||65||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average ap
|166.3||102.3 (cycle peak)||78.4 (+1.1)||10.70|
(likely solar max)
|2014.06||122.0||125.8||71.0||(79.1 projected, -1.6)||6.72|
|2014.07||137.4||141.8||72.5||(77.5 projected, -1.6)||4.50|
|2014.08||124.7||127.9||74.7||(75.1 projected, -3.0)||7.71|
|2014.09||146.6||148.1||87.6||(71.9 projected, -3.2)||9.78|
|2014.10||153.4||152.9||60.6||(69.5 projected, -2.4)||8.96|
|2014.11||154.8||151.4||70.1||(67.7 projected, -1.8)||9.33|
|2014.12||148.4 (1)||25.8 (2A) / 114.1 (2B) / 90.0 (2C)||(66.0 projected, -1.7)||(10.5)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
