Recent activity

The geomagnetic field was quiet on September 15. Solar wind speed at SOHO ranged between 335 and 445 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 92.8 (decreasing 35.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 115.8. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.3). Three hour interval K indices: 10000112 (planetary), 100****1 (Boulder).

The background x-ray flux was at the class B1 level.

At the time of counting spots (see image time) there were 6 active regions in 2K resolution (SN: 73) and 2 active regions in 1K resolution (SN: 23) SDO images with spots on the visible solar disk.

Region 11840 [S11W59] developed slowly and quietly.
Region 11841 [S04E17] decayed slowly and quietly.

Spotted regions not numbered by SWPC:
S2674 [N15W20] was quiet and stable.
S2681 [S14W28] reemerged with penumbra spots.
S2682 [S10W06] was quiet and stable.
New region S2684 [S31E38] emerged with penumbra spots in an old plage area.

Coronal mass ejections (CMEs)

September 13-15: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A trans equatorial coronal hole (CH586) was in an Earth facing position on September 13-14. A coronal hole (CH587) in the northern hemisphere will likely rotate into an Earth facing position on September 19.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on September 16-17 due to effects from CH586. Quiet conditions are likely on September 18-21 becoming quiet to unsettled on September 22-23 as a stream from CH587 infuences the geomagnetic field.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

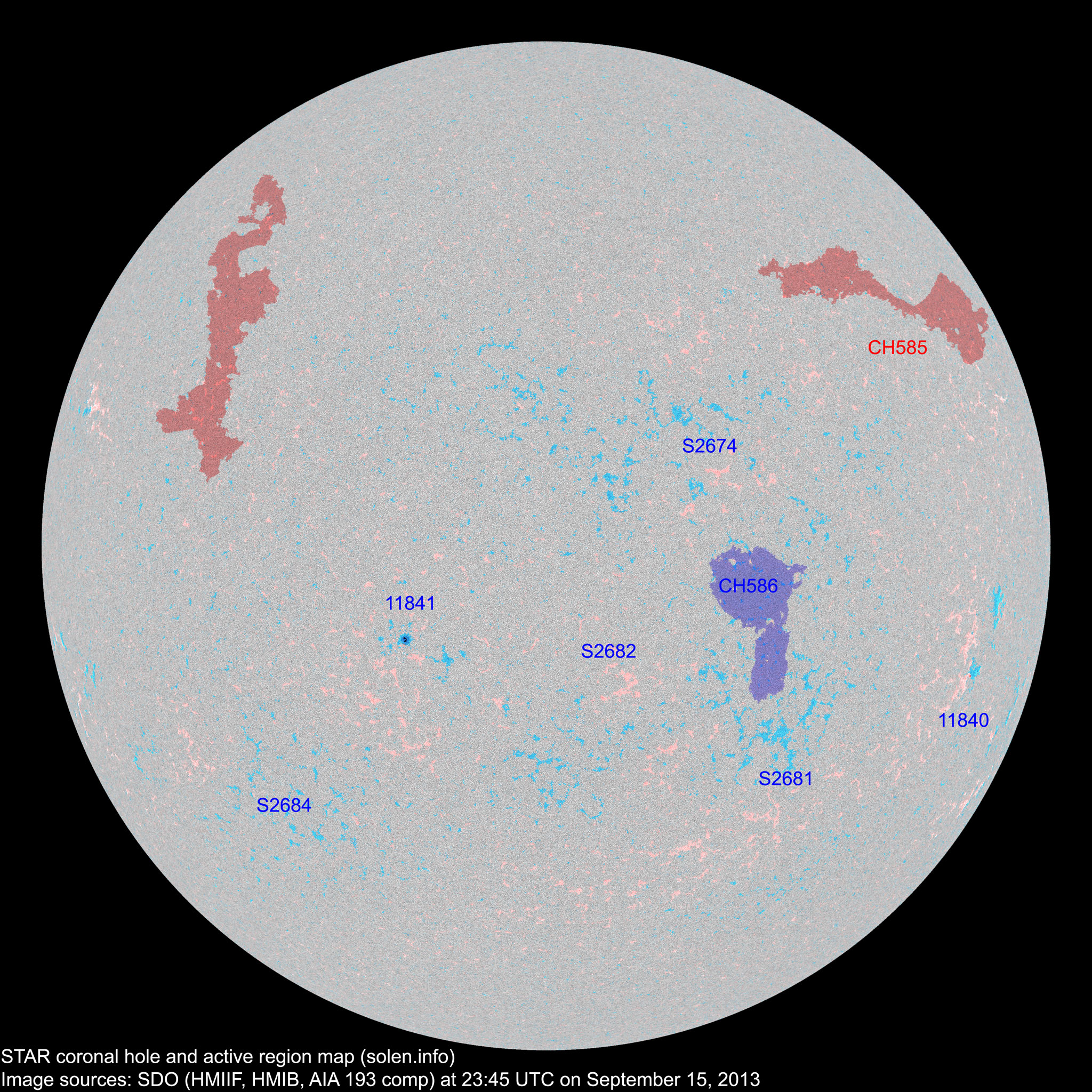

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11838 2013.09.04
2013.09.05
      S05W70

plage

11840 2013.09.05
2013.09.11
  3 1 S11W61 0009   BXO
S2667 2013.09.10       S18W16           plage
11841 2013.09.10
2013.09.11
2 3 2 S05E14 0030 HAX HSX

location: S04E17

S2669 2013.09.10       N13W10           plage
S2674 2013.09.11   2   N15W20 0003   AXX
S2675 2013.09.11       N20W16           plage
S2676 2013.09.11       N24W50           plage
S2677 2013.09.12       S28W31           plage
S2678 2013.09.13       S12W14           plage
S2679 2013.09.13       N15W25           plage
S2681 2013.09.13   2   S14W28 0003   AXX
S2682 2013.09.13   1   S10W06 0002   AXX
S2684 2013.09.15   2   S31E38 0003   AXX
Total spot count: 2 13 3
Sunspot number: 12 73 23  (total spot count + 10 * number of spotted regions)
Weighted SN: 7 18 8  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 7 26 13 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
likely cycle 24 max
8.81
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 (58.2 projected, -0.2) 10.56
2013.04 124.8 72.4 (57.9 projected, -0.3) 5.40
2013.05 131.4 78.7 (58.0 projected, +0.1) 9.73
2013.06 110.1 52.5 (58.3 projected, +0.3) 12.60
2013.07 115.5 57.0 (58.3 projected, 0.0) 9.47
2013.08 114.6 66.0 (58.2 projected, -0.1) 8.27
2013.09 98.8 (1) 23.5 (2A) / 46.9 (2B) / 45.4 (2C) (57.8 projected, -0.4) (5.63)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
