Recent activity

The geomagnetic field was quiet to active on October 14. Solar wind speed at SOHO ranged between 274 and 575 km/s under the influence of a high speed stream from CH590.

Solar flux measured at 20h UTC on 2.8 GHz was 125.0 (increasing 26.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 112.2. The Potsdam WDC planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 15.9). Three hour interval K indices: 12233344 (planetary), 02333333 (Boulder).

The background x-ray flux was at the class B5 level.

At the time of counting spots (see image time) spots were observed in 14 active regions in 2K resolution (SN: 230) and 11 active regions in 1K resolution (SN: 152) SDO images on the visible solar disk.

Region 11861 [S09W32] was mostly unchanged. C5+ flare: C7.4 at 23:03 UTC.
Region 11863 [S19W62] decayed slowly and quietly.
Region 11864 [S23W14] decayed slowly. An M class flare is possible as long as the magnetic delta structure remains.
C5+ flare: C8.0/1F at 13:15 UTC.
Region 11867 [N23W43] was quiet and stable.
Region 11868 [N17E37] decayed slowly and quietly.
Region 11869 [N19E51] was mostly unchanged and quiet.
New region 11870 [S15W06] emerged on October 13 and was numbered the next day by SWPC.
New region 11871 [N14E64] rotated into view on October 13 and was split off from AR S2753.

Spotted regions not numbered by SWPC:
S2745 [N05W21] was quiet and stable.
S2753 [N18E59] was quiet and stable, the southeasternmost spots were split off into AR 11871.
New region S2757 [S17E83] rotated into view.
New region S2758 [N11E81] rotated into view.
New region S2759 [S27E25] emerged with a penumbra spot.
New region S2760 [S05E25] emerged with a penumbra spot.

Coronal mass ejections (CMEs)

October 12, 14: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
October 13: A partial halo CME was observed after an M1 flare in AR 11864 early in the day. There is a 20-30% chance the CME could reach Earth late on October 15 or on October 16.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH590) was in an Earth facing position on October 11-12.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to active on October 15 due to effects from CH590. If the CME observed early on October 13 reaches Earth, unsettled and active intervals will be possible on October 16, otherwise quiet conditions are likely. Quiet conditions are likely on October 17.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

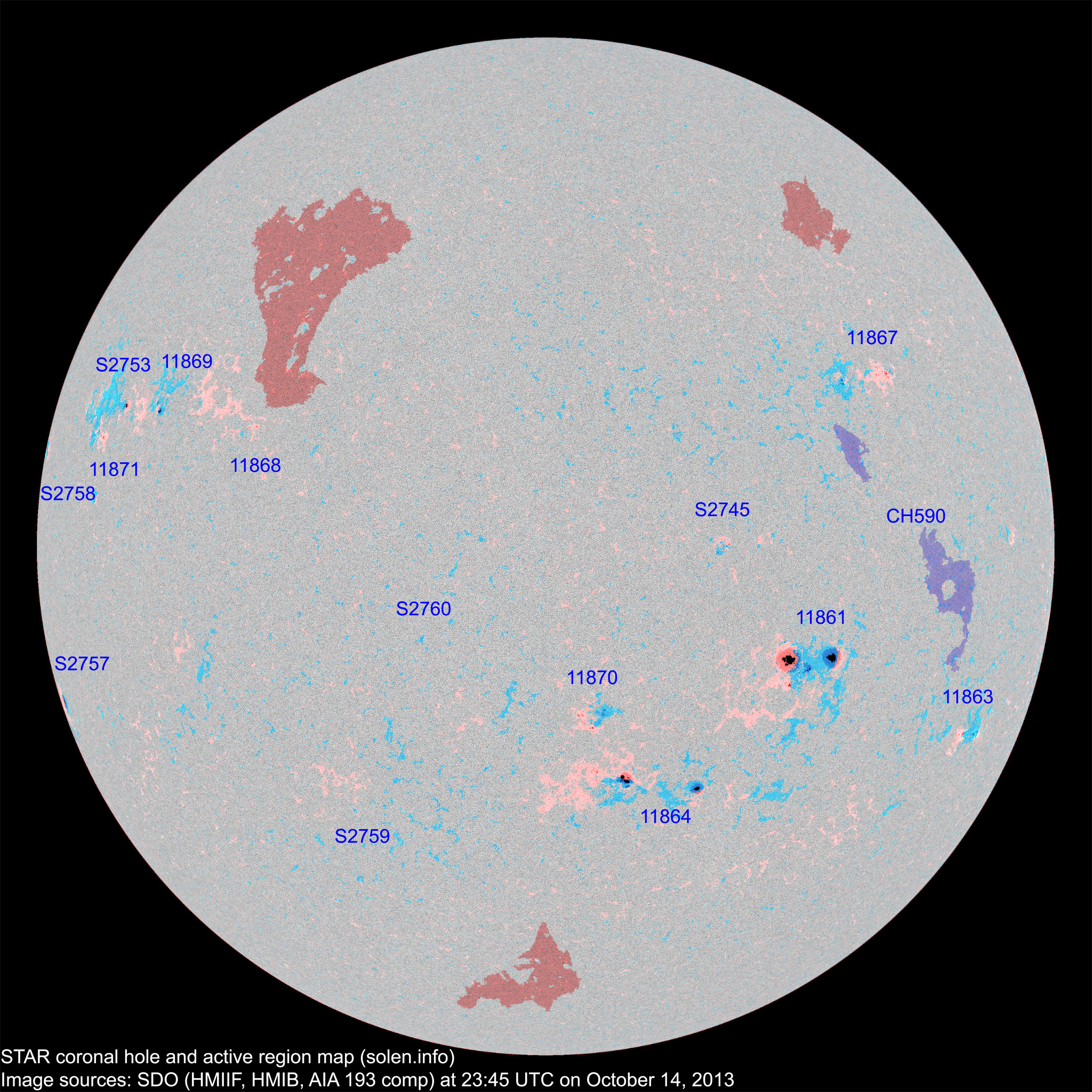

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11857 2013.10.01
2013.10.02
1     S07W90 0030 HSX

rotated out of view

11861 2013.10.06
2013.10.07

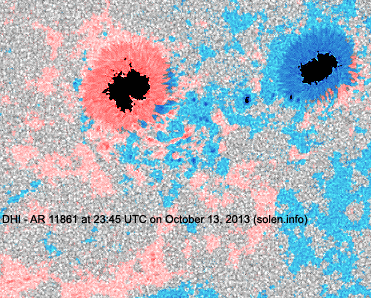

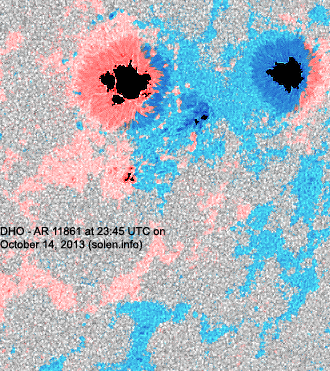

9 18 9 S08W32 0400 DHO DHO

area: 0540

11860 2013.10.06
2013.10.07
      S28W57         plage
11863 2013.10.06
2013.10.08
3 6 4 S18W62 0020 CRO BXO
11864 2013.10.07
2013.10.08

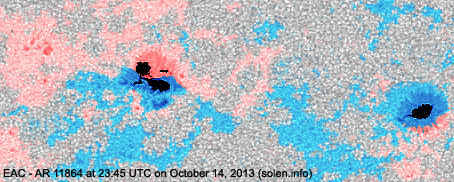

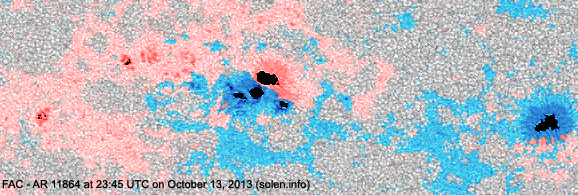

1 21 9 S23W20 0070 HSX EAC beta-delta

area: 0280

location: S23W14

11865 2013.10.08 10     S22W08 0120 CAI       part of AR 11864
11867 2013.10.09
2013.10.10
5 12 5 N24W44 0040 DAO DRO
S2743 2013.10.09       S12W50           plage
S2745 2013.10.10   5 2 N05W21 0011   CRO
S2746 2013.10.10       S25W29           plage
11868 2013.10.11
2013.10.13
1 1 1 N18E37 0010 AXX AXX
S2751 2013.10.11       N24W11           plage
11869 2013.10.12
2013.10.13

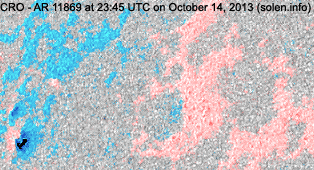

2 5 2 N19E51 0040 DSO CRO
S2753 2013.10.13   2 2 N19E51 0025   HRX
S2754 2013.10.13       N23W08         plage
11870 2013.10.13
2013.10.14
3 12 5 S13W06 0030 CRO CRO
S2756 2013.10.13       S08E44         plage
11871 2013.10.14 1 4 2 N16E62 0030 HSX BXO
S2757 2013.10.14   1 1 S17E83 0100   HSX
S2758 2013.10.14   1   N11E81 0006   AXX
S2759 2013.10.14   1   S27E25 0001   AXX
S2760 2013.10.14   1   S05E14 0001   AXX
Total spot count: 36 90 42
Sunspot number: 136 230 152  (total spot count + 10 * number of spotted regions)
Weighted SN: 82 125 77  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 82 81 84 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
likely cycle 24 max
8.81
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 57.5 (-0.9) 10.56
2013.04 124.8 72.4 (56.2 projected, -1.3) 5.40
2013.05 131.4 78.7 (55.8 projected, -0.4) 9.73
2013.06 110.1 52.5 (56.0 projected, +0.2) 12.60
2013.07 115.5 57.0 (56.1 projected, +0.1) 9.47
2013.08 114.6 66.0 (55.9 projected, -0.2) 8.27
2013.09 102.6 36.9 (55.4 projected, -0.5) 5.23
2013.10  115.6 (1) 41.3 (2A) / 91.5 (2B) / 51.9 (2C) (53.9 projected, -1.5) (10.67)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
