The geomagnetic field was quiet to minor storm on October 9. Solar wind speed at SOHO ranged between 444 and 612 km/s under the influence of CME effects.
Solar flux measured at 20h UTC on 2.8 GHz was 113.4 (increasing 20.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 111.8. The Potsdam WDC planetary A index was 30 (STAR Ap - based on the mean of three hour interval ap indices: 29.5). Three hour interval K indices: 55543323 (planetary), 44544323 (Boulder).
The background x-ray flux was at the class B3 level.
At the time of counting spots (see image time) spots were observed in 10 active regions in 2K resolution (SN: 193) and 8 active regions in 1K resolution (SN: 125) SDO images on the visible solar disk.

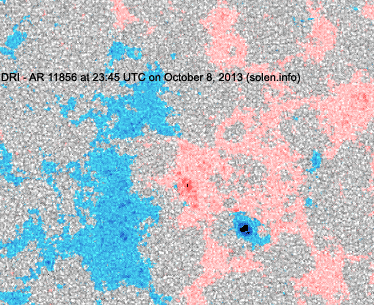

Region 11856 [N08W22] decayed slowly and quietly.
Region 11857 [S07W23] was quiet and stable.

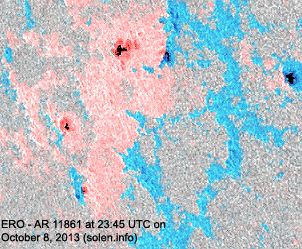

Region 11861 [S09E36] developed quickly in the northern central section.
C flares are possible.
Region 11862 [S22W47] developed slowly and was quiet.
Region 11863 [S18E07] decayed slowly and quietly.
Region 11864 [S22E58] was generally unchanged with a significant magnetic
delta structure in the trailing spot section. Further M class flaring is likely.
C5+ flare: M2.8 at 01:48 UTC.
New region 11866 [S14W61] was first observed with spots on October
2 and was numbered by SWPC 7 days later as the region decayed.
Spotted regions not numbered by SWPC:
New region S2741 [N23E22] emerged with a few spots.
New region S2743 [S12E15] emerged with penumbra spots.
New region S2744 [S26W14] emerged with penumbra spots.
October 7-9: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A recurrent coronal hole (CH589) in the northern hemisphere was in an Earth facing position on October 5-8. A recurrent trans equatorial coronal hole (CH590) could rotate into an Earth facing position on October 11.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to very poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to active on October 10 due to CME effects becoming quiet to unsettled on October 11 and quiet on October 12-13. Effects from CH590 could cause some unsettled and active intervals on October 14-15.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

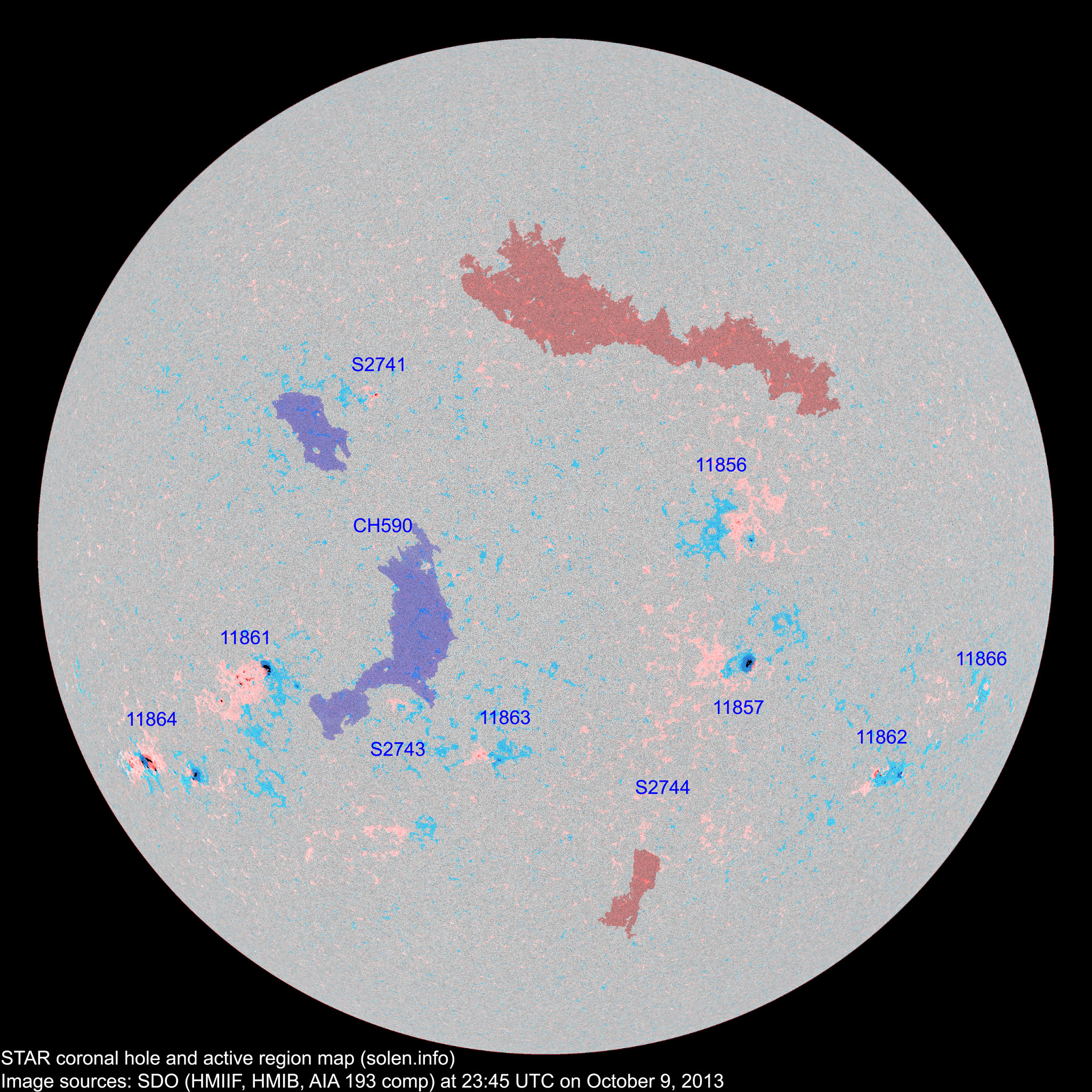

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11857 | 2013.10.01 2013.10.02 |
1 | 7 | 3 | S07W24 | 0110 | HSX | CSO |
 |
 |
area: 0170
|
| 11856 | 2013.10.01 2013.10.02 |
8 | 9 | 5 | N07W22 | 0010 | BXO | CRO |
 |
 |
|
| 11866 | 2013.10.02 2013.10.09 |
2 | 2 | S16W63 | 0010 | BXO | AXX |
 |
 |
area: 0003 location: S14W61 |
|
| 11859 | 2013.10.02 2013.10.04 |
S15W79 | plage | ||||||||
| S2732 | 2013.10.03 | S25W15 | plage | ||||||||
| 11862 | 2013.10.03 2013.10.07 |
3 | 10 | 8 | S23W49 | 0010 | BXO | DRI |
 |
 |
area: 0065 location: S22W47 |
| S2734 | 2013.10.04 | N24W46 | plage | ||||||||
| 11861 | 2013.10.06 2013.10.07 |
8 | 27 | 9 | S13E37 | 0060 | CAO | EAI |
 |
 |
location: S09E36 area: 0120 |
| 11860 | 2013.10.06 2013.10.07 |
S28E13 |
 |
plage | |||||||
| 11863 | 2013.10.06 2013.10.08 |
2 | 8 | 5 | S18E05 | 0010 | AXX | BXO |
 |
 |
|
| 11864 | 2013.10.07 2013.10.08 |
2 | 22 | 11 | S22E48 | 0070 | HAX | EAC |
 |
 |
beta-gamma-delta area: 0400 location: S22E58 |
| 11865 | 2013.10.08 | 5 | S21E58 | 0210 | DAO | part of AR 11864 | |||||
| S2739 | 2013.10.07 | N17W29 | plage | ||||||||
| S2740 | 2013.10.08 | N05E05 |
 |
plage | |||||||
| S2741 | 2013.10.09 | 5 | 3 | N23E22 | 0016 | CRO |
 |
||||
| S2743 | 2013.10.09 | 2 | 1 | S12E15 | 0005 | AXX |
 |
||||
| S2744 | 2013.10.09 | 2 | S26W14 | 0004 | AXX |
 |
|||||
| Total spot count: | 31 | 95 | 45 | ||||||||
| Sunspot number: | 111 | 195 | 125 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 51 | 119 | 69 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 67 | 68 | 69 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2011.11 | 153.5 (cycle peak) | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) likely cycle 24 max |
8.81 |
| 2012.06 | 119.6 | 64.5 | 58.9 (-2.8) | 10.08 |
| 2012.07 | 133.9 | 66.5 | 57.8 (-1.1) | 13.90 |
| 2012.08 | 115.4 | 63.0 | 58.2 (+0.4) | 7.96 |
| 2012.09 | 122.9 | 61.4 | 58.1 (-0.1) | 8.07 |
| 2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
| 2012.11 | 121.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 72.4 | (56.2 projected, -1.3) | 5.40 |
| 2013.05 | 131.4 | 78.7 | (55.8 projected, -0.4) | 9.73 |
| 2013.06 | 110.1 | 52.5 | (56.0 projected, +0.2) | 12.60 |
| 2013.07 | 115.5 | 57.0 | (56.1 projected, +0.1) | 9.47 |
| 2013.08 | 114.6 | 66.0 | (55.9 projected, -0.2) | 8.27 |
| 2013.09 | 102.6 | 36.9 | (55.4 projected, -0.5) | 5.23 |
| 2013.10 | 109.7 (1) | 21.3 (2A) / 73.4 (2B) / 43.6 (2C) | (53.9 projected, -1.5) | (12.8) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
