Recent activity

The geomagnetic field was very quiet on November 21. Solar wind speed at SOHO ranged between 302 and 403 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 141.2 (decreasing 20.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 125.6. The Potsdam WDC planetary A index was 1 (STAR Ap - based on the mean of three hour interval ap indices: 0.6). Three hour interval K indices: 00000001 (planetary), 00002200 (Boulder).

The background x-ray flux was at the class B6 level.

At the time of counting spots (see image time) spots were observed in 11 active regions in 2K resolution (SN: 170) and 8 active regions in 1K resolution (SN: 105) SDO images on the visible solar disk.

Region 11895 [S17W77] decayed slowly.
Region 11896 [N10W71] was quiet and stable.
Region 11899 [N06W43] was quiet and stable.
Region 11903 [S11E23] was quiet and stable.

Spotted regions not numbered by SWPC:
S2838 [S11W55] developed slowly and quietly.
S2839 [S17W12] was quiet and stable.
S2843 [N11W09] was quiet and stable.
S2847 [N11W42] emerged as a region to the north of AR 11899.
New region S2849 [N14W39] emerged with a few spots.
New region S2850 [S08W69] emerged with penumbra spots.
New region S2851 [S12E12] emerged with a penumbra spot.

The only noteworthy flare of the day was an M1.2 event at 11:11 UTC from AR 11893 behind the southwest limb.

Coronal mass ejections (CMEs)

November 20-21: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
November 19: A halo CME was observed after the X1 event in AR 11893. Most of the ejecta was observed off the southwest limb and the south pole. Faint extensions were observed elsewhere.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on November 22-24. If the CME observed on Nov.19 arrives we could see unsettled and active intervals on Nov.22-23.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

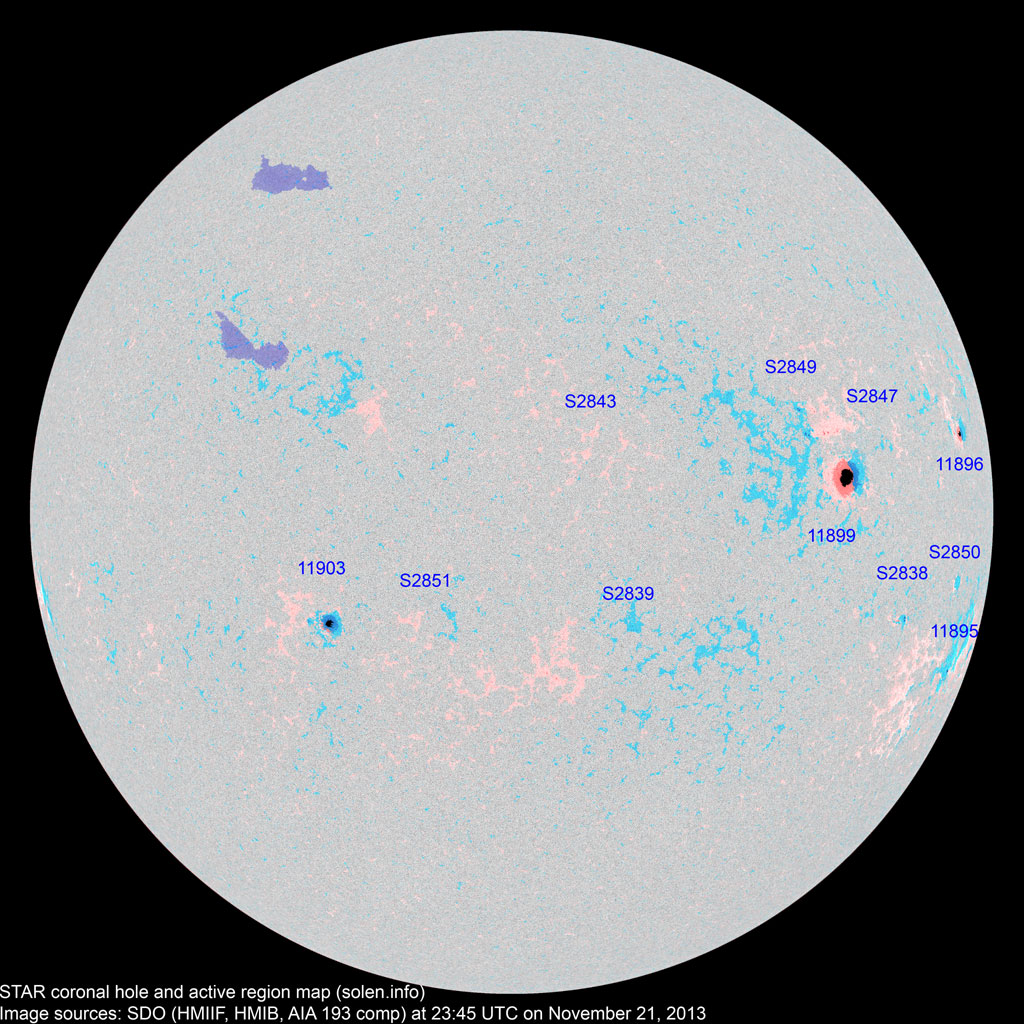

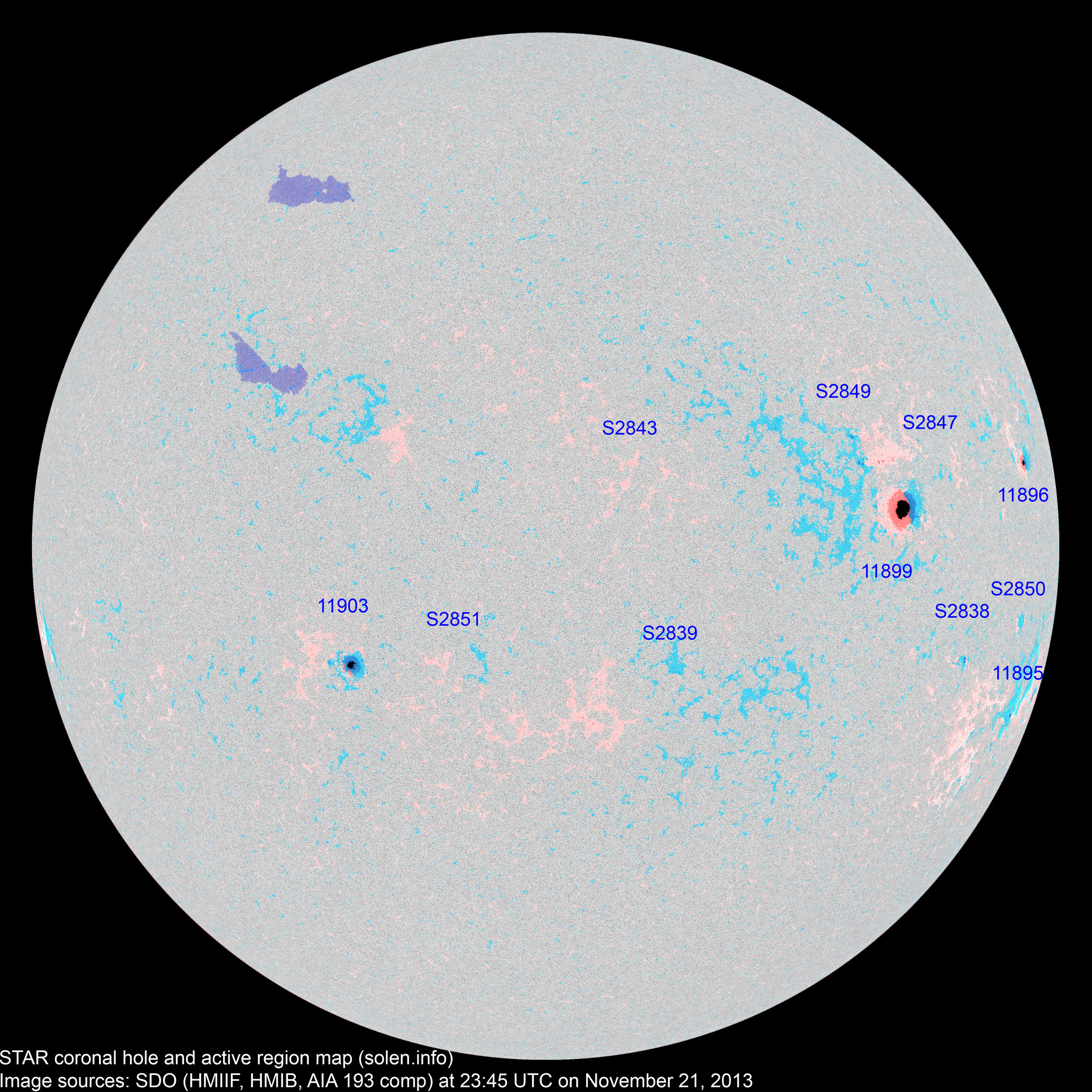

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11895 2013.11.09
2013.11.10
4 2 1 S16W79 0050 HSX HRX

area: 0040

location: S17W77

includes AR 11897

11896 2013.11.10 4 3 2 N12W71 0070 HSX CSO



11897 2013.11.11 5     S18W72 0040 CSO       magnetically part of 11895

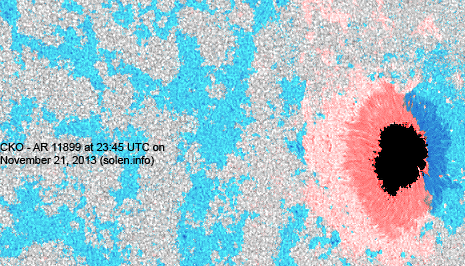

11899 2013.11.12 16 5 2 N07W45 0600 DKO CKO

area: 0850

S2828 2013.11.12       S16W52           plage
11902 2013.11.13
2013.11.14
      N20W89           plage
S2834 2013.11.14       N11W54         plage
S2835 2013.11.14       N01W35           plage
S2837 2013.11.16       N14E21         plage
S2838 2013.11.16   4 3 S11W55 0025   CRO

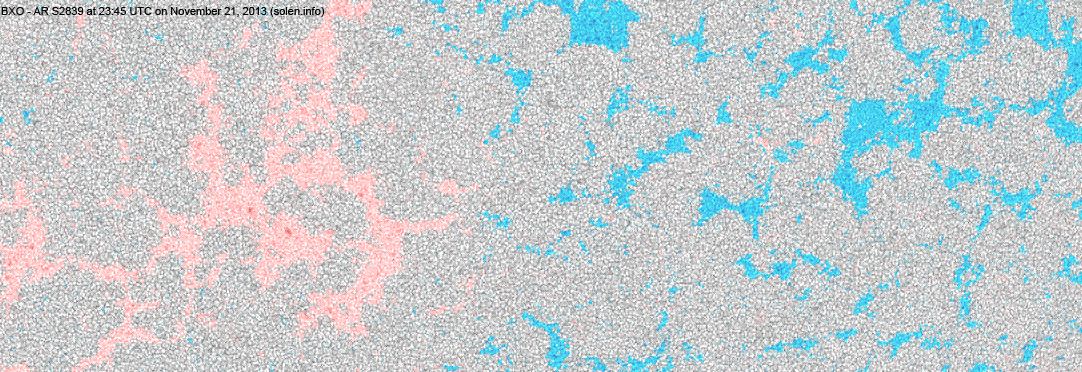

S2839 2013.11.16   10 3 S17W12 0025   BXO images/AR_S2839_20131121_2345.png images\AR_S2839_20131120_2345.png
11903 2013.11.17 6 10 4 S12E23 0130 CSO CSO area: 0230
S2843 2013.11.17   2   N11W09 0005   AXX
S2844 2013.11.18       S04E08           plage
S2845 2013.11.18       S33E42           plage
S2846 2013.11.18       S23E06           plage
S2847 2013.11.19   15 7 N11W42 0045   CRI
S2849 2013.11.21   6 3 N14W39 0020   BXO
S2850 2013.11.21   2   S08W69 0007   BXO
S2851 2013.11.21   1   S12E12 0002   AXX
Total spot count: 35 60 25
Sunspot number: 85 170 105  (total spot count + 10 * number of spotted regions)
Weighted SN: 65 89 54  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 51 60 58 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possibe cycle 24 max
8.81
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 57.5 (-0.9) 10.56
2013.04 124.8 72.4 57.9 (+0.4) 5.40
2013.05 131.4 78.7 (59.3 projected, +1.4) 9.73
2013.06 110.1 52.5 (59.7 projected, +0.4) 12.60
2013.07 115.5 57.0 (60.0 projected, +0.3) 9.47
2013.08 114.6 66.0 (60.3 projected, +0.3) 8.27
2013.09 102.6 36.9 (60.2 projected, -0.1) 5.23
2013.10  132.1 85.6 (58.7 projected, -1.5) 7.71
2013.11  156.6 (1) 103.8 (2A) / 148.3 (2B) / 89.3 (2C) (56.6 projected, -2.1) (6.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
