Recent activity

The geomagnetic field was quiet on November 18. Solar wind speed at SOHO ranged between 350 and 456 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 163.3 (increasing 17.0 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 125.2. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.9). Three hour interval K indices: 20100000 (planetary), 20111211 (Boulder).

The background x-ray flux was at the class B6 level.

At the time of counting spots (see image time) spots were observed in 15 active regions in 2K resolution (SN: 311) and 11 active regions in 1K resolution (SN: 170) SDO images on the visible solar disk.

Region 11893 [S12W64] decayed slowly losing penumbral area. The region has a magnetic delta structure in the largest penumbra and could produce M class flares. C5+ flare: long duration C7.0 event peaking at 14:15 UTC.
Region 11895 [S18W32] decayed further and was mostly quiet.
Region 11896 [N10W31] was quiet and stable.
Region 11899 [N05W03] was quiet and stable. Other than the large penumbra the region currently has little magnetic complexity. A major flare is still possible.
Region 11900 [S20W66] decayed slowly and was mostly quiet.
Region 11902 [N18W34] decayed slowly and quietly retaining only trailing polarity penumbra spots.
Region 11903 [S11E62] was quiet and stable.

Spotted regions not numbered by SWPC:
S2834 [N09W12] decayed slowly and quietly.
S2837 [N12E57] was quiet and stable.
S2839 [S13E25] gained trailing penumbra spots.
S2843 [N10W31] was quiet and stable.
New region S2844 [S03E47] emerged with penumbra spots.
New region S2845 [S33E68] emerged with a penumbra spot.
New region S2846 [S23E32] emerged penumbra spots.

Coronal mass ejections (CMEs)

November 16-18: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near an Earth facing position.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on November 19-21.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

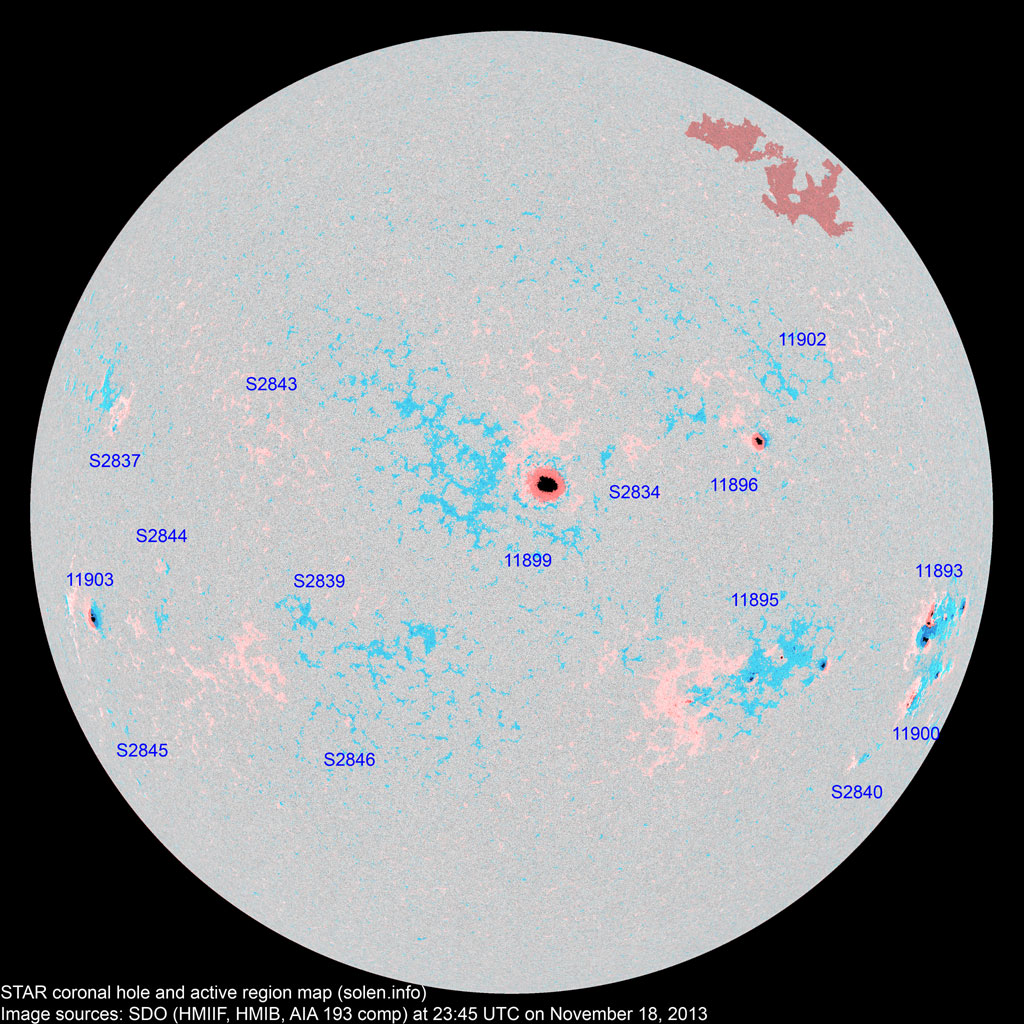

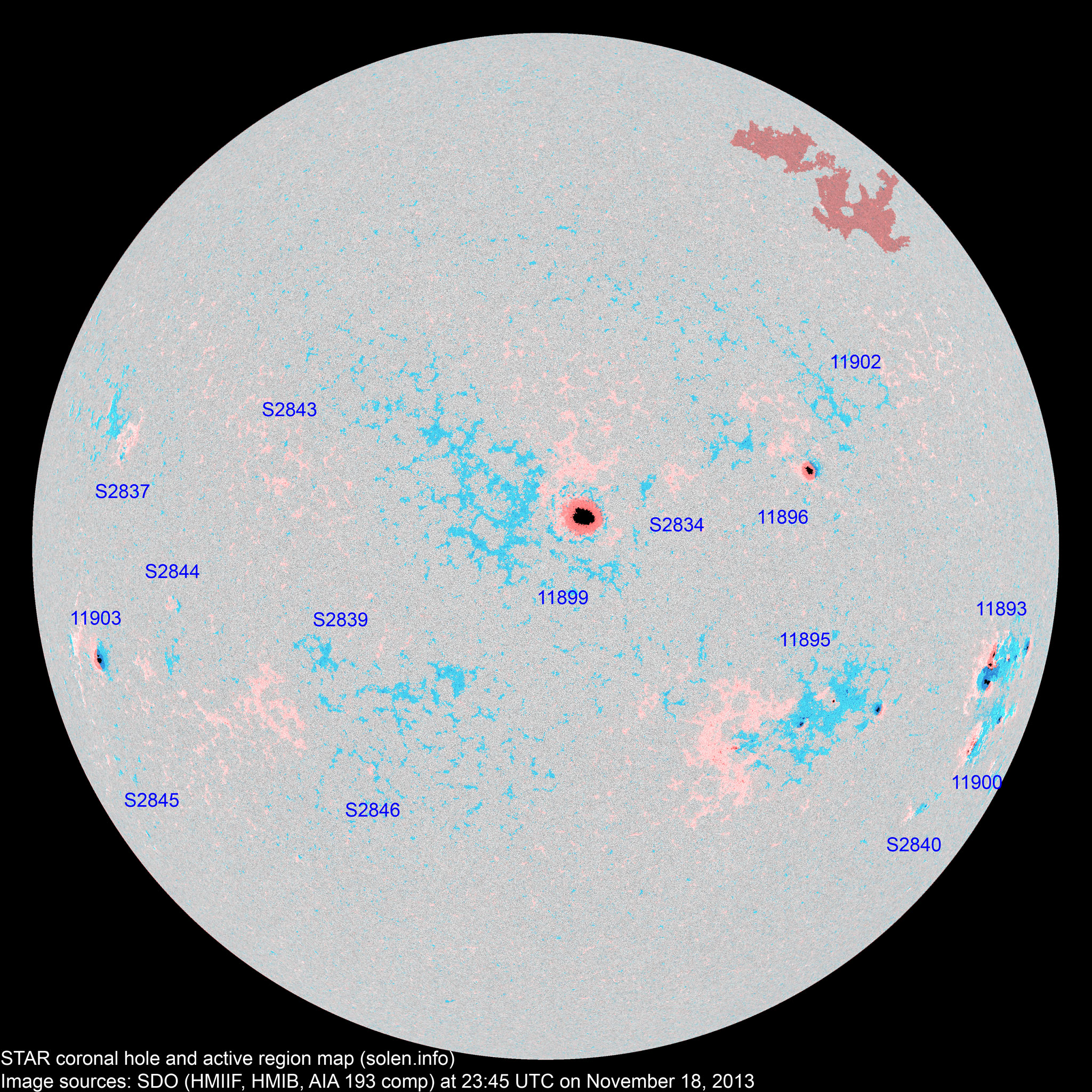

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11893 2013.11.07
2013.11.08
15 24 10 S13W66 0480 EKI EKC

beta-gamma-delta

11898 2013.11.08
2013.11.11
      S26W79           plage
11895 2013.11.09
2013.11.10
1 53 21 S16W42 0040 HSX FSI beta-gamma

area: 0150

location: S18W32

includes AR 11897

11896 2013.11.10 1 4 3 N10W32 0100 HSX CSO

area: 0190

11897 2013.11.11 28     S19W29 0100 FAI       magnetically part of 11895
11899 2013.11.12 6 22 6 N04W04 0610 HKX CKO

beta-gamma

area: 0850

S2828 2013.11.12       S16W13           plage
11900 2013.11.12
2013.11.14
10 20 8 S21W67 0070 DAI DAO
11902 2013.11.13
2013.11.14
1 3   N20W47 0010 AXX AXX
S2832 2013.11.14       S30W59           plage
S2834 2013.11.14   4 2 N09W12 0012   BXO
S2835 2013.11.14       N01W07           plage
S2837 2013.11.16   4 1 N12E57 0010   BXO
S2838 2013.11.16       S11W15         plage
S2839 2013.11.16   16 4 S13E25 0030   AXX
S2840 2013.11.16   1 1 S29W58 0007   AXX
11903 2013.11.17 2 2 2 S11E63 0140 HSX HSX area: 0240
S2842 2013.11.17       N15W36
S2843 2013.11.17   3 2 N10E31 0007   AXX
S2844 2013.11.18   2   S04E47 0004   AXX
S2845 2013.11.18   1   S33E68 0002   AXX
S2846 2013.11.18   2   S23E32 0002   BXO
Total spot count: 64 161 60
Sunspot number: 144 311 170  (total spot count + 10 * number of spotted regions)
Weighted SN: 109 201 100  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 86 109 94 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possibe cycle 24 max
8.81
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 57.5 (-0.9) 10.56
2013.04 124.8 72.4 57.9 (+0.4) 5.40
2013.05 131.4 78.7 (59.3 projected, +1.4) 9.73
2013.06 110.1 52.5 (59.7 projected, +0.4) 12.60
2013.07 115.5 57.0 (60.0 projected, +0.3) 9.47
2013.08 114.6 66.0 (60.3 projected, +0.3) 8.27
2013.09 102.6 36.9 (60.2 projected, -0.1) 5.23
2013.10  132.1 85.6 (58.7 projected, -1.5) 7.71
2013.11  158.2 (1) 94.0 (2A) / 156.7 (2B) / 92.4 (2C) (56.6 projected, -2.1) (6.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
