Last major update issued on March 16, 2013 at 06:50 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update March 1, 2013)] [Cycle 24 progress (last update March 2, 2013) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update March 1, 2013)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update March 1, 2013)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update March 1, 2013)]

[POES auroral activity level since October 2009 - updated January 26, 2013]
[Solar polar fields vs solar cycles - updated February 3, 2013]
[Presentation 3rd SSN Workshop, Tucson, 2013 (pdf)]

Recent activity

The geomagnetic field was quiet to unsettled on March 15. Solar wind speed at SOHO ranged between 321 and 469 km/s. A weak solar wind shock was observed at 04:46 UTC at SOHO on March 15, likely the arrival of a CME observed on March 12.

Solar flux measured at 20h UTC on 2.8 GHz was 123.1 (increasing 17.6 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.9). Three hour interval K indices: 13221001 (planetary), 03321201 (Boulder).

The background x-ray flux was at the class B5 level.

At midnight UTC the visible solar disk had 16 spotted active regions (in 2K resolution SDO images).

Region 11689 [S19W71] decayed slowly with only a single trailing spot visible.
Region 11691 [N12W53] decayed slowly and quietly.
Region 11692 [N09W03] was mostly unchanged and produced the only interesting event of the day, a long duration M1.1/1F event peaking at 06:58 UTC. A wide full halo CME was observed in STEREO A/B and LASCO.
Region 11694 [N15W02] decayed slowly and quietly.
Region 11695 [N09E19] was quiet and stable.
Region 11696 [N04W23] decayed slowly and was mostly quiet.
Region 11697 [N15W35] was quiet and stable.
Region 11698 [S19W44] developed further and still has polarity intermixing.

Spotted regions not numbered by SWPC:
New region S2292 [S26E49] emerged with several spots.
New region S2293 [S13E80] rotated into view.
New region S2294 [N15E42] emerged with tiny spots.
New region S2295 [S24W16] emerged with a penumbra spot.
New region S2296 [N03W08] emerged with penumbra spots.
New region S2297 [N13W10] emerged to the west of AR 11694 with several spots.
New region S2298 [N09W47] emerged to the southeast of AR 11691.
New region S2299 [N19E71] rotated into view.

Coronal mass ejections (CMEs)

March 13: A CME was observed off the east limbs early in the day following a filament eruption near ARs 11696 and 11692 late on March 12. No obvious Earth bound components were observed.
March 14: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
March 15: A symmetrical full halo CME was observed after the M1.1 LDE in AR 11692. The CME will likely reach Earth on March 17.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small coronal hole (CH560) in the southern hemisphere was Earth facing on March 14.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to active on March 16. The CME expected to arrive on March 17 could cause minor to major storm levels with a chance of severe storm intervals. Quiet to minor storm conditions are likely on March 18.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

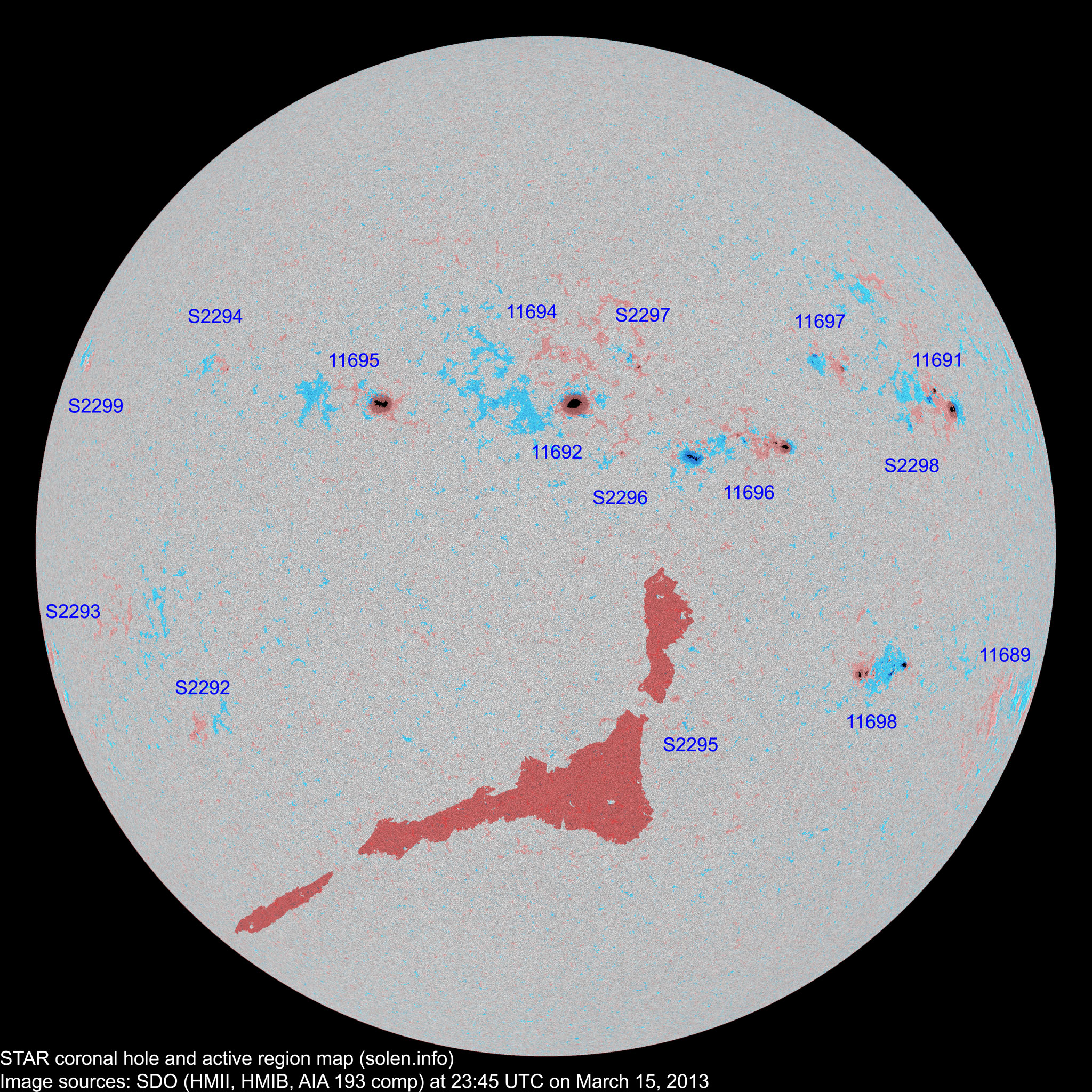

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11689 2013.03.03
2013.03.04
  1   S18W83 0003   AXX location: S19W71
11690 2013.03.06       N25W50         plage
11691 2013.03.07
2013.03.08
5 8 7 N12W51 0090 CSO DSO area: 0190

location: N12W53

S2278 2013.03.08       S16W59         plage
11692 2013.03.09 3 14 5 N09W03 0180 HSX CHO

area: 0290

11694 2013.03.09
2013.03.10
1 5 2 N17W05 0010 HRX BXO location: N15W02
11695 2013.03.10
2013.03.11
2 9 2 N10E18 0110 HAX CSO area: 0230

location: N09E19

11696 2013.03.11 14 15 8 N05W22 0140 EAI ESO beta-gamma

area: 0270

location: N04W23

S2286 2013.03.11       N09W43           plage
S2288 2013.03.12       N13W38           plage
11697 2013.03.13
2013.03.14
4 10 4 N15W35 0040 CAO DRO
11698 2013.03.14 6 21 11 S19W42 0080 CSO DAI beta-gamma
S2291 2013.03.14       S13W39         plage
S2292 2013.03.15   5   S26E49 0015   BXO
S2293 2013.03.15   1   S13E80 0004   AXX
S2294 2013.03.15   2 1 N15E42 0008   BXO
S2295 2013.03.15   1   S24W16 0002   AXX
S2296 2013.03.15   2 1 N03W08 0012   AXX
S2297 2013.03.15   4 3 N13W10 0020   CRO
S2298 2013.03.15   4 2 N09W47 0013   BXO
S2299 2013.03.15   1   N19E71 0002   AXX
Total spot count: 35 103 46
Sunspot number: 105 263 156  (total spot count + 10 * number of spotted regions)
Weighted SN: 68 141 84  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 63 92 86 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle max) 96.7 (cycle max) 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.7 (-1.2) 13.90
2012.08 115.4 63.0 58.1 (+0.4) 7.96
2012.09 122.9 61.4 (57.9 projected, -0.2) 8.07
2012.10 123.3 53.3 (57.0 projected, -0.9) 9.97
2012.11 121.3 61.4 (56.1 projected, -0.9) 7.08
2012.12 108.6 40.8 (54.9 projected, -1.2) 3.44
2013.01 127.1 62.9 (53.6 projected, -1.3) 4.69
2013.02 104.3 38.0 (52.5 projected, -1.1) 6.11
2013.03 117.2 (1) 45.6 (2A) / 94.8 (2B) / 50.8 (2C) (51.5 projected, -1.0) (7.20)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
