Last major update issued on June 15, 2013 at 05:30 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update June 1, 2013)] [Cycle 24 progress (last update June 1, 2013) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update June 1, 2013)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update June 1, 2013)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update June 6, 2013)]

[POES auroral activity level since October 2009 - updated January 26, 2013]
[Solar polar fields vs solar cycles - updated May 12, 2013]
[Presentation 3rd SSN Workshop, Tucson, 2013 (pdf)]

Recent activity

The geomagnetic field was very quiet on June 14. Solar wind speed at SOHO ranged between 291 and 364 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 109.1 (decreasing 23.0 over the last solar rotation). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.0). Three hour interval K indices: 10010011 (planetary), 11011212 (Boulder).

The background x-ray flux was at the class B3 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11768 [S12W46] developed further early in the day with the large opposite polarity areas connecting. Late in the day the region had weak polarity intermixing, C and minor M class flares are possible.
Region 11769 [S23E50] was quiet and stable.
Region 11770 [S14E56] was quiet and stable.
New region 11771 [S12E65] rotated into view on June 13 and was numbered by SWPC the next day.
New region 11772 [S21E54] emerged on June 13 and developed further on June 14 when it received its NOAA number.

Spotted regions not numbered by SWPC:
S2469 [N13W23] was quiet and stable.
New region S2479 [N04E78] rotated into view.
New region S2480 [S19E74] rotated into view with several spots.
New region S2481 [S26E78] rotated into view with a tiny spot.

Coronal mass ejections (CMEs)

June 12-14: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on June 15-17.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

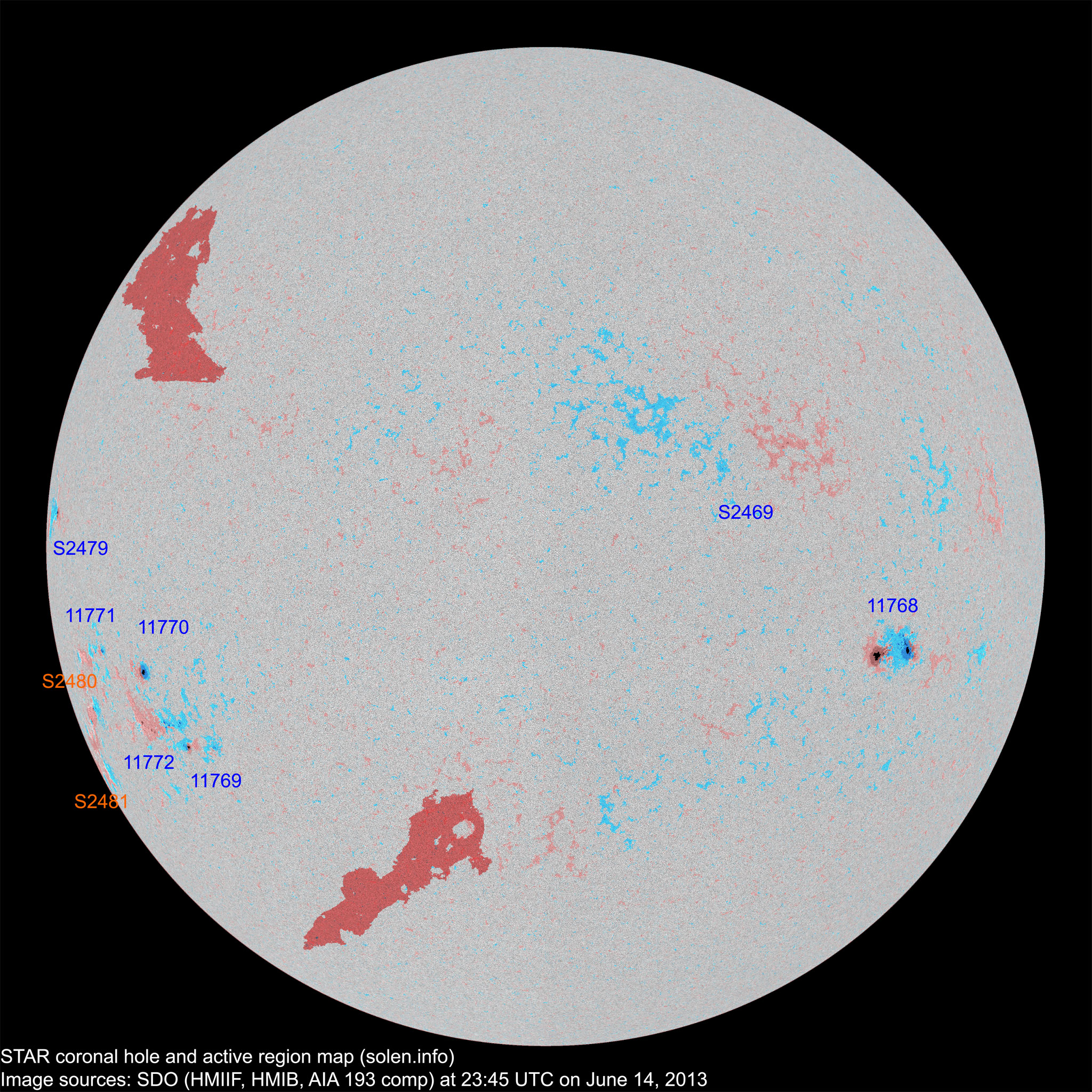

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11767 2013.06.07
2013.06.09
      S17W28           plage
S2467 2013.06.07       S13W54         plage
S2468 2013.06.08       S32W05         plage
S2469 2013.06.09   11 3 N13W23 0020   BXO images/AR_S2469_20130614_2345.jpg images/AR_S2469_20130613_2345.jpg
S2470 2013.06.09       S24W47           plage
11768 2013.06.11
2013.06.12
13 24 12 S11W46 0320 DKO DKO beta-gamma

area: 0500

S2473 2013.06.11       S13W41           plage
11770 2013.06.12
2013.06.13
1 1 1 S13E53 0040 HSX HSX area: 0100

location: S14E56

11769 2013.06.12
2013.06.13
3 4 3 S22E49 0020 CRO CRO area: 0035
11772 2013.06.13
2013.06.14
5 16 9 S20E55 0010 BXO DRI area: 0050
11771 2013.06.13
2013.06.14
1 3 1 S12E64 0020 HRX HRX
S2478 2013.06.13       N07E07         plage
S2479 2013.06.14   2 1 N04E78 0020   HRX
S2480 2013.06.14   4 2 S19E74 0014   BXO
S2481 2013.06.14   1   S26E78 0001   AXX
Total spot count: 23 66 32
Sunspot number: 73 156 112  (total spot count + 10 * number of spotted regions)
Weighted SN: 44 93 59  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 44 55 62 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.7 (-1.2) 13.90
2012.08 115.4 63.0 58.1 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.0) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 (59.5 projected, -0.2) 3.44
2013.01 127.1 62.9 (59.1 projected, -0.4) 4.69
2013.02 104.3 38.0 (59.3 projected, +0.2) 6.11
2013.03 111.3 57.9 (58.9 projected, -0.4) 10.56
2013.04 124.8 72.4 (58.6 projected, -0.3) 5.40
2013.05 131.4 78.7 (58.7 projected, +0.1) 9.73
2013.06 103.5 (1) 25.7 (2A) / 55.0 (2B) / 53.7 (2C) (59.0 projected, +0.3) (12.11)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
