Recent activity

The geomagnetic field was very quiet on July 2. Solar wind speed at SOHO ranged between 361 and 461 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 114.3 (increasing 5.5 over the last solar rotation). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.0). Three hour interval K indices: 10110111 (planetary), 11112211 (Boulder).

The background x-ray flux was at the class B5 level.

At midnight UTC the visible solar disk had 16 spotted active regions (in 2K resolution SDO images).

Region 11778 [S16W50] was quiet and stable.
Region 11780 [S11W78] developed signficantly in the leader spots and has polarity intermixing. C flares are possible.
Region 11781 [N22W57] decayed slowly and quietly.
Region 11783 [N07E34] was quiet and stable.
Region 11784 [S15E18] was quiet and stable.
Region 11785 [S10E68] developed and has a magnetic delta structure at the northern end of the the main penumbra. M class flares, even major ones, are possible. C5+ flares: impulsive C7.1 at 17:49, C7.2 at 23:58 UTC.
New region 11786 [S31E18] emerged on July 1 and was number by SWPC the next day.

Spotted regions not numbered by SWPC:
S2520 [S16E58] developed slowly and quietly.
S2521 [N12E17] was quiet and stable.
New region S2523 [S25E62] emerged with a penumbra spot.
New region S2524 [S15E82] rotated into view.
New region S2525 [N10E47] emerged with a penumbra spot.
New region S2526 [N09E68] rotated into view.
New region S2527 [S04W42] emerged with a penumbra spot.
New region S2528 [S02W52] emerged with a penumbra spot.
New region S2529 [N18W05] emerged with a penumbra spot.

Coronal mass ejections (CMEs)

June 30 - July 2: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on July 3-5.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

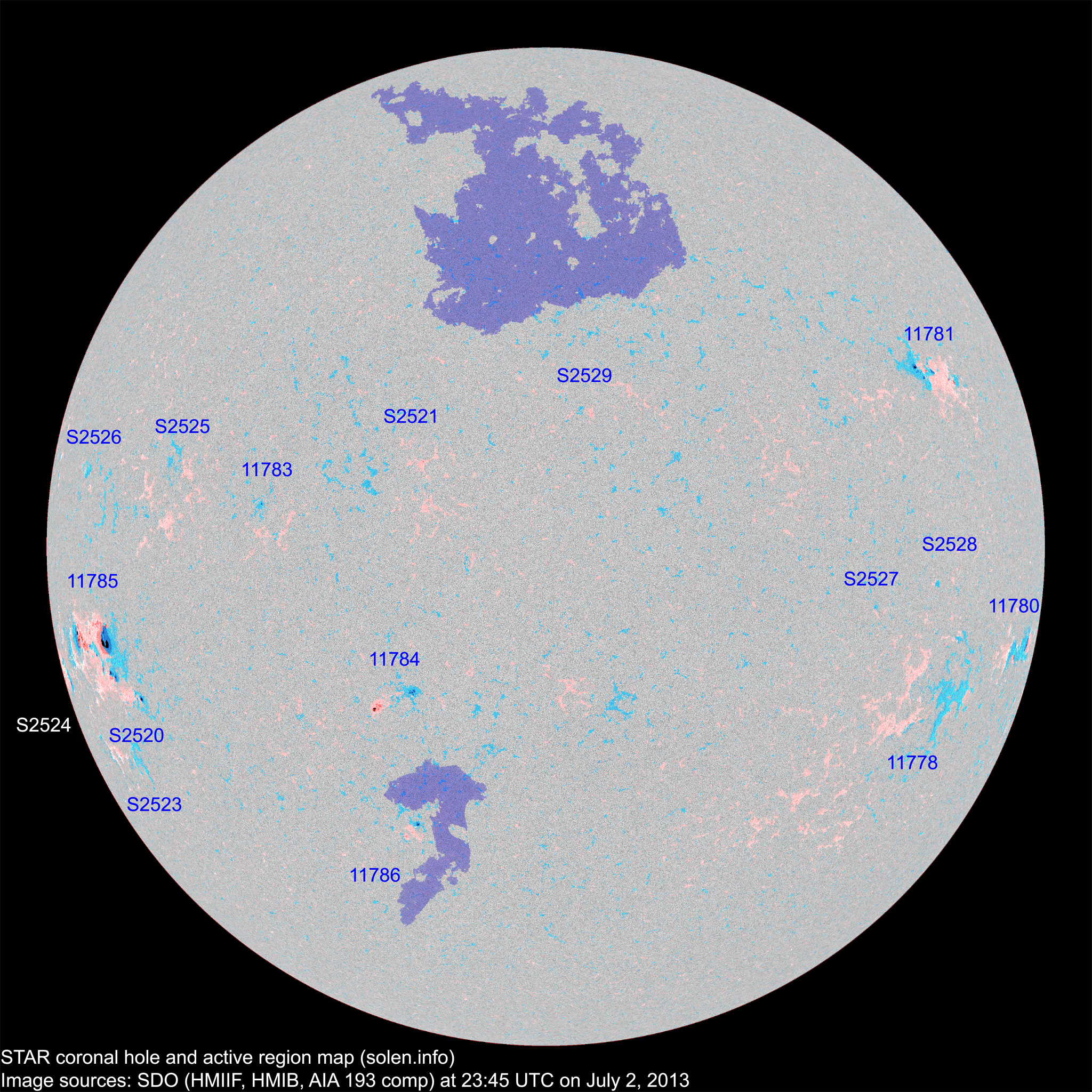

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11777 2013.06.19
2013.06.20
1     S17W93 0100 HSX     rotated out of view
11778 2013.06.22   2   S18W56 0004   AXX
S2498 2013.06.22       N15W44           plage
S2502 2013.06.24       S08W56         plage
11779 2013.06.24
2013.06.25
      N17W42           plage
11780 2013.06.25
2013.06.26
2 9 3 S11W78 0030 HRX DAO beta-gamma

area: 0160

S2508 2013.06.26       N03W44           plage
11782 2013.06.27
2013.06.28
      S15W09           plage
S2510 2013.06.27       S11W22           plage
11781 2013.06.27
2013.06.28
12 18 7 N22W57 0110 DSI CSI
S2514 2013.06.28       S36W45           plage
11783 2013.06.29
2013.06.30
1 2 1 N07E33 0010 HRX BXO



11784 2013.06.30
2013.07.01
5 15 8 S14E17 0040 CSO DRO area: 0070
S2517 2013.06.30       N12W29           plage
11785 2013.07.01 8 30 16 S11E62 0300 FHO EKC beta-gamma-delta

area: 0700

location: S10E68

11786 2013.07.01
2013.07.02
2 3 2 S31E18 0030 CRO CRO
S2519 2013.07.01       S17E31         plage
S2520 2013.07.01   6 2 S16E58 0030   CRO
S2521 2013.07.01   2 1 N12E17 0004   BXO
S2522 2013.07.01       S21E08         plage
S2523 2013.07.02   1   S25E62 0003   AXX
S2524 2013.07.02   2 1 S15E82 0020   CRO
S2525 2013.07.02   1   N10E47 0002   AXX
S2526 2013.07.02   1   N09E68 0002   AXX
S2527 2013.07.02   1   S04W42 0002   AXX
S2528 2013.07.02   1   S02W52 0001   AXX
S2529 2013.07.02   1   N18W05 0002   AXX
Total spot count: 31 95 41
Sunspot number: 101 255 131  (total spot count + 10 * number of spotted regions)
Weighted SN: 65 127 73  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 61 89 72 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.7 (-1.2) 13.90
2012.08 115.4 63.0 58.1 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.0) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 (58.7 projected, -0.9) 4.69
2013.02 104.3 38.0 (58.3 projected, -0.4) 6.11
2013.03 111.3 57.9 (57.9 projected, -0.4) 10.56
2013.04 124.8 72.4 (57.5 projected, -0.4) 5.40
2013.05 131.4 78.7 (57.6 projected, +0.1) 9.73
2013.06 110.1 52.5 (57.9 projected, +0.3) 12.06
2013.07 111.1 (1) 6.5 (2A) / 101.5 (2B) / 51.7 (2C) (58.0 projected, +0.1) (4.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
